Hussmann D5X-E Manuale utente

All equipment should be thoroughly examined for

shipping damage before and during unloading.

This equipment has been carefully inspected at our

factory. Any claim for loss or damage must be made

to the carrier. The carrier will provide any necessary

inspection reports and/or claim forms.

Every effort is made to ship all parts for the kit. The

Hussmann Service Center can be reached by calling

• from U.S. & Canada 1-800-922-1919 •

• from Mexico 1-800-522-1900 •

Glass View End for

Multi-Deck Dairy

Merchandisers

Field Installation

PARTS LIST

Item Quantity Description

D5X-LE D5X-E

1. 2 2 Nut Retainer 5/16 -18 (left end only)

2. 1 1 Gasket Tape 1/2x 15/8x 180

3. 1 1 Gasket Tape 1 x 1/2 x 180

4. 1 1 Silicone Sealer

5 1 1 Bottom End Assembly

6. 2 2 Cap Screw 5/16 -18 x 21/2

7. 4 4 Flat Washer 5/16

8 1 1 Top End Assembly

9. 2 2 Cap Screw 5/16 -18 x 13/4

10. 1 1 Multiglass Assembly

11. 1 1 Multiglass Extrusion

12. 6 6 Screw – SM Hex Head – TEK2 – #8-18 x 1/2

13. 1 1 Fascia End Plate

14. 1 1 Bumper End Plate (PART OF END BUMPER KIT)

15. 1 1 Fascia Panel

16. 2 2 Bracket — End Splashguard

17. 1 1 End Splashguard Cover

18. 1 1 Splashguard — Standard 5.75 End

19. 4 4 Screw – Truss Head – Phillips – #8-18 x 1/2 – Black

20. 1 1 Corner Bumper (PART OF END BUMPER KIT)

21. 1 1 End Bumper (PART OF END BUMPER KIT)

P/N 0503025_A

January 2008

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

D5X-LE D5X-E

INSTALLING END ASSEMBLIES

End assemblies are normally factory

installed. The following information

is provided for retrofit or field instal-

lation.

1Uncrate

Place glass crate on flat surface

with braces down as shown in

Figure 1, Detail A. Remove

screws from top.

Lift off top as shown in Detail B

of Figure 1.

Remove cardboard packaging

as shown in Detail C of Figure 1

and inspect Glass and Extrusion

for damage.

Carefully unpack crate with end

assemblies. Check for damage.

Locate and identify the parts

listed on Page 1.

Figure 1 — Uncrate and Inspect Glass

P/N 0503025_A

2U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM

Detail A

Detail C

Detail B

2Preparation

Left End Only

Install Nut Retainers – 1 in

canopy positions indicated in

Figure 2.

Remove any other nut retainers

and alignment pins from End

Frame.

Right End Only.

Remove any factory-installed

alignment pins.

Verify Nut Retainers are in

canopy positions indicated in

Figure 2. Remove all others.

Glass View End for Multi-Deck Dairy Merchandisers P/N 0503025_A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

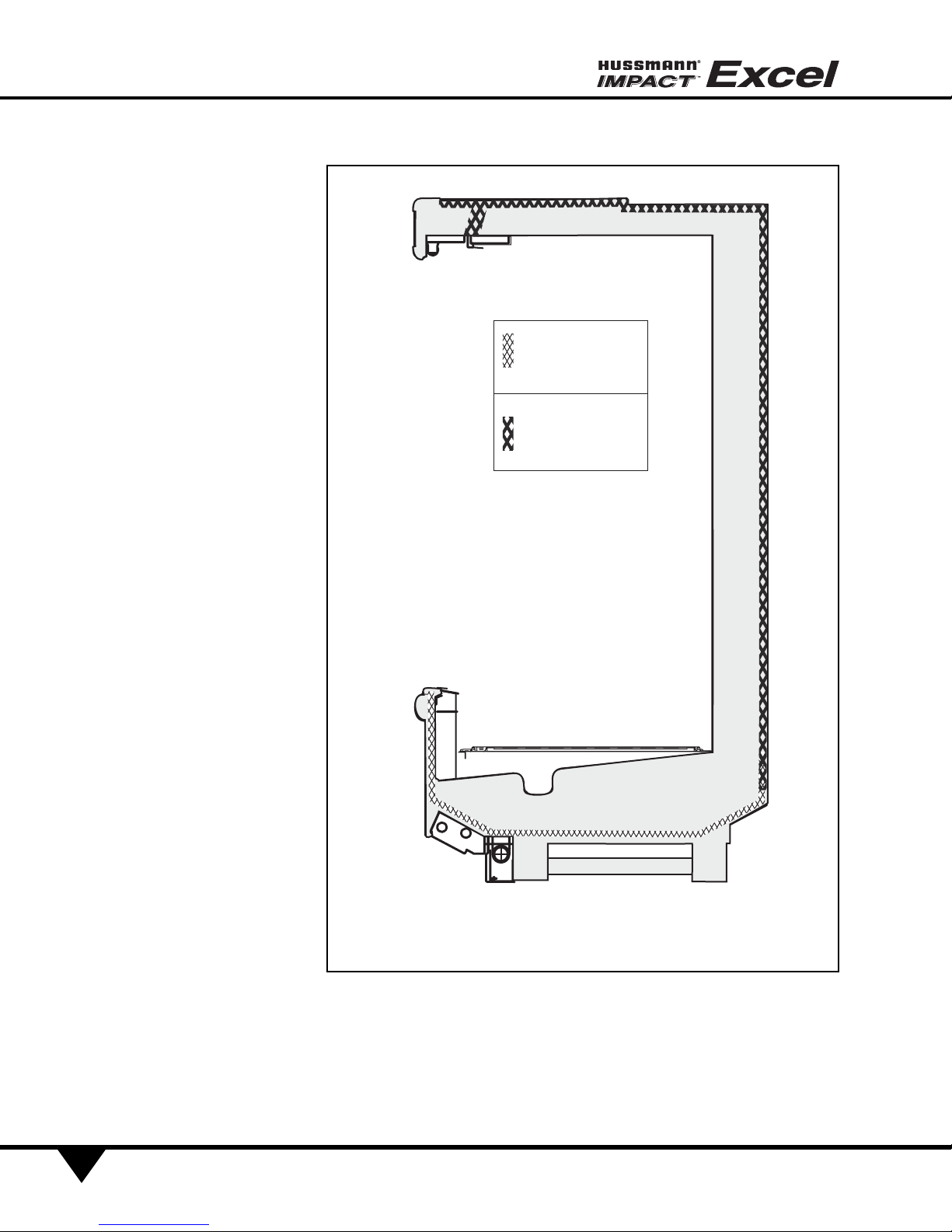

Figure 2 — Install Nut Retainers in End Canopy

3Apply Gasket

Apply Gasket – 2 and

Gasket – 3 as indicated in

Figure 3.

The same gasket arrangement is

used on either end.

Assure good adhesion of gaskets

by wiping the end frame with

rubbing alcohol to remove accu-

mulated dust and oils.

First Gasket

1 in. Gasket

(24 mm)

Second

Gasket

15/8in. (41 mm)

Figure 3 — Apply Gaskets

P/N 0503025_A

4U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM

4Align

Bottom End Assembly – 5

with end frame. Working from

inside the case as shown in

Figure 4, insert Cap Screw – 6

through Flat Washer –- 7, then

through end frame and into end

assembly.

5Use Silicone Sealer – 4 to seal

end frame to end assembly as

shown in Figure 5.

Apply Silicone Sealer – 4

over both Cap Screws – 6

as shown in Detail 5A

Glass View End for Multi-Deck Dairy Merchandisers P/N 0503025_A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

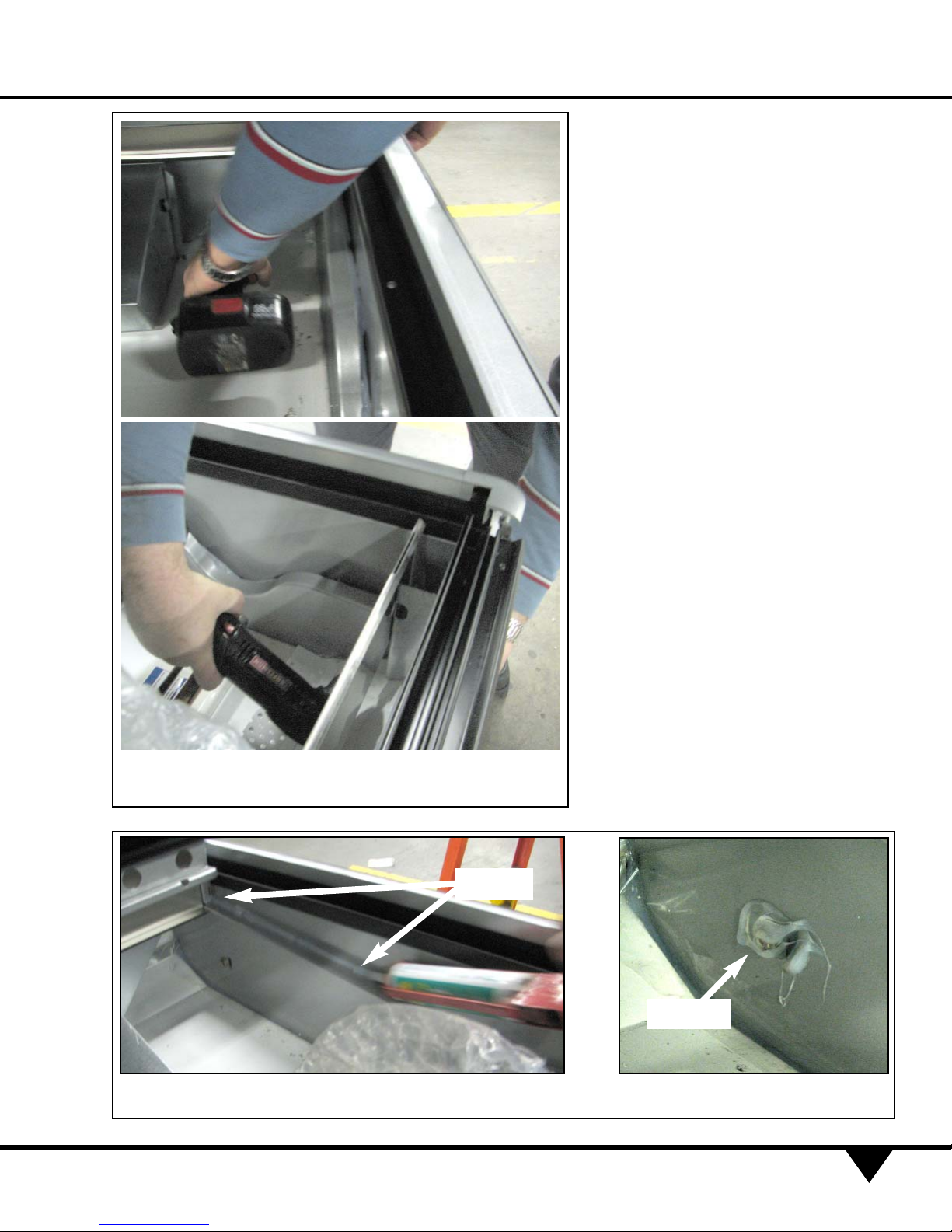

Figure 5 — Seal Bottom End Assembly

Figure 4 — Install Bottom End Assembly

Detail 5A

Silicone

6Align Top End Assembly – 8

with end frame. Pins in the

assembly fit into the canopy end

frame as shown in Figure 6.

7Working from outside the case,

attach Top End Assembly – 7

to end frame with

Cap Screws – 9

as shown in Figure 7.

P/N 0503025_A

6U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM

Figure 6 — Align Top End Assembly

Figure 7 — Install Top End Assembly

Front

Rear

8From the back, insert the

Multiglass Assembly – 10

between bottom and top end

assemblies. Refer to photos in

Figure 8. Push the multiglass

forward to butt against the front

corner trim.

This may require two people!

Glass View End for Multi-Deck Dairy Merchandisers P/N 0503025_A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

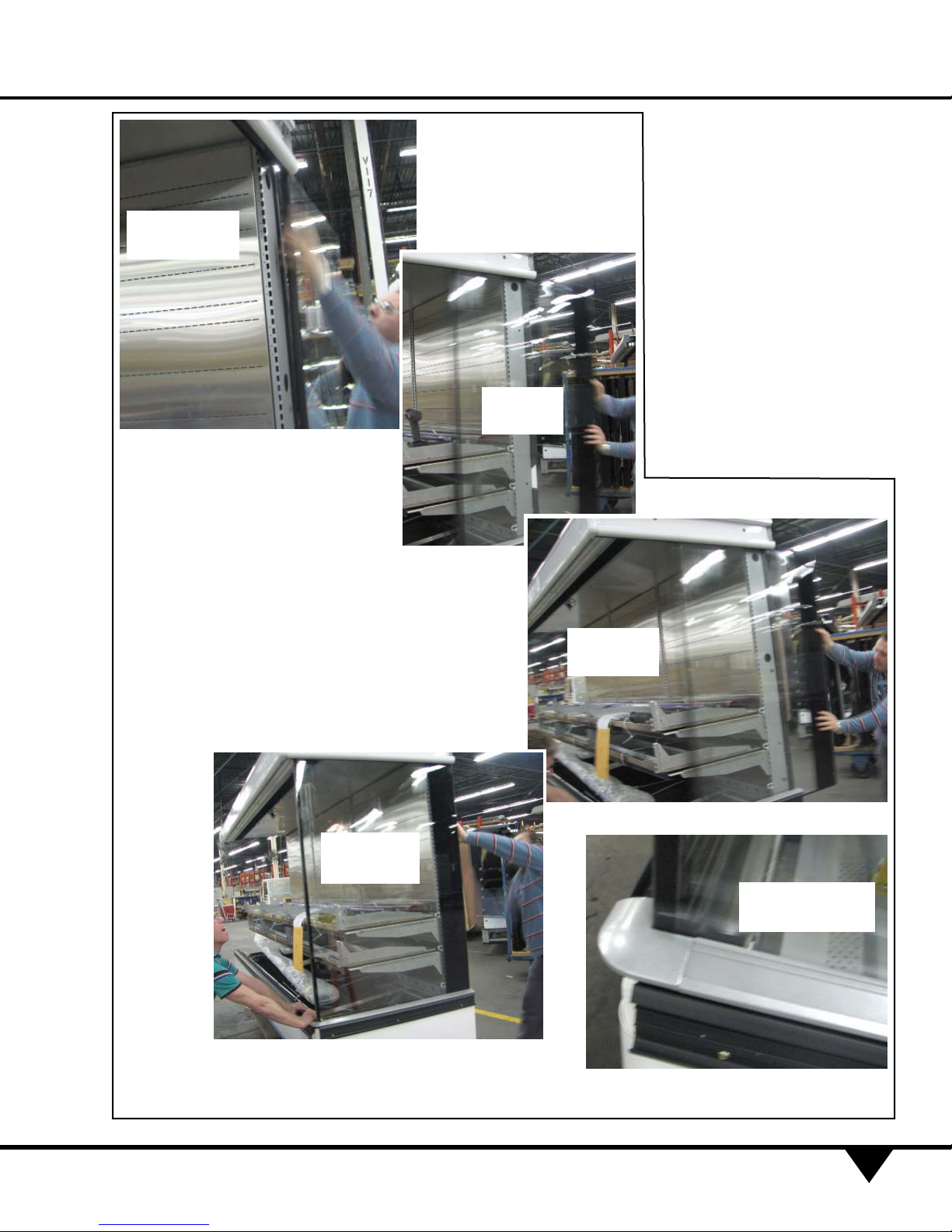

Figure 8 — Install Multiglass Assembly

Insert Glass

from Rear

Use Even

Pressure

Keep Glass

Straight

Push Glass

Forward

Glass Stopped at

Front Corner Trim

9Attach the Glass Extrusion – 11

at the back of the multiglass

assembly using Screws – 12.

Refer to photos in Figure 9.

10 Attach the

Fascia End Plate – 13

at the back of the upper end

assembly using Screws – 12.

Refer to photo in Figure 10.

P/N 0503025_A

8U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM

Figure 9 — Install Glass Extrusion

Complete

Figure 10 — Install Fascia End Plate

Screw

Placement

in Fascia

End Plate

(PART OF END BUMPER KIT)

11 Attach the Bumper End

Plate – 14 at the back of the

upper end assembly using

Screws – 12. Refer to photo in

Figure 11.

Glass View End for Multi-Deck Dairy Merchandisers P/N 0503025_A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Figure 11 — Install Bumper End Plate

Screw

Placement

in Bumper

End Plate

12 Insert the top edge of the

Fascia Panel – 15 into the

top end assembly, slide upward

until the bottom edge clears the

lower track, then lower the

panel. No fasteners are used.

Refer to Figure 12.

Figure 12 — Install Fascia Panel

P/N 0503025_A

10 U.S. & Canada 1-800-922-1919 • Mexico 1-800-522-1900 • WWW.HUSSMANN.COM
