Thermostat Bulb

Location

Scale Stands

are Optional

P/N 0489782_A

ESBDHV

Technical Data Sheet

P/N 0489782_A

NSF®Certified

March 2007

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 4W Standard Fan Assembly (1)

0392457 Fan Motor, Evaporator - 120V

(MO.4410101)

0409513 Fan Blade - 120V (FB.0409513)

0436517 Fan Motor, Evaporator - 230V

(MO.4410105)

0409514 Fan Blade - 230V (FB.4780655)

embossing toward motor

B. 15W Ambient Fan Assembly (2)

0404551 Fan Motor, Ambient (120V)

(MO.4700102)

0404552 Fan Motor, Ambient (230V)

(MO.4410590)

C. 0328028 Standard Non-adjustable (3)

Defrost Thermostat

(CT.0382028)

D. 0353949 Optional Adjustable (4)

Refrigeration Thermostat

(CT.4481087)

Item Part # Description Wiring Item #

HEATERS - AMBIENT

E. 0460453 120V (HE.4850579) (5)

E. 0474031 230V (HE.4850707) (6)

LAMPS AND BALLASTS

F. Ballast, Electronic, 120V (7)

0355716 2 lamps (BA.0355716)

0355398 3 lamps (BA.4480118)

Ballast, Electronic, 230V 50-60 Hz (8)

0440215 2 lamps (BA.4481267)

0428652 3 lamps (BA.4480897)

0385104 Ballast Transformer

(230V 50-60 Hz, per ballast)

(TR.4481191)

G. Fluorescent Lamp (9)

Replace with like fixtures

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Changed items have been underlined.

ESBDHV Technical Data Sheet2 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Legs

Waste Outlet

Electrical

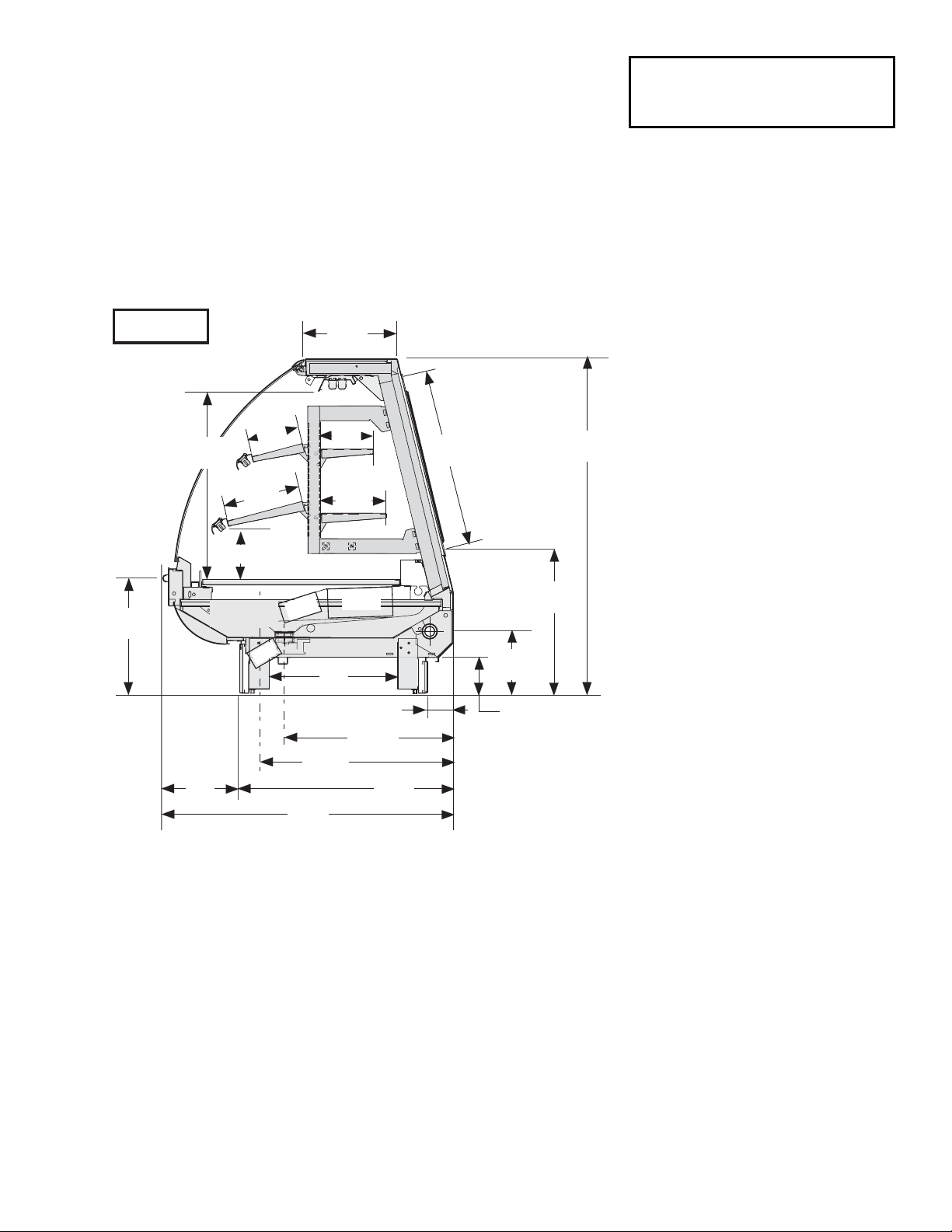

Refrigeration

Outlet

Water Seal

Front

26 1/4

(667)

3 5/8(92)

29 3/8

(746)

33 1/4

(845)

45 1/4

(1149)

Dimensions shown as in. and (mm).

Elite High Volume

Meat & Delicatessen

Curved Hinged Glass Models

Engineering

Plan Views

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 1/4(1226) 72 3/8(1838) 96 3/8 (2448) 144 1/2(3670)

Maximum O/S dimension back to front (with bumper) 45 1/4(1149) 45 1/4(1149) 45 1/4(1149) 45 1/4(1149)

Back of case to front of front panel 33 1/4 (845) 33 1/4 (845) 33 1/4 (845) 33 1/4 (845)

RH end of case to outside edge of external support 1 5/8(41) 1 5/8(41) 1 5/8(41) 1 5/8(41)

Distance between edges of

external support and center support NA 28 1/2(724) 40 5/8 (1032) 40 5/8 (1032)

Distance between edges of center supports NA NA NA 44 (1118)

Distance between edges of external supports 37 (940) NA NA NA

Electrical Service (Electrical Field Wiring connection point)

RH End of case to center of farthest knockout 10 3/8 (264) 10 (254) 10 1/4 (260) 10 1/4 (260)

Back of case to center of end knockout 3 5/8 (92) 3 5/8 (92) 3 5/8 (92) 3 5/8 (92)

(B) RH End of case to RH end of raceway 5 (127) 5 (127) 5 (127) 5 (127)

Waste Outlet

(D) RH End of case to the center of waste outlet 24 1/8 (613) 24 1/8 (613) 24 1/8 (613) 72 1/4 (1835)

LH End of case to the center of waste outlet 24 1/8 (613) 48 1/4 (1226) 72 1/4 (1835) 72 1/4 (1835)

Back O/S of case to center of waste outlet 26 1/4 (667) 26 1/4 (667) 26 1/4 (667) 26 1/4 (667)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38) 1 1/2 (38) 1 1/2 (38)

(Field installed water seal outlets, tees, and connectors

are shipped with the merchandiser.)

Refrigeration Outlet

Back of case to center of refrigeration outlet 29 3/8 (746) 29 3/8 (746) 29 3/8 (746) 29 3/8 (746)

(E) RH end of case to center of refrigeration outlet 8 1/4 (210) 8 1/4 (210) 8 1/4 (210) 8 1/4 (210)

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

ESBDHV

Discharge Air (°F) 27

Evaporator (°F) 19

Unit Sizing (°F) 18

Btu/hr/ft ESBDHV

Parallel 407

Conventional 426

DEFROST DATA

ESBDHV

Frequency (hr) 12

Defrost Water (lb/ft/day) 0.38

(± 15% based on case configuration and

product loading).

OFFTIME ESBDHV

Temp Term (°F) 43

Failsafe (minutes) 90

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 43°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

ESBDHV

CI/CO (Temp °F)*13

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)*

Not Recommended

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)** ESBDHV

4 ft 0.8

6 ft 1.2

8 ft 1.5

12 ft 2.0

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by Each End and

Partition 1in.

3 of 8P/N 0489782_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Refrigeration

Outlet

COIL

FAN

22 1/2

(572)

18 1/8

(460)

52 1/8

(1324)

26 1/4

(667)

27 1/4

(692)

ESBDHV

29 3/8

(746) 33 1/4

(845)

(305) 45 1/4

(1149)

(508)

14 3/8

(365)

4(102)

29 1/4

(743)

(305)

(203)

(254)

(203)

8 1/4 (210)

9 5/8

(245)

5 1/2 (140)

Dimensions shown as in. and (mm).

Impact Elite ESBDHV

Meat & Delicatessen

Elite Curved Hinged Glass, Blower, High Volume, 3 Display Levels

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF ®) Standard #7 requirements.

ESBDHV Technical Data Sheet4 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact Elite ESBDHV

Meat & Delicatessen

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans — 4W — Evaporator 1 2 2 3

Number of Fans — 15W — Ambient 2 4 4 6

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 0.31 0.62 0.62 0.93 24 48 48 72

120V 50Hz Standard 0.38 0.76 0.76 1.14 27 54 54 81

230V 60Hz Export 0.15 0.30 0.30 0.45 24 48 48 72

230V 50Hz Export 0.18 0.36 0.36 0.54 27 54 54 81

120V 60Hz Energy Efficient NA

230V 60Hz Energy Efficient NA

Ambient Air Wipe Fans

120V 60Hz Standard 0.52 1.04 1.04 1.56 45 90 90 135

230V 50Hz Export 0.30 0.60 0.60 0.90 50 100 100 150

Constant-on Anti-Sweat Heaters (On/Off Switch Optional)

120V 60Hz Standard 3.34 6.68 6.68 10.02 350 700 700 1050

230V 50Hz Export 1.74 3.48 3.48 5.22 400 800 800 1200

Minimum Circuit Ampacity †

120V 60Hz Standard 4.37 8.54 8.54 12.71

120V 50Hz Standard 4.44 8.68 8.68 12.92

230V 60Hz Export 2.39 4.58 4.58 6.77

230V 50Hz Export 2.42 4.64 4.64 6.86

120V 60Hz Energy Efficient NA

230V 60Hz Energy Efficient NA

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting

2 Row Canopy 0.49 0.98 0.98 1.42 59 118 118 172

2 or 3 Row Shelves FRONT ONLY 0.71 1.42 1.42 2.13 86 172 172 258

Note: Back shelves are unlit. Front shelves are lit. Standard electrical load for Shelves is the same for 2 rows as for 3 rows.

Optional Lighting

1 Row Rail 0.49 0.49 0.49 0.71 59 59 59 86

1 Row Ledge 0.49 0.49 0.49 0.71 59 59 59 86

115V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 115V Lighting Circuit Total by 0.52

† MCA does not include Canopy A/S Heaters because heaters are wired separately from fans.

5 of 8P/N 0489782_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red G = Green BL = Blue LB = Light Blue DB = Dark Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

120V NEUTRAL

MAROON

BAND

120V POWER

N.E.C.

TAGS

MAROON

BAND

Defrost

Termination

Thermostat Refrigeration

Thermostat

(Field Installed)

Condensing

Unit

}

Fan Wiring

Offtime Defrost

Electric Service Receptacle Receptacles

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

Ambient Fan

Wiring

Glass Air Wipe

Fans

Purple BAND

Heaters

Purple BAND

120V POWER

120V NEUTRAL

Ambient Heater

Wiring

Heaters

4 ft case has 2 Heaters

6 ft case has 4 Heaters

8 ft case has 4 Heaters

12 ft case has 6 Heaters

4 ft case has 2 Fans

6 ft case has 4 Fans

8 ft case has 4 Fans

12 ft case has 6 Fans

4 ft case has 1 Fan

6 ft case has 2 Fans

8 ft case has 2 Fans

12 ft case has 3 Fans

Connectors

BROWN BAND

Connectors Connectors Connectors

120V

POWER

120V

NEUTRAL

Ground Fans 1

Heater

Switch

Fans

ESBDHV Technical Data Sheet6 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Optional Rail

Light Circuit

GGG

99 9

G B

Optional Ledge

Light Circuit

GGG

99 9

G B

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR

TAN BAND

GGG

99 9

Standard

Shelf Harness

and

Light Circuits

for 2 or 3 Rows

of Lighted

Front Shelves

REAR SHELVES

ARE UNLIT

connectors

Standard Lighting

2 Row Canopy

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

Light Circuits

6 3/4

(171)

8.853

8-in. Shelf

12-in. Shelf

8-in. Shelf

8-in. or

10-in. Shelf

8 3/4

(222)

8 1/2

(216)

(190)

Two Level Front Shelves, Two Level Back Shelves

8 3/4

(222)

(194)

7 of 8P/N 0489782_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact Elite ESBDHV

Meat & Delicatessen

Shelf Configuration Options for

Elite High Volume Service Case

8-in. Shelf

12-in. Shelf

8-in. Shelf

8-in. or

10-in. Shelf

8 3/4

(222)

6 3/4

(171)

8 1/2

(216)

5 3/8 (135)

7 1/4 (185)

8 1/4 (210)

Two Angled Front Shelves, Two Level Back Shelves

Each of these high volume

cases must be equipped

with one of the three shelf

arrangements shown herein.

Use of nonstandard shelf

arrangements may adversely

affect performance.

8-in. Shelf

10-in. Shelf

12-in. Shelf

8-in. Shelf

8-in. or

10-in. Shelf

8 3/4

(222)

6 3/4

(171)

8 1/2

(216)

3 1/2 (89)

5 3/8 (135)

5 1/4 (133)

4 (133)

Three Angled Front Shelves, Two Level Back Shelves

ESBDHV Technical Data Sheet8 of 8 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact Elite ESBDHV

Meat & Delicatessen

Shelf Configuration Options for

Elite High Volume Service Case

Each of these high volume

cases must be equipped

with one of the three shelf

arrangements shown herein.

Use of nonstandard shelf

arrangements may adversely

affect performance.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann IMPACT LWEGH Manuale utente

Hussmann

Hussmann MicroSC ISMGG2DA-A Manuale utente

Hussmann

Hussmann HEDW Manuale di istruzioni

Hussmann

Hussmann Impact C2-LEP Manuale di istruzioni

Hussmann

Hussmann MWG Manuale utente

Hussmann

Hussmann Impact Excel P2X-E Manuale di istruzioni

Hussmann

Hussmann G5 Manuale utente

Hussmann

Hussmann Q1-SS Manuale di istruzioni

Hussmann

Hussmann Impact C1CWC Manuale di istruzioni

Hussmann

Hussmann Impact P1X49 Manuale utente

Hussmann

Hussmann Impact M3G Manuale utente

Hussmann

Hussmann Specialty Products CR3TO Manuale di istruzioni

Hussmann

Hussmann Impact C6HE Manuale utente

Hussmann

Hussmann Impact Excel M3X-EP Manuale di istruzioni

Hussmann

Hussmann Impact F2XLG Manuale utente

Hussmann

Hussmann IMPACT D5R Manuale utente

Hussmann

Hussmann SCSS Istruzioni operative

Hussmann

Hussmann C4XRO-E Manuale di istruzioni

Hussmann

Hussmann VRM Manuale utente

Hussmann

Hussmann IMPACT M5NE Manuale utente

Hussmann

Hussmann FL4NX-EP Manuale di istruzioni

Hussmann

Hussmann IMPACT M4G Manuale utente

Hussmann

Hussmann WDCHI Manuale utente

Hussmann

Hussmann impact Excel C5X-LE Manuale di istruzioni

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
