Hussmann Impact C5NLE Manuale utente

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0441000

Merchandisers

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0047000 Fan Motor, Evaporator

0401532 Fan Blade

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0376409 Ballast, 2 lamps (4)

D. 0376410 Ballast, 3 lamps (4)

D. 0376411 Ballast, 4 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

C5NLE

Data Sheet Set

P/N 0441000

NSF®Certified

May, 2003

Electrical

Waste Outlet

(see note*) Refrigeration Outlet

40 5/8

(1032)

(686)

27 1/2

(699)

4 1/2 (114)

25 1/2

(648)

(840)

40 5/8

(1030)

5 1/2 (140)

1 3/8 (035)

(102)

Water Seal

55/8

(143)

40 5/8

(1032)

29 1/8

(739)

41/4 (107)

72 1/4 (1835)

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C5NLE Data Sheet Set

2 of 6

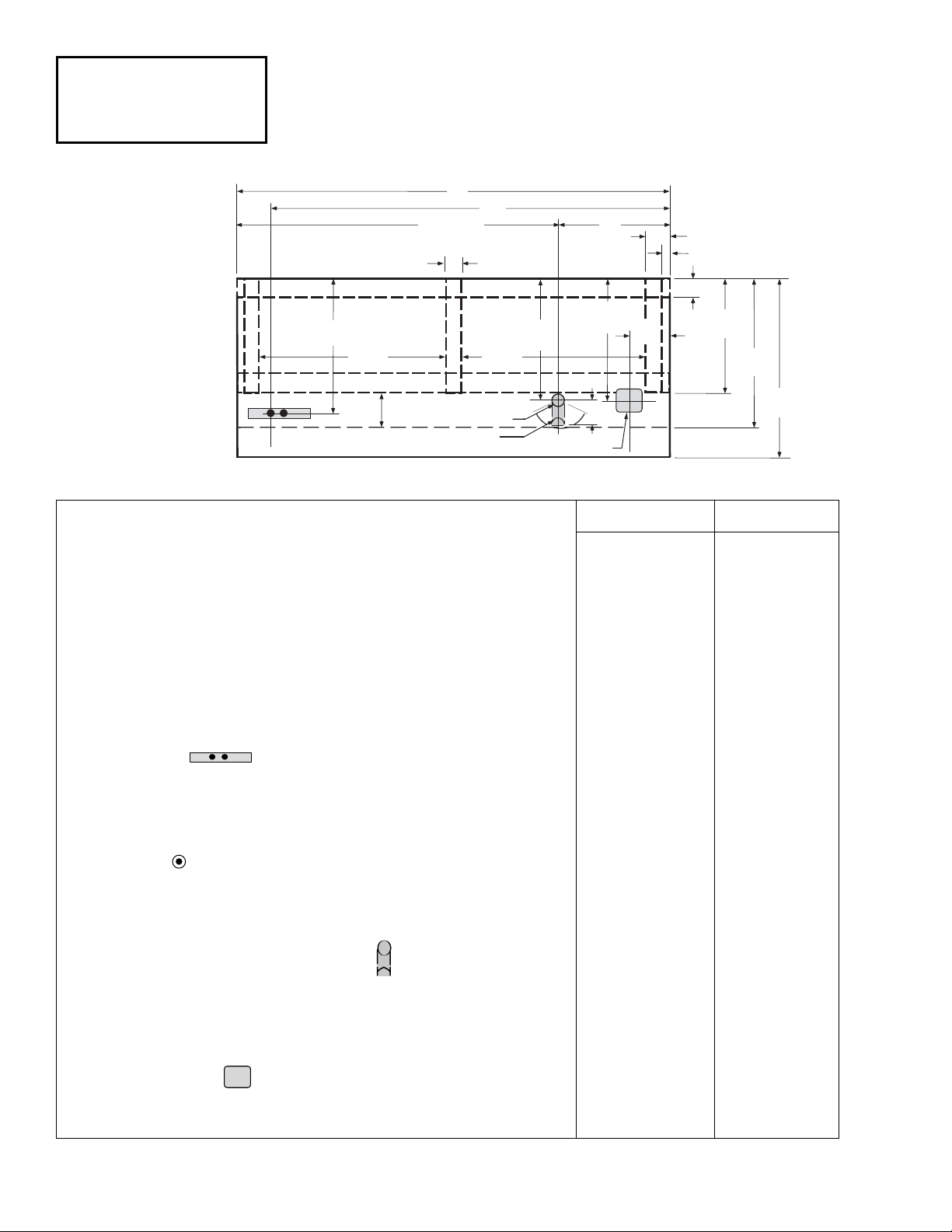

Engineering

Plan Views

C5NLE

Narrow Footprint

Convertible

Dairy and

Delicatessen

5-2003

Dimensions shown as in. & (mm).

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front (includes bumper) 40 5/8(1030) 40 5/8(1030)

Back of case to front of splashguard 33 (840) 33 (840)

Back of case to O/S edge of front skid rail 25 1/2 (646) 25 1/2 (646)

Width of skid rail 4 1/2(114) 4 1/2(114)

RH end of case to outside edge of external support 5 1/2(140) 5 1/2(140)

Distance between edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between edges of center supports NA 44 (1118)

Stub-up area between front skid rail and splashguard 5 5/8(143) 5 5/8(143)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of farthest knockout 88 3/8(2245) 136 1/2 (3467)

Length of electrical raceway 35 5/8 (903) 35 5/8 (903)

Waste Outlet

(D) RH End of case to the center of waste outlet 24 1/8(613) 74 1/4(1835)

LH End of case to the center of waste outlet 74 1/4(1835) 74 1/4(1835)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38)

*NOTE: Water seal outlet must clear front skid rail;

water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 27 1/2 (699) 27 1/2 (699)

(E) RH end of case to center of refrigeration outlet 9 (230) 9 (230)

3 of 6P/N 0441000 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

(Optional

2 Row

Lights)

Refrigeration Outlet

FAN

381/8(969)

31/8(79)

71/2

(190)

251/2(646)

27 (687)

271/2(699)

291/8(739)

33 (840)

405/8(1030)

(483)

41/4

(114)

53/4

(146)

55/8

(143)

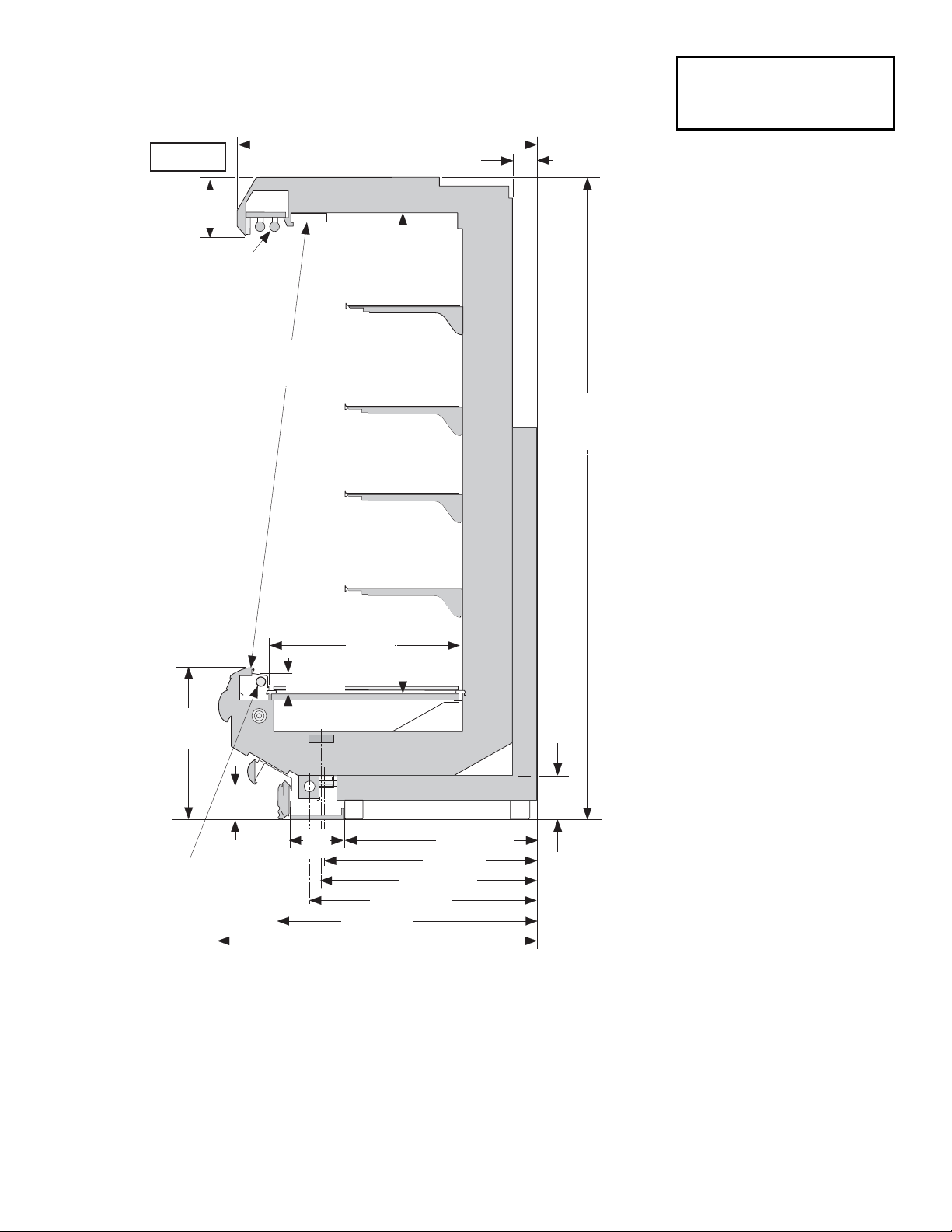

C5NLE

33/4(95)

561/4

(1429)

813/8

(2067)

241/2

(623)

(Optional

Rail Lights)

(Optional 16 in. Shelves)

(1549)

Impact C5NLE

Dairy / Delicatessen

Dimensions shown as in. & (mm).

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H. C5NLE

Deli Dairy

Discharge Air (°F) 29 31

Evaporator (°F) 21 24

Unit Sizing (°F) 19 22

Btu/hr/ft*

LIT &U

NLIT SHELVES Deli Dairy

Parallel 1580 1500

Conventional 1720 1635

HUSSMANN PEG SHELVES

Parallel 1630 NA

Conventional 1760 NA

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

C5NLE

Frequency (hr) 6

Defrost Water (lb/ft/day) 10.25

(± 15% based on case configuration and

product loading).

OFFTIME C5NLE

Temp Term (°F)48°F

Failsafe (minutes) 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONALCONTROLS

Low Pressure Backup Control

CI/CO** Deli Dairy

14°F / 4°F 17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Estimated Charge (lb)***

8 ft 3.2

12 ft 4.5

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length (in.) added to Lineup by Each

End or Insulated Partition 1 1/2

NOTE: The bumper is 4 in. (102 mm) wide. The center of the top bumper

is 14 1/8in. (359 mm) from the floor and the center of the bottom

bumper is 6 in. (152 mm) from the floor.

Multi-deck, 5 Display Levels, Narrow Footprint

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C5NLE Data Sheet Set

4 of 6

Impact C5NLE

Dairy / Delicatessen

Electrical Data 8 ft 12 ft

Number of Fans — 9W 4 6

Amperes Watts

Merchandiser 8 ft 12 ft 8 ft 12 ft

Fans

Standard: 120V 60 hz 2.80 4.20 220 330

Energy Efficient: 120V 60 hz 1.52 2.28 100 150

Export: 230V 50 hz 1.12 1.68 176 264

Anti-sweat Heaters

Constant on NA NA

Cycling NA NA

Minimum Circuit Ampacity

With Standard Fans 3.00 4.40

With Energy Efficient Fans 1.72 2.48

With Export Fans 1.32 1.88

Maximum Over Current Protection 20 20

Supplemental Gas Heaters NA NA

208V 1ΦΦElectric Defrost NA NA

Standard Lighting

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Row Rail 1.02 1.54 118 170

2 Rows Canopy 1.02 1.54 118 170

2 Rows Canopy and 1 Row Rail 1.53 2.31 177 255

1 Row Ledge Lights 0.51 0.77 59 85

Optional Shelf Lighting

1 Row of Shelves 0.51 0.77 59 85

2 Rows of Shelves 1.02 1.54 118 170

3 Rows of Shelves 1.53 2.31 177 255

4 Rows of Shelves 2.04 3.08 236 340

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 5 of 6P/N 0441000

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Fan Wiring

Off-time Defrost

4 & 6 Fans 120V NEUTRAL

BROWN BAND

120V POWER Fans 1

BROWN BAND

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

WGB

BL BL

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

C5NLE Data Sheet Set6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

BL R

Optional Lighting — 2 Rows Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

Standard Lighting — 1 Row Canopy

Optional Lighting — 1 Row Rail or 1 Row Ledge

Light Circuits

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
