Hussmann IMPACT CW2-GE Manuale utente

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0399334B

Merchandisers

Note: Changed items have been underlined.

Item Part # Description Wiring Item #

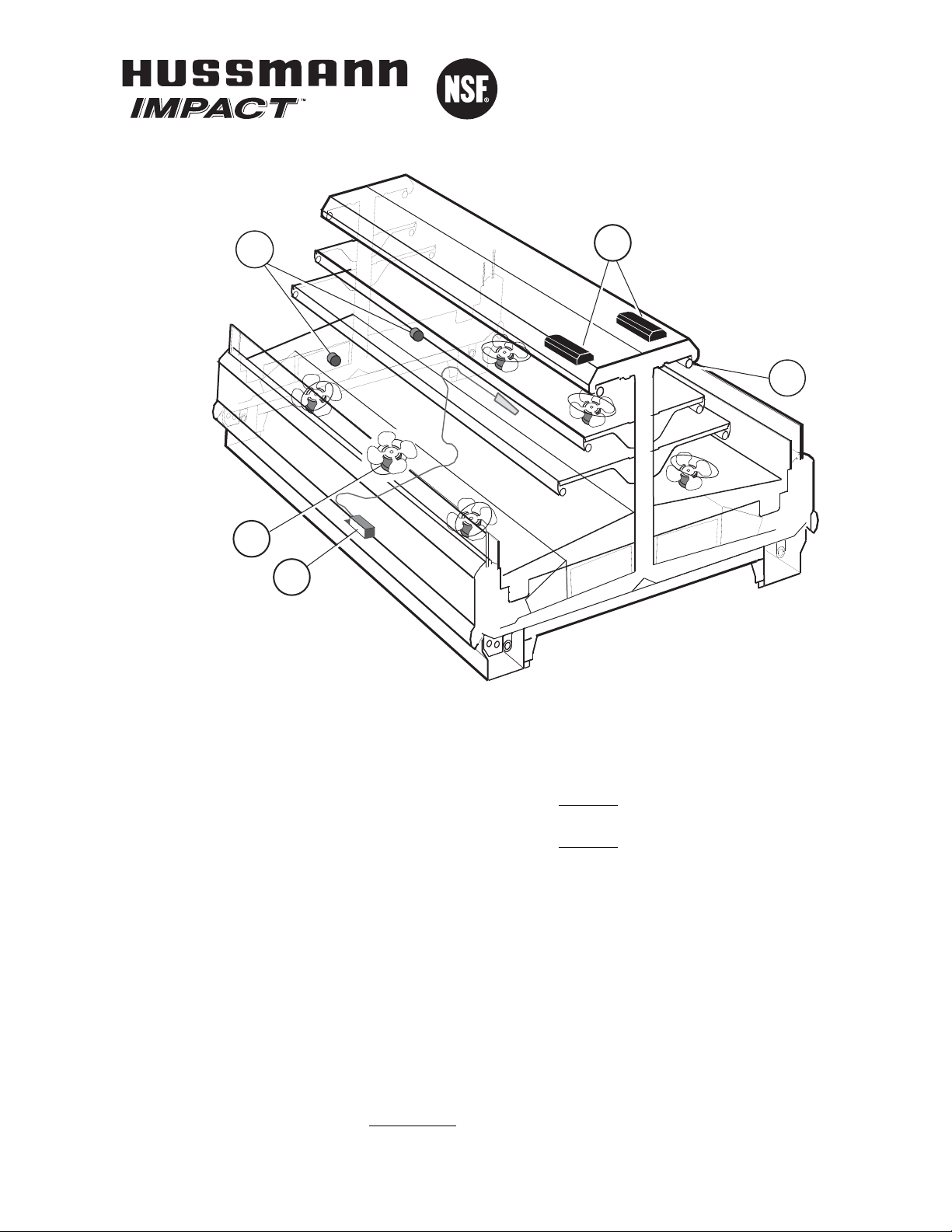

FAN ASSEMBLIES AND THERMOSTATS

A. 6W Fan Assembly (1)

0058698 Fan Motor, Evaporator

0142780 Fan Blade

embossing toward motor

B. 0398558 Standard Non-adjustable (2)

Defrost Thermostat

C. 0144732 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0428648 Ballast, Electronic

2 lamps (4)

D. 0428649 Ballast, Electronic

3 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

CW2-GE

Data Sheet Set

P/N 0399334B

NSF®Certified

February 2005

2 of 6 CW2GE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

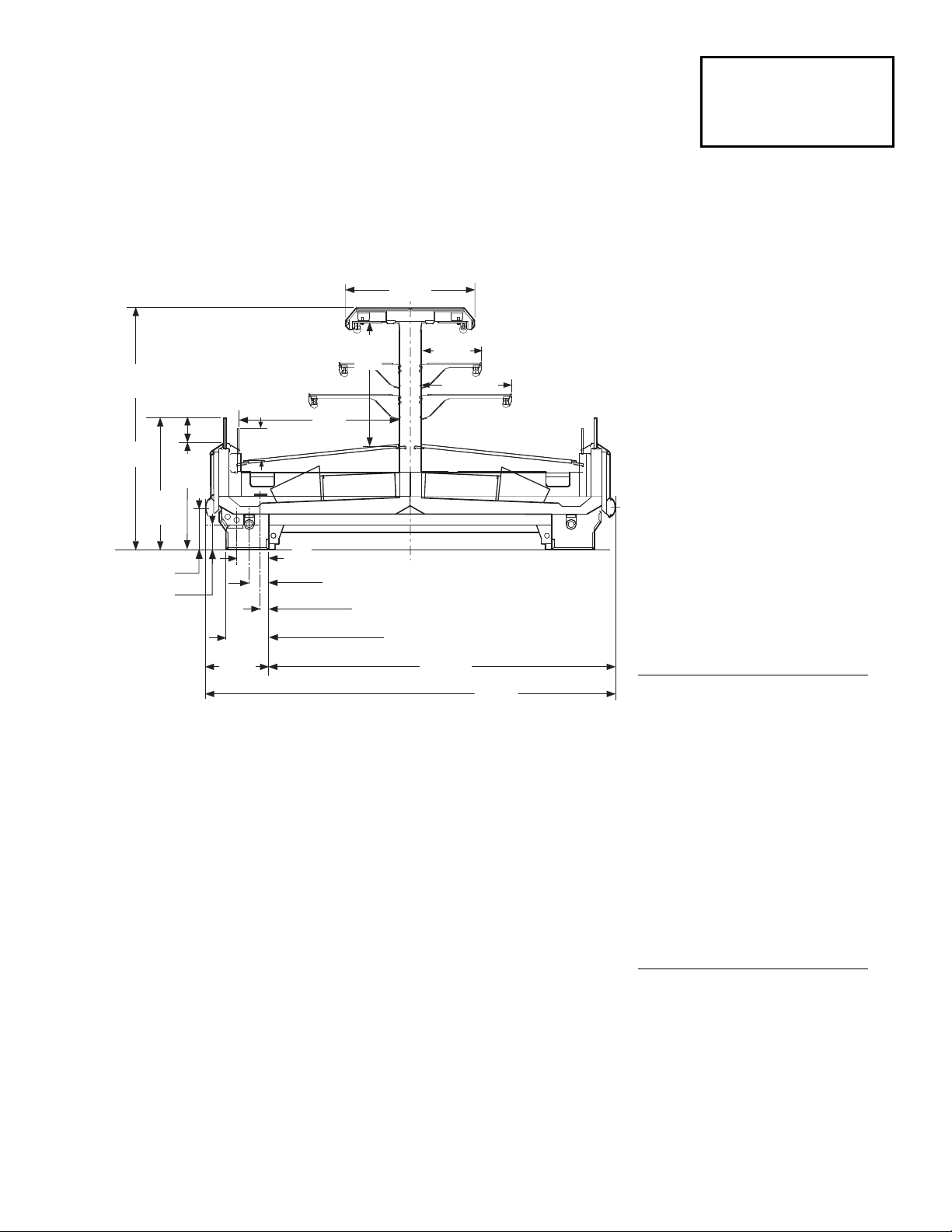

Plan Views

Front

5 1/2

(142)

Waste Outlet

& Water Seal Refrigeration Outlet

5 (127)

(See Note)

Access Area

CW2GE

81 1/2

(2070)

68 7/8

(1749)

Base Rail

8 1/2

(216)

12 5/8

(321)

1 3/8

(35)

3 7/8

(98) 7

(178)

Dimensions shown as inches and (mm).

Convertible Island

05-2003

4 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 1/4 (1226) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front (includes bumper) 81 1/2(2070) 81 1/2(2070) 81 1/2(2070)

Front of splashguard to O/S edge of front base rail 8 1/2 (216) 8 1/2 (216) 8 1/2 (216)

Front of case to O/S edge of front base rail 12 5/8 (321) 12 5/8 (321) 12 5/8 (321)

Back of case to O/S edge of front base rail 68 7/8 (1749) 68 7/8 (1749) 68 7/8 (1749)

Width of base rail 2 1/8 (54) 2 1/8 (54) 2 1/8 (54)

Stub-up area between front base rail and splashguard 7 1/4 (184) 7 1/4 (184) 7 1/4 (184)

Electrical Service

Note: Electrical Field Wiring connection point

Center of Electrical service to O/S edge of front base rail 7 (178) 7 (178) 7 (178)

Right end of case to center of knockout 5 (127) 5 (127) 5 (127)

Length of electrical raceway 46 5/8 (1184) 46 5/8 (1184) 46 5/8 (1184)

Waste Outlet

(B) LH End of case to the center of waste outlet 10 1/8 (257) 38 1/8 (968) 76 5/8 (1945)

Center of waste outlet to outside of front base rail 3 7/8 (98) 3 7/8 (98) 3 7/8 (98)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Water seal outlet must clear front skid rail.

Refrigeration Outlet

Center of refrigeration outlet to O/S edge of front base rail 1 3/8 (35) 1 3/8 (35) 1 3/8 (35)

RH end of case to center of refrigeration outlet 5 5/8 (141) 5 5/8 (141) 5 5/8 (141)

3 of 6

P/N 0399334B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Front of

Case

FAN

FAN COIL COIL

16 in. Shelf

12 in. Shelf

25 1/2

(648)

24 1/8

(613)

(813)

6 3/8

(162)

(1219)

(178) 3 7/8

(98) 1 3/8

(35) 8 1/2

(216)

12 5/8

(321)

68 7/8

(1749) 81 1/2

(2070)

(127)

(660)

5 (127)

(533)

9 (229)

Dimensions shown as inches and (mm).

Convertible Island, 2 Display Levels

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

Impact CW2-GE

Convertible Island

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

CW2GE

Discharge Air (°F) 28

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/ft* CW2GE

Parallel 1480

Conventional 1640

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

CW2GE

Frequency (hr) 6

Defrost Water (lb/ft/day) 10

(± 15% based on case configuration and

product loading).

OFFTIME CW2GE

Temp Term (°F)48°F

Failsafe (minutes) 45

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CW2GE

CI/CO** 17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 1/2

Merchandiser Suction Line (in.) 1 1/8

Estimated Charge (lb)***

4 ft 2.3

8 ft 4.6

12 ft 6.6

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length (in.) added to Lineup by:

Each Flat End or Partition 1 1/2

Each Contoured End 5

4 of 6 CW2GE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact CW2-GE

Convertible Island

Electrical Data

Number of Fans 4 ft 8 ft 12 ft

Refrigeration – 6W 2 4 6

Amperes Watts

Merchandiser 4 ft 8 ft 12 ft 4 ft 8 ft 12 ft

Fans (Refrigeration)

Standard (120V 60Hz) 1.00 2.00 3.00 78 156 234

Energy Efficient (120V 60Hz) 0.52 1.04 1.56 36 72 108

Cycling Anti-sweat Heaters NA NA NA NA NA NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 1.20 2.20 3.20

With Energy Efficient Fans (120V 60Hz) 0.74 1.24 1.76

Maximum Over Current Protection 120V 20 20 20

Electric Defrost Heaters (208V 1ΦΦ)NA NA NA NA NA NA

Standard Lighting 4 ft 8 ft 12 ft 4 ft 8 ft 12 ft

1 Row Canopy 0.51 1.02 1.54 59 118 177

Optional Lighting

2 Rows Canopy 1.02 2.04 3.08 118 236 354

Optional Shelf Lighting

1 Row of Shelves 0.51 1.02 1.54 59 118 177

2 Rows of Shelves 1.02 2.04 3.06 118 236 354

5 of 6P/N 0399334B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Grayed components in 12 foot models only.

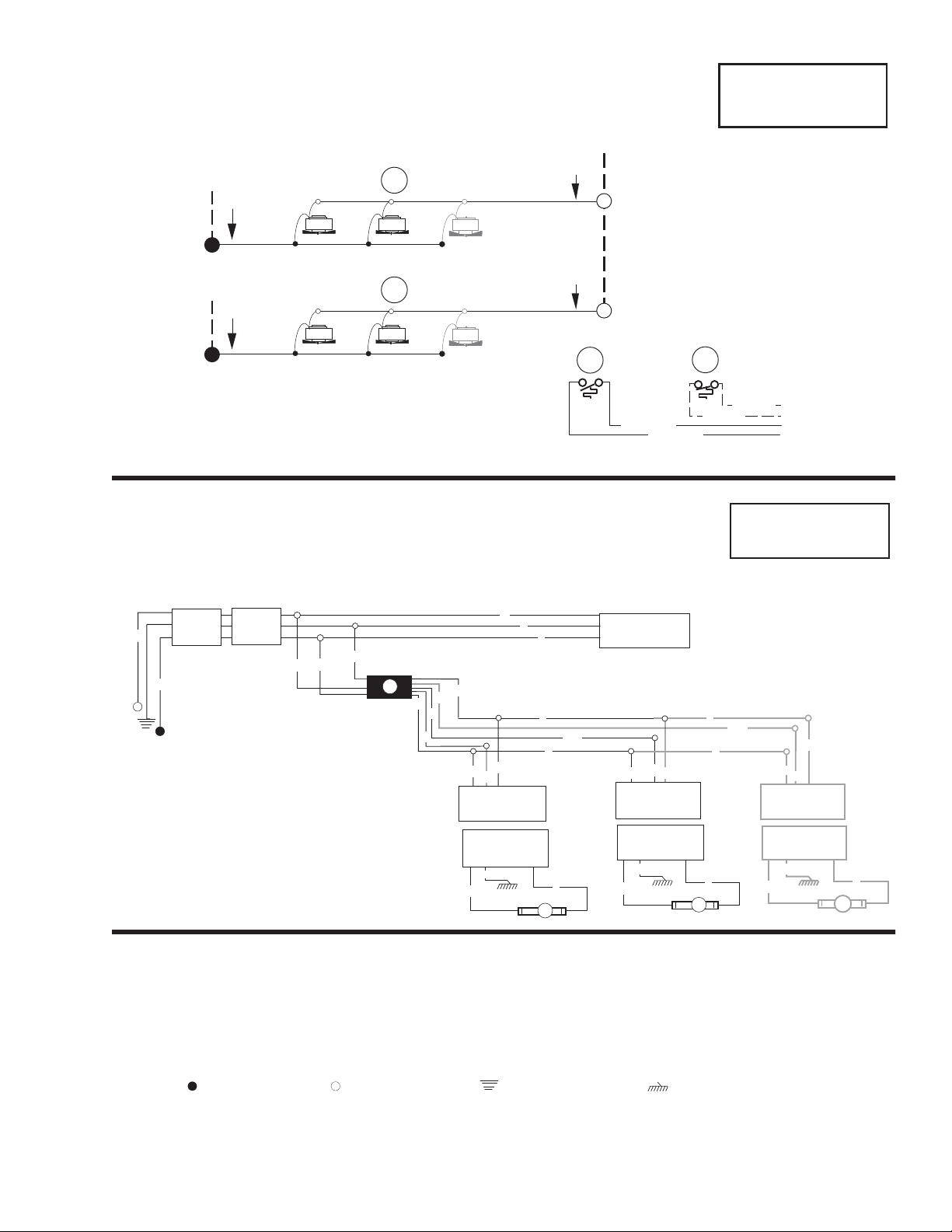

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= Case GROUND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

Refrigeration Thermostat

Condensing

Unit

}

(Field Installed)

Dark Blue

Defrost

Termination

Thermostat

BROWN BAND

Fans

BROWN BAND

120V POWER 1

Fan Wiring

Offtime Defrost

Fans

120V NEUTRAL

4 ft case has 2 Fans

8 ft case has 4 Fans

12 ft case has 6 Fans

BROWN BAND

Fans

BROWN BAND

120V POWER 1

Front

Rear

Dark Blue

Lt Blue

6 of 6 CW2GE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

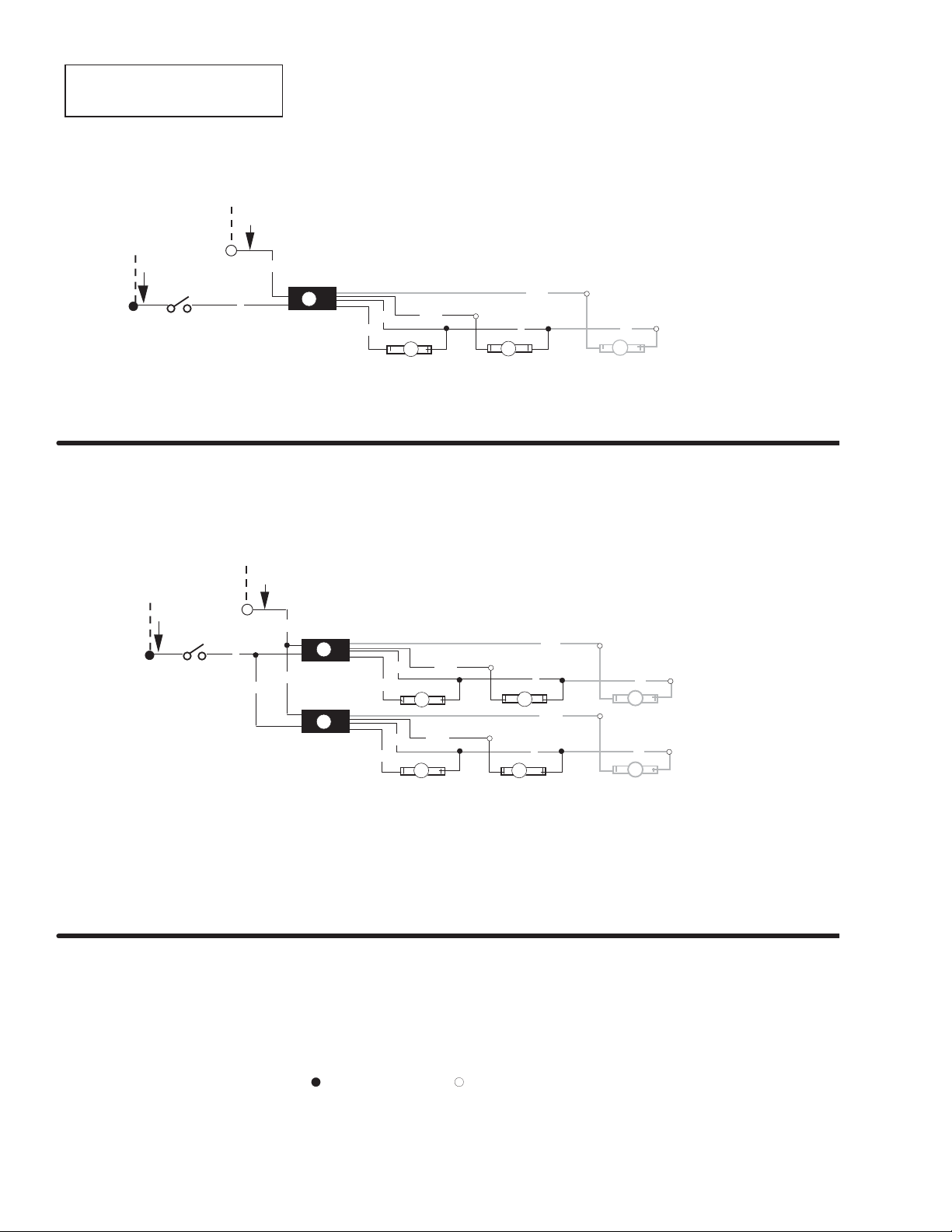

Standard Lighting 1 Row Canopy or Optional 1 Row Rail

Light Circuits

Optional Lighting 2 Rows Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
