Hussmann IMPACT D5NGE Manuale utente

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0397287B

Merchandisers

Note: Changed items have been underlined.

D5NGE

Data Sheet Set

P/N 0397287B

NSF®Certified

May, 2003

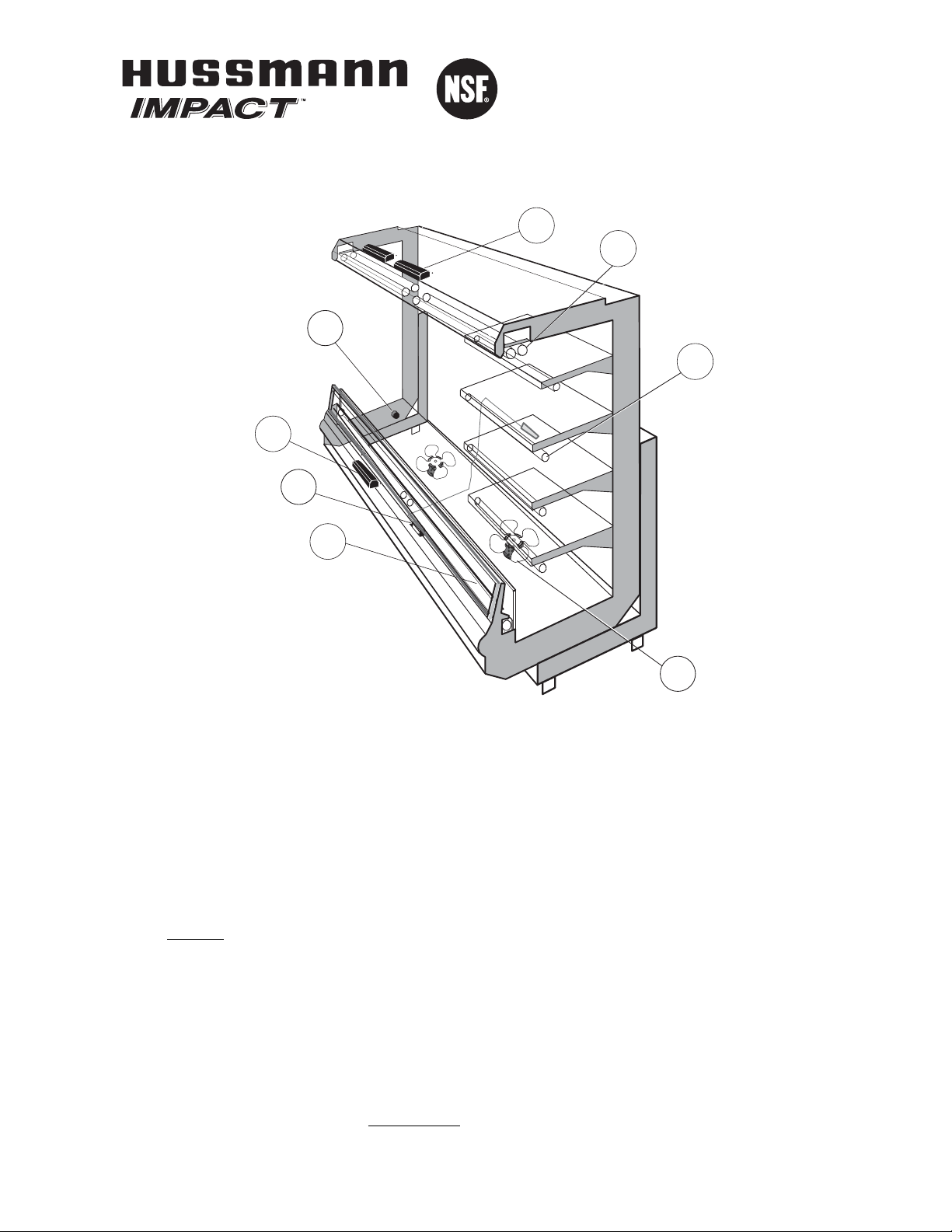

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0047000 Fan Motor, Evaporator

0315470 Fan Blade

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0376409 Ballast, Electronic

2 lamps (4)

D. 0376410 Ballast, Electronic

3 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

2 of 6 D5NGE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

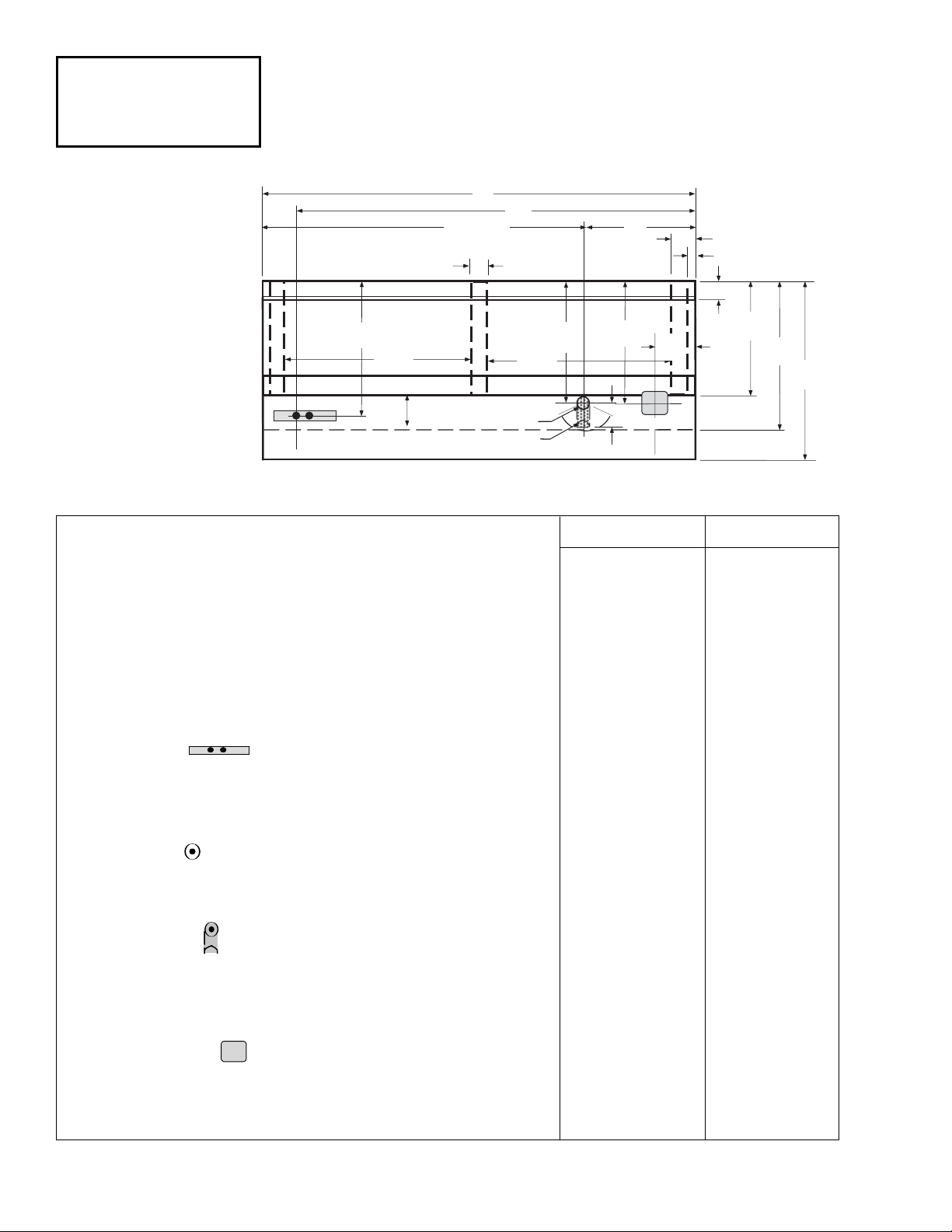

Engineering

Plan Views

Electrical

Waste Outlet

(see note)

40 5/8

(1030)

(688) 27 1/2

(699)

4 1/2 (114)

25 1/2

(648)33 1/8

(841)40 5/8

(1030)

5 1/2 (140)

1 3/8 (035)

4 (102)

Water Seal

55/8

(143)

40 5/8

(1032)

29 1/8

(739)

41/2 (105)

72 1/4 (1835)

Refrigeration

Front

Dimensions shown as in. and (mm).

Narrow Dairy &

Delicatessen

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front (includes bumper) 40 5/8(1030) 40 5/8(1030)

Back of case to front of splashguard 33 (840) 33 (840)

Back of case to O/S edge of front skid rail 25 1/2 (648) 25 1/2 (648)

Width of skid rail 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 5 1/2(140) 5 1/2(140)

Distance between edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between edges of center supports NA 44 (1118)

Stub-up area between front skid rail and splashguard 55/8(143) 55/8(143)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Back of case to center of knockout 29 1/8 (739) 29 1/8 (739)

Length of electrical raceway 34 5/8 (878) 34 5/8 (878)

Waste Outlet

LH End of case to the center of waste outlet 72 1/4 (1835) 72 1/4 (1835)

Back O/S of case to center of waste outlet 27 (686) 27 (686)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38)

NOTE: Water seal outlet must clear front skid rail;

water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 27 1/2 (699) 27 1/2 (699)

(D) RH end of case to center of refrigeration outlet 9 (230) 9 (230)

04-2003

3 of 6

P/N 0397287B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

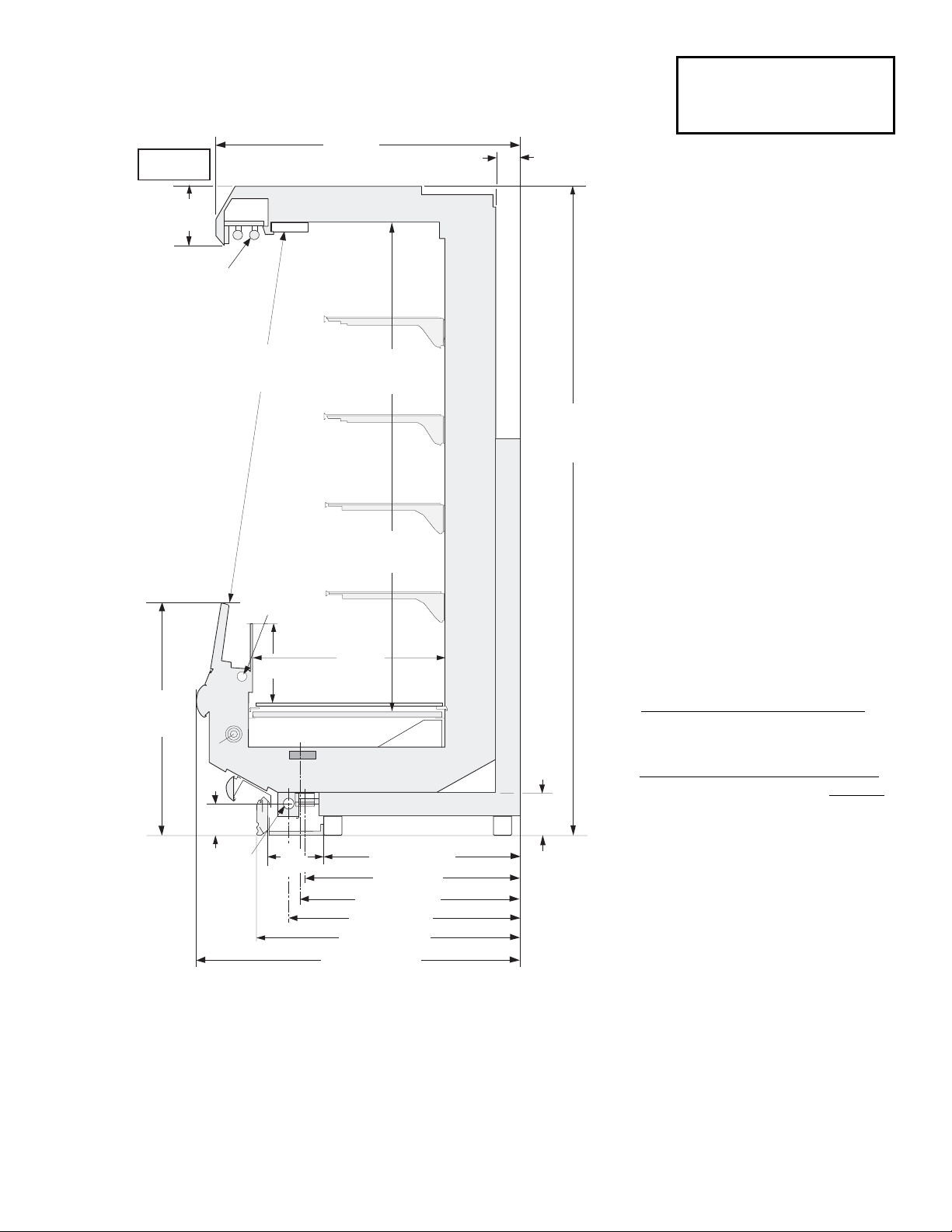

D5NGE

7 1/2

(190)

(1168)

38 1/8

(969) 3 1/8

(79)

(1549)

(Optional

2 Row Lights)

81 3/8

(2067)

(Optional

16“ Shelves)

(Optional

Rail Lights)

24 1/2

(623)

11 3/4(288)

(762)

FAN

Refrig. Outlet

5 3/4

(146)

4 1/4

(108)

(See Note*) 25 1/2(646)

27 (686)

27 1/2(699)

29 1/8(739)

33 (840)

40 5/8(1030)

5 5/8

(143)

Dimensions shown as in. and (mm).

NOTE: The bumpers are 4 in. (102 mm) wide. The center of the top

bumper is 18 1/8in. (460 mm) from the floor and the center of

the lower bumper is 6 1/8in. (155 mm) from the floor.

Multi-deck, 5 Display Levels

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF®) Standard #7 requirements.

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

D5NGE

Discharge Air °F 32

Evaporator °F 24

Unit Sizing °F 22

Btu/hr/ft* D5NGE

LIT &U

NLIT SHELVES

Parallel 1320

Conventional 1400

HUSSMANN PEG SHELVES (DELI ONLY)

Parallel 1350

Conventional 1435

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

Frequency Hrs 66

Defrost Water (lb/ft/day) 10.50

(± 15% based on case configuration and

product loading).

OFFTIME D5NGE

Temp Term °F 48

Failsafe Minutes 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** D5NGE

17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Estimated Charge (lb)***

D5NGE

8 ft 2.7

12 ft 3.9

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by

Each End (in.) 1 1/2

Each Insulated Partition (in.) 1 1/2

Impact D5NGE

Dairy & Delicatessen

4 of 6 D5NGE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact D5NGE

Dairy & Delicatessen

Electrical Data

Number of Fans 8 ft 12 ft

Refrigeration – 9W 2 3

Export – 9W 2 3

Amperes Watts

Merchandiser 8 ft 12 ft 8 ft 12 ft

Fans (Refrigeration)

Standard (120V 60Hz) 1.40 2.10 105 160

Energy Efficient (120V 60Hz) 0.76 1.14 50 75

Export (230V 50Hz) 0.76 1.14 114 171

Constant On Anti-sweat Heaters NA NA NA NA

Cycling Anti-sweat Heaters NA NA NA NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 1.60 2.30

With Energy Efficient Fans (120V 60Hz) 0.96 1.34

With Export Fans (230V 50Hz) 0.96 1.34

Maximum Over Current Protection 120V 20 20

Export (230V 50Hz) 15 15

Electric Defrost Heaters (208V 1ΦΦ)NA NA NA NA

Gas Defrost Heaters (208V) NA NA NA NA

Standard Lighting 8 ft 12 ft 8 ft 12 ft

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Row Rail 1.02 1.54 118 170

2 Rows Canopy 1.02 1.54 118 170

2 Rows Canopy and 1 Row Rail 1.53 2.31 177 255

3 Rows Canopy 1.53 2.31 177 255

3 Rows Canopy and 1 Row Rail 2.04 3.08 236 340

5 of 6P/N 0397287B HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

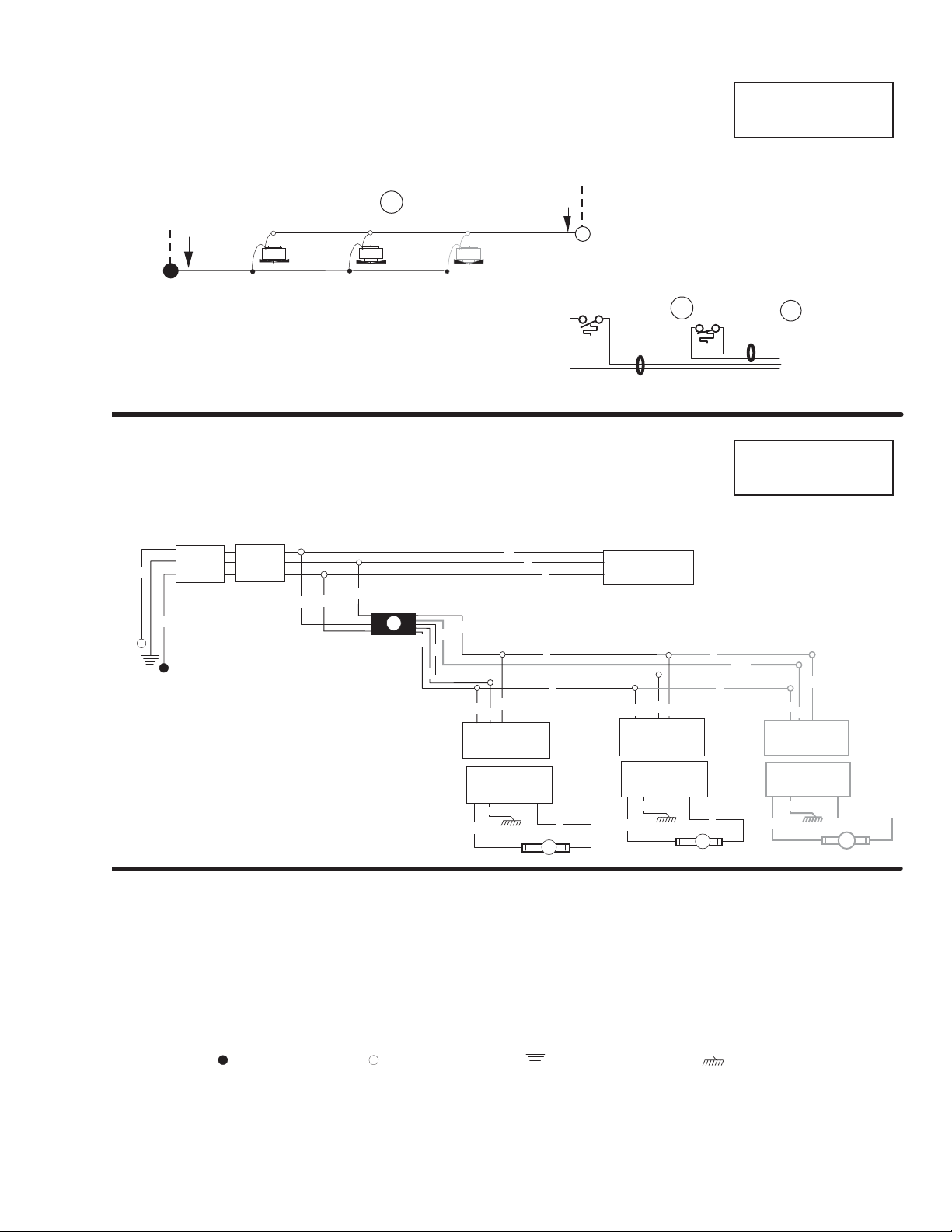

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Fan Wiring

Offtime Defrost

2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

WGB

BL BL

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

6 of 6 D5NGE Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

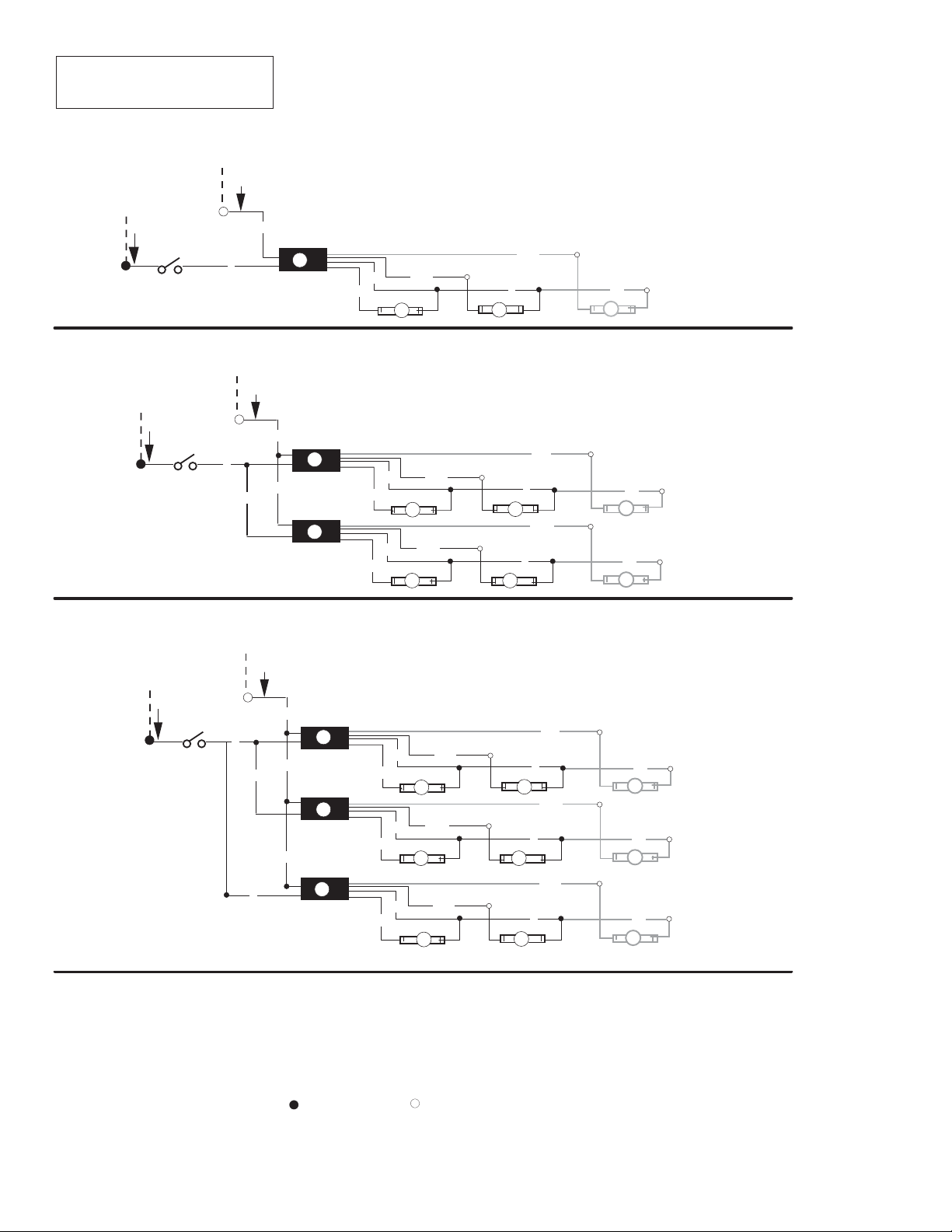

Standard Lighting 1 Row Canopy or Optional 1 Row Rail

Light Circuits

Optional Lighting 2 Rows Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Lighting 3 Row Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

BWBL

555

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

BWBL

555
