Hussmann Impact Excel B3XC-LEP Manuale di istruzioni

P/N 0487015_A

B3XC-LEP

Technical Data Sheet

P/N 0487015_A

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

Item Part # Description Wiring Item #

THERMOSTATS

B. Optional Adjustable Refrigeration Thermostat (2)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

C. Ballast, Electronic (3)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

D. Fluorescent Lamp (4)

Replace with like fixtures

E. 0501213 Power Supply (EP.4481861) (5)

F. LED Fixture (6)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision A changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8, 9); adds capacity and weight (Page 5).

2 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. B3XC-LEP Technical Data Sheet

Engineering

Plan Views

Dimensions shown as inches and (mm).

Bulk Convertible

05-2006

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (122)

Wireway

26 1/2

(673) Splashguard

35 5/8

(905)

(1168)

42 3/4

(1086)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

30 1/4

(768)

8(203)

3 7/8 (98)

12 (305)

42 3/4

(1086)

45 1/8

(1146)

3 1/8 (80)

3(76)

(712)

37 3/8

(950)

Electrical

Field

Connection

34 3/8

(873)

B3XC

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 46 (1168) 46 (1168) 46 (1168) 46 (1168)

Back of case to front of splashguard 37 3/8 (950) 37 3/8 (950) 37 3/8 (950) 37 3/8 (950)

Back of case to O/S edge of front leg 34 3/8 (873) 34 3/8 (873) 34 3/8 (873) 34 3/8 (873)

Distance between edges of external legs and center legs NA 29 1/2 (750) 42 3/4 (1085) 42 3/4 (1085)

Distance between edges of center legs NA NA NA 45 1/8 (1146)

Distance between front legs and splashguard 2 5/8(66) 2 5/8(66) 2 5/8(66) 2 5/8(66)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 28 (712) 28 (712) 28 (712) 28 (712)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 3/8 (924) 60 3/8 (1533) 84 3/8 (2143) 132 1/2 (3366)

RH End of case to the center of RH waste outlet 12 (305) 12 (305) 12 (305) 12 (305)

Back O/S of case to center of waste outlets 35 5/8 (905) 35 5/8 (905) 35 5/8 (905) 35 5/8 (905)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

B3XC-LEP DAIRY/DELI/PRODUCE‡

UNLIT LIT

Discharge Air °F 34 32

Evaporator °F 28 26

Unit Sizing °F 26 24

‡ For red meat application, lower evaporator

temperature and unit sizing 3°F. increase Btu 5%.

Btu/hr/ft — Unlit Shelves

B3XC-LEP‡‡ DAIRY/DELI/PRODUCE

Parallel Conventional

UNLIT 1215 1295

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

B3XC-LEP

Frequency (hr) 8

Defrost Water (lb/ft/day) 7

(±15% based on case configuration and

product loading.

OFFTIME B3XC-LEP

Time (minutes) 30

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*

B3XC-LEP DAIRY/DELI/PRODUCE‡

Temp (°F) 19°F / 9°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to determine

PSIG conversions.

‡ For red meat application, reduce low pressure

backup control by 3°F.

Estimated Charge (lbs)** B3XC-LEP

4 ft 1.6

6 ft 2.3

8 ft 3.2

12 ft 4.5

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Dimensions shown as inches and (mm).

P/N 0487015_A 3 of 11

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

4 1/2 (114)

35 5/8 (905)

4 3/4 (120)

34 3/8 (873)

46 (1168)

37 3/8 (950)

30 1/4 (768)

34 1/8

(867)

19 5/8

(498) FAN

B3XC-LEP

17 1/4

(438)

3 In. (77 mm)

Required

Air Gap

26 3/8

(670)

4 7/8 (123)

Electrical

Case to Case

Connections

21 1/8

(536)

59 7/8

(1521)

Refrigeration

Outlet

3 5/8

(92)

39 1/4

(997)

37 1/8

(943)

(279)

Impact

Excel

B3XC-LEP

Bulk Convertible

Multi-deck, Wide Footprint, Extended Canopy Low Front,

3 Display Levels

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—12W 1 — 2 3

Number of Fans—7W — 2 — —

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 0.65 1.00 1.30 1.95 50 78 100 150

120V 50Hz Standard 0.75 1.10 1.50 2.25 57 84 114 171

230V 60Hz Export 0.33 0.50 0.66 0.99 50 78 100 150

230V 50Hz Export 0.38 0.56 0.76 1.14 57 84 114 171

120V 60Hz Energy Efficient 0.30 0.38 0.60 0.90 18 28 36 54

230V 60Hz Energy Efficient 0.15 0.20 0.30 0.45 18 28 36 54

Minimum Circuit Ampacity

120V 60Hz Standard 0.85 1.20 1.50 2.15

120V 50Hz Standard 0.95 1.30 1.70 2.45

230V 60Hz Export 0.53 0.70 0.86 1.19

230V 50Hz Export 0.58 0.76 0.96 1.34

120V 60Hz Energy Efficient 0.50 0.58 0.80 1.10

230V 60Hz Energy Efficient 0.35 0.40 0.50 0.65

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Standard Lighting (T-8 fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting (T-8 fluorescent)

1 Row Rail Light 0.26 0.51 0.51 0.77 30 59 59 85

Optional Shelf Lighting (T-8 fluorescent)

1 Row of Shelves 0.26 0.51 0.51 0.77 30 59 59 85

2 Rows of Shelves 0.51 1.02 1.02 1.54 59 118 118 170

3 Rows of Shelves 0.77 1.53 1.53 2.31 89 177 177 255

Optional Always*Bright LED Lighting

1 Row of Shelves 0.15 0.19 0.26 0.38 18 23 31 45

2 Rows of Shelves 0.26 0.34 0.47 0.67 31 41 56 80

3 Rows of Shelves 0.38 0.53 0.74 1.11 45 63 89 133

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

4 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. B3XC-LEP Technical Data Sheet

Impact

Excel

B3XC-LEP

Bulk Convertible

5 of 11P/N 0487015_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

B3XC-LEP

Bulk Convertible

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 700 (318) 900 (408) 1100 (499) 1200 (544) 50 (23)

5Actual weights will vary according to optional kits included.

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 6.31 ft3/ft (0.59 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 5.56 ft3 /ft (0.52 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 3.57 ft2/ft (1.09 m2 /m)

Shelf Area 4(Sq Ft/Ft) 5.70 ft2/ft (1.74 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is (1) row of 16-inch shelf and (1) row of

18-inch shelf.eparately from fans.

6 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. B3XC-LEP Technical Data Sheet

Refrigeration

Thermostat

Condensing

Unit

}

Light Blue

1, 2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

1 Fan

2 Fans

3 Fans

4 ft

6 ft

8 ft

12 ft

344

Connector

BL BL

Orange or Tan Band

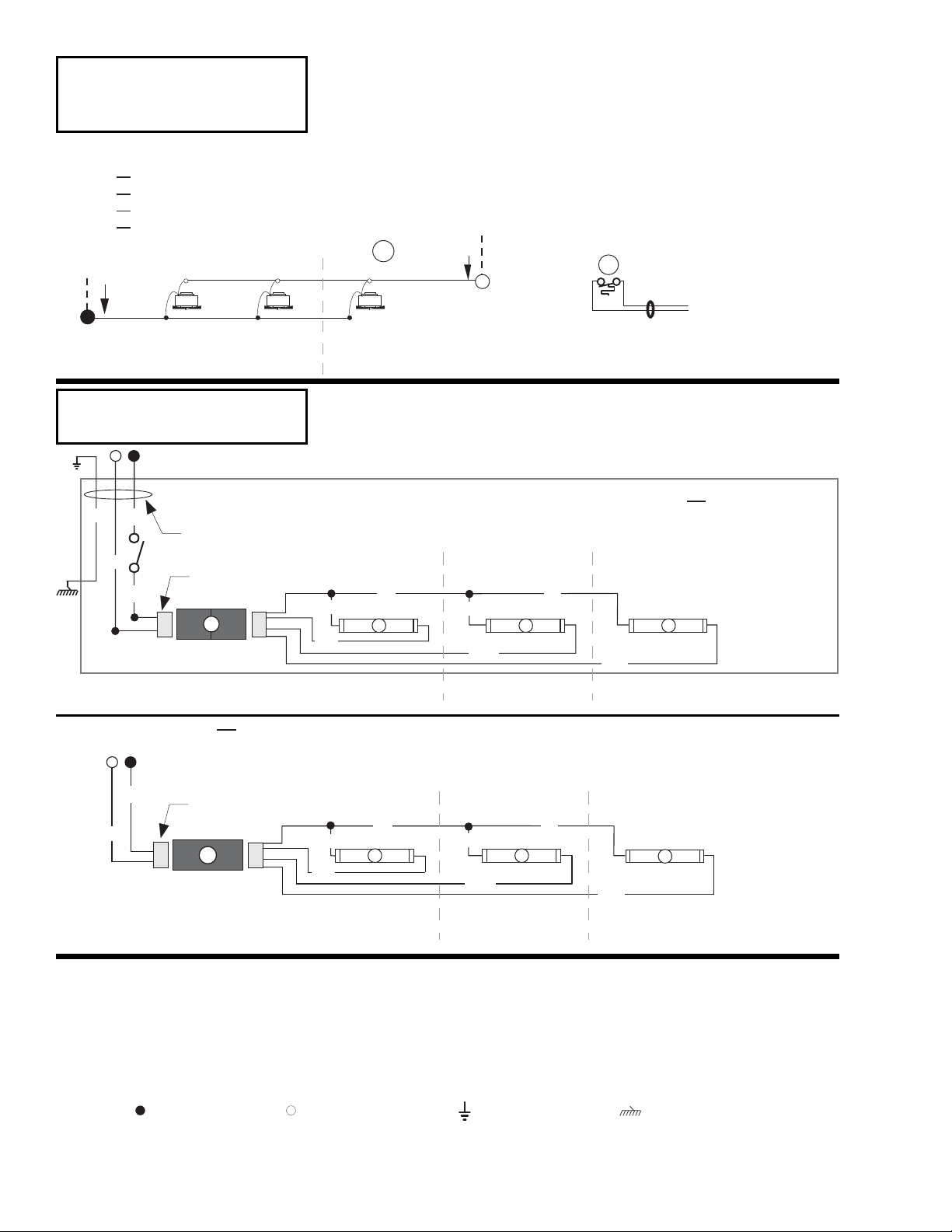

Standard Lighting 1 Row Canopy

344

Connector

Optional Lighting 1 Row Rail

4 ft 6 ft or 8 ft 12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Fan Wiring

Offtime Defrost

Light Circuits

7 of 11P/N 0487015_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional Shelf Harness and Light Circuits for Three Rows of Shelves

4 ft case

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

8 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. B3XC-LEP Technical Data Sheet

4 ft case

6 ft or 8 ft case

12 ft case

BL 6

RBL

Connector

BL 6

RBL

(TYP)

Shelf Light

Plug & Receptacle

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

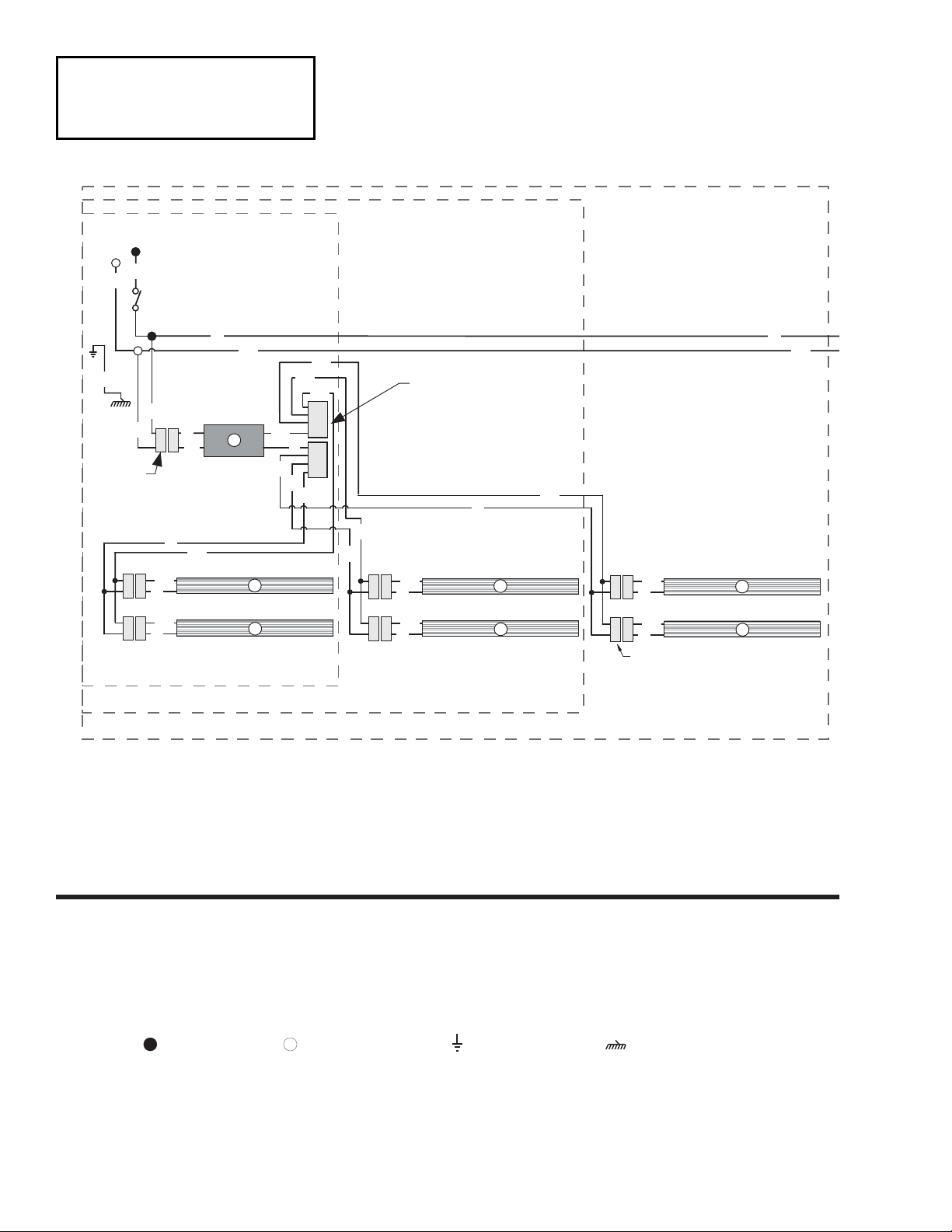

Optional Shelf Harness and LED Light Circuits for

Two Rows of Shelves

Optional Shelf Lighting

LED Fixtures

9 of 11P/N 0487015_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Optional Shelf Lighting

LED Fixtures

BL 6

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 6

RBL

BL 6

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

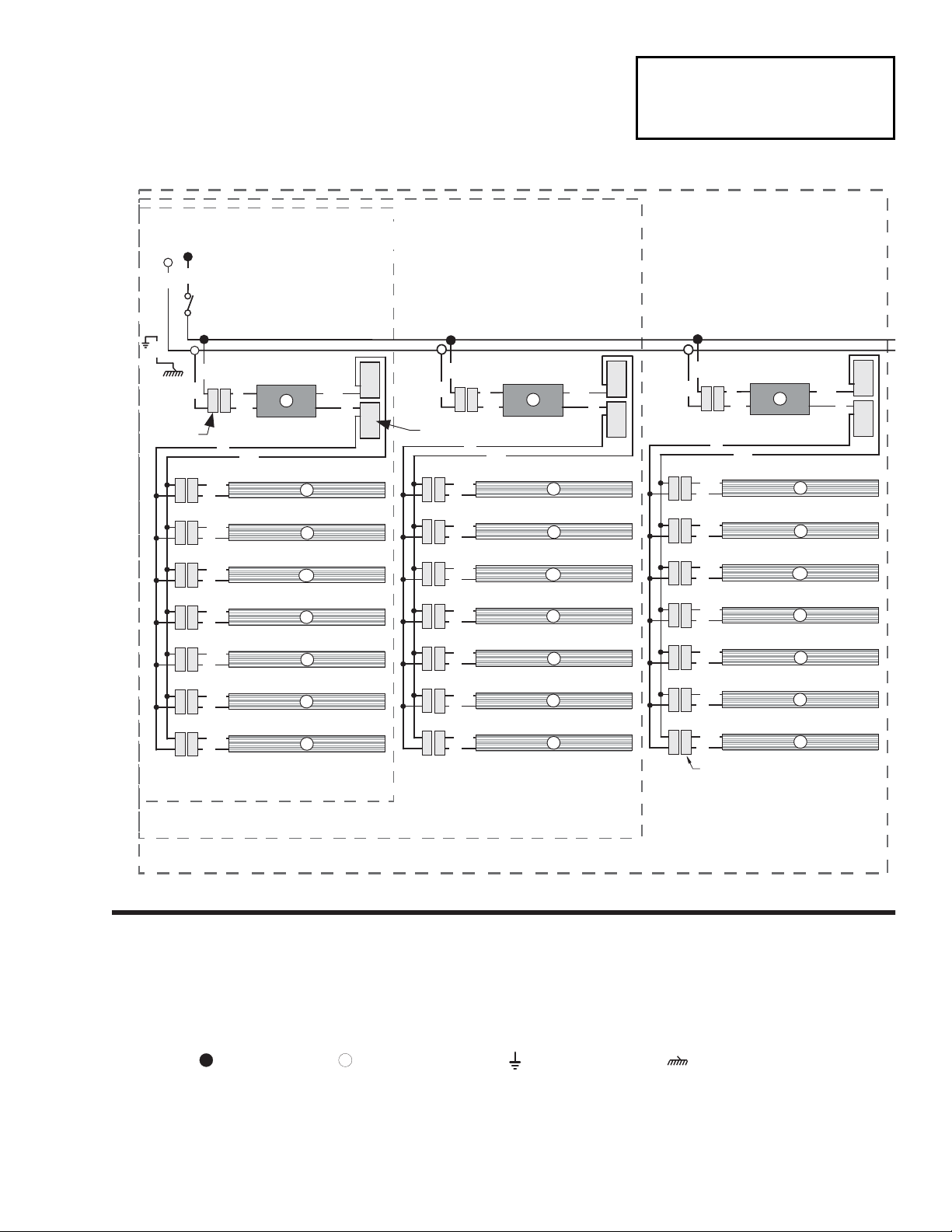

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

10 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. B3XC-LEP Technical Data Sheet

Top Shelf

(12 in., 15o Shown)

Second Shelf

(16 in., 15o Shown)

Third Shelf

(18 in., 15o Shown)

Impact

Excel

B3XC-LEP

Bulk Convertible

SHELF CONFIGURATION

This case is designed for three (3)

shelves.

The depth of each shelf is critical to

case performance.

Top Shelf Depth

12 inches

14 inches

Second Shelf Depth

14 inches

16 inches

Third Shelf Depth

16 inches

18 inches

20 inches

Altri manuali per Impact Excel B3XC-LEP

Indice

Altri manuali Hussmann Merchandiser

Hussmann

Hussmann FWE Manuale di istruzioni

Hussmann

Hussmann D6NX-LE Manuale di istruzioni

Hussmann

Hussmann P4EP Manuale utente

Hussmann

Hussmann Impact M1GE Manuale utente

Hussmann

Hussmann NIM-6 Guida rapida

Hussmann

Hussmann RI1 Manuale di istruzioni

Hussmann

Hussmann C6L-EP Manuale utente

Hussmann

Hussmann RGSSFP Istruzioni operative originali

Hussmann

Hussmann ASCS Istruzioni operative

Hussmann

Hussmann SMBV Manuale utente

Hussmann

Hussmann microSC VRL1B Manuale utente

Hussmann

Hussmann IMPACT CW2-XGE Manuale utente

Hussmann

Hussmann Q1-SS Manuale di istruzioni

Hussmann

Hussmann C2NX-XE Manuale di istruzioni

Hussmann

Hussmann ASCS Manuale di istruzioni

Hussmann

Hussmann Q1-DC Wedge Manuale utente

Hussmann

Hussmann Impact P1X49-MOB-B Manuale utente

Hussmann

Hussmann LN Manuale di istruzioni

Hussmann

Hussmann Excel Supplemento

Hussmann

Hussmann Impact Excel P2X-EP Manuale di istruzioni

Hussmann

Hussmann FIG Manuale di istruzioni

Hussmann

Hussmann PWW Manuale utente

Hussmann

Hussmann MD-14 Manuale utente

Hussmann

Hussmann IMPACT D5NE Manuale utente

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

CASCO

CASCO Nano Cube Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Dixie Narco

Dixie Narco DNCB 501E Manuale utente

APW Wyott

APW Wyott Racer DMXD-30H Manuale utente

Hoshizaki

Hoshizaki KD-90C Manuale utente

Summit

Summit SCR1006 Manuale utente

Delfield

Delfield Shelleyspeed SPM-28E Manuale utente

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuale utente

Kysor/Warren

Kysor/Warren GranBering KW Guida

Crane

Crane BevMAX Refresh 6 Media Manuale utente
