Hussmann IMPACT M4NGE Manuale utente
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0404842A
Item Part # Description Wiring Item #
FAN ASSEMBLIES AND THERMOSTATS
A. 9W Fan Assembly 1
0047000 Fan Motor, Evaporator
0315470 Fan Blade
embossing toward motor
B. 0411744 Standard Non-adjustable 2
Thermostat
C. 0137880 Optional Adjustable 3
Refrigeration Thermostat
Note: Changed items have been underlined.
Merchandisers
®
DE
E
A
E
C
B
D
M4NGE
Data Sheet Set
P/N 0404842A
NSF®Certified
August 2004
Item Part # Description Wiring Item #
LAMPS AND BALLASTS
D. 0428648 Ballast, Electronic
2 lamps 4
D. 0428649 Ballast Electronic
3 lamps 4
E. Fluorescent Lamp 5
Replace with like fixtures
8 Ft 12 ft
General
(A) Length of Case (without ends or partitions) 96 3/8(2448) 144 1/2(3670)
Maximum outside dimensions of case back to front (includes bumper) 40 1/2(1030) 40 1/2(1030)
Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851)
Back of case to outside edge of front skidrail 29 1/2 (749) 29 1/2 (749)
Width of skidrail 4 1/2 (114) 4 1/2 (114)
Stub-up area between front skidrail and splashguard 4 (102) 4 (102)
Electrical Service
(B) Right end of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)
Back outside of case to center of knockout 31 (787) 31 (787)
Length of electrical raceway 34 1/2 (878) 34 1/2 (878)
*Note: Electrical Field Wiring Connection Point
Waste Outlet
(C) Right end of case to center of waste outlet 24 1/8 (613) 72 1/4 (1835)
Left end of case to center of waste outlet 72 1/4 (1835) 72 1/4 (1835)
Back outside of case to center of waste outlet 27 (686) 27 (686)
Water Seal
Edge of water seal to center of waste outlet 4 (102) 4 (102)
Outside diameter of drip pipe 1 1/2 (38) 1 1/2 (38)
*Note: Water seal outlet must clear front skid rail.
Refrigeration Outlet
Right end of case to center of refrigeration outlet 9 (230) 9 (230)
Back outside of case to center of refrigeration outlet 27 1/2 (699) 27 1/2 (699)
2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M4NGE Data Sheet
4(102)
9
(230)
27 1/2
(699)
27
(686)
B
C
Skid/ External Base
A
72 1/4 (1835)
43/8 (111)
Refrigeration
Outlet
Waste Outlet
Water Seal
Elec.
31
(787)
Access Area
40 1/2
(1030)
Front
(See Note*)
29 1/2
(749)
33 1/2
(851)
Dimensions shown as inches and (mm).
Engineering
Plan View
Narrow
Meat and Delicatessen
09-2003
P/N 0404842A 3 of 6
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

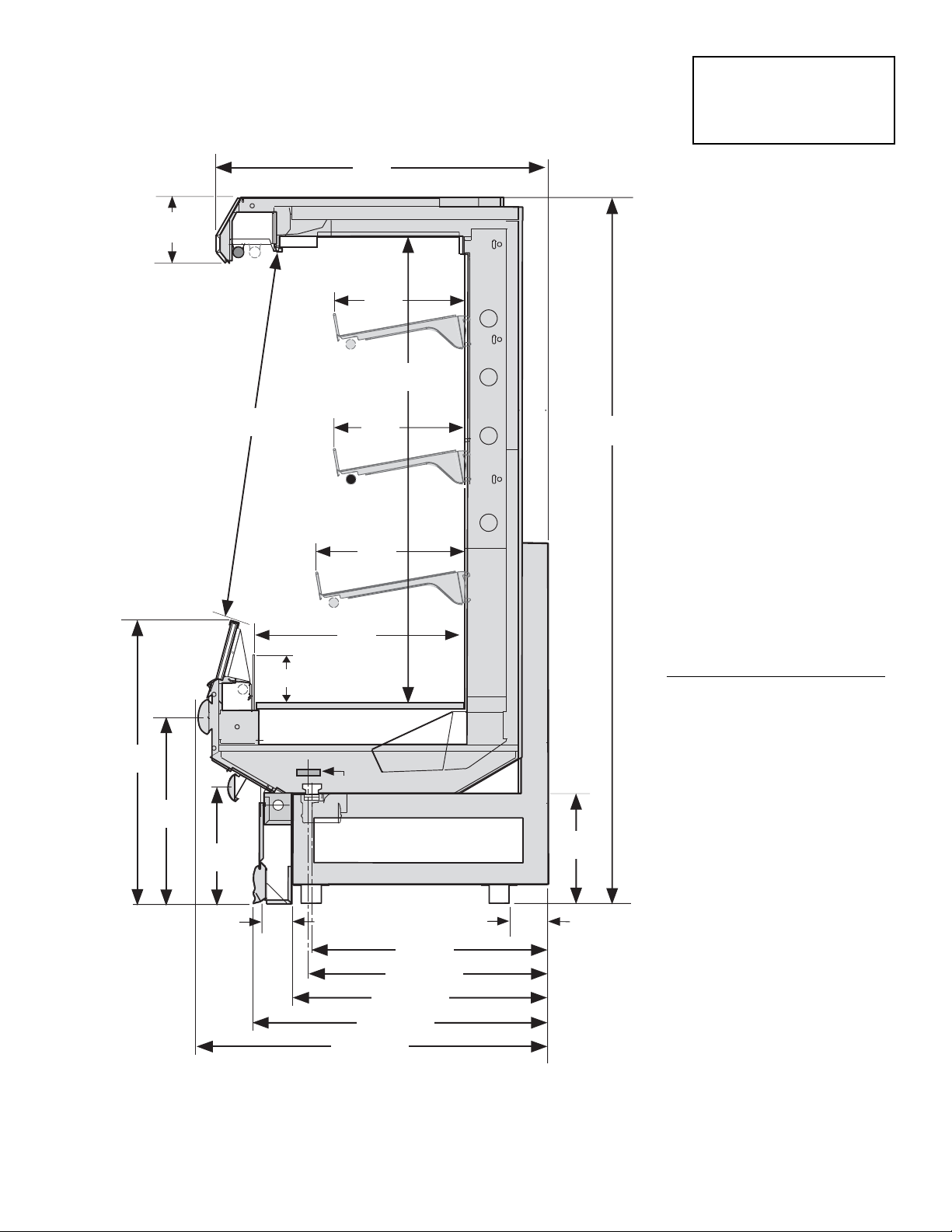

FAN
M4NGE 38 1/8
(968)
33 1/2
(851)
7 1/2
(190)
46 1/8
(1173)
24 1/8
(614)
16
(406)
14
(356)
14
(356)
5 5/8 (143)
34 3/4
(884)
21 5/8
(550)
C
O
I
L
4
(102)
12 1/2
(319)
4 3/8
(111)
27 (686)
27 1/2 (699)
29 1/2 (748)
34 (862)
40 1/2 (1029)
73 7/8
(1877)
Refrigeration Outlet
13 1/2
(343)
REFRIGERATION DATA
Note: This data is based on store
temperature and humidity that does not
exceed 75°F and 55% R.H.
M4NGE
Discharge Air °F 29
Evaporator °F 21
Unit Sizing °F 19
Btu/hr/ft** M4NGE
Parallel 1260
Conventional 1350
**For all refrigeration equipment other than
Husssmann, use conventional BTU values.
DEFROST DATA
M4NGE
Frequency (hr) 6
Defrost Water (lb/ft/day) 8
(±15% based on case configuration and
product loading.
OFFTIME M4NGE
Temp Term °F 48°F
Failsafe Minutes 35
ELECTRIC OR GAS Not Recommended
Standard Defrost Thermostat
Close on rise: close 48°F – open 33°F
CONVENTIONAL CONTROLS
Low Pressure Backup Control
CI/CO** 14/4°F
Indoor Unit Only, Pressure Defrost
Termination** 48°F
**Use a Temperature Pressure Chart to
determine PSIG conversions.
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/2
Liquid Line (in.) 3/8
Suction Line (in.) 7/8
Estimated Charge (lbs)***
M4NGE
8 ft 2.7
12 ft 3.9
***This is an average for all refrigerant
types actual refrigerant charge may vary
by approximately half a pound.
Length (in.) Added to Lineup
by Each End or Insulated
Partition 1 1/2
Impact M4NGE
Narrow
Meat and Delicatessen
Multi-deck, 4 Display Levels and Front Glass
Dimensions shown as inches and (mm).
NSF Certification
These merchandisers are manufactured to meet ANSI /National
Sanitation Foundation (NSF®) Standard #7 requirements.
4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M4NGE Data Sheet
Impact M4NGE
Narrow
Meat and Delicatessen
Electrical Data
8 Ft 12 Ft
Number of Fans — 9W 2 3
Amperes Watts
Merchandiser 8 Ft 12 Ft 8 Ft 12 Ft
Fans
Standard (120V 60Hz) 1.40 2.10 110 165
Energy Efficient (120V 60Hz) 0.76 1.14 50 75
Export (230V 50Hz) 0.76 1.14 114 171
Constant on Anti-sweat Heaters NA
Cycling Anti-sweat Heaters NA
Minimum Circuit Ampacity
With Standard Fans (120V 60Hz) 1.60 2.30
Export (230V 50Hz) 0.96 1.34
With Energy Efficient Fans (120V 60Hz) 0.96 1.34
Maximum Over Current Protection 120V 20 20
Maximum Over Current Protection 230V 15 15
Supplemental Gas Heaters NA
208V 1ΦΦElectric Defrost NA
Standard Lighting
1 Row Canopy 0.51 0.77 59 85
Optional Lighting
1 Row Canopy and 1 Rail 1.02 1.54 118 170
2 Rows Canopy 1.02 1.54 118 170
2 Rows Canopy and 1 Row Rail 1.53 2.31 177 255
Optional Shelf Lighting
1 Row of Shelves 0.51 0.77 59 85
2 Rows of Shelves 1.02 1.54 118 170
3 Rows of Shelves 1.53 2.31 177 255
P/N 0404842A 5 of 6
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Defrost
Termination
Thermostat
Refrigeration
Thermostat
Dark Blue
3
To
Condensing
Unit
}
Light Blue
2
Grayed components in 12 foot models only.
R = Red Y = Yellow G = Green BL = Blue B = Black W = White
= 120V POWER = 120V NEUTRAL = Field GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
Fan Wiring
Offtime Defrost
2 & 3 Fans
120V NEUTRAL
BROWN BAND
120V POWER
Fans 1
BROWN BAND
= Case GROUND
Connector
Connector
G
Connector
Connector Connector
Connector Connector
Optional Shelf Harness and Light Circuits for
One Row of Shelves
120 V
Power
B
W
G
B
BL
BL
BL G
G
RR
BL BL G
W
BL
Shelf Harness
Shelf Light Circuits
BL
G
R
5
4
W
BL
R
5
BL R
G
G
R
R
R
G
Shelf Lighting
G G
R
BL
5
BL
Connector
Connector
B
M4NGE Data Sheet
6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Standard Lighting 1 Row Canopy
Light Circuits
Optional Lighting 2 Row Canopy
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
= 120V POWER = 120V NEUTRAL
Grayed components in 12 foot models only.
R = Red Y = Yellow G = Green BL = Blue B = Black W = White
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
Optional Lighting 1 Row Rail
120V NEUTRAL
ORANGE OR TAN BAND
W
Light
Switch
120V POWER
ORANGE OR TAN
BAND
B
B
WBL
R
R
BL
BL
4
BL
R
R
BL
BL
4
120V NEUTRAL
ORANGE OR TAN BAND
W
Light
Switch
120V POWER
ORANGE OR TAN
BAND
B
BL
R
R
BL
BL
4
120V NEUTRAL
ORANGE OR TAN BAND
Light
Switch
120V POWER
ORANGE OR TAN
BAND
B
BL
R
R
BL
BL
4
5
R
5
R
5
R
R
5
W
