Hussmann M1X-XGEC Manuale di istruzioni

P/N 0503709_B

Note: Rev. B updates capacity numbers on Page 5.

M1X-XGEC

Technical Data Sheet

P/N 0503709_B

NSF®Certified

April 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Item Part # Description Wiring Item #

FAN ASSEMBLIES

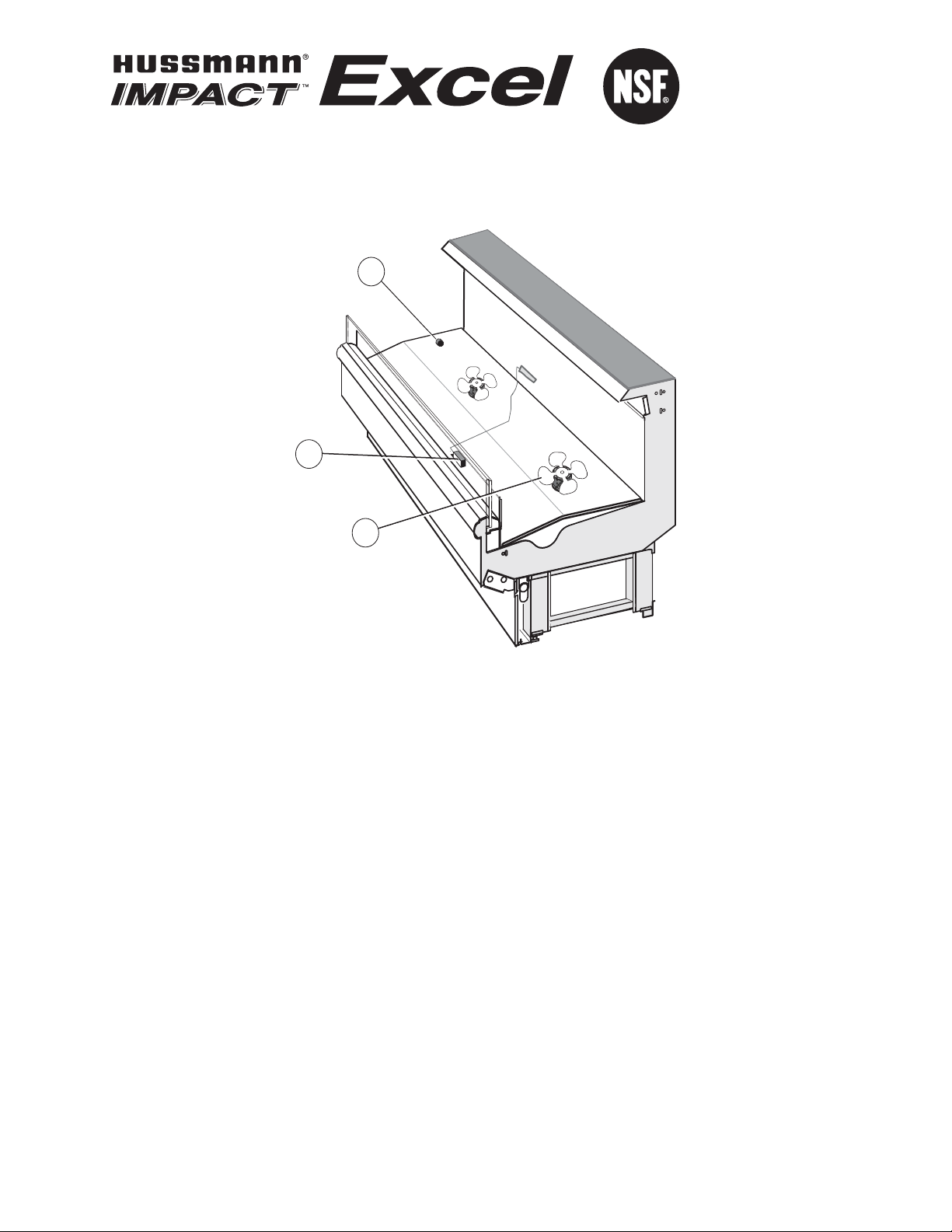

A. 4W Standard Fan Assembly (1)

0392457 Fan Motor, Evaporator

(MO.4410101)

0464847 Fan Blade (FB.4780649)

4W Energy Efficient Fan Assembly (1)

0477653 Fan Motor, Evaporator

(MO.4410544)

0464847 Fan Blade (FB.4780649)

Item Part # Description Wiring Item #

THERMOSTATS

B. 0382028 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0382028)

C. Optional Adjustable Refrigeration Thermostat (3)

LAMPS AND BALLASTS

None

M1X-XGEC Technical Data Sheet2 of 5 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

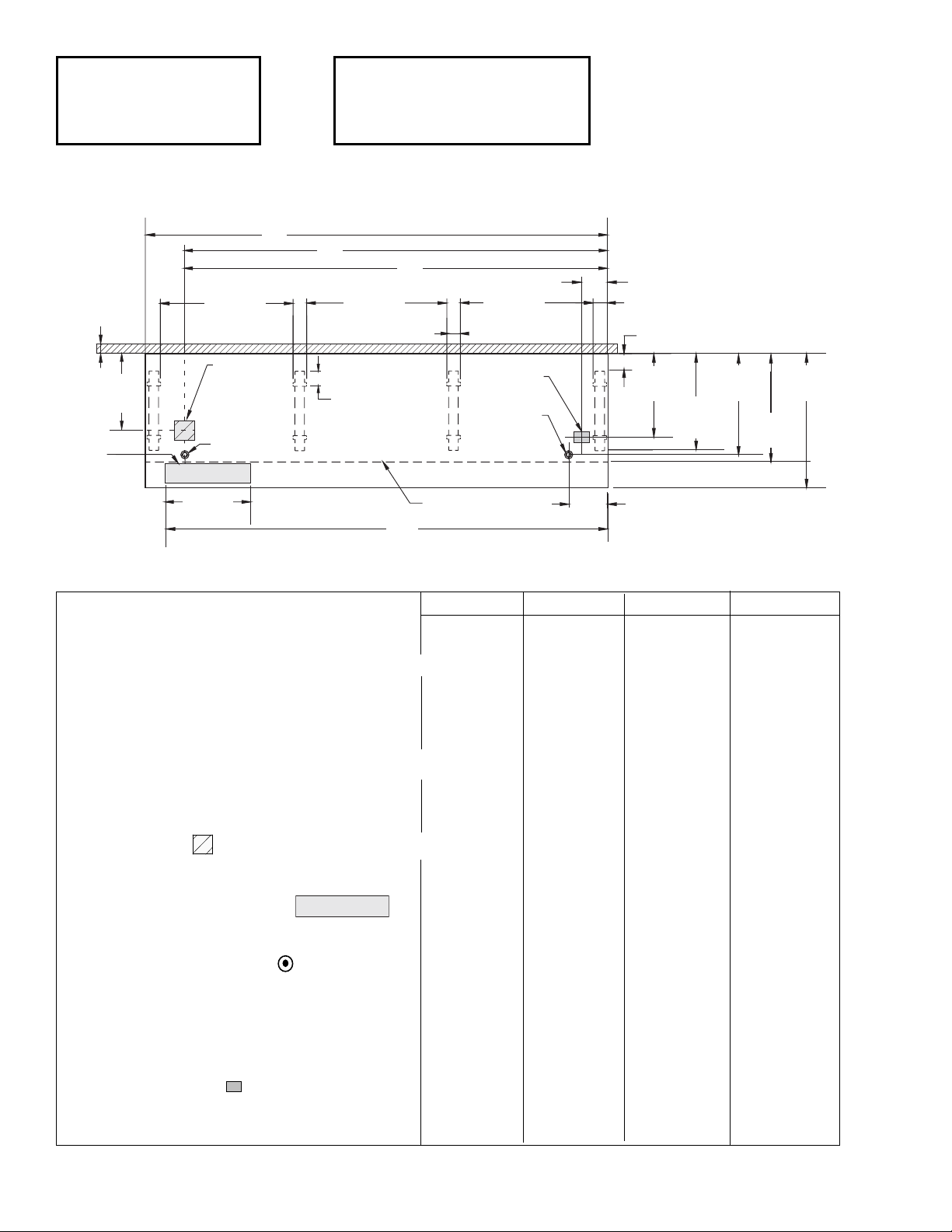

Plan Views

Dimensions shown as in. and (mm).

Meat, Delicatessen and Produce

09-2005

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

31 5/8

(804)

(1064)

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

26 1/4

(665)

8(203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

(612)

33 1/2

(851)

Electrical

Field

Connection

30 1/4

(768)

M1X

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851)

Back of case to O/S edge of front leg 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)

Schedule 40 PVC drip pipe 1 1/41 1/41 1/41 1/4

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Wireway

3 of 5P/N 0503709_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

2 1/8

(54)

45 3/4

(1162)

31 5/8 (804)

4 3/4

(120)

30 1/4 (768)

42 (1064)

33 1/2 (851)

26 1/4 (665)

Electrical

Case to Case

Connections

FAN

3 In. (77 mm)

Required

Air Gap

Refrigeration

Outlet

24 5/8

(626)

34 1/4

(870) 11

(279)

17 1/8

(436)

12 1/4

(311)

11 1/2 (292)

16 3/8

(416)

30 (762)

8 3/4

(222)

91/2 (241)

9 1/2 (241)

Dimensions shown as inches and (mm).

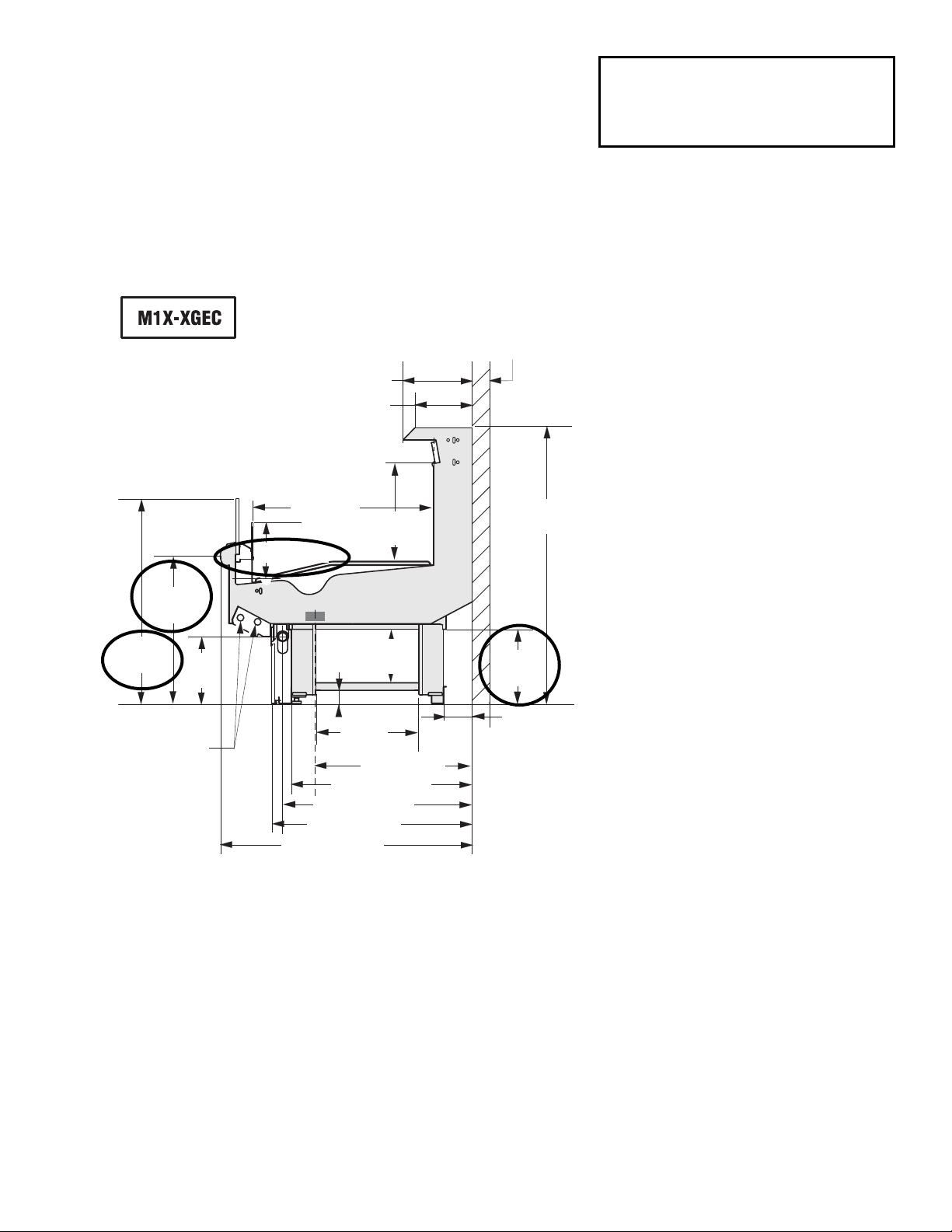

Single Deck with High Back, 1 Display Level, Glass Front

Impact

Excel

M1X-XGEC

Meat, Delicatessen

Pre-cut and Packaged Produce

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

M1X-XGEC

Discharge Air (°F) 26

Evaporator (°F) 18

Unit Sizing (°F) 16

Btu/hr/ft* M1X-XGEC

Parallel 500

Conventional 530

DEFROST DATA

Frequency (hr) 6

Defrost Water (lb/ft/day) 2

(± 15% based on case configuration and product

loading).

OFFTIME M1X-XGEC

Temp Term (°F)43°F

Failsafe (minutes) 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 43°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

M1X-XGEC

CI/CO** 11°F / 1°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to determine

PSIG conversions.

Estimated Charge (lb)*** M1X-XGEC

4 ft 0.9

6 ft 1.2

8 ft 1.7

12 ft 2.3

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

4 of 5 M1X-XGEC Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Excel

M1X-XGEC

Meat and Delicatessen

Precut and Packaged Produce

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—4W 1 2 2 3

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 0.31 0.62 0.62 0.93 24 48 48 72

120V 50Hz Standard 0.38 0.76 0.76 1.14 27 54 54 81

230V 60Hz Export 0.15 0.30 0.30 0.45 24 48 48 72

230V 50Hz Export 0.18 0.36 0.36 0.54 27 54 54 81

120V 60Hz Energy Efficient 0.12 0.24 0.24 0.36 8 16 16 24

230V 60Hz Energy Efficient 0.06 0.12 0.12 0.18 8 16 16 24

Minimum Circuit Ampacity

120V 60Hz Standard 0.51 0.82 0.82 1.13

120V 50Hz Standard 0.58 0.96 0.96 1.34

230V 60Hz Export 0.35 0.50 0.50 0.65

230V 50Hz Export 0.38 0.56 0.56 0.74

120V 60Hz Energy Efficient 0.32 0.44 0.44 0.56

230V 60Hz Energy Efficient 0.26 0.32 0.32 0.38

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

5 of 5P/N 0503709_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

M1X-XGEC

Meat and Delicatessen

Precut and Packaged Produce

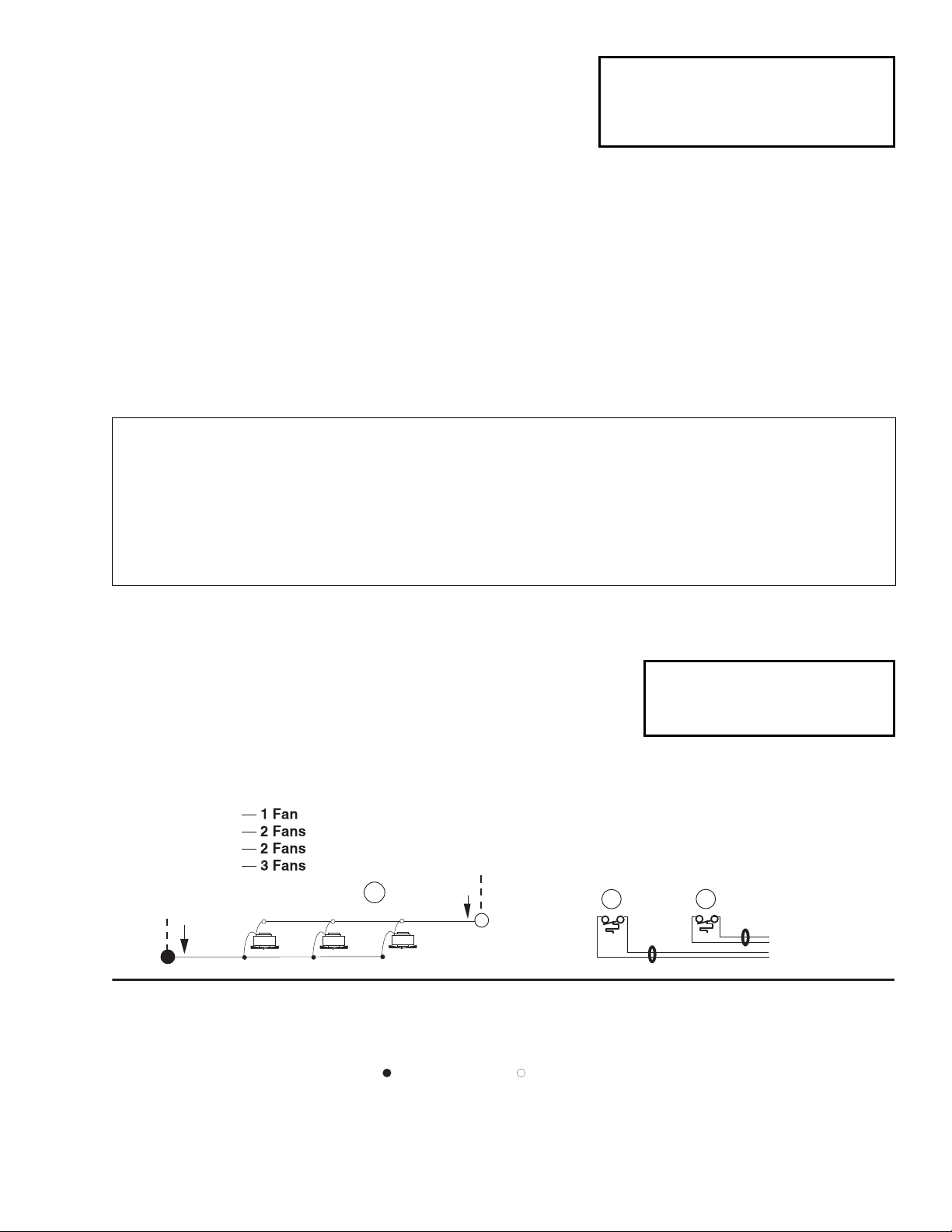

Defrost

Termination

Thermostat

Condensing

Unit

}

Dark

Blue

Light

Blue

Refrigeration

Thermostat

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS GRAYED COMPONENTS IN 12 FOOT MODELS ONLY.

120V

NEUTRAL

120V

POWER Fans 1

BROWN BAND

4 ft

6 ft

8 ft

12 ft

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 400 (181) 500 (227) 700 (318) 900 (408) 50 (23)

5Actual weights will vary according to optional kits included.

Fan Wiring

Offtime Defrost

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 2.08 ft3/ft (0.19 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 2.23 ft3 /ft (0.21 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 2.81 ft2/ft (0,86 m2 /m)

Shelf Area 4(Sq Ft/Ft) 2.51 ft2/ft (0.76 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is NONE.
