Hussmann RI2N Manuale di istruzioni

Serial Plate

P/N 0492430_A

RI2N

Technical Data Sheet

P/N 0492430_A

NSF®Certified

January 2007

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

8 Ft, 10 Ft, 12 Ft,14 Ft & 16 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0142780 Fan Blade (FB.0142780)

embossing toward motor

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0142780 Fan Blade (FB.0142780)

B. Optional Adjustable Refrigeration Thermostat (2)

0448347 (CT.4481631)

Item Part # Description Wiring Item #

HEATERS

C. Anti-Sweat Heater (3)

0487118 (HE.4850668)

LAMPS AND BALLASTS

D. Ballast, Electronic (4)

0355398 (BA.4480118)

0355716 (BA.0355716)

0447740 (BA.4481278)

E. Fluorescent Lamp (5)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

2 of 6 RI2N Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

RI2N Island

Electrical Service

Drains

Refrigeration

& Coil Stubout

(686)

(178)

(1245)

26 1

(673)

(140)

(241) 22

(559)

(1524)

31 1

(794)

14 1

(368)

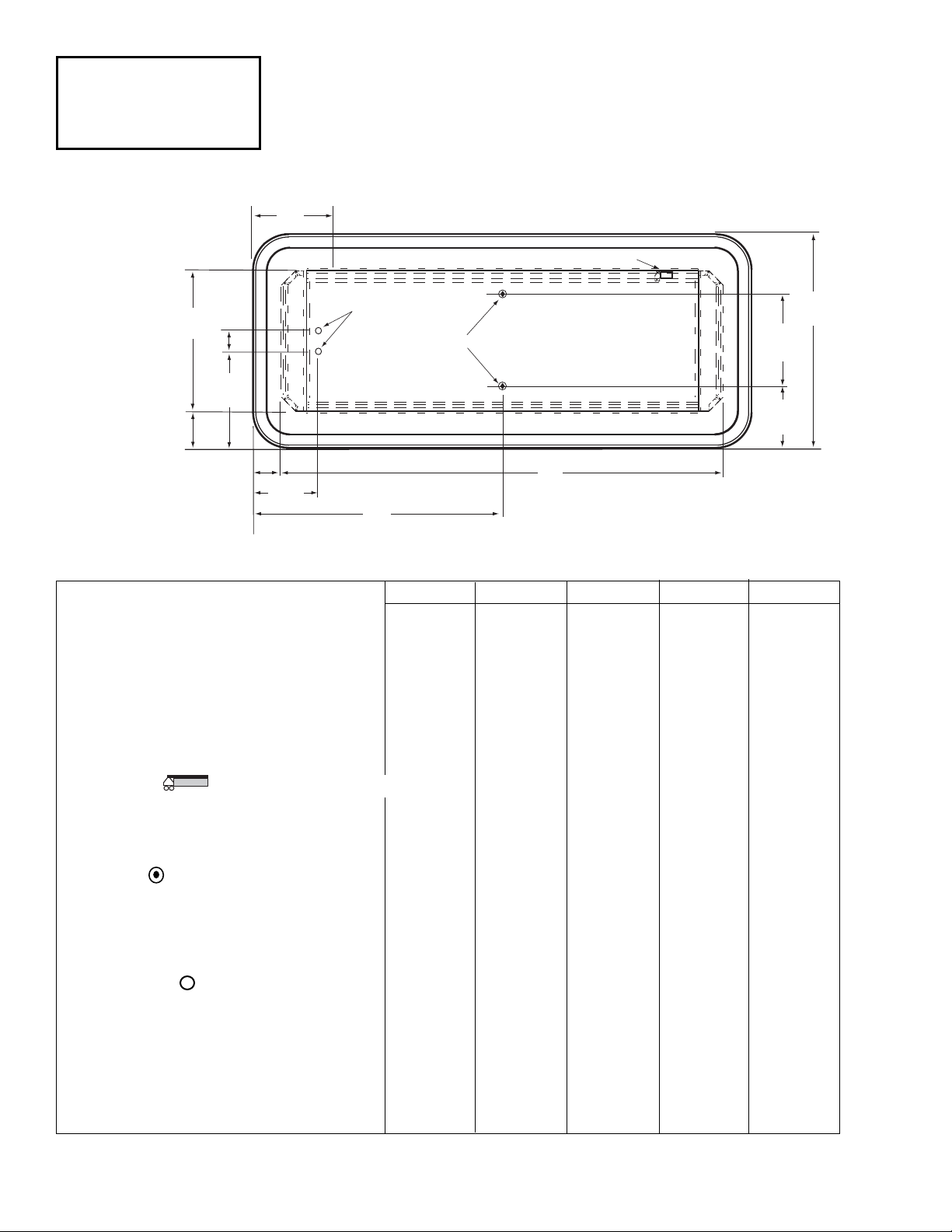

Engineering

Plan Views

06-2003

Front

8 ft 10 ft 12 ft 14 ft 16 ft

General

(A) Base Length 77 (1956) 101 7/8 (2588) 125 7/8 (3198) 149 1/2 (3798) 173 (4396)

Overall Case Length 96 (2438) 120 (3048) 144 (3658) 168 (4267) 192 (4876)

Maximum O/S dimension of case back to front

(includes bumper) 60 (1524) 60 (1524) 60 (1524) 60 (1524) 60 (1524)

Front of splashguard to O/S edge of front base rail 1 5/8 (41) 1 5/8 (41) 1 5/8 (41) 1 5/8 (41) 1 5/8 (41)

Front of case to O/S edge of front base rail 13 1/8 (333) 13 1/8 (333) 13 1/8 (333) 13 1/8 (333) 13 1/8 (333)

Back of case to O/S edge of front base rail 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495)

Width of base rail 1 7/8 (48) 1 7/8 (48) 1 7/8 (48) 1 7/8 (48) 1 7/8 (48)

Electrical Service (Electrical Field Wiring connection point)

Center of Electrical service to O/S edge of front base rail 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181)

Right end of case to center of knockout 27 (686) 27 (686) 27 (686) 27 (686) 27 (686)

Left end of case to center of knockout 69 (1753) 93 (2362) 117 (2972) 141 (3581) 165 (4191)

Waste Outlets

(B) LH End of case to the center of waste outlet 48 (1219) 78 (1981) 102 (2591) 84 (2134) 96 (2439)

Center of front waste outlet to outside of front base rail 8 (203) 8 (203) 8 (203) 8 (203) 8 (203)

Center of back waste outlet to outside of front base rail 39 1/4 (997) 39 1/4 (997) 39 1/4 (997) 39 1/4 (997) 39 1/4 (997)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

LH end of case to center of refrigeration outlet 22 (559) 22 (559) 22 (559) 22 (559) 22 (559)

RH end of case to center of refrigeration outlet 74 (1880) 98 (2489) 122 (3098) 146 (3708) 170 (4318)

Serial Plate

End

3 of 6P/N 0492430_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

(686)

(1245)

23 7/8

(607)

51/2

(140)

(1524)

51/2

(140)

27 1/8

(689)

55 3/4

(1416)

/4 (83)

97/8 (251)

6(152)

18 1/8

(460)

3 (76)

57/8 (149)

21 1/2 (546) 12

(305)

(203)

Dimensions shown as in. and (mm).

REFRIGERATION DATA

Note: This data is based on store tempera-

ture and humidity that does not exceed

75°F and 55% R.H.

RI2N

Discharge Air (°F) 27

Evaporator (°F) 20

Unit Sizing (°F) 18

Btu/hr/ft

LIT &U

NLIT SHELVES RI2N

Parallel 1444

Conventional 1575

DEFROST DATA

RI2N

Frequency (hr) 4

Defrost Water (lb/ft/day) 10

(± 15% based on case configuration and

product loading).

OFFTIME RI2N

Time Terminated (minutes) 20

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*RI2N

14°F / 4°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)**

8 ft 1.7

10 ft 2.1

12 ft 2.5

14 ft 3.1

16 ft 3.7

**This is an average for all refrigerant types.

Actual refrigerant charge may vary

by approximately half a pound.

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF ®) Standard #7 requirements.

Multi-deck Island, 3 Display Levels, Narrow Footprint

RI2N

Multi-deck Island

Load Limit

Optional High Plex

with 6 in. (152 mm)

Product Depth

Optional Shelves

RI2N

Load Limit Profile

Air flow between the shelves, from the CAD to the return, must be maintained at all times

for optimum operating efficiency and to prolong product shelf life. At no time should

merchandisers be stocked beyond the load limits indicated.

Cases may not function properly if they are loaded above load limits.

4 of 6 RI2N Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

RI2N

Multi-deck Island

Electrical Data

8 ft 10 ft 12 ft 14 ft 16 ft

Number of Fans – 12W 4 6 8 10 12

Amperes Watts

8 ft 10 ft 12 ft 14 ft 16 ft 8 ft 10 ft 12 ft 14 ft 16 ft

Evaporator Fan

120V 60Hz Standard 2.60 3.90 5.20 6.50 7.80 200 300 400 500 600

120V 50Hz Standard 3.00 4.50 6.00 7.50 9.00 228 342 456 570 684

230V 60Hz Export NA NA NA NA NA NA NA NA NA NA

230V 50Hz Export NA NA NA NA NA NA NA NA NA NA

120V 60Hz Energy Efficient 1.20 1.80 2.40 3.00 3.60 72 108 144 180 216

230V 60Hz Energy Efficient NA NA NA NA NA NA NA NA NA NA

Anti-sweat Heaters †

120V 50/60Hz Standard 0.70 0.70 0.90 1.10 1.30 84 84 108 132 156

230V 50/60Hz Export 0.37 0.37 0.47 0.57 0.68 84 84 108 132 156

Minimum Circuit Ampacity (MCA) †

120V 60Hz Standard 3.97 5.27 6.90 8.53 10.17

120V 50Hz Standard 3.81 5.31 6.98 8.66 10.33

230V 60Hz Export NA NA NA NA NA

230V 50Hz Export NA NA NA NA NA

120V 60Hz Energy Efficient 2.01 2.61 3.38 4.16 4.93

230V 60Hz Energy Efficient NA NA NA NA NA

Maximum Over Current Protection 120V 20 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15 15

Standard Lighting

1 Row Canopy 0.53 0.53 0.83 1.07 1.37 64 64 100 128 164

Optional Lighting

1 Row of Ledge 1.67 2.00 2.33 2.67 3.00 200 240 280 320 360

Optional Shelf Lighting

1 Row of Shelves 0.82 0.82 1.12 1.35 1.65 98 98 134 162 198

2 Rows of Shelves 1.63 1.63 2.23 2.70 3.30 196 196 268 324 396

115V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 115V Lighting Circuit Total by 0.52does not

5 of 6P/N 0492430_A

8 ft

10 ft

12 ft

14 ft

16 ft

4, 6, 8, 10 & 12 Fans Fan Wiring

Offtime Defrost

Light Blue

Condensing Unit

}

Refrigeration Thermostat

Anti-sweat Heaters

BROWN BAND

Fans

BROWN BAND

120V POWER

BROWN BAND

120V NEUTRAL

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

6 of 6 RI2N Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

GGG

120V NEUTRAL

RANGE

AND

Light

Switch

120V P

OWER

RANGE

AND

Light Circuits

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

R = Red G = Green BL = Blue B = Black W = White

GGG

55 5

Optional Ledge Light Circuit

Typical Shelf Ballast Wiring

Maximum lamps per ballast is four (4).

Different shelf configurations and different

case lengths will have more shelf ballasts.

Lighted Shelf Wiring
