Hussmann PWE Manuale utente

PWE

Data Sheet Set

P/N 0384136B

NSF®Certified

May 2004

Merchandisers

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

NOTE: Changed items have been underlined.

P/N 0384136B

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

(A) 0378349 Fan Motor, Evaporator (1)

0142780 Fan Blade

Embossing toward motor

We reserve the right to change

or revise specifications and

product design in connection

with any feature of our

products. Such changes

do not entitle the buyer to

corresponding changes,

improvements, additions or

replacements for equipment

previously sold or shipped.

PWE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 4

PWE

Base Rail

Waste Outlet

& Water Seal

Front

Access Area

1/4

(514)

1/4

(946)

(432)

5/8

(1464) 74

5/8

(1895)

3/4

(681)

(432)

7/8 (149)

(238)

7/8 (149)

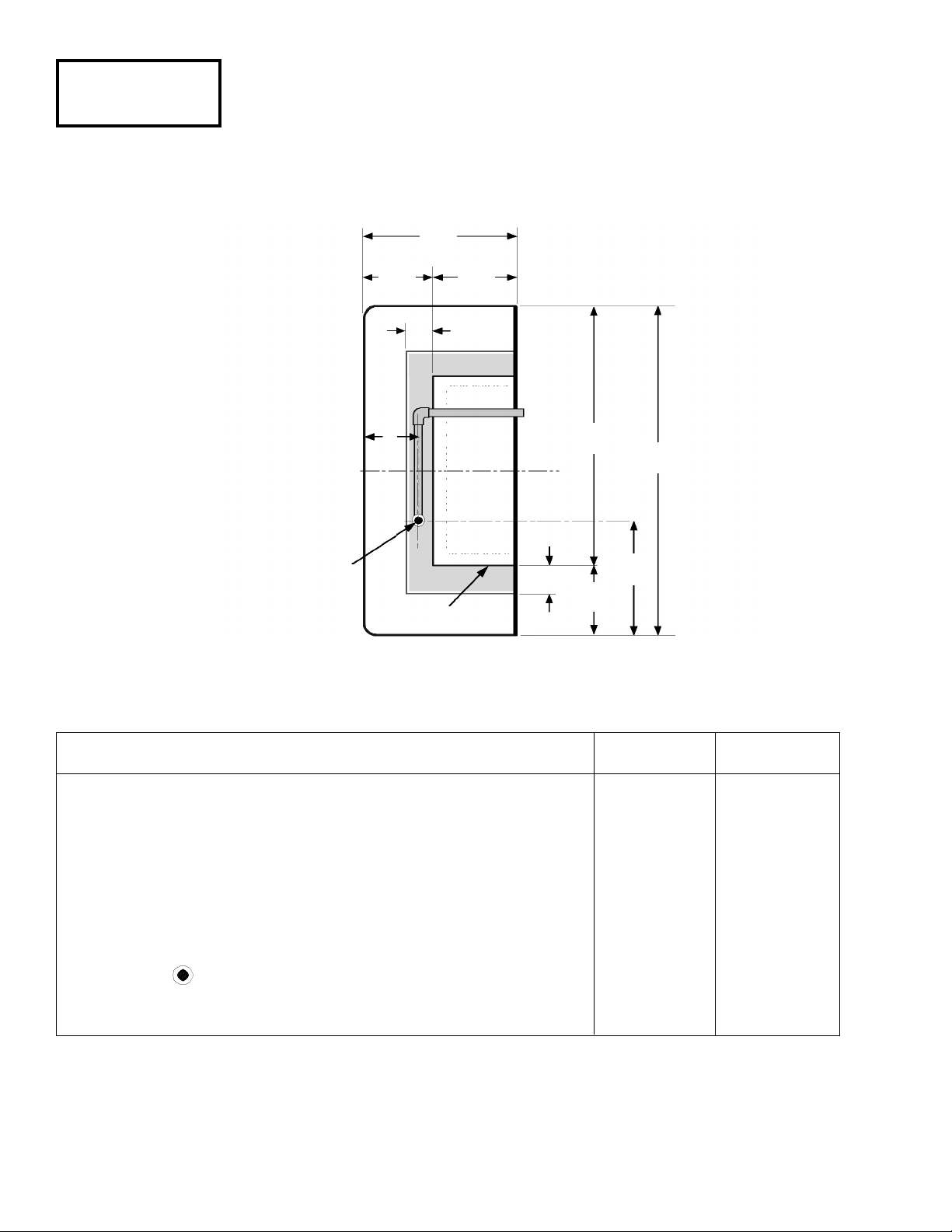

Engineering

Plan Views

Wide Island

Bulk Produce

End Case

07-2003

Dimensions are shown as inches & (mm).

General END END

PWE PWEE

Maximum outside dimension of case side to side (includes bumper) 74 5/8(1895) 74 5/8(1895)

Left side of case to outside edge of righthand base rail 57 5/8(1464) 57 5/8(1464)

Width of case 37 1/4(946) 37 1/4(946)

Front of base rail to rear of case 20 1/4 (514) 20 1/4 (514)

Front of case to outside edge of base rail 17 (432) 17 (432)

Front of splashguard to outside edge of base rail 5 7/8(149) 5 7/8(149)

Width of base rail 2 1/8(54) 2 1/8(54)

Access area between front of base rail and splashguard 4 7/8(124) 4 7/8(124)

Waste Outlet

Front outside edge of case to center of waste outlet 9 3/8(238) 9 3/8(238)

Right outside edge of case to center of waste outlet 26 1/8(681) 26 1/8(681)

3 of 4

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0384136B

Impact PWE

Produce

Produce Wide Island End, 1 Display Level

(1118)

30 3/8

(772)

(381)

24 1/2

(622)

3 (76)

12 3/8

(314)

20 1/4

(514)

5 7/8 (149)

9 3/8

(238)

(432) 37 1/4

(946)

16 5/8

(422)

25 1/2

(648)

17 3/8

(441)

PWE

27 7/8

(708)

FAN

COIL

Optional

Rack

Positions

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

Dimensions are shown as inches & (mm). REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

PWE PWEE

Discharge Air (°F) 32 32

Evaporator(°F) 21 24

Unit Sizing (°F) 19 22

Btu/hr/case* PWE PWEE

Parallel 2860 2475

Conventional 3155 2730

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

PWE PWEE

Frequency (hr) 6 6

Defrost Water (lb/ft/day) 8 8

(± 15% based on case configuration and

product loading).

OFFTIME PWE PWEE

Temp Term (°F) N/A N/A

Failsafe (minutes) 45 45

CONVENTIONAL CONTROLS

Low Pressure Backup Control

PWE PWE

CI/CO** 14°/4° F 17°/ 7° F

Indoor Unit Only, Pressure Defrost

Termination** 48° F 48° F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 11/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)***

PWE 1.0

PWEE 1.1

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by

Each End/Partition (in.) 1 1/2

PWE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 4

Impact PWE

Produce

Electrical Data

Number of Fans PWE PWEE

Refrigeration — 9W 1 1

Refrigeration — 9W (Export) 1 1

Amperes Watts

Merchandiser PWE PWEE PWE PWEE

Fans (Refrigeration)

Standard (120V 60Hz) 0.77 0.77 62 62

Energy Efficient (120V 60Hz) 0.38 0.38 25 25

Export (230V 50 Hz) 0.47 0.47 70 70

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 0.97 0.97

With Energy Efficient Fans (120V 60Hz) 0.58 0.58

With Export Fans (230V 50 Hz) 0.67 0.67

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Standard Lighting Optional Lighting Optional Shelf Lighting

None None None

= 120V POWER = 120V NEUTRAL

Fan Wiring

Offtime Defrost

WARNING

All components must have a mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

1 Fan

120V NEUTRAL

BROWN BAND

120V POWER Fan 1

BROWN BAND
