Hussmann PWR Manuale utente

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0417992A

PWR

Data Sheet Set

P/N 0417992A

NSF®Certified

May 2004

NOTE: Changed items have been underlined.

Merchandisers

Item Part # Description Wiring Item #

FAN ASSEMBLIES, AND THERMOSTATS

(A) 0378349 Fan Motor, Evaporator (1)

0142780 Fan Blade

Embossing toward motor

We reserve the right to change

or revise specifications and

product design in connection

with any feature of our

products. Such changes

do not entitle the buyer to

corresponding changes,

improvements, additions or

replacements for equipment

previously sold or shipped.

PWR Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 4

Front

PWR-8E

Waste Outlet

& Water Seal

Base Rail

Refrigeration Outlet

(See Note***)

Access Area

(See Note*)

5 7/8

(149)

(230)

3 1/2

(89)

81 1/2

(2070)

98 1/2

(2502)

(See Note**)

Engineering

Plan Views

98 Inch

Wide Island

Bulk Produce

07-2003

Dimensions are shown as inches & (mm).

General 8 Ft 12 Ft

(A) Case length 96 3/8(2448) 144 1/2(3670)

Maximum outside dimension of case back to front (includes bumper) 98 1/2(2502) 98 1/2(2502)

Front of splashguard to outside edge of base rail 5 7/8(149) 5 7/8(149)

Back of case to outside edge of front base rail 81 1/2(2070) 81 1/2(2070)

Front of case to outside ede of front base rail 17 (432) 17 (432)

Width of base rail 2 1/8(54) 2 1/8(54)

Stub up area between front base rail and splashguard 4 7/8(124) 4 7/8(124)

Electrical Service

(B) Righthand end of case to center of farthest knockout 95 3/8(2423) 143 1/2(3645)

Length of electrical raceway 34 5/8(878) 34 5/8(878)

*Note: Electrical field wiring connection point.

Waste Outlet

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Center of waste outlet to outside edge of front base rail 3 1/2(89) 3 1/2(89)

** Note:Field installed water seal outlets, tees, and connectors are shipped with case

Drip Pipe Outlet

(D) Left end of case to center of drip pipe outlet 19 1/2(495) 68 1/2(1740)

(E) Center of waste outlet to center of drip pipe outlet 51 7/8(1318) 3 3/4(95)

(F) Front of case to center of drip pipe outlet 25 7/8(657) 24 7/8(632)

Outside diameter of drip pipe lines 1 1/2(38) 1 1/2(38)

***Note:Field drip pipe connection point.

Refrigeration Outlet

(G) Righthand end of case to center of refrigeration outlet 9 (230) 9 (230)

Center of refrigeration outlet to outside edge

of front base rail 3 1/2(89) 3 1/2(89)

P/N 0417992A 3 of 4

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact PWR

Produce

Wide Island, 1 Display Level

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

PWR

8,12E

Discharge Air (°F) 34

Evaporator(°F) 24

Unit Sizing (°F) 22

Btu/hr/ft* PWR

8,12E

Parallel 1255

Conventional 1385

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATA

PWR

8,12E

Frequency (hr) 6

Defrost Water (lb/ft/day) 8

(± 15% based on case configuration and

product loading).

OFFTIME PWR

8,12E

Temp Term (°F) N/A

Failsafe (minutes) 45

CONVENTIONAL CONTROLS

Low Pressure Backup Control PWR

8,12E

CI/CO** 17°/ 7° F

Indoor Unit Only, Pressure Defrost

Termination** 48° F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 11/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)*** PWR

8,12E

8 ft 2.8

12 ft 4.3

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by

Each End/Partition (in.) 1 1/2

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

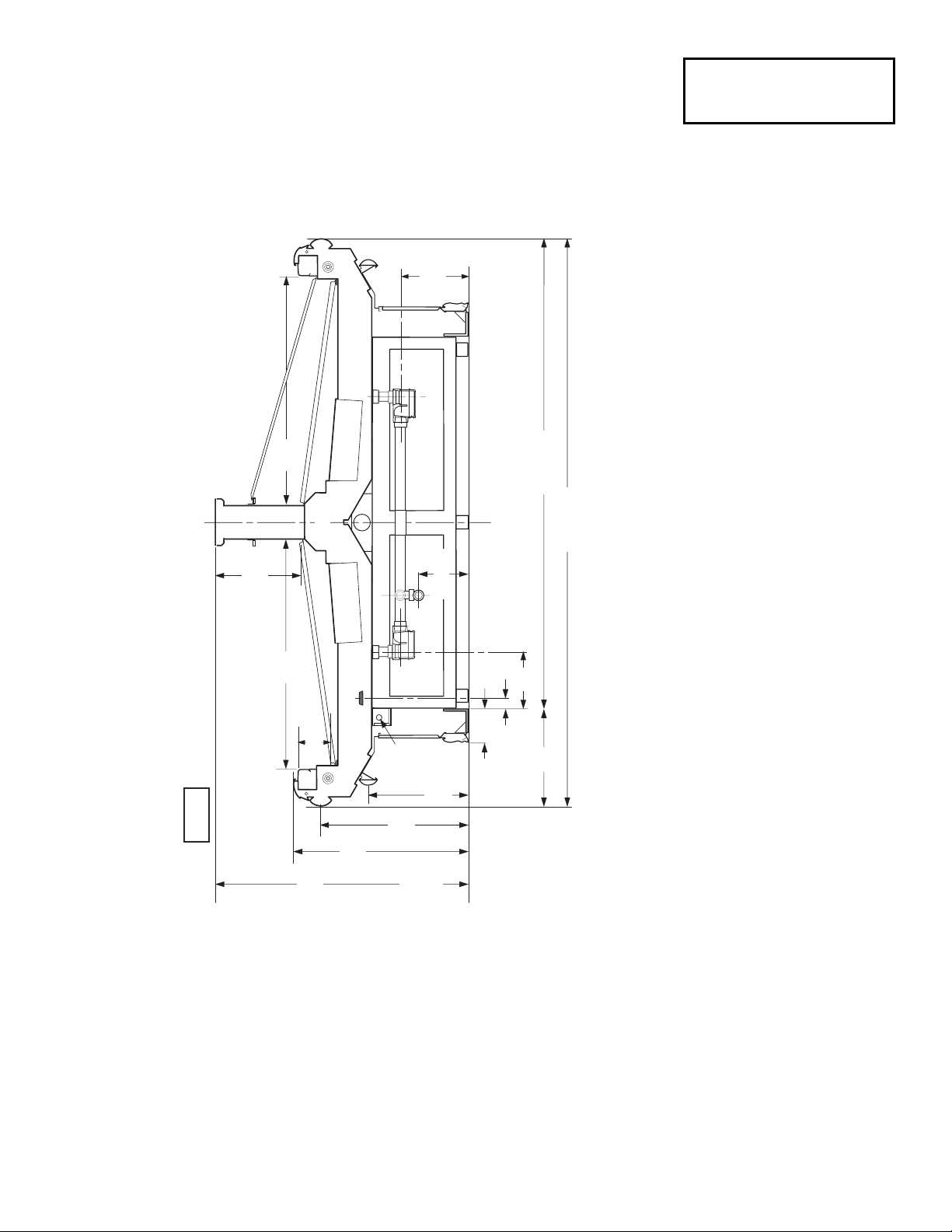

Front

Case

COIL

Optional

Rack

Positions

PWR

Electrical

(1118)

30 3/8

(772)

39 7/8

(1013)

6 (152)

15 1/2

(394)

39 7/8

(1013)

12 3/8

(314)

5 1/2 (114)

FAN

COIL

81 1/2 (2070)

98 1/2 (2502)

(432)

5 7/8

(149)

(229)

3 1/2 (89)

25 1/2

(648)

17 3/8

(441)

Dimensions are shown as inches & (mm).

PWR Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 4

Impact PWR

Produce

Electrical Data

Number of Fans 8 ft 12 ft

Refrigeration — 9W 2 3

Refrigeration — 9W (Export) 2 3

Amperes Watts

Merchandiser 8 ft 12 ft 8 ft 12 ft

Fans (Refrigeration)

Standard (120V 60Hz) 1.54 2.31 124 186

Energy Efficient (120V 60Hz) 0.76 1.14 50 75

Export (230V 50 Hz) 0.94 1.41 140 210

Min. Circuit Ampacity

With Standard Fans (120V 60Hz) 1.74 2.51

With Energy Efficient Fans (120V 60Hz) 0.96 1.34

With Export Fans (230V 50 Hz) 1.14 1.61

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Standard Lighting Optional Lighting Optional Shelf Lighting

None None None

Fan Wiring

Offtime Defrost

= 120V POWER = 120V NEUTRAL

1, 2 & 3 Fans 120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

8 ft 12 ft

WARNING

All components must have a mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
