Serial Plate

P/N 0492443_A

SI1

Technical Data Sheet

P/N 0492443_A

NSF®Certified

April 2007

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

8 Ft, 10 Ft, 12 Ft,14 Ft & 16 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0407532 Fan Blade (FB.4780619)

embossing toward motor

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0407532 Fan Blade (FB.4780619)

B. Optional Adjustable Refrigeration Thermostat (2)

0448347 (CT.4481631)

Item Part # Description Wiring Item #

HEATERS

C. Anti-Sweat Heater (3)

0447688 (HE.4850682)

LAMPS AND BALLASTS

D. Ballast, Electronic (4)

0447683 (BA.4440811)

E. Fluorescent Lamp (5)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

2 of 6 SI1 Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

SI1 Island

Electrical Service

Drains

Refrigeration

& Coil Stubout

32 1

(826)

(686)

(178)

(1242)

11 1

(292)

(241)

(559)

(1829)

(788)

20 1

(521)

Engineering

Plan Views

06-2003

Front

Serial Plate

End

8 ft 10 ft 12 ft 14 ft 16 ft

General

(A) Base Length 77 (1956) 101 7/8 (2588) 125 7/8 (3198) 149 1/2 (3798) 173 (4396)

Overall Case Length 96 (2438) 120 (3048) 144 (3658) 168 (4267) 192 (4876)

Maximum O/S dimension of case back to front

(includes bumper) 72 (1829) 72 (1829) 72 (1829) 72 (1829) 72 (1829)

Front of splashguard to O/S edge of front base rail 1 5/8 (41) 1 5/8 (41) 1 5/8 (41) 1 5/8 (41) 1 5/8 (41)

Front of case to O/S edge of front base rail 13 1/8 (333) 13 1/8 (333) 13 1/8 (333) 13 1/8 (333) 13 1/8 (333)

Back of case to O/S edge of front base rail 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495) 58 7/8 (1495)

Width of base rail 1 7/8 (48) 1 7/8 (48) 1 7/8 (48) 1 7/8 (48) 1 7/8 (48)

Electrical Service (Electrical Field Wiring connection point)

Center of Electrical service to O/S edge of front base rail 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181) 46 1/2 (1181)

Right end of case to center of knockout 27 (686) 27 (686) 27 (686) 27 (686) 27 (686)

Left end of case to center of knockout 69 (1753) 93 (2362) 117 (2972) 141 (3581) 165 (4191)

Waste Outlets

(B) LH End of case to the center of waste outlet 48 (1219) 78 (1981) 102 (2591) 84 (2134) 96 (2439)

Center of front waste outlet to outside of front base rail 8 (203) 8 (203) 8 (203) 8 (203) 8 (203)

Center of back waste outlet to outside of front base rail 39 1/4 (997) 39 1/4 (997) 39 1/4 (997) 39 1/4 (997) 39 1/4 (997)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

LH end of case to center of refrigeration outlet 22 (559) 22 (559) 22 (559) 22 (559) 22 (559)

RH end of case to center of refrigeration outlet 74 (1880) 98 (2489) 122 (3098) 146 (3708) 170 (4318)

3 of 6P/N 0492443_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

6 (152)

271/16

(276)

5 7/8 (149)

13 5/8

(346)

3(76)

23 13/16

(605)

8 7/8

(225)

(1245)

(1829)

1/2

(292) 11

1/2

(292)

1/4

(83)

44 3/8

(1127)

(686)

4 (102)

1/4

(260)

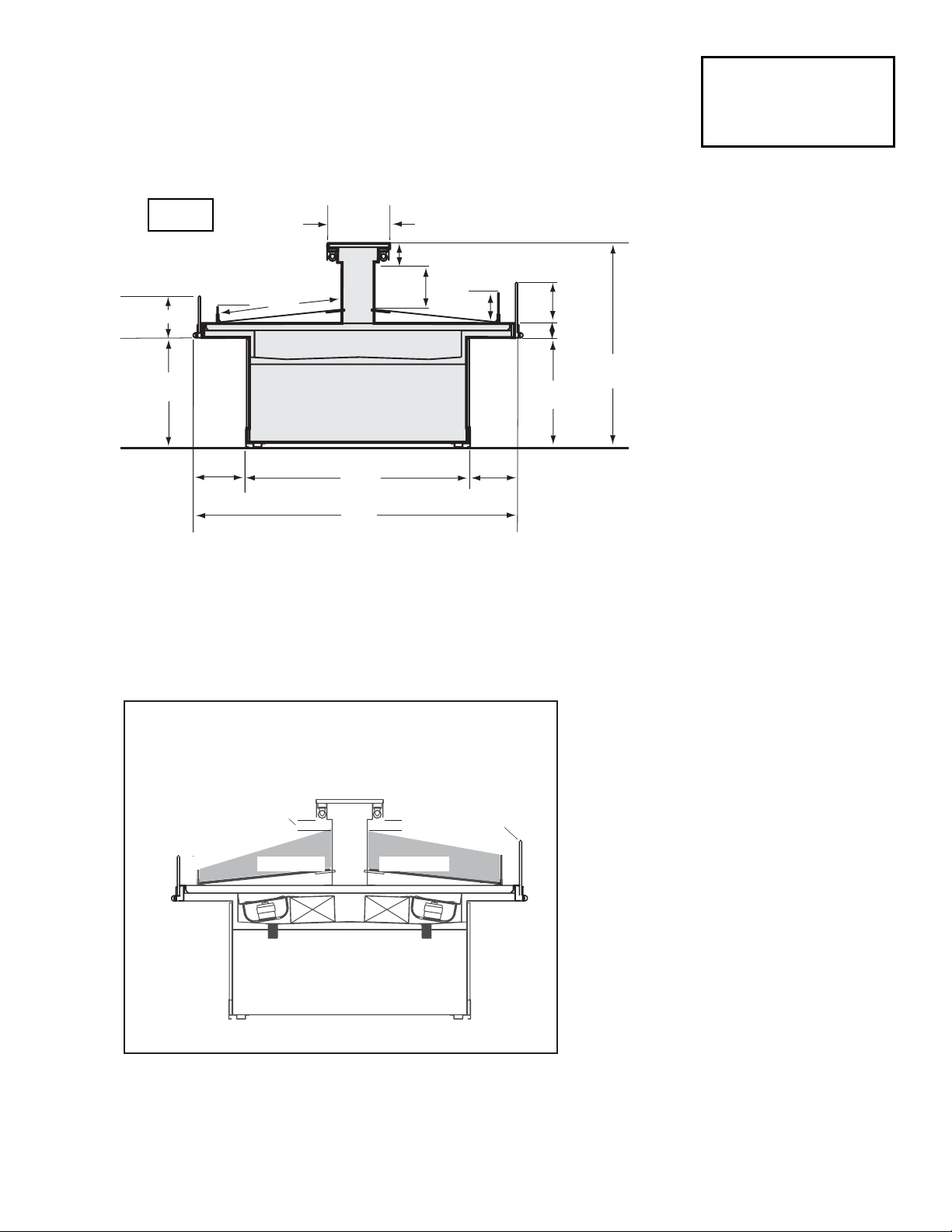

Dimensions shown as in. and (mm).

SI1

Single Deck Island

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF ®) Standard #7 requirements.

Single Deck Island, 1 Display Level

SI1

Optional High Plex

with 6 in. (152 mm)

Product Depth

SI1

Load Limit Load Limit

3 in. Space Required

Load Limit Profile

Air flow between the shelves, from the CAD to the return, must be maintained at all times

for optimum operating efficiency and to prolong product shelf life. At no time should

merchandisers be stocked beyond the load limits indicated.

Cases may not function properly if they are loaded above load limits.

REFRIGERATION DATA

Note: This data is based on store tempera-

ture and humidity that does not exceed

75°F and 55% R.H.

SI1

Discharge Air (°F) 27

Evaporator (°F) 15

Unit Sizing (°F) 13

Btu/hr/ft

SI1

Parallel 1260

Conventional 1375

DEFROST DATA

SI1

Frequency (hr) 4

Defrost Water (lb/ft/day) 9

(± 15% based on case configuration and

product loading).

OFFTIME SI1

Time Terminated (minutes) 20

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*SI1

8°F / -2°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)**

8 ft 1.7

10 ft 2.1

12 ft 2.5

14 ft 3.1

16 ft 3.7

**This is an average for all refrigerant types.

Actual refrigerant charge may vary

by approximately half a pound.

4 of 6 SI1 Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

SI1

Single Deck Island

Electrical Data

8 ft 10 ft 12 ft 14 ft 16 ft

Number of Fans – 12W 4 6 8 10 12

Amperes Watts

8 ft 10 ft 12 ft 14 ft 16 ft 8 ft 10 ft 12 ft 14 ft 16 ft

Evaporator Fan

120V 60Hz Standard 2.60 3.90 5.20 6.50 7.80 200 300 400 500 600

120V 50Hz Standard 3.00 4.50 6.00 7.50 9.00 228 342 456 570 684

230V 60Hz Export NA NA NA NA NA NA NA NA NA NA

230V 50Hz Export NA NA NA NA NA NA NA NA NA NA

120V 60Hz Energy Efficient 1.20 1.80 2.40 3.00 3.60 72 108 144 180 216

230V 60Hz Energy Efficient NA NA NA NA NA NA NA NA NA NA

Anti-sweat Heaters †

120V 50/60Hz Standard 1.00 1.00 1.33 1.67 2.00 120 120 160 200 240

230V 50/60Hz Export 0.52 0.52 0.70 0.87 1.04 120 120 160 200 240

Minimum Circuit Ampacity (MCA) †

120V 60Hz Standard 3.80 5.10 6.73 8.37 10.00

120V 50Hz Standard 3.72 5.22 6.90 8.57 10.24

230V 60Hz Export NA NA NA NA NA

230V 50Hz Export NA NA NA NA NA

120V 60Hz Energy Efficient 1.92 2.52 3.30 4.07 4.84

230V 60Hz Energy Efficient NA NA NA NA NA

Maximum Over Current Protection 120V 20 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15 15

Standard Lighting

1 Row Canopy 0.80 0.80 1.20 1.60 2.00 96 96 144 192 240

Optional Lighting

1 Row of Ledge 1.67 2.00 2.33 2.67 3.00 200 240 280 320 360

Optional Shelf Lighting

None

115V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 115V Lighting Circuit Total by 0.52does not

5 of 6P/N 0492443_A

Light Blue

Condensing Unit

}

Refrigeration Thermostat

Anti-sweat Heaters

BROWN BAND

Fans

BROWN BAND

120V POWER

BROWN BAND

120V NEUTRAL

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

8 ft

10 ft

12 ft

14 ft

16 ft

4, 6, 8, 10 & 12 Fans Fan Wiring

Offtime Defrost

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

6 of 6 SI1 Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

120V N

EUTRAL

ORANGE OR TAN BAND

Light

Switch

120V P

OWER

ORANGE OR TAN

BAND

Light Circuits

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

R = Red G = Green BL = Blue B = Black W = White

GGG

55 5

Optional Ledge Light Circuit
