Huvitz HNT-1 Istruzioni operative
Field Application Department2018 . 10 . 02 (r1) 1/63

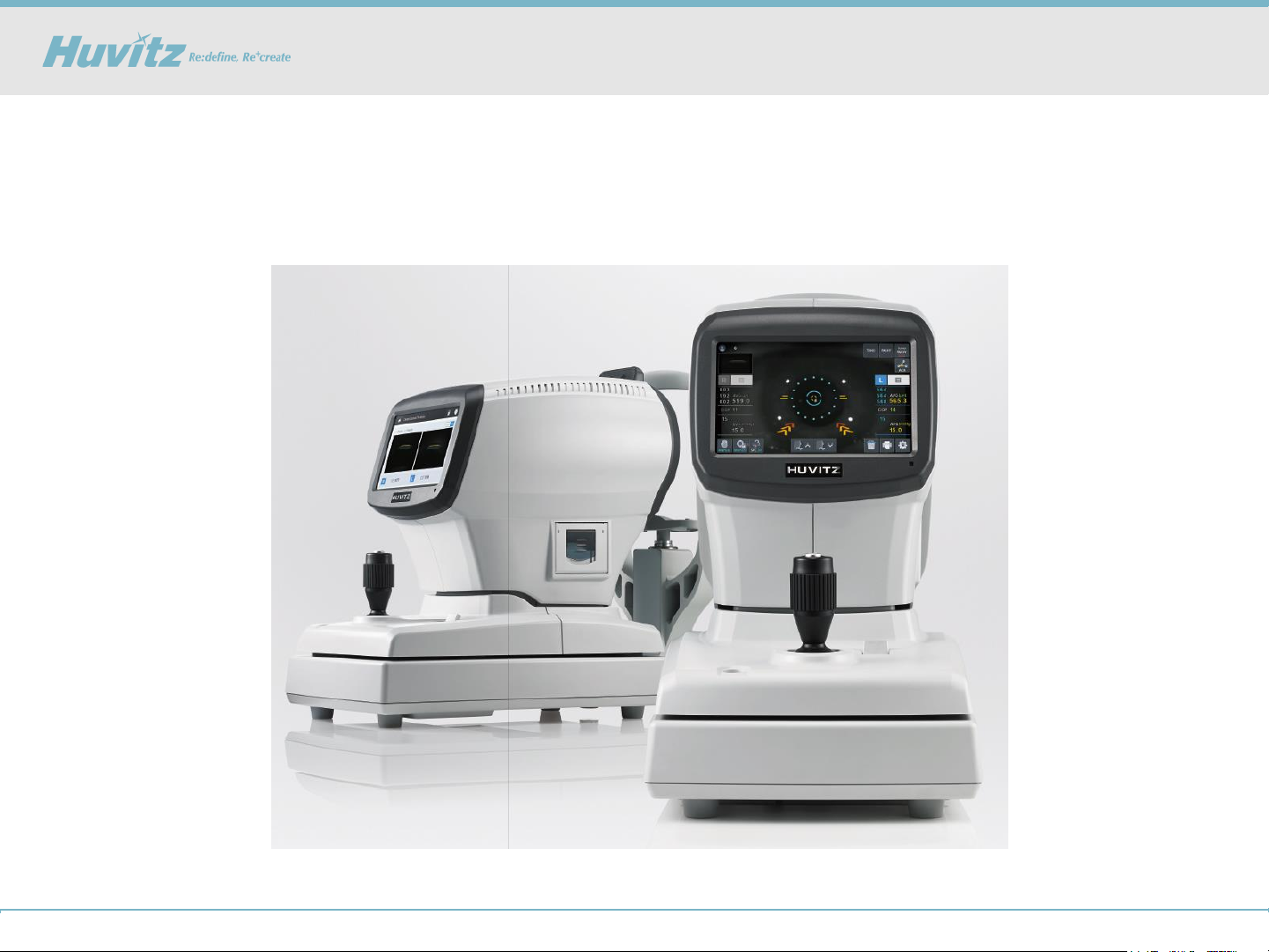

HNT-1/1P
Troubleshooting
Field Application Department2018 . 10 . 02 (r1) 2/63
Contents
1. Auto Tracking issue
2. Data issue
3. Connection with HRK MATE
4. Assembly & Disassembly
5. Upgrade the software
6. Engineer Setup Mode
Field Application Department2018 . 10 . 02 (r1) 3/63
1. Auto Tracking issue
[HNT-1/1P] Auto Tracking issue
Field Application Department2018 . 10 . 02 (r1) 4/63

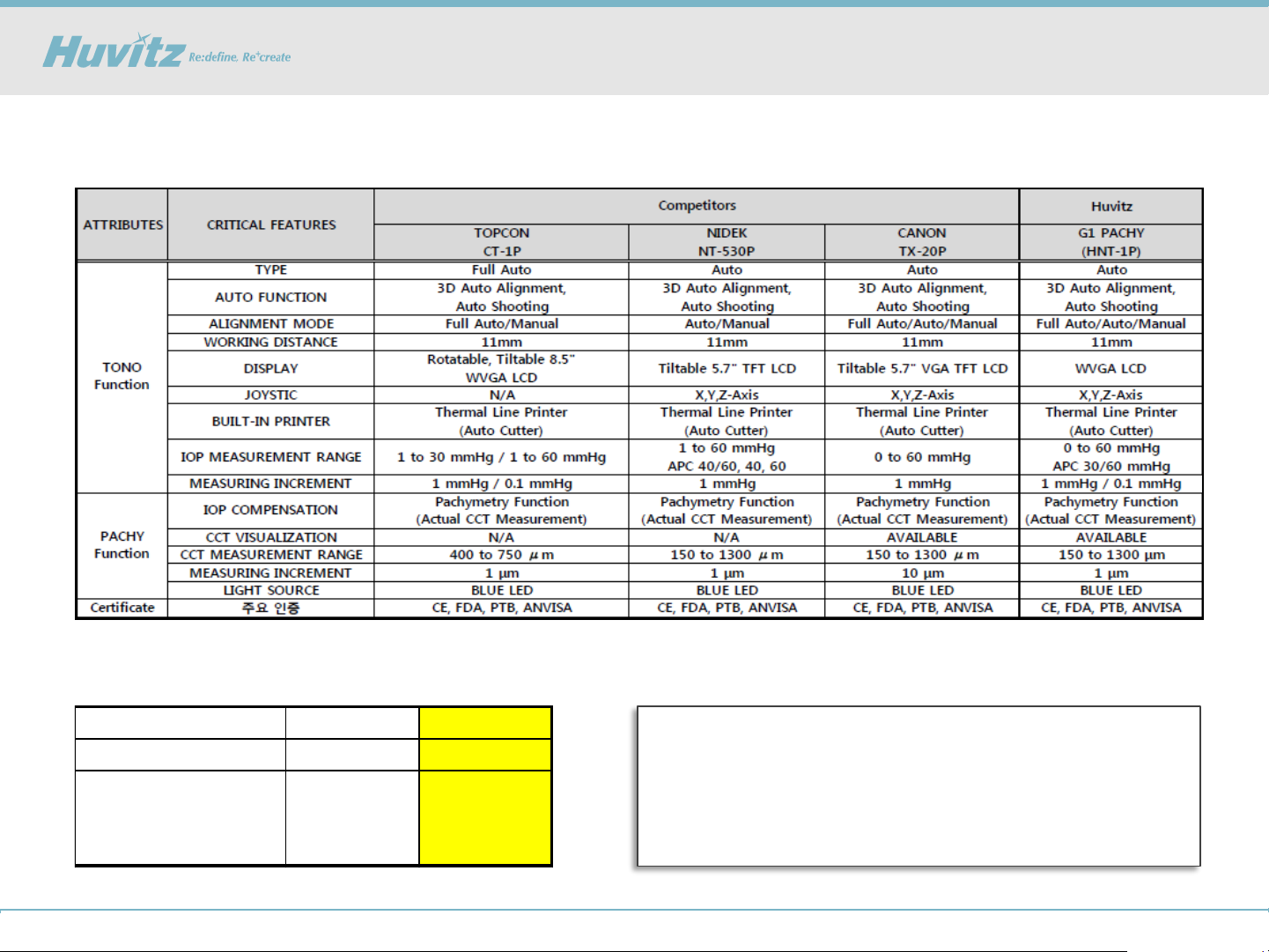

1) Specification comparisons
MANUFACTURER NIDEK HUVITZ
PRODUCT NT-530P HNT-1/1P
Motor
Working Range
Y: ±15mm
X: ±5mm
Z: ±5mm
Y: ±15mm
X: ±5mm
Z: ±5mm
2) Working Range
HNT-1 and 1P movement range is same with NIDEK’s
tonometer.
(Y: ±15mm, X: ±5mm, Z: ±5mm)
[HNT-1/1P] Auto Tracking issue
Field Application Department2018 . 10 . 02 (r1) 5/63
3) Focus Indicator
If the main body unit get out of the working range of auto tracking in the forward and backward, right and left, up
and down, the indicator is displayed.
Move the joystick lever toward the patient
Move the joystick lever toward the operator
Move up by rotating the joystick lever to the
clockwise
Move down by rotating the joystick
lever to
the counter clockwise
Move the joystick lever to the left
Move the joystick lever to the right
[HNT-1/1P] Auto Tracking issue_Focus Indicator
Field Application Department2018 . 10 . 02 (r1) 6/63
- We provide the quick guide in the product box to minimize any issues that occur during
installation from the 11th of June, 2018
Reference
[HNT-1/1P] Auto Tracking issue_Quick guide
Field Application Department2018 . 10 . 02 (r1) 7/63
4) Upgrade the Software to the latest version (Over V1.0.4)
※ We highly recommend you to upgrade the software to the latest version (Over V1.0.4).
Improvement History
1. Stabilized the Auto-Tracking
2. Stabilized the pachymetry for measuring and image
3. Stabilized the movement of chinrest to avoid being stuck at bottom side
4. Added the Z-axis guide message “Front/Rear” on screen when focusing on target with
3D Auto-Tracking mode.
5. Changed movement type of X axis center (when shift the measurement type from
Tracking mode to manual mode)
6. Stabilized the serial communication for transferring data
7. After taking ACA image, Enable to take Anterior Chamber Depth value in Annotation mode
[HNT-1/1P] Auto Tracking issue_the software
Field Application Department2018 . 10 . 02 (r1) 8/63
1. Start DNW program, set your PC’s COM port number and baud rate(115200)
2. Connect PC to HNT-1/1P with serial cable
3. Pressing the button of joystick, then turn on HNT-1/1P
4. Select “Serial Port” -> “Transmit” menu
5. Choose “HNT-1 / 1P **.bin” file, then press OK button
6. After downloading, turn off and on the HNT-1/1P
* If the version checked is earlier than 1.0.4, proceed to 1.0.4 or later as follows :
(It should takes around 5minutes.)
How to upgrade the software
[The Screen of progress with upgrade]
[HNT-1/1P] Auto Tracking issue_the software
4) Upgrade the Software to the latest version (Over V1.0.4)
Field Application Department2018 . 10 . 02 (r1) 9/63
5) How to adjust the LED brightness
[Enter the Focus Align Test]
1. Enter the Engineer mode: Press PRINT -> R -> L -> SETUP button on the main screen
2. Press the Focus Align Test
1 4
23
[HNT-1/1P] Auto Tracking issue
Field Application Department2018 . 10 . 02 (r1) 10/63
※Preparation

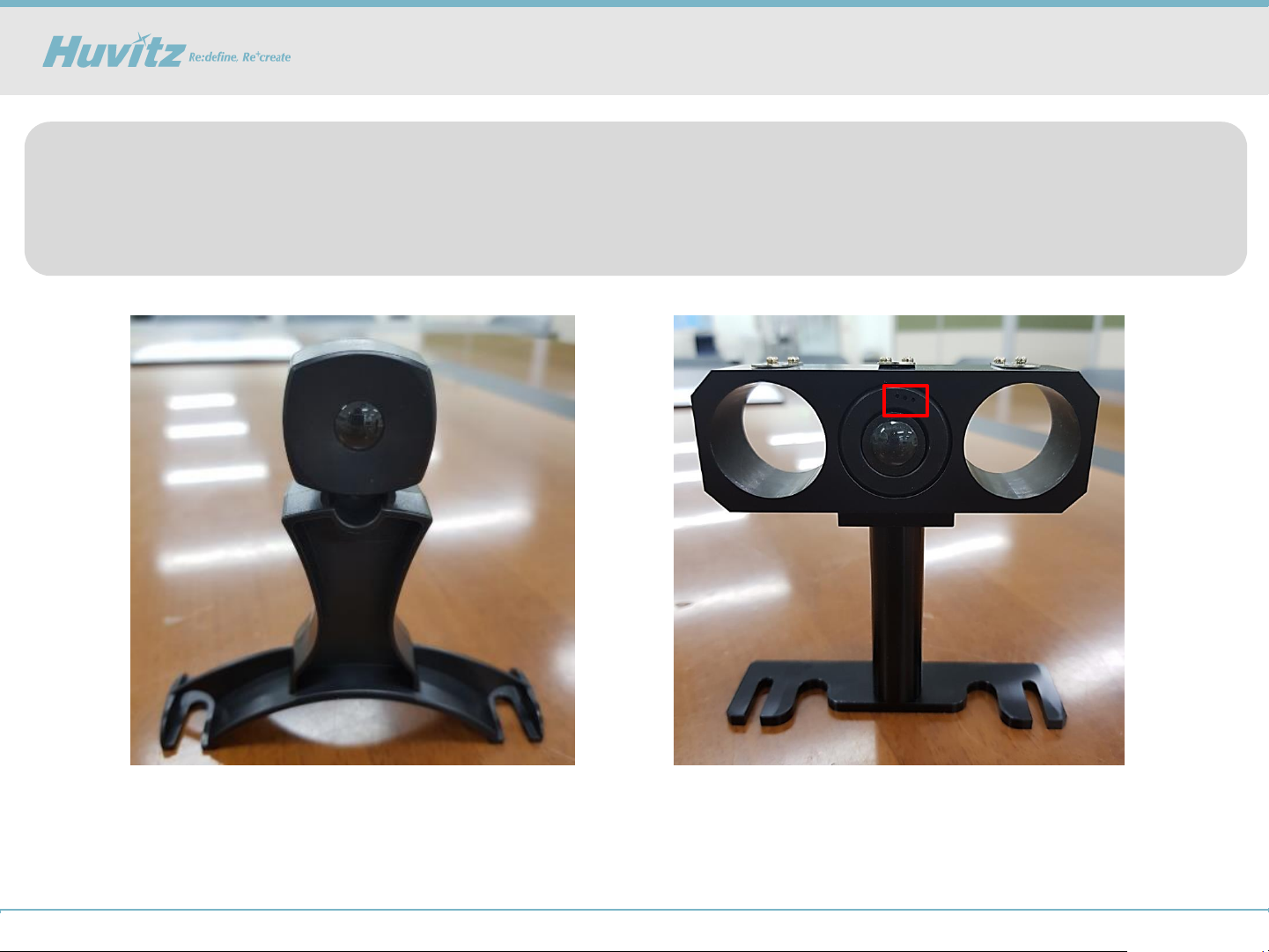

[REF/KERATOMETER Model-Eye] [HNT Calibration JIG of 30mmHg]
Before you check the Auto Tracking and Focus related LEDs,
prepare the following tools :
[HNT-1/1P] Auto Tracking issue
