Huvitz HCP-7000 Manuale utente
Operator’s Manual

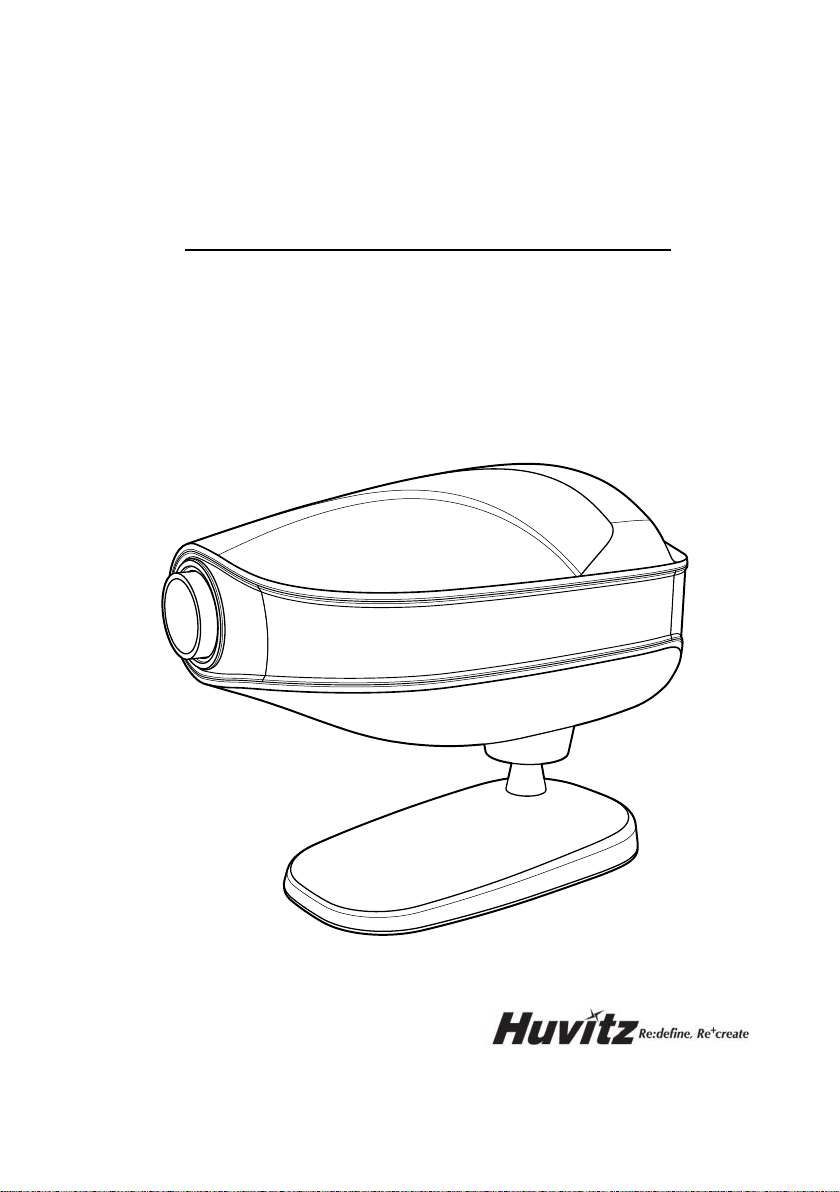

Chart Projector
2HCP-7000 Operator’s Manual -----------------------------------------------------------------------
IMPORTANT NOTICE
This product may malfunction due to electromagnetic waves caused by portable
personal telephones, transceivers, radio-controlled toys, etc. Be sure to avoid having
objects such as, which affect this product, brought near the product.
The information in this publication has been carefully checked and is believed to be
entirely accurate at the time of publication. HUVITZ assumes no responsibility,
however, for possible errors or omissions, or for any consequences resulting from
the use of the information contained herein.
HUVITZ reserves the right to make changes in its products or product specifications
at any time and without prior notice, and is not required to update this
documentation to reflect such changes.
9000ENGE101-D
(2018.09)
©2009 - 2010 HUVITZ Co., Ltd.
38, Burim-ro 170beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Republic of
Korea
All rights are reserved.
Under copyright laws, this manual may not be copied, in whole or in part, without the
prior written consent of HUVITZ Co., Ltd.
-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 3
CONTENTS
1. Introduction ...............................................................................................................5
1.1. Outline of product..............................................................................................5
1.2. Classifications ...................................................................................................5
1.3. Standards..........................................................................................................5
1.4. EMC Information................................................................................................6
2. Safety Information .......................................................................................................10
2.1 Introduction......................................................................................................10
2.2 Safety Symbols................................................................................................11
2.3 Environmental factors......................................................................................14
2.4 Safety Precautions ..........................................................................................16
3. Features .................................................................................................................18
4. Notes for Using the Instrument....................................................................................19
5. Configurations...........................................................................................................20
5.1 Main Body .......................................................................................................20
5.2 Main Body cont................................................................................................21
5.3 Accessories.....................................................................................................22
6. Installation .................................................................................................................23
6.1 Position of Chart Projector...............................................................................23
6.2 How to obtain correct Letter Size and focus (Zooming Type only)....................24
7. Input and Use of Program........................................................................................25
4HCP-7000 Operator’s Manual -----------------------------------------------------------------------
7.1 How to input user's program ............................................................................25
7.2 How to use your stored programs....................................................................26
8. Types of Chart (Type C is Standard) .....................................................................27
9. Maintenance and Repair..........................................................................................28
9.1 Fuse Replacement...........................................................................................28
9.2 Remote Control batteries Replacement ...........................................................29
9.3 Cleansing ........................................................................................................29
9.4 Disposal Information........................................................................................30
10. Specifications ..........................................................................................................31
11. Components List......................................................................................................32
11.1. Standard accessories ......................................................................................32
12. Service Information..................................................................................................33
-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 5
1.1 Outline of product
HUVITZ HCP-7000 is an automatic chart projector which provides 41 different charts
including red/green and polarized filters for the eye optometry. Users can select the
desired charts instantaneously by cordless remote controller. Charts move quickly and
quietly. The customized two programs will help you to perform more convenient and
effective examination. You can also execute the binocular balance tests, stereo tests,
fixation disparity tests, fusion tests and aniseikonia tests with HCP-7000. This
automatic chart project is compatible with HUVITZ digital refractor, HDR-7000.
Equipment intended for connection to signal input and signal output, shall with
IEC60601-1, or UL60601-1 harmonized national standard or the combination.
If, in doubt, contact qualified technician for helf.
1.2 Classifications
- Type of protection against electric shock: Class I Equipment
- Degree of protection against electric shock: No applied parts
- Degree of protection against the ingress of water: Ordinary
- Equipment not suitable for use in the presence of a flammable anesthetic mixture
with air or with oxygen or nitrous oxide.
1.3 Standards
LVD: IEC/EN60601-1
EMC: IEC/EN60601-1-2
1. Introduction
6HCP-7000 Operator’s Manual -----------------------------------------------------------------------

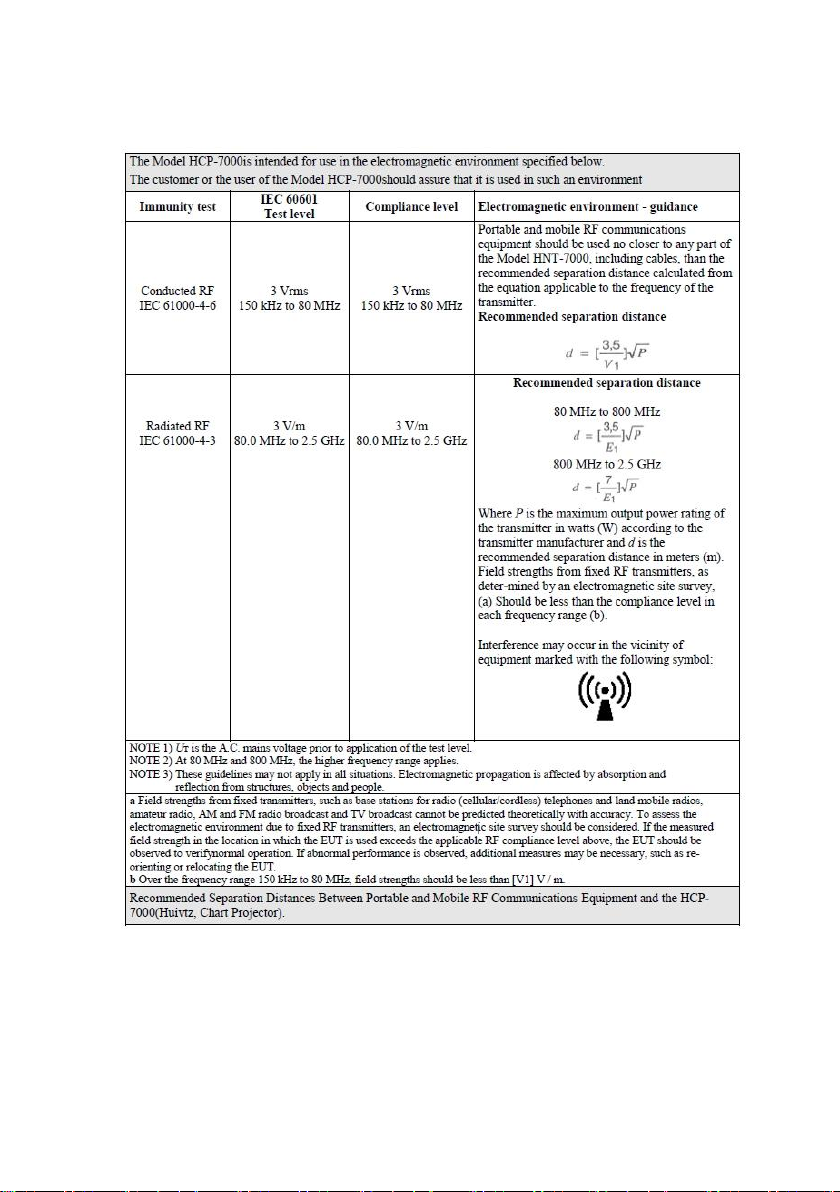

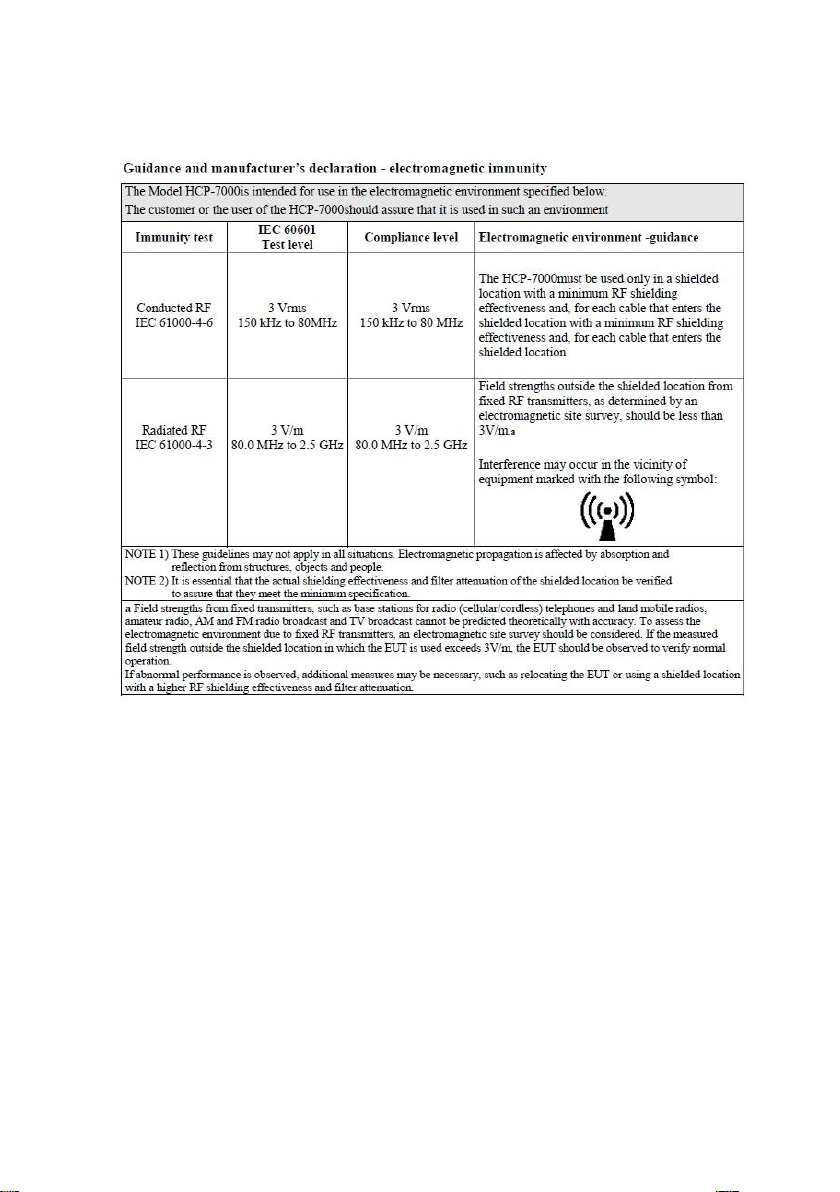

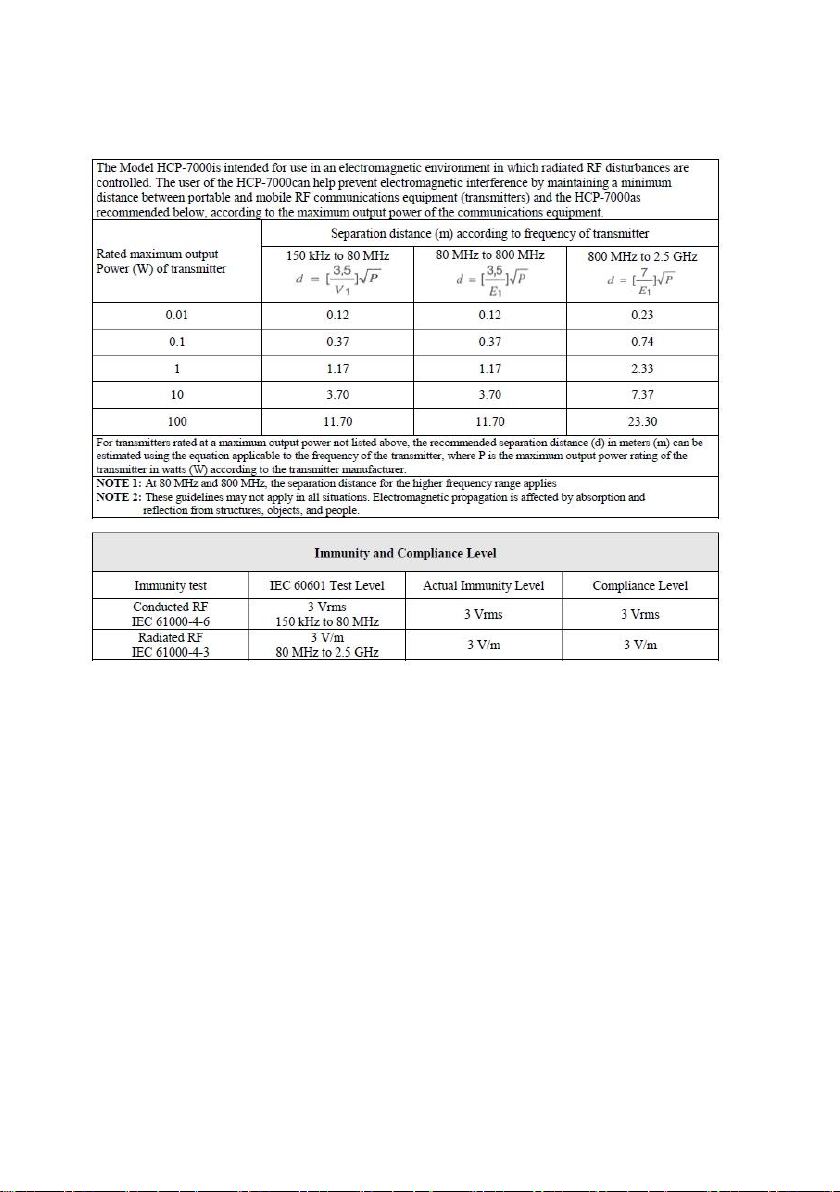

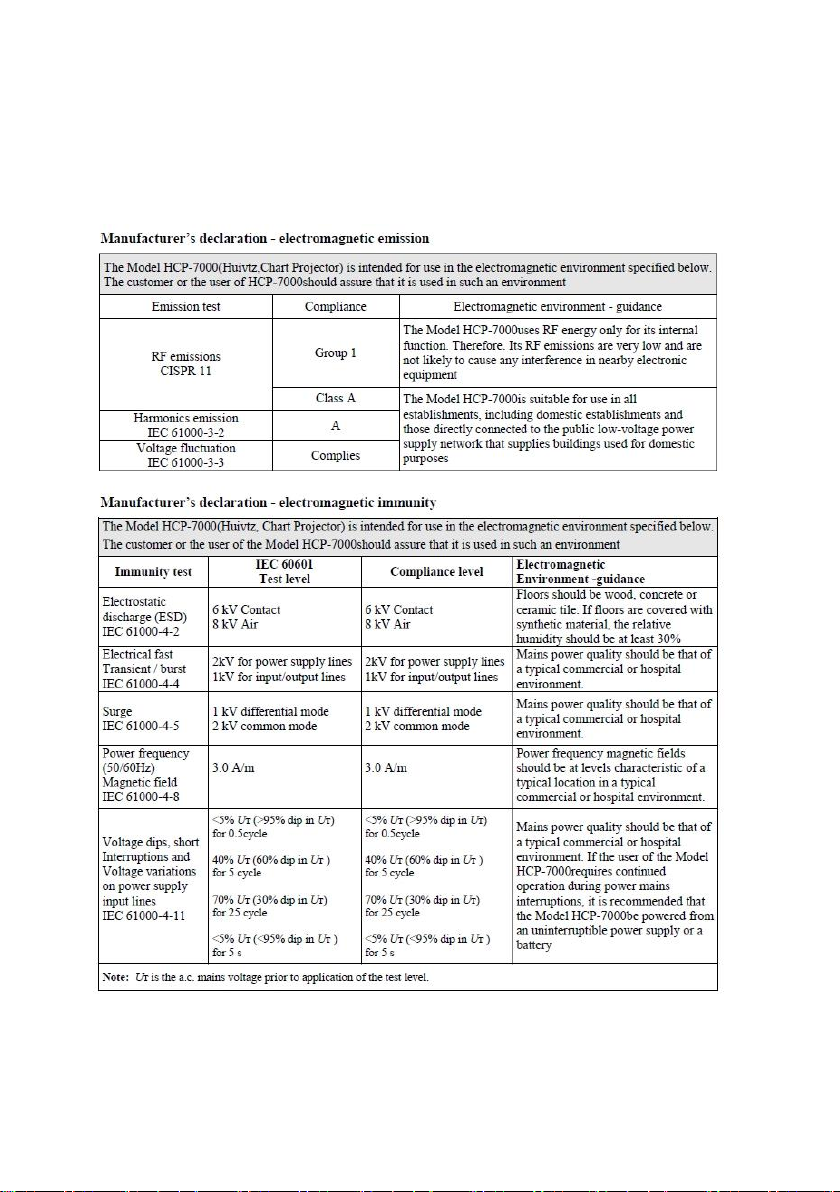

1.4 EMC Information
-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 7
8HCP-7000 Operator’s Manual -----------------------------------------------------------------------
-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 9
10 HCP-7000 Operator’s Manual -----------------------------------------------------------------------
2.1 Introduction
Safety is everyone’s responsibility. The safe use of this equipment is largely
dependent upon the installer, user, operator, and maintainer. It is imperative that
personnel study and become familiar with this entire manual before attempting to
install, use, clean, service or adjust this equipment and any associated accessories. It
is paramount that the instructions contained in this manual are fully understood and
followed to enhance safety to the patient and the user/operator. It is for this reason
that the following safety notices have been placed appropriately within the text of this
manual to highlight safety related information or information requiring special
emphasis. All users, operators, and maintainers must be familiar with and pay
particular attention to all Warnings and Cautions incorporated herein.
WARNING
"Warning” indicates the presence of a hazard that could result in severe personal injury,
death or substantial property damage if ignored.
CAUTION
“Caution” indicates the presence of a hazard that could result in minor injury, or property
damaged if ignored.
NOTE
This is used to emphasize essential information.
Be sure to read this information to avoid operating the device incorrectly.
2. Safety Information
!
!
