THE BOX
QR code
Part number
Product name
UNBOXING
• When unboxing the input module you will find the unit and its lid.
• This comes with pre-formed mounting holes to drill out and mount the backbox.
• Securing screws are supplied for the lid.
• A resistor pack is supplied for the monitored connection (10KΩREOL and 5.6KΩRAL).
For more information, please refer to the complete product manual.
IMPORTANT TO CONSIDER
When mounting a wireless device a comprehensive radio survey
should have been carried out to establish the location that provides
the best coverage and optimum reach. Taking into consideration the building
structure and materials, the survey identifies the wireless infrastructure
required and product locations for optimum performance, identifying
any factor that could prevent radio integrity.
Avoid fixing or mounting the unit close to the following:
• Equipment that utilises large electrical currents
• Large metal objects or structures
• Fluorescent lighting fittings
• Metal ceiling structures
• IT cabling.
Keep 2 meters minimum spacing between other wireless equipment
in the area to avoid signal interference.
EN54 approved environmental temperature range is -10°C to +55°C

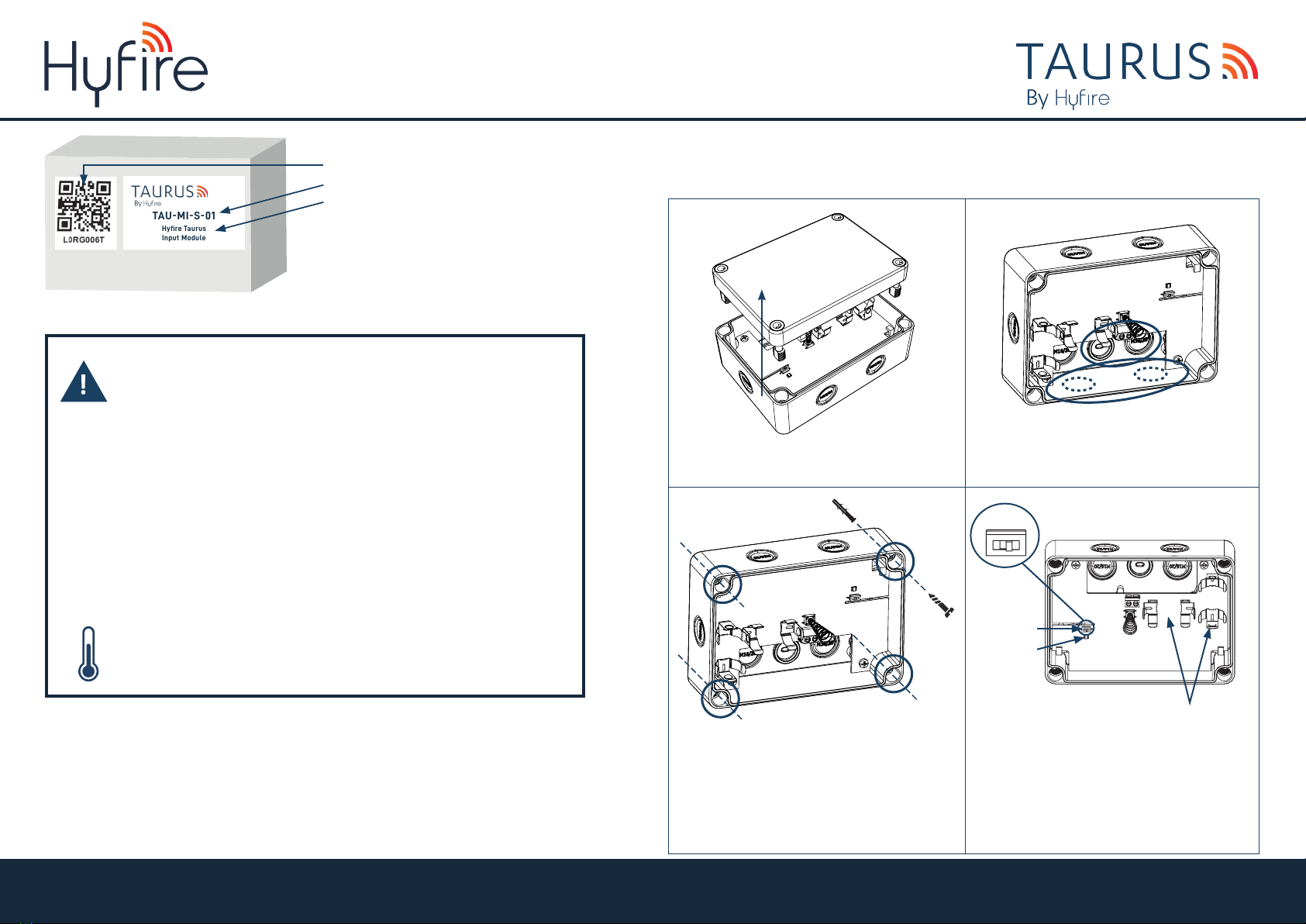

MOUNTING STEPS
The Input Module is designed to meet IP65 rating, suitable for external mounting.
Proceed as follows to complete the device installation.
Remove the lid from the back box, removing the screws
on the corners.
1
3
2
4
BATTERY
COMPARTMENTS
• Remove the appropriate knock out on the underside or lower
rear of the casing, install the M16/20 IP rated gland.
• Note: pay attention to avoid damages to the PCB, while
removing the knock out, or remove it before starting.
• Ensure the switch on the PCB is in position ON.
• Fit the 2x CR123A batteries ensuring you have checked
they are the correct way round observing the polarity
indications on the PCB.
• The LED will signal 4 times red.
• Move the switch on the PCB to position 1. The LED will blink
few seconds green and then signal alternatively green/red
4 times.
LED
DIP
SWITCH
ON 1
INSIDE THE BOX
• 1 x Input Module
• 2 x CR123A batteries
• 4 x Securing screws
• 1 x Resistor pack
• 1 x Product manual
• 1 x Quick start guide
• 1 x QR code
• To retain IP rating, please ensure you use the outer holes
on the casing.
• Using a pencil, mark through the outer holes on the desired
surface you will attach the unit to.
• Using a suitable-sized drill bit (6 mm) drill the marked screw
points on your chosen surface.
• Ensure you use the correct fixings for the type of surface
you are mounting to.
• Screw the backbox to the desired surface using all fixing holes
and appropriate-sized roundhead screws (not countersunk).
TAU-MI-S-01
HYFIRE TAURUS INPUT MODULE
QUICK START GUIDE
Unit B12a, Holly Farm Business Park, Honiley, Warwickshire, CV8 1NP
T: +44 (0)1926 485282, E: info@hyfirewireless.co.uk, W: www.hyfirewireless.com
TAU-MI-S-01
Hyfire Taurus
Input Module
+
-
+
-
• Refit the lid to the back box, using the supplied screws.
• Put the QR code available in the box either on the system map or
on the dedicated pages at the end of translator or expander manual.

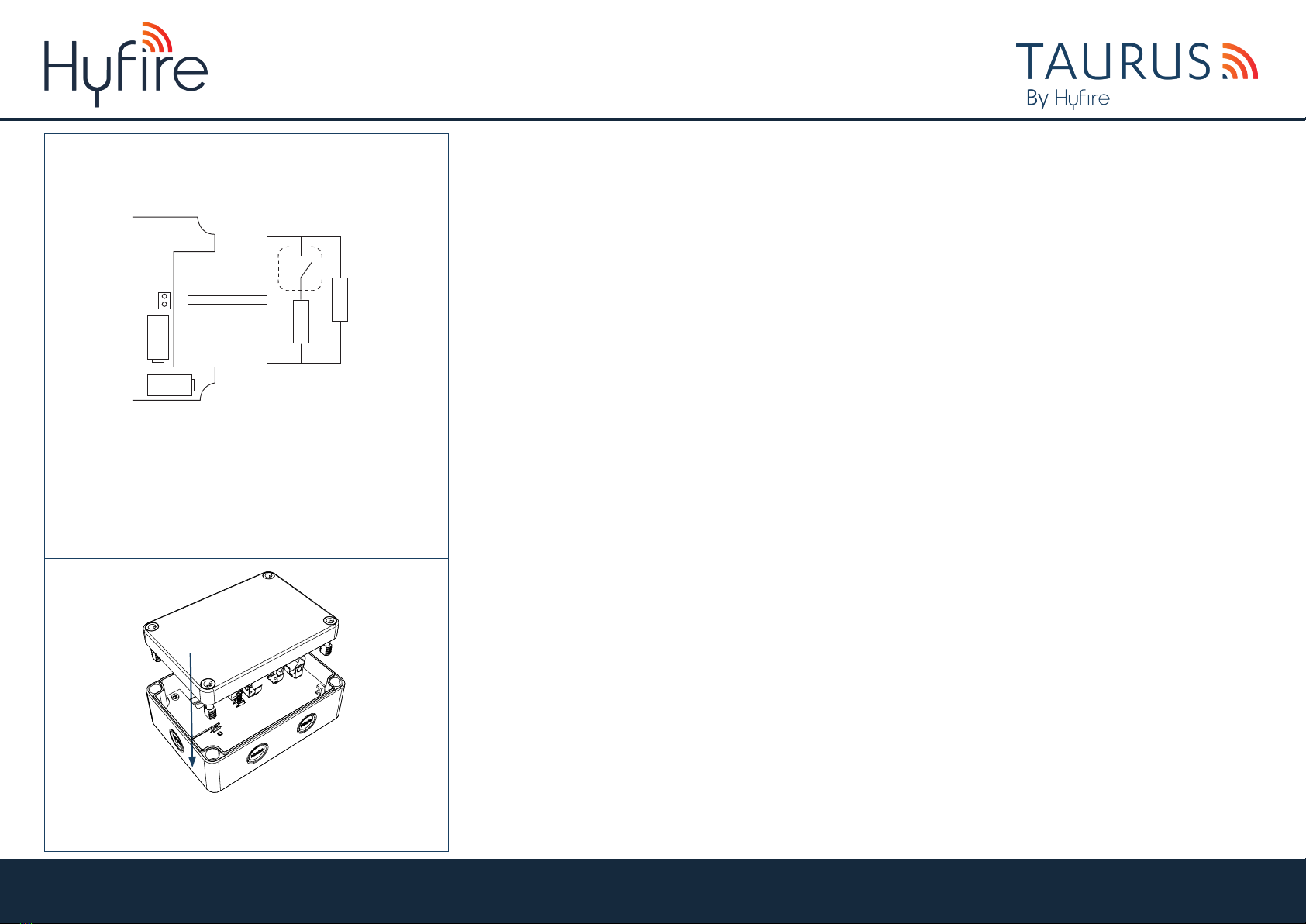

ELECTRICAL SCHEME FOR THE CONNECTION OF THE INPUT
MODULE TO THE EXTERNAL DEVICE WHICH TRANSMITS
THE INPUT SIGNAL TO THE MODULE
5
6
EXTERNAL
DEVICE
- +
- +
- +
• The 10KΩR resistor monitors whether the cable has been damaged
or the connection is no longer available.
• The 5.6KΩR resistor comes in and out of circuit depending on the state
of the 3rd party device (alarm resistor).
• If you fail to install these resistors correctly the device will not operate as
intended.
• Ensure the 3rd party device offers a voltage free relay switch.
Note: install a properly fire rated cable (according to national code of practice)
between the third-party device and the input module.
EOL
AL
REOL
RAL
REOL 10 KΩ
REOL 5.6 KΩ
TAU-MI-S-01
HYFIRE TAURUS INPUT MODULE
QUICK START GUIDE
Unit B12a, Holly Farm Business Park, Honiley, Warwickshire, CV8 1NP
T: +44 (0)1926 485282, E: info@hyfirewireless.co.uk, W: www.hyfirewireless.com
