User’s Guide

ImageQuest V995

Multiscanning Color Monitor

Click

www.hyundaiQ.com

U.S.A.

U.S.FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a

Class B digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet of a circuit different from that to which

the receiver is connected.

Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modification not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

Connecting of peripherals requires the use of grounded shielded signal cables.

BACK

WE ImageQuest CO., LTD.

Ami-ri Bubal-Eub Ichon-Si Kyungki-Do

467-860 KOREA

declare under our sole responsibility that the product:

to which this declaration relates is in conformity with the

following standard(s) or other normative document(s)

following the provisions of the Low Voltage Directive 73/23/EEC,

93/68/EEC and the EMC Directive 89/336/EEC.

KOREA / JULY 2, 2003 HONG KI, KIM

(Place and date of issue) (Name and signature of

authorized person)

DECLARATION OF CONFORMITY

Kind of equipment : COLOR MONITOR

Type-Designation : C19R06092

Safety :EN 60950 : 1992 + A1, A2, A3, A4, A11

EMC : EN 55022 : 1998, EN 55024 : 1998

EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998

EN 61000-3-3 : 1995

Accredited testlaboratory:

TÜV Rheinland

Am Grauen Stein

51105 Köln

BACK

V995

Multiscanning Color Monitor

BACK

Contents 1. Introduction...............................1/19

2. Safety Information ...................1/19

3. Installing the monitor...............3/19

3-1. Packing List ..............................3/19

3-2.

Fastening the swivel and tilt base...

4/19

3-3. Selecting a suitable location .......4/19

3-4. Connecting the monitor..............5/19

3-5. Setting the refresh rate .............7/19

Preset Timing Table...................7/19

4. Adjusting the picture ...............8/19

4-1. Using the On-Screen-Display........9/19

4-2. Direct access buttons ....................9/19

4-3. OSD Adjustments........................10/19

5. Display power management ..15/19

Reducing power consumption..........15/19

6. Troubleshooting.......................16/19

7. Specifications..........................19/19

V995

Multiscanning Color Monitor

1/19

BACK

1. Introduction

2. Safety Information

This manual contains instructions for installing and operating ImageQuest V995.

ImageQuest V995 is a highly ergonomic color display unit;

• 19” diagonal (19” viewable) 0.26mm dot pitch CDT

• Supporting high screen refresh rates and full scan flicker-free picture quality

• With On Screen Display menus for user control

• 100-240V AC input voltage

• VESA DPMS (Display Power Management Signaling)

• VESA DDC1/2B compatibility

When you set up and use your display unit, follow the safety instructions below.

• Do not use the display unit in humid environments like bathrooms, damp

cellars, swimming pools, etc.

• This equipment must be connected to an earthed outlet which is close to the

display unit and accessible in case you need to disconnect the display.

• Do not connect an extension cord.

• Never insert objects into the openings on the outside of the device as you can

come into contact with live electrical components. This can cause fire or give

strong electrical shocks.

• Slots in the cabinet are provided for ventilation. Do not block the ventilation

slots in the display unit cabinet.

• Do not under any circumstances open the display unit cabinet.

V995

Multiscanning Color Monitor

2/19

BACK

• To avoid risk of electric shock, do not disassemble the display unit cabinet.

The unit is not user-serviceable. Remember to unplug the display unit from the

power outlet before cleaning.

• Do not use alcohol (methyl, ethyl or isopropyl) or any strong solvent. Do not

use thinner or benzene, abrasive cleaners or compressed air.

• Do not wipe the screen with a cloth or sponge that could scratch the surface.

• To clean your antistatic screen, use water and a special microfiber screen

cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean

cloth with water or a mild detergent.

• To clean display unit cabinet, use a cloth lightly dampended with a mild

detergent.

• During the transportation of the monitor, the swivel base has to be removed in

every case.

Cleaning and Maintenance

V995

Multiscanning Color Monitor

3. Installing the monitor

3-1. Packing List

3/19

BACK

The following items should be found in the packaging.

Above power cord can be changed upon different voltage areas. Please

contact your dealer if anything is missing or damaged.

America/Canada

Japan

Australia

Korea

Europe

South Africa

Attached

Signal

Cable

Tilt and Swivel Compact Disc Power cord

V995

Multiscanning Color Monitor

4/19

BACK

3-2. Fastening the swivel

and tilt base

3-3. Selecting a suitable

location

•Place the base against the bottom of the monitor so that the base fasteners are

aligned with appropriate slots.

•Push the base towards the front of the monitor until the latch locks into

position.

•Place the monitor at least 30cm from other electrical or heat-emitting

equipment and allow at least 10cm on each side for ventilation.

•Place the monitor in a position where no light shines directly onto or is

reflected on the screen.

•To reduce eye strain, avoid installing the display unit against a bright

background such as a window.

•Position the monitor so that the top of the screen is no higher than eye level.

•Position the monitor directly in front of you at a comfortable reading distance

(around 45 to 90cm)

V995

Multiscanning Color Monitor

5/19

BACK

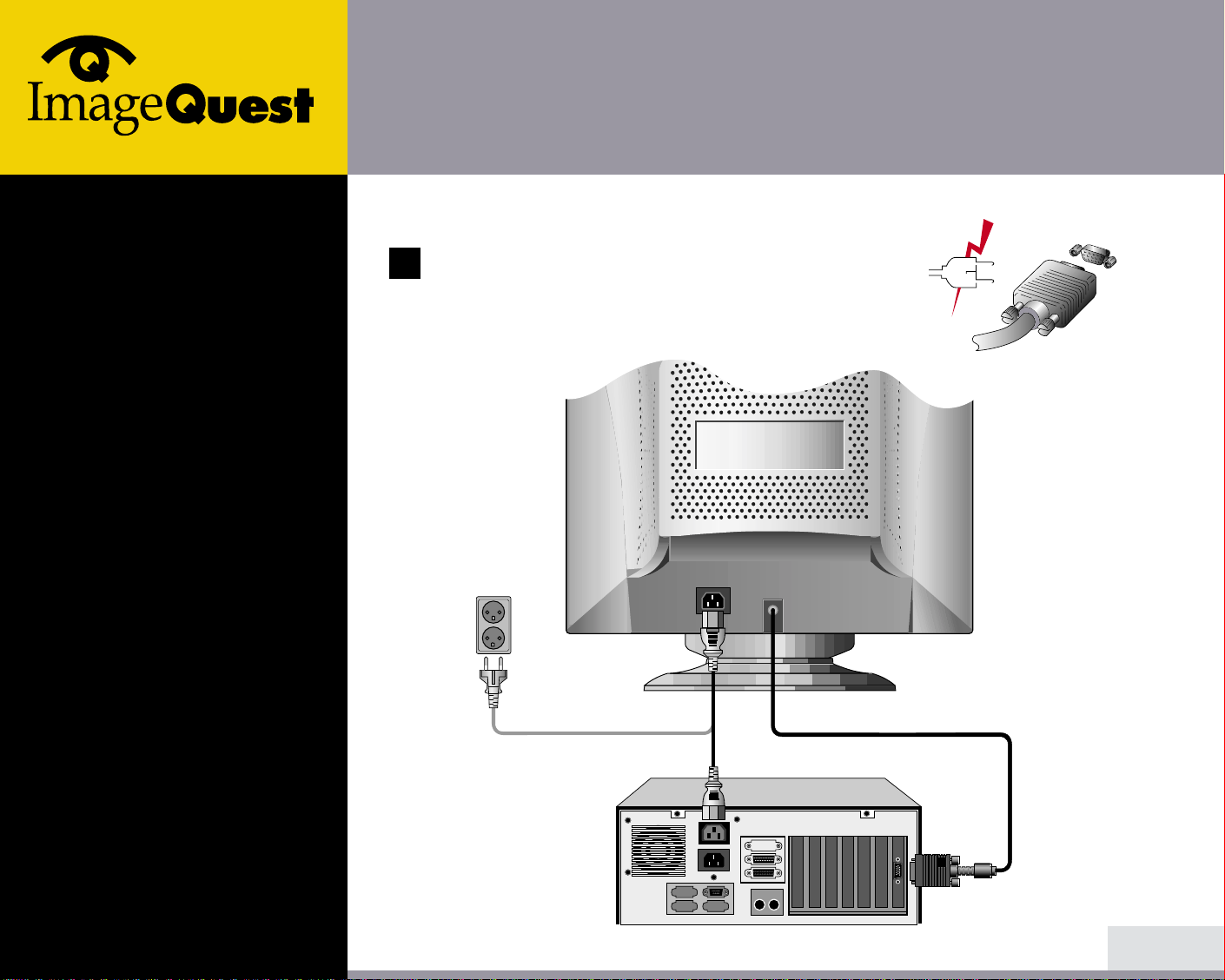

3-4. Connecting the

monitor Before you start cabling your monitor, check that

the power is off on all units. To avoid any

possibility of electric shock, always connect your

equipment to properly earthed outlets.
