Type No. L15B0C060
User’s Guide
ImageQuest LM1510A
TFT LCD Color Monitor
Click
www.hyundaiQ.com
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
BACK
NEXT
WE ImageQuest CO., LTD.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA / JAN. 19, 2002 HONG KI, KIM
(Place and date of issue) (Name and signature of
authorized person)
DECLARATION OF CONFORMITY
BACK
NEXT
Kind of equipment : COLOR MONITOR
Type-Designation : L15B0C060
Safety : EN 60950 : 1992 + A1, A2, A3, A4, A11
EMC : EN 55022 : 1998, EN 55024 : 1998
EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998
EN 61000-3-3 : 1995
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln
LM1510A
15" TFT LCD Color Monitor
BACK
NEXT
Contents 1. Introduction ...................................1/20
2. Safety Information .......................1/20
3. Installing the monitor ..................4/20
3-1. Packing List .........................................4/20
3-2. Selecting a suitable location .............5/20
3-3. Connecting the monitor ....................5/20
USB Hub .............................................7/20
3-4. Setting the refresh rate .....................8/20
Preset Timing Table ...........................8/20
3-5. VESA MOUNT’G ..................................9/20
3-6. PIVOT FUNCTION(Optional) .............10/20
4. Adjusting the picture ..................11/20
4-1. Using the On Screen Display ...........12/20
4-2. Direct access buttons ........................12/20
4-3. OSD Adjustments .............................13/20
5. Audio system ...............................15/20
6. Display power management ......16/20
Reducing power consumption ...............16/20
7. Troubleshooting ..........................17/20
8. Specifications ..............................20/20
LM1510A
15" TFT LCD Color Monitor
1. Introduction
2. Safety Information
1/20
BACK
NEXT
This manual contains instructions for installing and operating ImageQuest LM1510A.
ImageQuest LM1510A is a highly ergonomic color display unit.
• 15" viewable XGA LCD
• Supporting high full scan flicker-free picture quality
• With On Screen Display menus for user control
• With internal active stereo speakers
• 100-240V AC input voltage
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• High quality screen re-scaling capability
• Fast and accurate auto adjustment
• Most advanced image scaling
• USB (Universal Serial Bus) hub
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
• Pivot Function (Optional)
This Monitor has been engineered and manufactured to assure your safety.
You can prevent serious electrical shock and other hazards by keeping in mind the
following:
Do not place anything wet on the monitor or the power
cord. Never cover the ventilation openings with any
material and never touch them with metallic or inflammable
materials.
LM1510A
15" TFT LCD Color Monitor
2/20
BACK
NEXT
Avoid operating the monitor in extreme heat,
humidity or areas affected by dust.
Temperature : 5~35°C
Humidity : 30~80RH
Be sure to turn the monitor off before plugging the power
cord into the socket. Make sure that the power cord and
the other cords are securely and rightly connected.
Overloaded AC outlets and extension cords are
dangerous, as are frayed power cords and broken plugs,
which may cause electric shock or fire. Call your service
technician for replacement.
Do not use sharp tools such as a pin or a pencil near
the monitor, as they may scratch the LCD surface.
Do not use a solvent, such as benzene,
to clean the monitor, as it will damage the LCD surface.
LM1510A
15" TFT LCD Color Monitor
Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The
unit is not user-serviceable. Remember to unplug the display unit from the
power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen
cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean
cloth with water or a mild detergent.
• To clean display unit cabinet, use a cloth lightly dampended with a mild
detergent.
3/20
BACK
NEXT
UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
LM1510A
15" TFT LCD Color Monitor
4/20
BACK
NEXT
The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
3. Installing the
monitor
3-1. Packing List
!
Power cord
Signal cable
USB cable
Audio cable
Compact DiscAC/DC Power adapter
LM1510A
15" TFT LCD Color Monitor
5/20
BACK
NEXT
3-2. Selecting a suitable
location
3-3. Connecting the
monitor
•Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
•Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
•To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
•Position the monitor so that the top of the screen is no higher than eye level.
•Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)

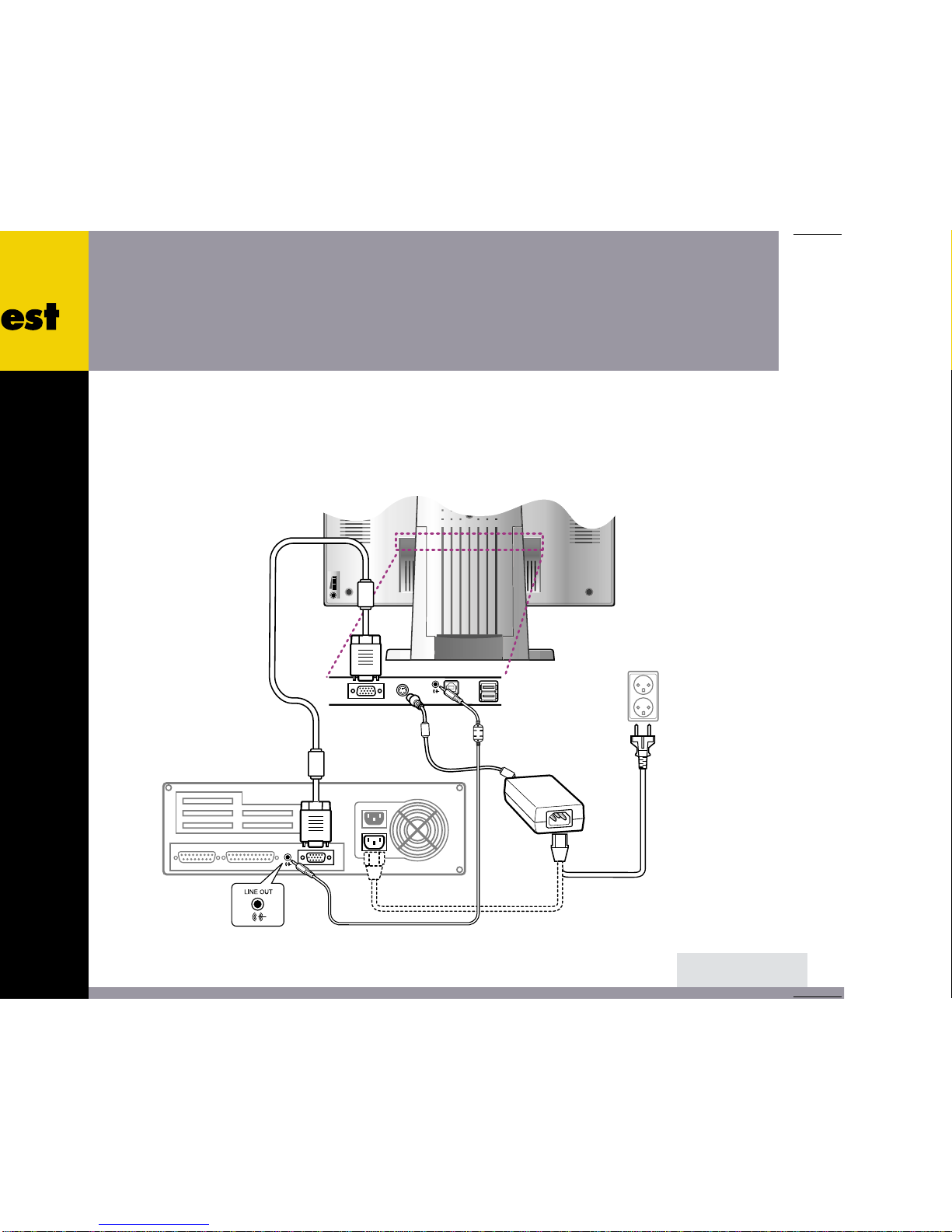

Before you start cabling your monitor, check that the
power is off on all units. To avoid any possibility of
electric shock, always connect your equipment to
properly earthed outlets.
1. Insert the other 15-pin signal cable connector into the 15-pin VGA connection
on your computer and screw it down. Connect the audio cable to the display
unit and the system unit.
2. Plug the power cord connection to connection on the AC-DC Power adapter.
3. Plug the jack of the AC-DC Power adapter connection to connection on monitor.
4. Plug the other end of the power cord to your computer's main supply or to a
100V-240V earthed electrical outlet.
5. Turn on the monitor using the power switch and check that the power LED is
on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of
this guide.
!
LM1510A
15" TFT LCD Color Monitor
6/20
BACK
NEXT
6. Turn on the power to the computer. The picture will appear within about 10
seconds. Adjust the picture to obtain optimum picture quality. See section
Adjusting the picture in this guide for more information.
