I-Tech NETVIEW NVP Series Manuale utente

USER

NVP2415 / 2417 / 2419 – 801/1601

2U 15” / 17” / 19” LCD

Keyboard Drawer wit PS/2 KVM

MANUAL

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

Table of Contents

1. Table of Content P.1

2. Introduction P.2

3. Features P.2

4. Package Contents P.3

5. Optional Accessories P.4

6. Perip eral Products P.4

7. Important Safeguards P.5

8. Structure Diagram P.6

9. Dimension Diagram

NVP2415-8/1601 P.7

NVP2417-8/1601 P.8

NVP2419-8/1601 P.9

10. LCD Session

LCD Membrane Diagram P.11

LCD OSD Control

Main Menu P.11

Sub Menu P.12-13

Resolution Settings

For Windows P.14

For SUN Servers P.15

11. KVM Session

Front View P.17

Rear View P.18

Installation Steps P .19

Cascading P.20

12. Start Up P.21

HotKey Command P.21

HotKey Command Operation P.22-23

KVM On Screen Display Control

OSD Structure Diagram P.24

OSD Menu Operation P.25

13. FAQ P.26

14. Tec nical Specification P.27-28

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

2. Introduction

NVP Series is a combination of keyboard, mouse and monitor into a drawer, with features such as

flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an

administrator to control PC system.

NVP Series provides cost effective for your limited IT budget over using CRT and rack mounting.

lso, it will be space saving for your compact environment rack and effective assistant for an

administrator to control PC system.

3. Features

• Unique Monitor flip up design allows viewing through closed glass door of cabinet

• djustable mounting brackets from 390 to 790mm (front to rear 19” mounts

• Two keyboard selections supporting multiple languages

• Three models to choose from 15”, 17” or 19” LCD panel

• Front-access lock for security

• Supplied with 12V 5 remote power adapter (single power source)

• Bulit-in KVM switch function for easy controlling and monitoring up to 16 residing servers/ platforms

• Support eight characters password protection and search PC server name

• uto scan mode for monitoring PCs and flexible scan time from 5~99 seconds

• Hot Pluggable— dd or remove computers without powering down the switch

• Easily switch individual button to select the PC channel using the push-button channel selector

switches, Hot Keys, or via the On-Screen Display (OSD) Menu.

Disclaimer

This information is subject to change without notice. The producer of this manual accepts no

responsibility for damage or claims, resulting from misuse or misinterpretation

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

4. Package Contents

LCD Monitor Drawer with PS/2 KVM Switch 1 Piece

User Manual 1 Piece

DC Power dapter 1 Piece

Power Cord 1 Piece

Mounting Bracket 1 Pair

Key for front access lock 2 Pieces

Fasteners 4 Pieces

ND-6 3-in-1 KVM cable 8 Pieces

Before Unpacking

It is very important to locate the LCD Keyboard Drawer in a suitable environment.

• The surface for placing and fixing the LCD Keyboard Drawer should be stable and level

or mounted into a suitable cabinet.

• Make sure the place has good ventilation, is out of direct sunlight, away from sources of

excessive dust, dirt, heat, water, moisture and vibration.

• Convenience for connecting the LCD Keyboard Drawer to the related facilities should

be well considers too.

Unpacking

The LCD Keyboard Drawer comes with the standard parts shown as above. Check and make

sure they are included and in good condition. If anything is missing, or damage, contact the

supplier immediately.

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

5. Optional Accessories

KVM Cable

ND-6 / 10 / 15 6ft / 10ft / 15ft PS/2 3-in-1 cable

Cascade Cable

N -2 / 6 / 10 / 15 2ft / 6ft / 10ft / 15ft PS/2 3-to-3 cable

Conversion Adapter

SUN-31 SUN / iM C USB to PS/2 adapter

Ot ers Video Input

15" - 19" Touch Screen

6. Perip eral Products

Model Description

NV-401 4-Port PS/2 KVM switch

NV-801 8-Port PS/2 KVM switch

NV-1601 16-Port PS/2 KVM switch

NV-101 C T.5 PS/2 KVM extender

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

7. Important Safeguards

W at t e warranty does not dover

1. ny product, on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a) ccident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

b) Repair or attempted repair by anyone not authorized by us.

c) ny damage of the product due to shipment.

d) Removal or installation of the product.

e) Causes external to the product, such as electric power fluctuation or failure.

f) Use of supplies or parts not meeting our specifications.

g) Normal wear and tear.

h) ny other causes which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

Please read all of these instructions carefully before you use the device.

Save this manual for future reference.

• Unplug the LCD Keyboard Drawer from the power outlet before cleaning.

• Do not spray liquid cleaners or aerosol directly on the device. Wet a cloth with a neutral

detergent (e.g. clean water) and squeeze it tight, then clean the screen slightly with it.

• Do not expose the LCD Keyboard Drawer directly to rain, water, moisture or sunlight.

• void pressure on the LCD screen to prevent permanent damage to the display.

• Do not attempt to service the device yourself. Improper operation may void your

warranty. Refer all servicing to qualified service personnel.

•

Safe storage environment of the LCD Keyboard Drawer is ranging between –20

and 60

C. Permanent damage could occur if the LCD Keyboard Drawer is stored

outside the safe range.

• Unplug the LCD Keyboard Drawer immediately and call qualified service

personnel under the following conditions:

1. If the monitor has been exposed to rain, liquid or water.

2. If the monitor has been dropped or the casing has been damaged.

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

8. Structure Diagram

1. PS/2 keyboard

2. Aluminium front panel

3. Class A active matrix TFT LCD panel

4. Analog to digital signal converter board

5. Rear metal case

6. LCD inverter

7. LCD membrane

8. Ball bearing telescopic slides wit stopper

9. Adjustable mounting bracket

10. KVM membrane & KVM switc board

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

9. Dimensions Diagram

NVP2415-8/1601 1U 15” LCD Keyboard Drawer with PS/2 KVM

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

9. Dimensions Diagram

NVP2417-8/1601 1U 17” LCD Keyboard Drawer with PS/2 KVM

i-Tech Company LLC TOLL FREE: (888) 483-2418 • EM IL: info@i-techcompany.com • WEB: www.iTechLCD.com

NVP2415 / NVP2417 / NVP2419 User Manual

9. Dimensions Diagram

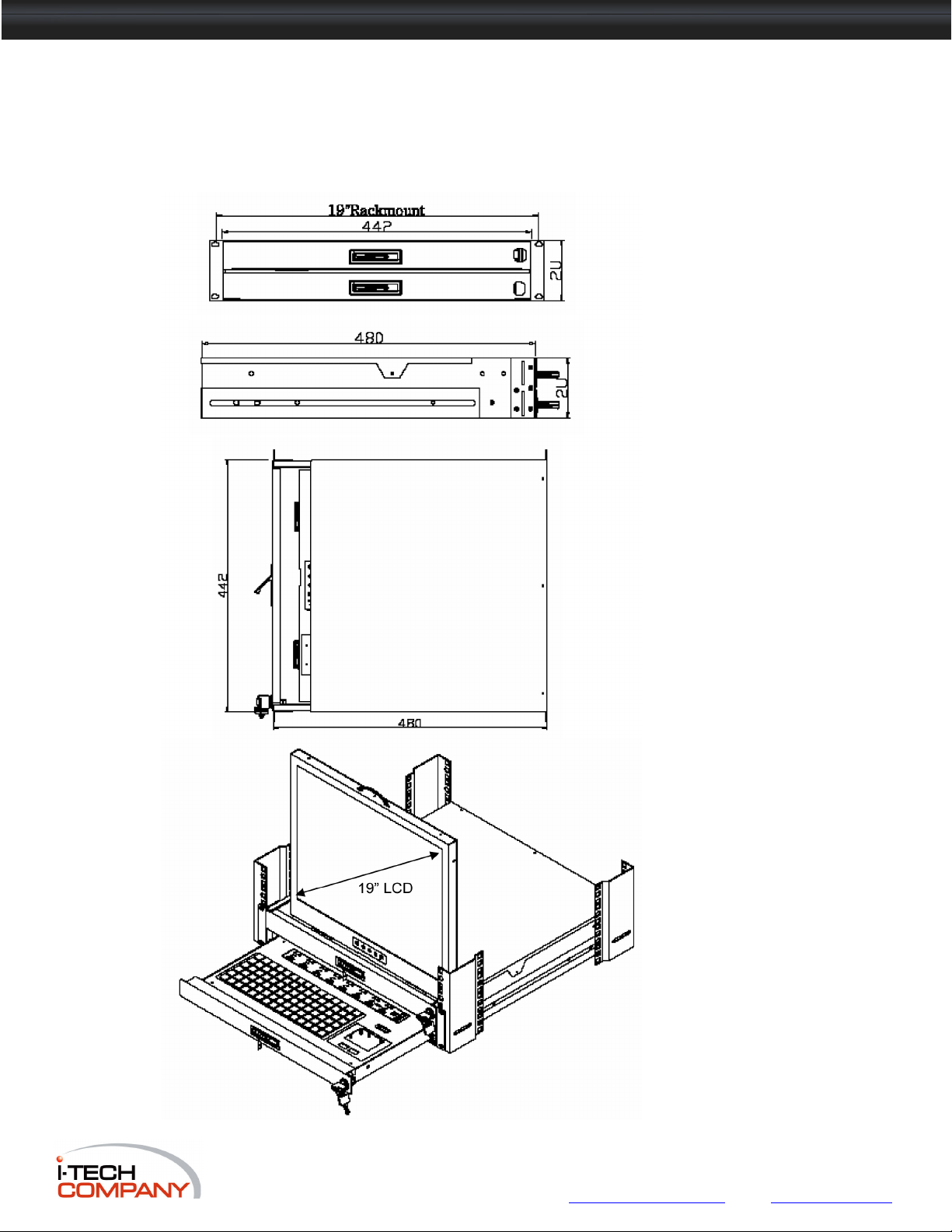

NVP2419-8/1601 1U 19” LCD Keyboard Drawer with PS/2 KVM
