Ax32V Camera Series

Instruction Manual

Before attempting to connect or operate this product, please read these instructions carefully and save this

manual for future use.

CONTENTS

INTRODUCTION .................

....................................................

SPECIFICATIONS ...............................................................

INSTALLATION..................................................................

Annexxus Mini Network Dome Camera User Guide Ax32V Models

any means, electronic or mechanical, including photocopying, recording, or by any information

storage or retrieval system, without the prior written permission of the copyright owner and the

publisher. Annexxus is a registered trademark of i³ International. i³ reserves the right to change

the contents of this manual without notice.

Disclaimer

Annexxus Mini Network Dome Camera User Guide is provided as is, without warranty of any

kind, expressed or implied, including but not limited to performance, merchantability, or fitness for

any particular purpose. Neither i³ International Inc. nor its dealers or distributors shall be liable to

any person or entity with respect to any liability, loss, or damage, caused or alleged to have been

caused directly or indirectly by this information. Furthermore i³ International Inc. reserves the

right to revise this publication, and to make changes to the content at any time, without notice.

FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Address:

i³ International Inc. • 780 Birchmount Road, Unit 16 • Scarborough • Ontario • Canada M1K 5H4

Tech Support: 1.877.877.7241 or email to: supp[email protected]

Web Site: www.i3international.com

1 Introduction

Thank you for purchasing an i³ Annexxus Network Camera. The Ax32V models are vandal-proof

dome cameras that can be viewed on site or remotely. They come with i³’s Annexxus Web Viewer

software which operates on an Internet Explorer web browser platform so is easy to install and

offers a range of user-friendly video functions.

The Ax32V cameras integrate perfectly into i³ International’s SRX-Pro DVMS systems.

1.1 Precautions

Safety

1. This quick start guide is designed for users who have an adequate knowledge of network

cameras.

2. Do not touch the imaging surface of the sensor. Use a soft cloth moistened with alcohol to

clean the surface if it is touched accidentally.

3. Ensure the power supply voltage is correct for the particular variant of camera before

operation.

4. Do not attempt to service this camera yourself unless you are authorized to do so. Opening the

camera may expose you to electrocution or other hazards. Refer all servicing to qualified

personnel only.

5. For more details on installation and operation, please refer to the CD provided.

1.2 Unpacking

Camera Parts and Definition

Hardware/Software Requirements

Ax32V2M series Specifications:

Model Ax32V2M series

Parameter 2 megapixel CMOS IP Vandal-Proof Indoor Dome Camera

Camera

Image Sensor 1/3 inch CMOS

Electronic Shutter 1/25s ~1/100,000s

Min. Illumination

Color: 0.5Lux @ F1.2

B / W: 0.1Lux @ F1.2

Lens

4mm, F1.2 Fixed Iris (2.8, 6, 8mm optional)

Angle of view: 90°

Day / Night Electronic

Video Parameter Saturation/Brightness/Contrast/ adjustable through client software or web browser

Adjustment Range Pan±15°, Tilt0~90°, Rotation±15°

Compression Standard

Video Compression H.264/Mpeg4/MJpeg

Bit rate 32 Kbps~16Mbps

Audio Compression OggVorbis


Max. Image

Resolution 1600 x 1200

Frame Rate 15fps (1600 x 1200), 30fps (1280 x 720)

Function

e-PTZ Yes

Storage Support NAS, ISCSI

Intelligent Alarm Motion Detection, Video Tampering, Video Loss, Network Broken, IP address

conflict, Storage exception

Protocols TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTCP,PPPoE,FTP,SMTP,NTP,SNMP,HTTP

S, SIP, 802.1x, IPV6

Basic Initial Set button, Anti-flicker, Dual Stream, Heartbeat, Password Protection,

watermark

3-Axis adjustment Yes

Interface

Audio Internal Microphone optional

Communication

Interface 1 RJ45 10M / 100M self adaptive Ethernet port

General

Operating Condition -10°~60°, Humidity 90% or less(non-condensing)

Power Supply DC12V±10% / PoE

Power

Consumption 3W MAX

Impact Protection IEC60068-275Eh,50J;EN50102, exceeding IK10

Weather Proof IP66

Dimensions(mm) 100×97.5×46.5

Weight 250g

Ax32VD1 Series Specifications

Model Ax32VD1 Series

Parameter VGA Real-time CMOS Mini IP Vandal-proof Dome Camera

Camera

Image Sensor 1/4 inch CMOS

Electronic Shutter 1/25s ~1/100,000s

Min. Illumination

Color: 0.1 Lux @ F1.2

B / W: 0.01Lux @ F1.2

Lens

4mm, F1.2 Fixed Iris(2.8, 6, 8mm optional)

Angle of view: 71°

Day / Night Electronic

Video Parameter Saturation/Brightness/Contrast/ adjustable through client software or web browser

Adjustment Range Pan±15°, Tilt0~90°, Rotation±15°

Compression Standard

Video Compression H.264/Mpeg4/MJpeg

Bit rate 32 Kbps~8Mbps

Audio Compression OggVorbis


Max. Image Resolution 640×480

Frame Rate 30fps @ 640×480

Function

Storage Support NAS, ISCSI

Intelligent Alarm Motion Detection, Video Tampering, Video Loss, Network Broken, IP address conflict,

Storage exception

Protocols TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTCP,PPPoE,FTP,SMTP,NTP,SNMP,HTTPS,

SIP, 802.1x, IPV6

Basic Initial Set button, Anti-flicker, Dual Stream, Heartbeat, Password Protection,

watermark

3-Axis adjustment Yes

Interface

Audio Internal Microphone optional

Communication Interface 1 RJ45 10M / 100M self adaptive Ethernet port

General

Operating Condition -10°~60°, Humidity 90% or less(non-condensing)

Power Supply DC12V±10% / PoE

Power Consumption 3W MAX

Impact Protection IEC60068-275Eh,50J;EN50102, exceeding IK10

Weather Proof IP66

Dimensions(mm) 100×97.5×46.5

Weight 250g

2 Camera connection & Annexxus Installation

Topics covered

Connecting the network camera

Network camera IP configurations

Annexxus Web Viewer Installation and Setup details

Annexxus Advanced Setup

Note: Internet Explorer version 6.0 or higher is necessary to connect with an i3 International

network camera.

2.1 Connecting a network camera

Two methods of connecting a network camera and PC are shown below:

i³ iP-Pro Server

Crossover direct connection

LAN VIA a Gigabit Switch

i³ iP-Pro Server

Connection type: 1

Connection type: 2

Network camera

2.2 Network Camera Default IP Configurations

The RJ-45 Network Port on the network camera will connect to an Ethernet/Fast Ethernet

standard (10/100Base-TX) network, complying with the IEEE 802.3U standard. Annexxus device

may be connected to a hub, switch or router with a straight through CAT5e cable, or directly to

the DVR/NVR with a crossover CAT5e cable.

Network Settings:

Ax32V Default IP configurations :

IP Address: 192.0.0.16

Subnet Mask: 255.255.255.0

2.3 Annexxus Web Viewer Installation and Setup details

Note: Internet Explorer version 6.0 or higher is necessary to connect with an i3 International

network camera.

2.3.1 Installing Annexxus Web Viewer and accessing Setup mode

1. Connect the network camera to the supported power source in accordance with the

connections diagram.

2. Connect the camera to a LAN/WAN network.

3. Before viewing, you may need to adjust your browser’s security settings. To do so:

From the Tool menu, click Internet Options.

Click on the Security tab.

If the camera is using the intranet, click the Local intranet icon. If the camera is using

the internet, click the Interneticon.

Click on Custom level. Under ActiveX controls and plug-ins, enable the following three

functions: ‘Download signed ActiveX controls’ ‘Run ActiveX control and plug-ins’

‘Script ActiveX controls marked safe for scripting”.

Click OK.

4. Open Internet Explorer browser window on a local PC/laptop and enter Annexxus IP address

(192.0.0.16 for Ax32V) in the address line.

5. When connecting for the first time, you may be prompted to install Annexxus 300 Active X

control. Click on the banner and select install the following Active X control ‘Annexxus 300’

from ‘I3 International Inc.’... from the context menu.

6. In the Internet Explorer - Security Warning window, click Install.

7. The Annexxus Web Viewer screen will be displayed with the Login window. Enter Annexxus

Username and Password and click Login.

Note

The login is case sensitive. The default administrative login is: Username: admin; Password:

1234

8. Annexxus Web Viewer opens and a live view from the camera appears.

9. To adjust parameters click the Setup button on the main screen . See the Annexxus

Advanced Setup section (s.2.4) of this manual for more information.

2.3.2 Changing IP Address

Your Ax32V2M series Network camera comes with the pre-assigned IP scheme: IP Address

192.0.0.16; Subnet mask: 255.255.255.0

To change camera IP Address:

1. Install Annexxus Active X as in section (2.3). Open and login to Annexxus.

2. Click the Setup button on the main screen and open the Network setup tab.

3. In the Network setup tab, configure IP settings, such as IP Address and Subnet Mask for LAN

connections or IP Address, Subnet Mask, and Gateway IP for WAN connections.

It is entirely the responsibility of a technician to be able to configure this setup page according to

customer’s network configurations.

4. Click the Save button and wait for the "Settings changes have been successfully saved”

message window to pop up. Click OK to close the message window.

5. Wait for “Please reboot Annexxus device to apply changes” window to pop up. Click OK. Click

Reboot button.

6. Wait for “Would you like to reboot Annexxus device?” window to pop up. Click OK.

7. Wait for “Annexxus device is rebooting. Close Internet Explorer browser, wait 45 seconds and

connect to Annexxus Viewer again” window to pop up. Click OK.

2.4 Annexxus Advanced Setup

To change additional network camera settings, click the Advanced Setup button .

Four setup tabs are available in Advanced Setup: Device Information, Channels, Network and

User Management.

In the bottom of each setup window there are four control buttons: Restore,Reboot,Save and

Close.

The Restore button is available to authorized users only. Click it to restore the Annexxus device

settings to the factory default settings. Settings must be restored to factory default after each

firmware upgrade. WARNING: All custom settings will be lost, including any additional users.

The Reboot button is available to authorized users only. Click it to reboot the Annexxus device. A

device reboot is required after the video recording settings have been changed or after a firmware

upgrade. Read related section for instructions on rebooting the device.

The Save button is available to authorized users only. Click it to save any setting changes. To

prevent unauthorized users from making changes to the Annexxus device, disable the Save

button in the User Management setup tab.

The Close button closes the Advanced Setup window.

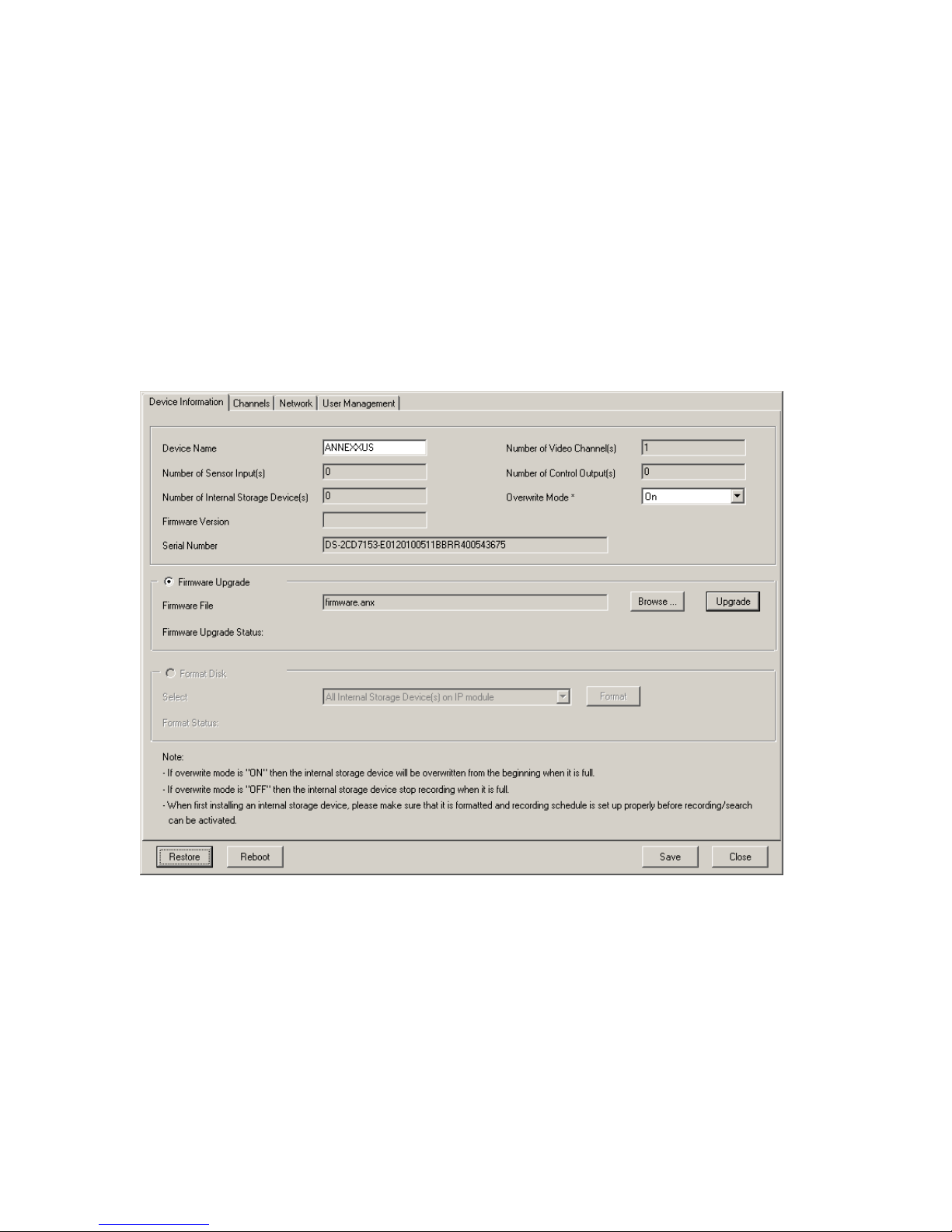

2.4.1 Device Information Setup

The following information about the Annexxus device can be found in the Device Information

setup: the number of video channels, sensor inputs, control outputs and internal storage devices

connected to the network, the current device firmware version and the device’s serial number.

Authorized users can also assign/change the device name, change the overwrite mode and

upgrade the device's firmware version.

NOTE: Overwrite Mode only functions when used in conjunction with SRX-Pro software.

Device Name

In Device Name, enter the camera’s custom name.

Firmware Upgrade

This function is only available to authorized users. Read the Upgrading Firmware section for

instructions on how to upgrade Annexxus device firmware.

V3.0 build 10/206

Questo manuale è adatto per i seguenti modelli

Altri manuali i3 International Telecamera di sicurezza

i3 International

i3 International Ax46-series Manuale utente

i3 International

i3 International i3F416U Manuale utente

i3 International

i3 International Ax45RM series Manuale utente

i3 International

i3 International Ax47R series Manuale utente

i3 International

i3 International Di721 Manuale utente

i3 International

i3 International Am52R Manuale utente

i3 International

i3 International Ax78R Manuale utente

i3 International

i3 International i3-B731 Manuale utente

i3 International

i3 International C-AX401C1M Manuale utente

i3 International

i3 International Ax32V Series Manuale utente

i3 International

i3 International i3B261 Manuale utente

i3 International

i3 International M71 Manuale utente

i3 International

i3 International C-AX401D1M Manuale utente

i3 International

i3 International C-AX401C1MN Manuale utente

i3 International

i3 International Ax63Z Series Manuale utente

i3 International

i3 International Ax61 series Manuale utente

i3 International

i3 International Ax52 Series Manuale utente

i3 International

i3 International Ax65W Manuale utente

i3 International

i3 International Ax83C Manuale utente

i3 International

i3 International Am73 Manuale utente

i3 International

i3 International Ax73RM-series Manuale utente

i3 International

i3 International A 65W Series Manuale utente

i3 International

i3 International Ax47R series Manuale utente

i3 International

i3 International Ax61 series Istruzioni operative e di manutenzione

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente

i3 International Ax32VD14 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche
