IBM 5U Rackmount Server Chassis YY-R5xx Manuale utente
ZZ17-W2001-B
1
YY-W2xx
Pedestal Server Chassis
YY-R5xx
5U Rackmount Server Chassis
Installation Guide
2005.04. Version B
ZZ17-W2001-B
2
INDEX
1. Introduction
2. Hardware Packing List
3. System Installation
3.1.Chassis Open
3.2.Motherboard Installation
3.3.Add-on Card Installation
3.4.CD–ROM Drive/FDD Installation.
3.5.Fixed HDD Cage , HDD Installation
3.6.Instructions for Switches and LED Indicators on front panel
3.7.Instructions for cooling fan assembly
3.8.Rack Mount Sliding Rails Installation
4.1 System Assembly
4. Introduction of IDE/SCSI/SATA multi-bay backplane
modules
5. How to change versatile as Rackmount Chassis (5U)
All brand names and trademarks are the property of their respective owner.
Specifications are subject to change without prior notice.
ZZ17-W2001-B
3
1. INTRODUCTION
YY-W2 series Server Chassis is designed in compliant with EEB3.0
specification (refer to www.ssiforum.org) and ATXV2.1 (refer to
www.formfactors.org)
Mother Board:
z YY-W2 is designed for extended ATX (12"x13"), in compliant
with ATX spec, CEB and EEB3.0 spec.
z Storage:
The chassis supply drive bays with flexible configuration:
z A type : Supply 8 x 5.25" + 2 x 3.5” HDD drive bays
z B type: Supply 5 x 5.25"drive bays and 7 x 3.5" HDD drive
bays, i.e. A type plus HDD fixed cage
z C type: Supply flexible and expandable drive configuration
with multi bay backplane module, support for SCSI/SATA/IDE
HDD, well performed thermal solution and HDD indicators.
I/O Expansion Slots:
z 7 slots
Power Supply, Optional:
z Single Power Supply of 420W~650W
z Redundant power supply of 320W~600W
Operating Temperature:
z 5кto 40к(41л~ 104л)
ZZ17-W2001-B
4
Thermal Solution:
z One(1) 120x120mm Cooling Fan is installed, rear mounted
z Options of two (2) 60*60*25mm, rear mounted.
Switches and LED Indicators on front panel
z Power Switch (Push Switch)
z Reset Button (Push Switch)
z Power On LED (Green)
z HDD LED (Orange flash)
z FAN ALARM (Red)
z LAN LED (Green/Flash) X 2
z Power Fail LED [optional /reserved for Power Failure Signal]
z USB Ports X 4, Audio ports [Optional]
Rack Mount Rail: (Optional)
z 24Inch Sliding Rails
Chassis Dimensions & Weight
z Depth 600 mm* Width 220 mm* Height 427mm
(23.6-in * 8.66-in * 16.8in)
Net Weight with Single Power Supply is 15Kg(33lbs)
z Material for Chassis: SECC sheet metal
ZZ17-W2001-B
5
2. Hardware Packing List
When you unpack your YY-W2 Server Chassis, check that all the
items that you ordered are present in good condition. Review the
inventory checklist below to be sure that the components and
optional components that you ordered are included. If anything is
missing or damage, contact your retailer as soon as possible. Don’t
use any uncertified material or components in this system.
zChassis
ϭA type
ϭB type
ϭC type ϭATA I DE ϭSCSI ϭSATA Raid Module
Power Supply (Optional)
ϭSingle Power Supply ϭRedundant Power Supply
Power Watts: _____________
zOptional Accessories:
ϭAC Cord
ϭUSA ϭJapan ϭGermany ϭOthers
ϭCard Clamp Holder
ϭFoot Stands (two pairs)
ϭRack Mount Sliding Rails 24-inch
ϭIntrusion switch
ϭManual
ZZ17-W2001-B
6
3. System Installation

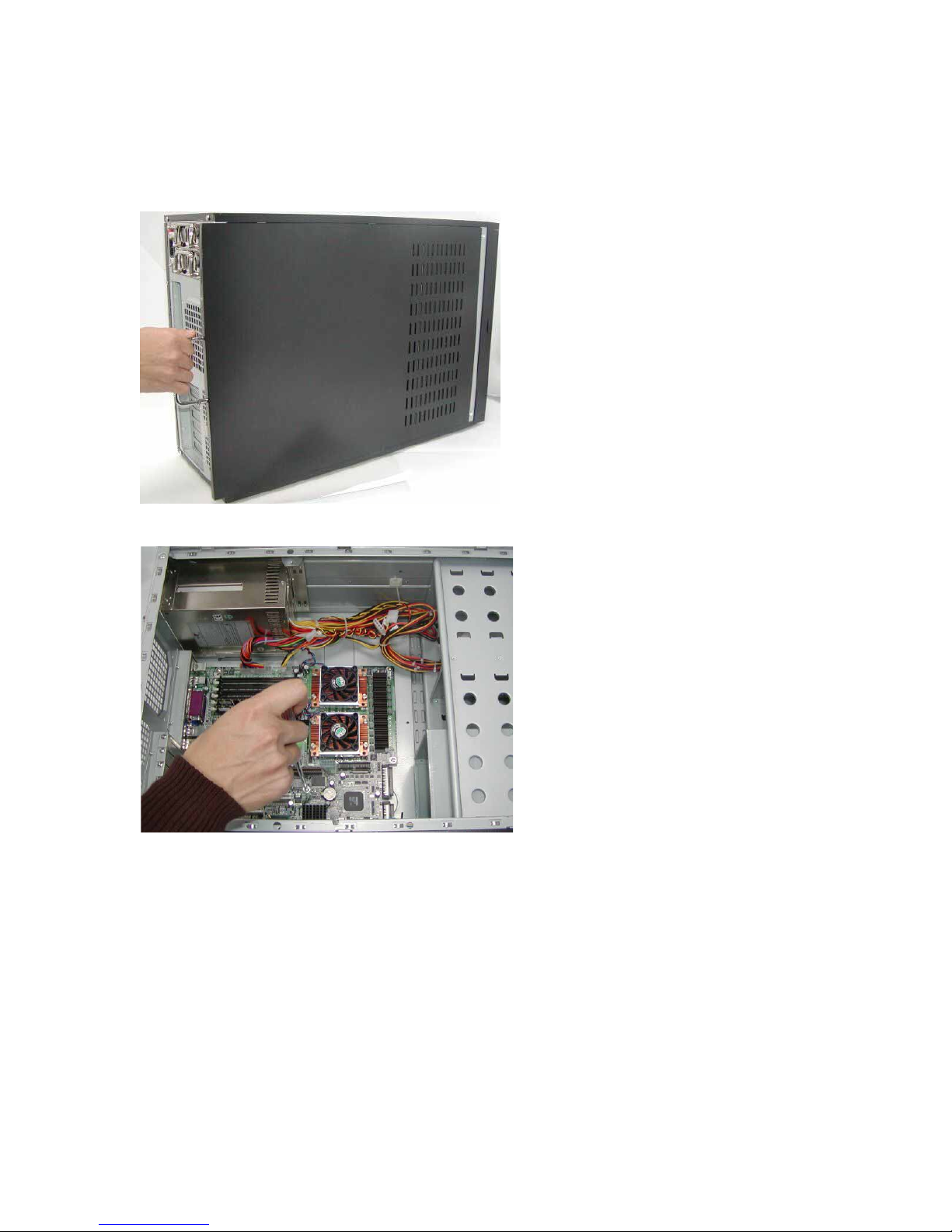

3.1 Chassis Open
To release two (2) screws on
the rear side of chassis, pull
the side cover with handle.
3.2 Motherboard Installation
Check mounting holes of
motherboard, to screw the
standoffs required to chassis.
Put the Motherboard into the
chassis, than screw in for
fixing.
Next step is to plug the DC
ATX-20(or EPS-24) pin
connector on the Power Supply to Motherboard and insert the power
switch connector properly.
Finally, plug the IDE cable connector to IDE interface connector on
the motherboard. In order to reduce the interference of cooling fans’
airflow, please adjust all cables to proper positions.
ZZ17-W2001-B
7
3.3 PCI Add-on Card Installation
Remove the tail gate bracket,
install PCI card into
motherboard, and screw in
bracket to rear window of
chassis.
The chassis could be
optional required A Card
Clamp Holder which is used
to clamp the Add-on Card
for avoiding any popping
issue.
To remove The Clamp
Holder first, install Add-on
Cards as usual; adjust the
holder's height for clamping
well the Add-on Cards.

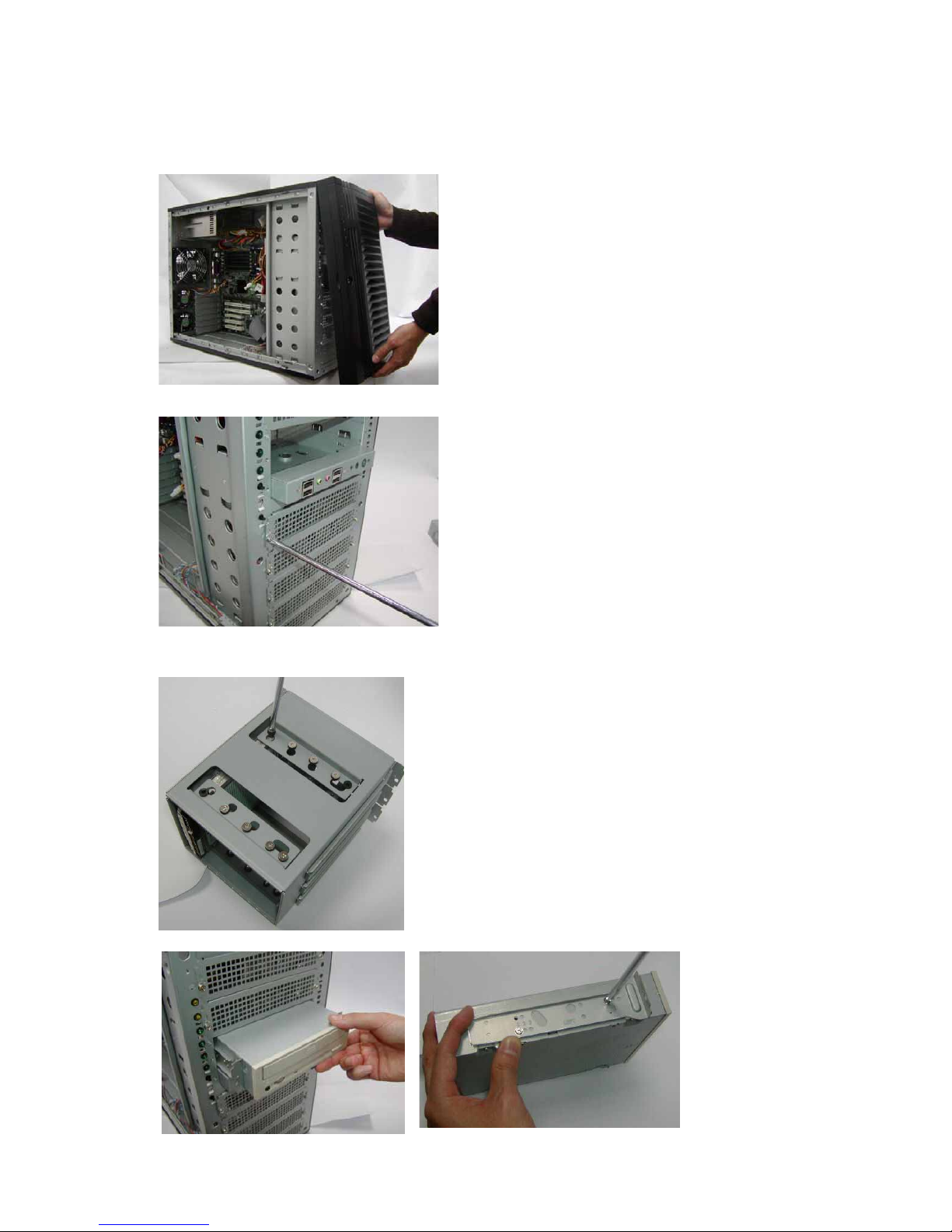

3.4 CDROM/HDD Installation -
YY-W2 Server Chassis is designed to install drive peripherals by
rails, it allow integrator to pre-assembly peripherals for fasten
system assembly as module feed in.
ZZ17-W2001-B
8
To remove the front panel fist, the
front panel is snap in chassis with
hocks (or/and screw on by 4pcs
screws), please screw off the screws
and pull the front panel forward.
z To remove the metal covers
(vented panel).
z Screw a pair of rails to drive.
z Slide in the drive install
chassis.
z Screw in two (2) 6#32 on the
front plate.

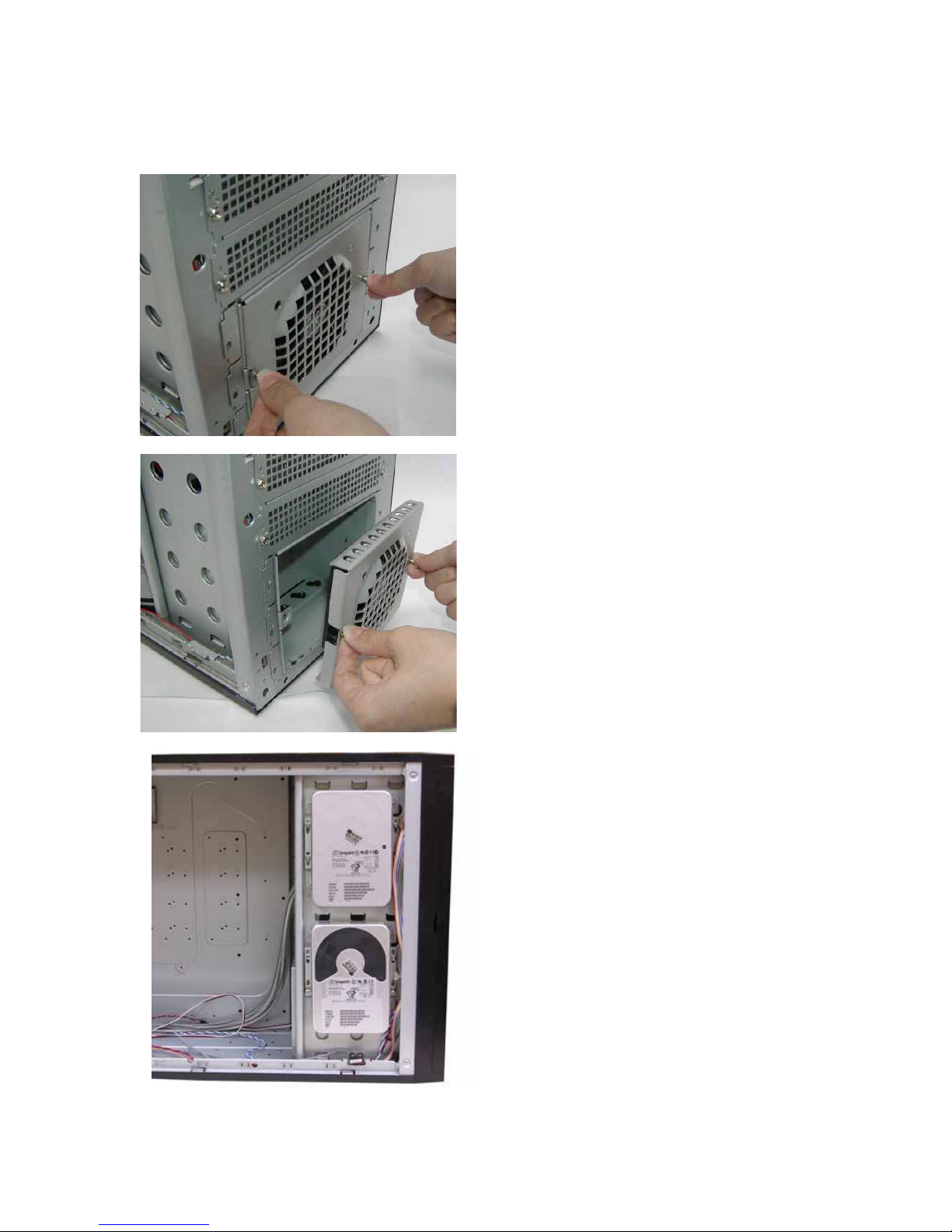

3.5 Hard Disk Drive Installation
-How to use Fixed HDD Cage
YY-W2 Server Chassis is optional
could be built with HDD cage for
5-devices HDD, and the cage designed
with anti-vibration pads for each HDD.
i.e. the YY-W201 B type.
ZZ17-W2001-B
9
To screw off four (4) screws in the
front plate of chassis, the HDD
cage could be removed from
chassis, install HDD into cage.
The cooling fan of HDD cage
could be easy swap, release two
thumb screws in the front of HDD
cage, lift off the fan holder, swap
fan and assembly again into cage.
How to use HDD brackets
YY-W2 Server Chassis is built
in two sets of HDD mounting
bracket for 2-devices HDD
assembly at side of 5.25” drive
bay; mounting brackets are
packed into the accessory box.
ZZ17-W2001-B
10
3.6 Instructions for Switches and LED Indicators on front panel
The switches and led indicators on front panel have the functions as
following:
POWER SW: Push Switch, The system power on/off, connects
toM/B.
Reset SW: Push switch, connect to M/B
x POWR LED: The system power LED (green), connect to M/B.
x POWER FAILURE LED: Reserved and optional requested,
it may connected with the Power TTL signal wire supplied by PSU
RED: The power module is in abnormal operation
FAN ALARML LED: Reserved, it may connect with optional
control board or M/B.
RED: Fan is in abnormal Operation
LAN LED: GREEN - Linked
GREENFlash-Active
HDD LED: ORANGE FLASH: HDD-OS ACCESS
USB PORT (Cable is optional attached to kits box)
Security Lock: The front door is lockable.
