Icetro ID-150AN Manuale utente

Dispenser Ice Maker

Manual

MODEL : ID-150AN, ID-0300-AN

※ Please check the voltage specification.

If the voltage specification is different, it can not be used.

※ This product is designed for indoor installation.

Please be sure to install it indoors.

※ The external appearance, design, color, and/or components

of this machine may be changed without prior notice for the sake

of the Company's product manufacture.

※ Please read the preparations for safety.

※ For maximum hygiene, be sure to clean and sterilize the product

on a daily basis.

We Think of Customer Satisfaction

INDEX

1. Safety Precautions 3~8

10~11

12~16

12~13

17~20

22~25

24~25

30~31

4. How to install

- The installation place

- Panel disassembly method

- Connection method for water supply and drainage

- About grounding

2. Product Specification

3. Appearance and Size

5. How to start the product

- Button operation

- Function button description (FND display window)

- Three drainage functions

(forced drainage, automatic draining, water drainage)

- Stop switch

7. Maintenance, repair and disinfection

- Maintenance schedule

- Cautions for cleaning the external panel(stainless steel)

- How to clean and disinfect

6. Required precautions to prevent frost

- Water removal in water tank and evaporator

9. Error type

8. Circuit diagram

10. Before Requesting Service

11. Product Warranty

12. Part List

- Always keep the instruction manual in an accessible and visible place. -

Warning

1. Safety Precautions

When there is a risk of causing physical problems such as death or serious injury

in the event of improper use.

When injury or damage to property such as house or furniture may occur

in the event of improper use.

Please check the voltage specification.

If the voltage specification is different,

it may cause malfunction or accident.

Warning

Caution

SHOULD BE DONE PROHIBITION GROUNDEDDO NOT

DISASSEMBLE

DO NOT

TOUCH

DISCONNECT

POWER PLUG

◆ An electrical fire may be caused by a receptacle holding

more than one item.

◆ Do not use an adapter or an extension cord.

Use a single receptacle for the ice machine.

◆ A fire may occur if plug is not cleaned.

Clean the plug if covered in foreign material or dust etc.

with a clean, dry towel.

Clean the plug

We Think of Customer Satisfaction

Warning

◆ The objects or containers may fall and cause water to leak

and the insulation may be weakened, resulting in a fire

due to a short circuit.

◆ Insulation may be weakened, resulting in short circuit,

electric shock, or fire.

◆ If you continue operating in abnormal conditions,

there is a risk of fire or electric shock.

◆ There is a risk of fire due to electric shock or short circuit.

◆ Risk of explosion or fire.

Do not place heavy objects or containers containing

water on the ice maker.

Do not install the product in a humid place or

where there is a risk of water splashing.

Do not use

If the product malfunctions, such as smoke or burning

smell, unplug the power cord to stop operation.

Do not use

Do not use if the outlet is loose or has a problem.

Do not use

Do not use flammable spray around the ice maker.

Warning

◆ It may cause damage to the product.

◆ It may cause a failure or electric shock.

◆ It may cause an electric shock or fire.

Do not forcibly apply force or shock to the product.

◆ There is a danger of a current leak, electric shock and/or fire.

◆ Be sure to contact the customer service center if the power cord or plug get peeled or damaged.

Prohibition

Do not bend the power cord severely, or allow it to be pressed by a heavy matter.

which can cause damage to the cord.

Do not move the product by pulling the power plug.

Be sure to use the grounded consent.

Do not pull off the power plug.

When the power plug is damaged, do not replace it

arbitrarily and contact the service agency.

We Think of Customer Satisfaction

Warning

◆ Ignition or abnormal operation is dangerous and may cause more trouble.

◆ There is a danger of the ice maker twitching or falling, resulting in injury.

◆ In particular, please do not let children hang on the reservoir not fixed

to the product

◆ There is a danger of electric shock.

◆ The ice reservoir may break or become damaged.

◆ The cord or plug may be peeled and there is a risk of fire

or electric shock.

◆ If the cord or plug is peeled or damaged, be sure to ask the service

to replace it.

Disassembly forbidden

Do not modify or repair the product yourself.

Prohibition

Do not let children hang on the product.

Do not touch

Do not touch or pull on the power plug with wet hands.

Do not touch

Do not damage the inside of the ice maker with a sharp tool.

Prohibition

Do not allow electrical cords or plugs to be pinched or twisted.

Warning

Do not connect multiple

Products to a single outlet.

◆ It may cause electric shock or fire.

◆ It may cause fire or spark when unplugged by plug wire or driver.

◆ There is a risk of machine failure or electric shock due to short circuit.

◆ Do not plug in multiple plugs at the same time. Connecting multiple plugs

to a power strip will cause a fire.

Disconnect power plug

When not in use for a long time, remove ice and water

(to prevent winter frost), and unplug the power cord

from the outlet.

Disconnect power plug

When cleaning dust or replacing parts,

unplug the power plug first.

Disconnect power plug

When unplugging, grasp the plug body and remove it

Grounded

Please be sure to ground.

We Think of Customer Satisfaction

Caution

◆ New users need a manual for safe use.

◆ There is a risk of injury if you slip on the ice maker or get hands

or feet in the bottom of the side.

◆ The bottom of the ice maker have iron plates and

various parts which may cause injury.

◆ If it is plugged in immediately, it may cause a trouble in operation

of the freezer and it may cause malfunction of the ice maker.

Caution

If there is a risk of slippery water or oil on the floor near

the ice maker, please wipe it.

Hand over

When transferring this ice maker to another person,

please hand it along with the instruction manual

Do not put your hands or feet on the bottom of the ice maker.

If you unplug the power plug from the wall outlet and plug

it back in again, wait at least 5 minutes before reinserting.

For areas where water contains much calcareous sediments, be sure to install

a calcium filter at the water inlet port (calcium may reduce the lifecycle

of the product).

2. Product Specification

Category Specification

Model

ID-150AN, ID-0300-AN

Ice shape

Nugget

※ Maximum capacity (lb / day)

Ambient temperature 70 ℉,

Water temperature 50 ℉

297 (135 kg)

Storage capacity (lb)

※ Size (W X D X H inch)

- Foot excluded

16.6 X 25 X 28

Power Supply

AC 115 V 60 ㎐, 1PH

Current consumption

5.8 A

Weight Before packaging

145.5 lb ± 1 lb (66 kg)

After packaging

178.5 lb ± 1 lb (81 kg)

Compressor

3/8 HP

Condensation method

Air-cooled

Refrigerant

R-404A 11.29 oz

Deceleration

motor

Power Supply

AC 115 V 60 ㎐, 1PH

Rated output

80 W

Discharging method

Solenoid

Installation

environment

standard

Specification

50 ~ 100 ℉ (10~38 ℃)

Water temperature

50 ~ 89.6 ℉ (10~32 ℃)

Supply water

pressure

0.1 ~ 0.5 Mpa

※ Maximum production is based on ambient temperature 70 ℉(21 ℃)

and water temperature 50 ℉(10 ℃).

However, the deviation may occur depending on the conditions of the installation

environment, and the deviation may increase at high temperature conditions such as

the summer season.

※※ Depending on the specifications of the reservoir, the size may be different,

please check before purchase.

We Think of Customer Satisfaction

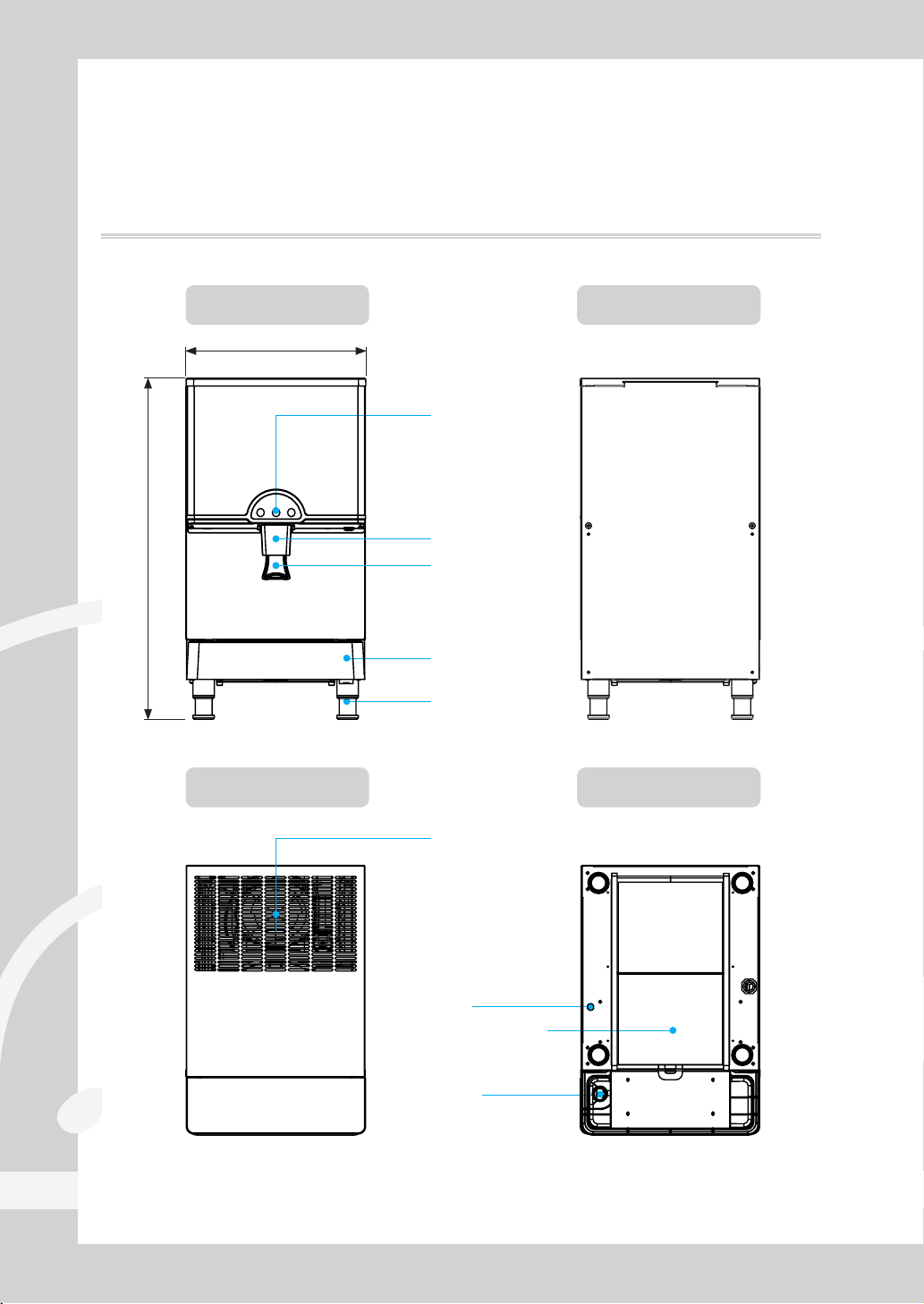

3. Appearance and Size

Front

Top Bottom

Rear

16.6

Unit : inch

31.3 ~ 31.9

Drain box

Height-adjustable feet

Display panel

Ice discharge lever

Filter

Water

connection

NPT 3/8"

NPTF 3/4"

Ice exit

Upper vent
