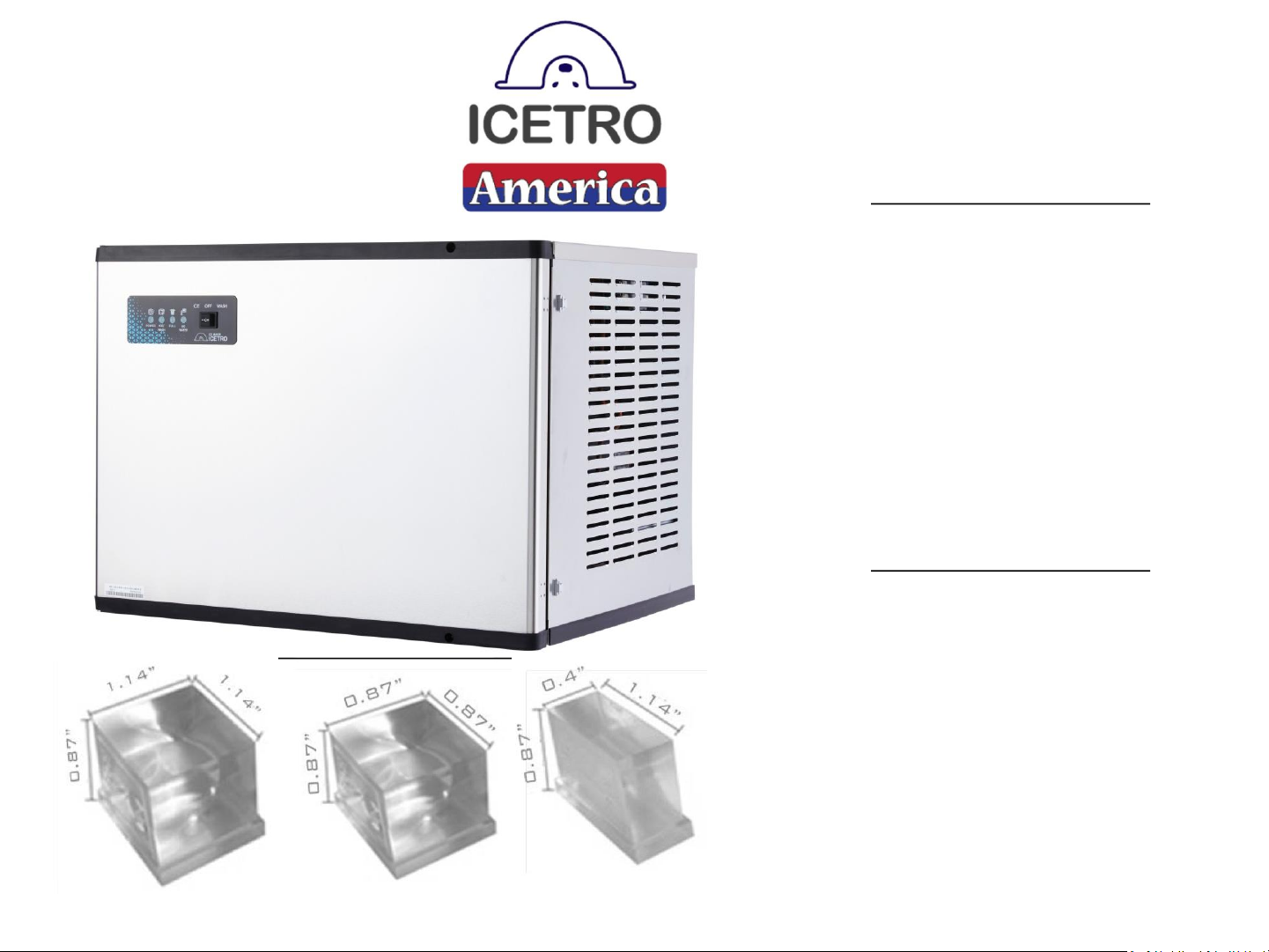

Icetro IM Series Manuale

INSTALLATIONS, SERVICE & OPERATIONS FOR

IM-350/350-22/460/460-22/550/550-22/680/1100 SERIES

ICE MAKERS

By Special Order Only

IM Series Models

30” WIDE SERIES

IM-0350-AH/C

IM-0460-AH/C

IM-0550-AH/C

IM-0680-AH/C

IM-1100-AH/C

22” WIDE SERIES

IM-0350-AH/C-22

IM0460-AH/C-22

IM-550-AH/C-22

‘C’ SIZE CUBE ‘H’ SIZE CUBE

THE MAESTRO

IM Series Cuber

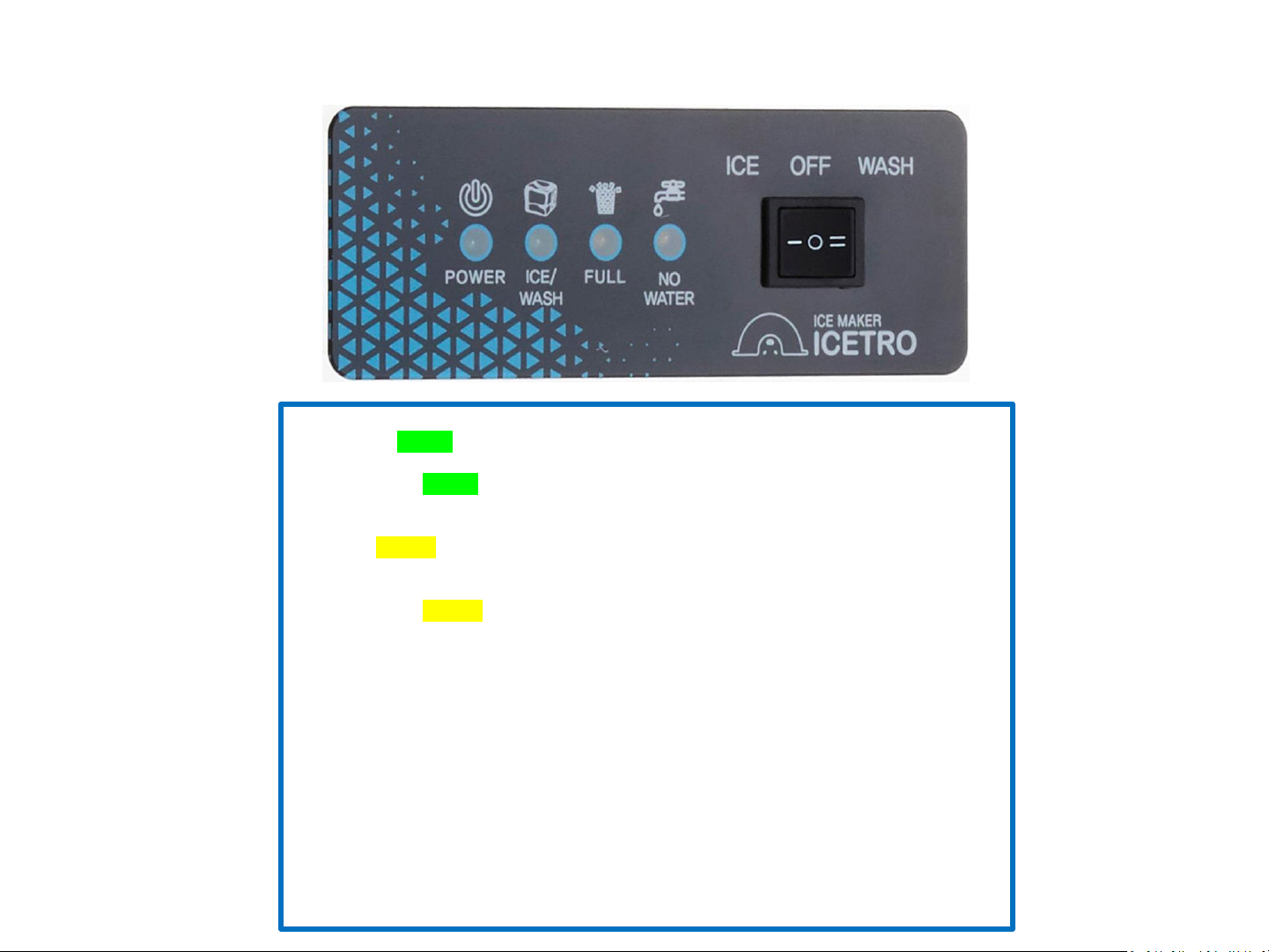

Operating Status Lamp Description

POWER Lamp (Green)

On: When the power is connected to the machine.

ICE/WASH Lamp ((Green)

On: When in the ice making mode. (Switched to ICE)

Flickers: When in the cleaning mode. (Switched to WASH)

FULL Lamp (Yellow)

On: When the Ice Storage Bin is filled with ice. When the water curtain is open for 30 seconds or

longer

NO WATER Lamp (Yellow)

On: When insufficient water supplied to the machine. (Error code 15).

Flickers: When entering the harvest mode after making ice, when the water level

sensor (high/low level) detects water level (water). (Error code 16).

POWER Lamp Flickers & ICE/WASH Lamp Flickers

When the maximum ice making time (65 minutes) is exceeded. (Error code 11).

POWER Lamp Flickers & FULL Lamp Flickers

When the maximum harvest time (5 minutes) is exceeded. (Error code 12).

POWER Lamp Flickers & NO WATER Lamp Flickers

When the ice making cycle exceeds 30 minutes and evaporator temperature Is higher than 32

deg. F. (Err. 01).

FULL Lamp Flickers & NO WATER Lamp Flickers.

High pressure cut-out occurred once. (Error code 13).

FULL Lamp Flickers & NO WATER Lamp On.

High pressure cut-out occurred three consecutive times. (Error code 14)

Simple Digital Diagnostic Lamp Indicators For Maintenance & Service Ease

Remove two Screws on Swing door to open.

Then remove two front

screws securing the right

side panel to remove

TOP & SIDE VENTS FOR GREATER EFFICIENCY

CUSTOMERS STATE EQUIPMENT

OPERATION IS VERY QUIET

REMOVABLE PANELS!

FRONT SCREWS TO OPEN

DOOR

SIDE PANELS LIFT UP & OUT

TOP PANEL LIFTS UP AND PUSH

TO RELEASE FROM SLOT ON

BACK.

How to Remove Panels Air Vents Top & Sides

DOOR ON HINGE, ACCESS TO DIAGNOSTICS PANEL

Door can rest on top of machine if needed.

INTERIOR ABS ANTI MICROBIAL EVAPORATOR SECTION

No Tools Needed to remove water distributor tube and water sump for cleaning

Non Corrosive Platform

REMOVABLE WATER SUMP NO TOOLS NEEDED

TO REMOVE TROUGH, PULL TABS OUT, THEN DROP FRONT OF

TROUGH DOWN AND PULL OUT OF MACHINE.

NOTE WHEN PUTTING BACK IN NOTICE THE BACK OF THE TROUGH

HAS A PROTRUSION STICKING FROM TROUGH WHICH ALLIGNS

INTO SLOT BELOW EVAP

NO FLOAT VALVE

WATER VALVE IS NOW

CONTROLLED BY WATER

LEVEL SENSOR

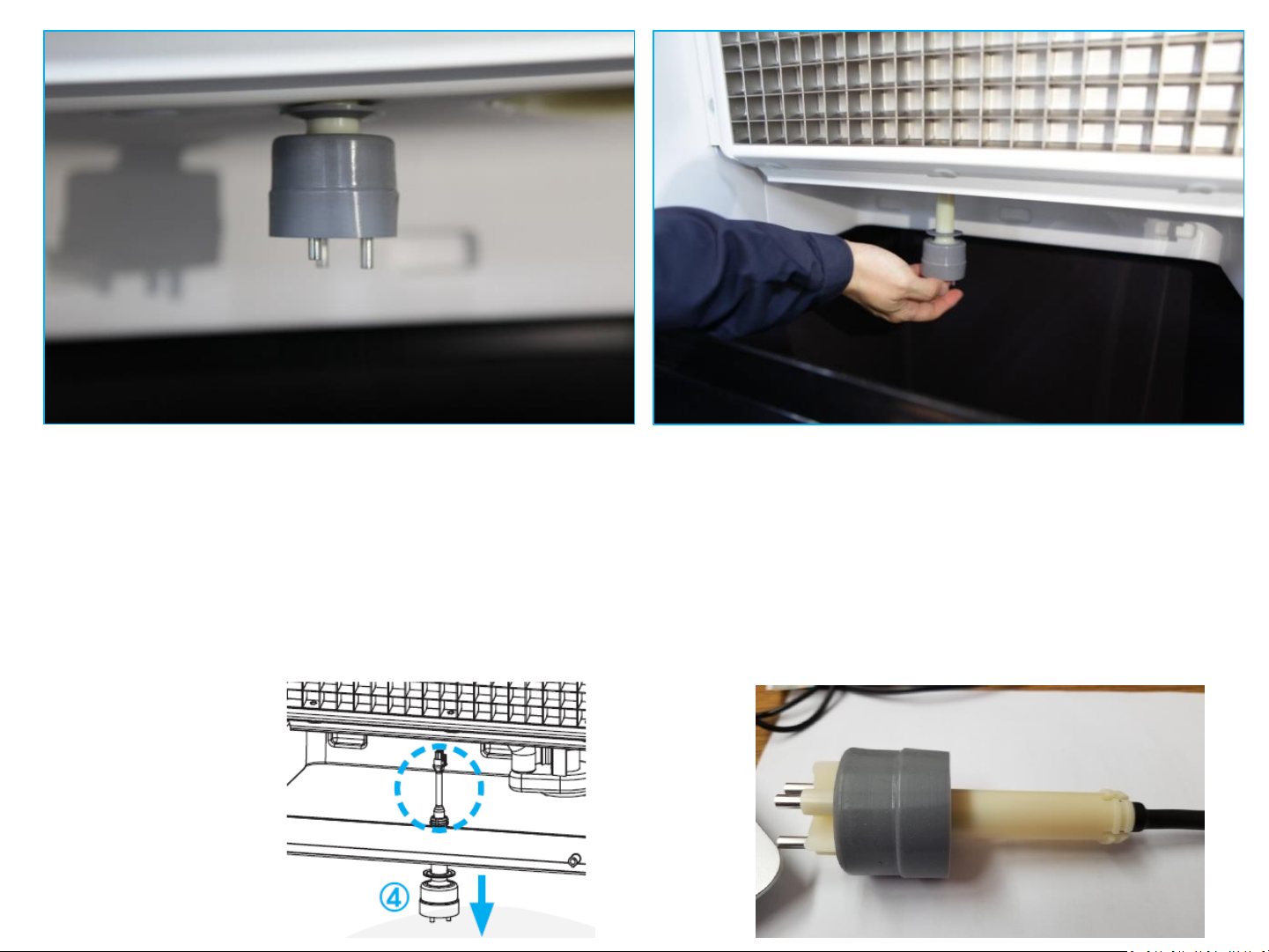

THIS IS THE WATER LEVEL

CONTROL TO REMOVE

SIMPLY PULL STRAIGHT

DOWN AND UNPLUG
