INSTALLATION INSTRUCTIONS
Thank you for buying iConnect products.
The PRL is the latest technology in projector lifts.
Please read this manual carefully before assembling.
PROJECTOR LIFT
PRL-60-240
2
CONTENTS
MAIN
CONTENTS
SAFETY
OVERVIEW
LIFT PREPARATION
LIFT INSTALLATION
FINISHING THE CEILING LIFT
ADJUSTMENTS
FINISH
DIMENSION
TECHNICAL SPECIFICATION
iCONNECT
1.
2.
3.
4.
5-6.
7-10.
11-12 / 16-17.
13-15.
18.
19.
20.
Projector lift PRL-60-240 must be installed by specialized personnel only.
Before installing the projector lift, please read the following instructions carefully
1. The projector lift must be used indoors only.
2. It is forbidden to stay under the lift.
3. never connect more than one lift motor to the same switch.
4. In case of maintenance, unplug the power supply.
5. Incorrect use, including exceeding the maximum lifting weight, would be dangerous and invalidate the
warranty.
6. The manufacture do not take responsibility for any damage to property or personal injury, if the lift is used
out side of recommended specifications.
7. Incorrect servicing could lead to risk of electric shock.
8. For any repairing, please contact directly the dealer you purchased the unit from.
9. Check at least once a year that the screws of the steel cables are well tightened
iCONNECT
3
SAFETY
iCONNECT

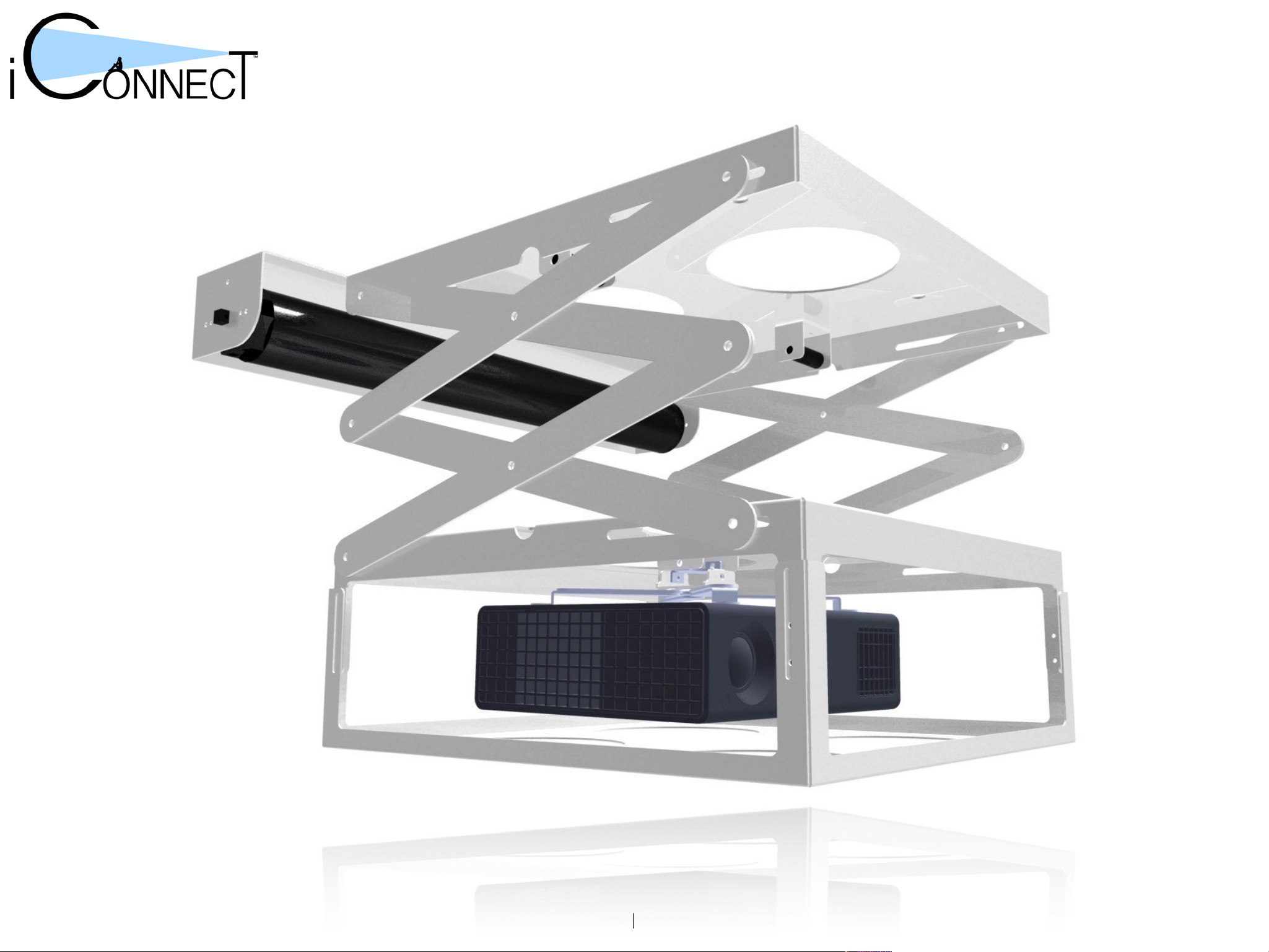

Projector
Motor
Projector Mount
Adjustable Mount Plate
Linkage
Pulley
Lift Frame
Limit Switch
Lift Frame
OVERVIEW
4
5

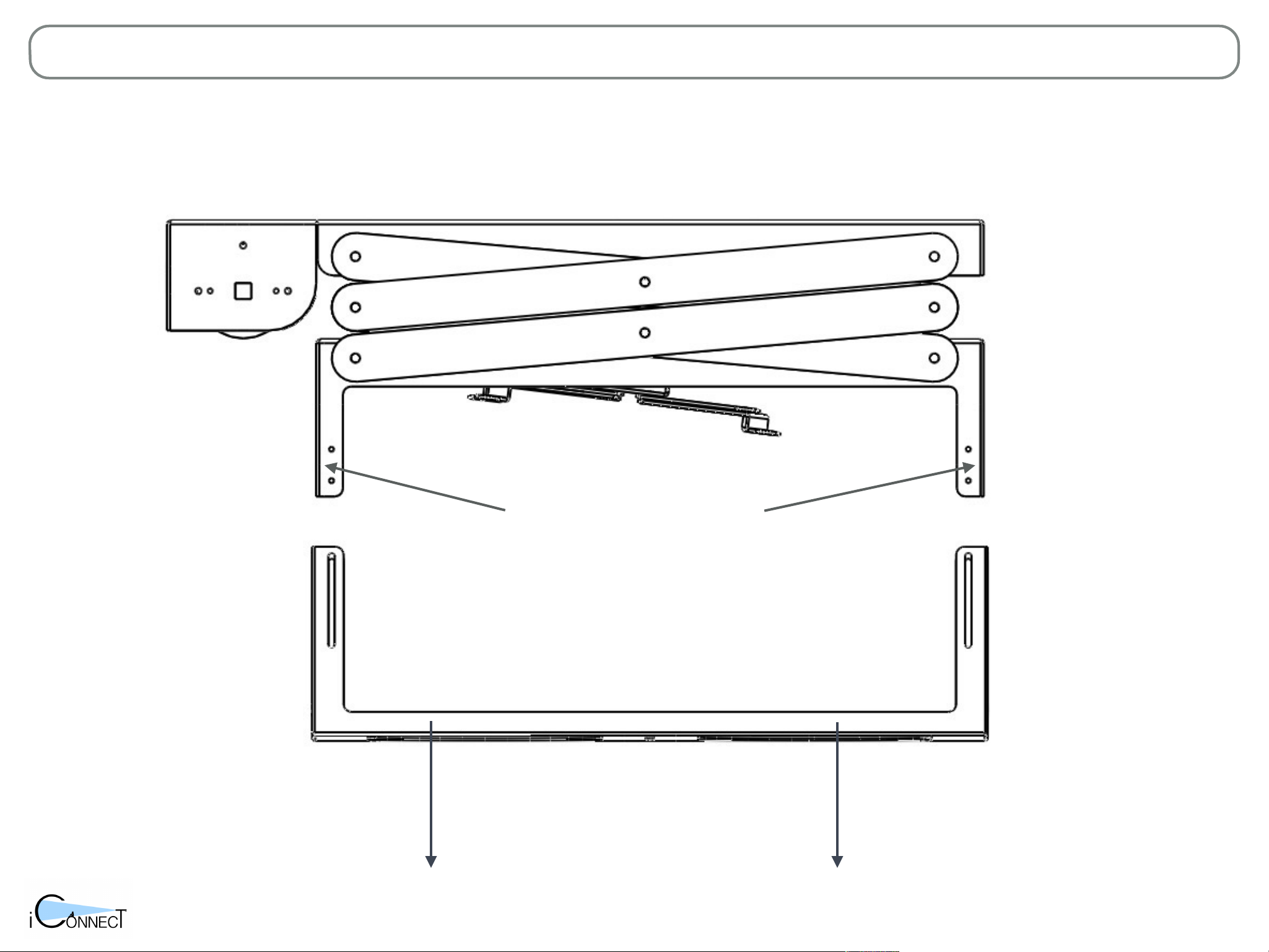

Remove Adjustable Mount Plate
Remove the 8 screws
iCONNECTLIFT PREPARATION
LIFT PREPARATION
Open a hole in the ceiling
600mm
600mm
6
iCONNECT
7
Mark and drill 4 holes in the ceiling with a diameter of 10 mm
The direction of the screen
iCONNECTLIFT INSTALLATION
8
Tighten bolts through the holes designated lift and strong
Make sure you locked well
iCONNECTLIFT INSTALLATION
9
Use a power cable that came with the package. plug the male and female side motor
Connect the other end of the cable to a power source 110 V
Press the switch and lower the lift down
iCONNECTLIFT INSTALLATION
10
Unplug the projector arm by opening the screw at the top
iCONNECTLIFT INSTALLATION
