ICP DAS USA WISE-52 Series Manuale utente

Technical Support: servi[email protected] P1

WISE-5231M-3GWA

Quick Start

v1.2, May 2018

Technical Support

WISE-5231M-3GWA User Manual:

http://wise.icpdas.com/Download.html

ftp://ftp.icpdas.com/pub/cd/wise_cd/

WISE-5231M-3GWA Website:

http://wise.icpdas.com

What’s In the Box?

In addition to this document, the package includes the following

items:

WISE-5231M-3GWA

GSM Antenna

(ANT-421-04)

microSD card and

micro SD/SD

adapter

Screw Driver

2.4mm (1C016)

44 mm DIN-Rail

Clip

M3x6L Screw * 4

Pin Terminal * 16

Technical Support: servi[email protected] P2

1 Configuring the boot mode

Before starting WISE-5231M-3GWA

at the first time, be sure that the switch is

placed in the “0” position.

2 Connect to PC, Network and Power

The WISE-5231M-3GWA is equipped with an RJ-45 Ethernet port for

connection to an Ethernet hub/switch and PC. You can also link directly

the WISE-5231M-3GWA to PC with an Ethernet cable. After power is

connected, please wait one minute for WISE-5231M-3GWA start-up

procedure. When the "RUN/PWR" light starts flashing, it represents the

boot is complete.

Technical Support: servi[email protected] P3

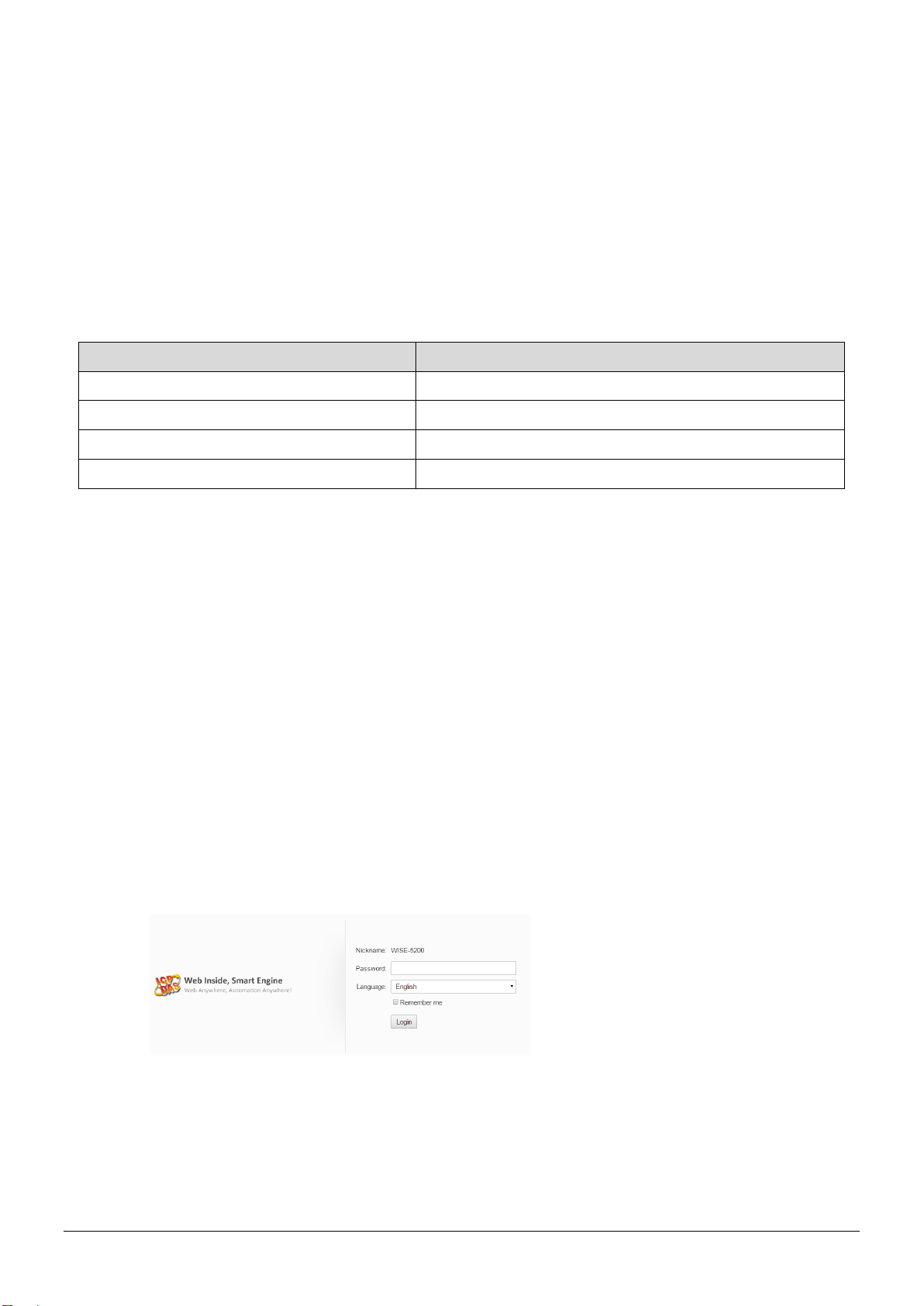

3 Using Browser to Assign a New IP

The WISE-5231M-3GWA is an Ethernet controller, which comes with a

default IP setting; therefore, you must first assign a new IP setting to the

LAN1 port of WISE-5231M-3GWA. The factory default IP settings of

WISE-5231M-3GWA are as follows:

Item

Default

IP Address

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

DNS Server

8.8.8.8(Default: Google DNS Server)

Follow the following steps for WISE-5231M-3GWA new IP setting:

Step1: Change the PC’s IP setting same as WISE-5231M-3GWA’s IP

domain. For example, set PC's IP as 192.168.255.10.

Step2: Make sure the PC and WISE-5231M-3GWA is connecting through

Ethernet.

Step3: Open a PC side browser, and type in the URL address

(http://192.168.255.1) of the WISE-5231M-3GWA to connect the

Web Server in WISE-5231M-3GWA.

Step4: Use default Administrator password “Admin” to login the system.

Step5: Please follow the sequence【System Setting】【Network Setting】

【Network Setting(LAN1)】to change the IP setting of

WISE-5231M-3GWA.

Technical Support: servi[email protected] P4

Step6: After complete the IP setting, please save it, and then the new IP

setting will take effect.

4 Go to WISE-5231M-3GWA Web Site to edit Control Logic

Please follow the steps below to implement IF-THEN-ELSE control logic

on ICP DAS WISE-5231M-3GWA controllers:

Step1: Open a browser, and type in the URL address of the

WISE-5231M-3GWA

Open a browser and type in the URL address(The new IP setting) of

the WISE-5231M-3GWA in the address bar. Make sure the IP

address is accurate.

Step2: Get on the WISE-5231M-3GWA web site

Get on the WISE-5231M-3GWA web site. Login with the default

password “Admin”. Implement the control logic configuration in the

order: 【Module Setting】【Advanced Setting】【Rule Setting】

【Save】, then complete the IF-THEN-ELSE rule editing.

Step3: For more detail information, please refer to

WISE-5231M-3GWA User Manual

技術支援: servic[email protected] P1

WISE-5231M-3GWA

快速上手指南

v1.2, May 2018

技術支援

WISE-5231M-3GWA 使用手冊：

http://wise.icpdas.com/Download.html

ftp://ftp.icpdas.com/pub/cd/wise_cd/

WISE-5231M-3GWA 產品網頁：

http://wise.icpdas.com

產品內容

除了本『快速上手指南』外，此產品內容還包括以下配件：

WISE-5231M-3GWA

GSM 外接天線

(ANT-421-04)

microSD 卡及

micro SD/SD 轉接

卡

螺絲起子 2.4mm

(1C016)

44 mm DIN-Rail

導軌固定架

M3x6L 螺絲 * 4

歐式壓著端子 * 16

技術支援: servic[email protected] P2

1 檢視啟動模式

在第一次啟動 WISE-5231M-3GWA

前，請先確認旋轉式開關的位置在“0”。

2 連接 PC 主機、網路及電源

WISE-5231M-3GWA 配有標準的網路接口 RJ-45，可透過網路集線器/交換

器與 PC 連接，也可直接連到 PC 的網路接口。接上電源後，

WISE-5231M-3GWA 開機程序須等待約一分鐘，待"RUN/PWR"燈開始閃

爍則代表開機完成，可進行連線與設定。

技術支援: servic[email protected] P3

3 設定 WISE-5231M-3GWA 的IP 位址

WISE-5231M-3GWA 在出廠時會統一預設網路設定值，使用者可以依照下

列步驟自行變更網路設定。網路出廠預設值為：

項目

預設值

IP 位址

192.168.255.1

子網路遮罩 (Subnet Mask)

255.255.0.0

通訊閘道 (Gateway)

192.168.0.1

DNS Server

8.8.8.8(預設為 Google DNS Server)

步驟 1：將PC的網路設定更改為與 WISE-5231M-3GWA相同網路區段。

例如 IP：192.168.255.10

步驟 2：確認 WISE-5231M-3GWA 與PC 已透過網路正確連接。

步驟 3：開啟 PC 端的瀏覽器並於網址列輸入 http://192.168.255.1。

步驟 4：輸入管理者預設密碼“Admin”進行登入。

步驟 5：登入成功後至【系統參數設定】【網路設定】【網路設定(LAN1)】，

根據實際網路環境更改網路設定。

步驟 6：儲存成功後將 WISE-5231M-3GWA 連接至實際網路環境。

技術支援: servic[email protected] P4

4 前往 WISE-5231M-3GWA 網頁進行邏輯規則設定

使用者透過 WISE-5231M-3GWA 所提供的網頁，只需使用滑鼠點選設定，

即可完成控制器上的 I/O 模組連接與工作邏輯的規劃。

步驟 1：開啟瀏覽器，填入 WISE 模組 IP 作為瀏覽器的 URL 位址

開啟電腦上的瀏覽器，輸入 WISE-5231M-3GWA 的IP 作為 URL

位址(如有重新設定 IP，請確認所輸入 IP 是否正確)。

步驟 2：進入 WISE-5231M-3GWA 的設定頁面

進入 WISE-5231M-3GWA 所提供的參數設定頁面，使用預設密碼

“Admin”登入後，僅需依照首頁上的設定流程：【模組設定】【進

階功能設定】【邏輯規則設定】【寫入設定】，即可完成 WISE

控制器的邏輯規則編排。

步驟 3：設定流程中的細節，請參照 WISE-5231M-3GWA 操作手冊
