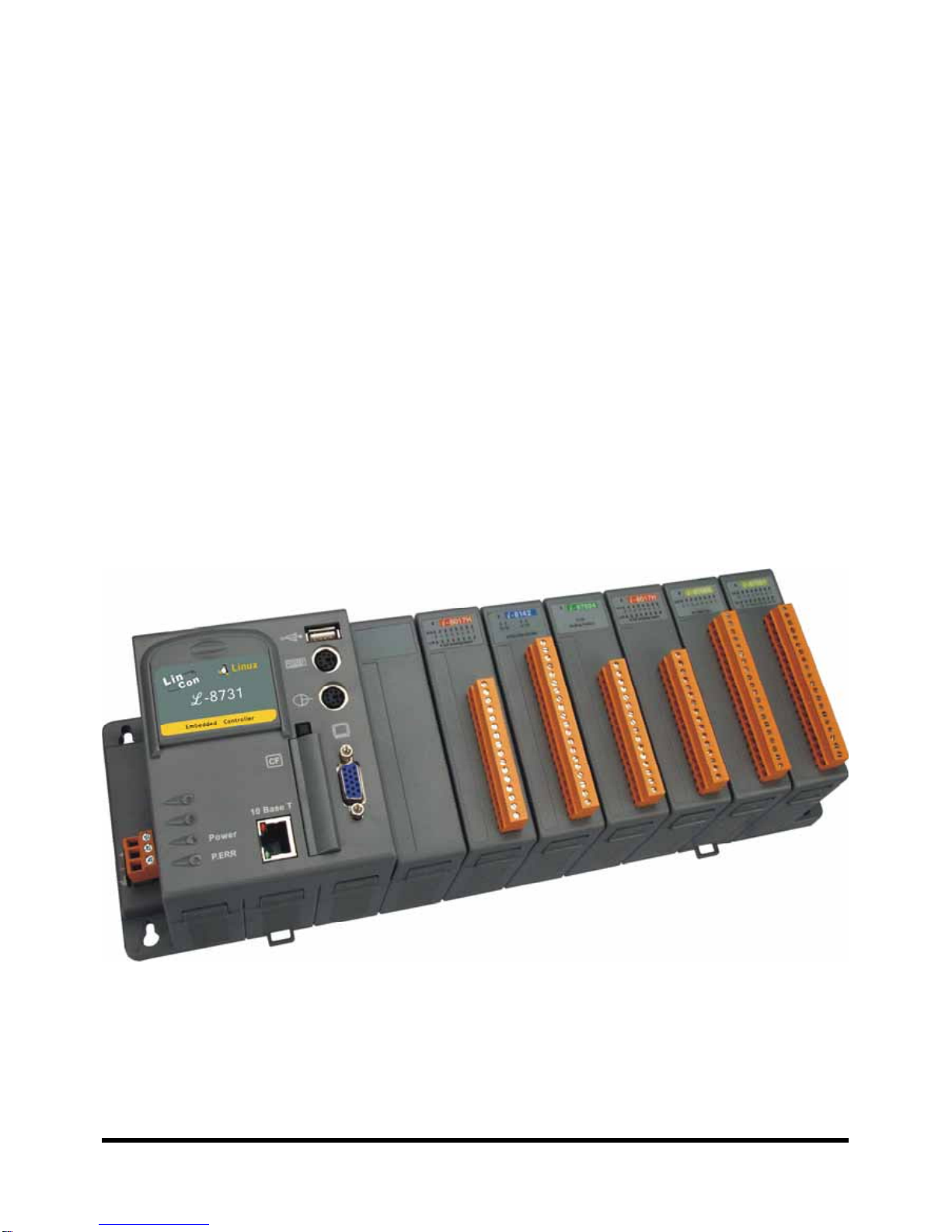

ICP DAS USA Compact Embedded Controller LinCon-8000 Istruzioni per l’uso

LinCon-8000

Compact Embedded Controller

Hardware User’s Manual

REV 1.0.0.0

2004/9/15

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 1

Warranty

All products manufactured by ICP DAS are warranted against defective

materials for a period of one year from the date of delivery to the original

purchaser.

Warning

ICP DAS assumes no liability for damages consequent to the use of this

product. ICP DAS reserves the right to change this manual at any time without

notice. The information furnished by ICP DAS is believed to be accurate and

reliable. However, no responsibility is assumed by ICP DAS for its use, nor for any

infringements of patents or other rights of third parties resulting from its use.

Trademark

The names used for identification only maybe registered trademarks of their

respective companies.

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 2

Table of Contents

1. INTRODUCTION ................................................................................4

1.1 PACKAGE LIST &RELEASE NOTE ......................................................................4

1.2 LINCON-8000 SERIES......................................................................................5

1.3 CONTENTS OF CD AND CF MEMORY CARD.........................................................7

2. HARDWARE INFORMATION............................................................8

2.1 FRONT VIEW OF LINCON8000 ..........................................................................8

2.2 SPECIFICATIONS ..............................................................................................9

3. APPLICATIONS...............................................................................10

4. QUICK START .................................................................................11

5 MECHANICAL INFORMATION ........................................................12

5.1 DIMENSIONS ..................................................................................................12

5.2 DIMENSIONS RAIL MOUNTING ..........................................................................12

5.3 WALL MOUNTING............................................................................................12

5.4 CONTROLLER COVER ......................................................................................13

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 3

1. Introduction

1.1 Package List & Release Note

Package List：

In addition to this manual, the package includes the following items:

zOne set of LinCon8000 hardware

zOne Compact Flash Memory Card for storing system files

zOne hardware user’s manual (this manual)

zOne release note

zOne software utility CD with Software User’s Manual included

Note：

If any of these items are missing or damaged, contact the local distributors for

more information. Save the shipping materials and cartons in case you want to

ship in the future.

Release Note：

It is recommended to read the release note & README.TXT first. The

release note is included in the shipping products. In addition, the README.TXT

can also be located in the CD\README.TXT. Some important information is

provided in the release note & CD\README.TXT.

Ordering Information

Call your distributor for details.

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 4

1.2 LinCon-8000 Series

The LinCon-8000 is the flagship compact embedded controller manufactured

by ICPDAS. Its leading technology gives you all of the best features of both

traditional PLCs and Linux capable PCs. The LinCon-8000 system is powered by

Linux and brings in the Linux programming style and skill into the world of PC-

based PLC. Application developers can develop their own programs directly into C

or Java language by using the LinCon-8000 SDK, and then download them into

the LinCon-8000 for application and use.

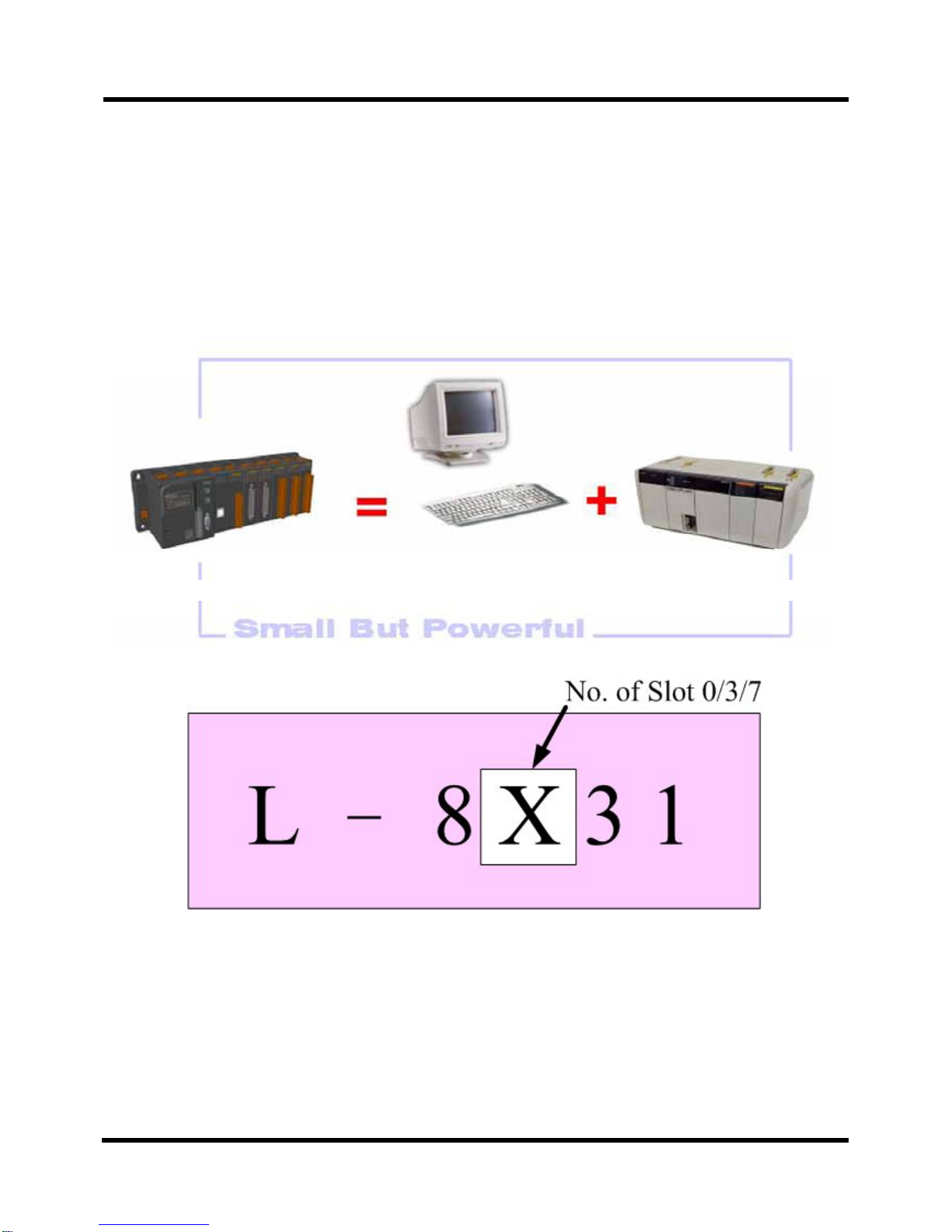

The LinCon-8000 model type is ruled as L-8X31, as shown in the above figure.

The Second number shows the slot numbers coming with the main controller unit.

Currently, we provide three types of 0、3 and 7 slots. The last number

demonstrates the application platform. 1 stands as the Master controller and it

means that the user needs to design the application program by themselves. For

more details on the product’s specifications, please refer to the following product

model table given below.

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 5

Model Description CPU

Speed Embedded

OS Slot Flash SDRAM Peripherals

L-8031

L-8331

L-8731

Embedded

Controller 206MHz Linux 0

Mbyte 64

Mbyte

10BaseT

Ethernet

Port×1

VGA Port×1

CF Slot×1

USB×1

PS/2

Keyboard×1

PS/2 Mouse

×1

RS-232×1

RS-485×1

FRnet×

1(Option)

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 6

1.3 Contents of CD and CF memory card

CD :

LinCon8000 SDK

Source code of demo programs

Software User’s Manual

References are given in ReadMe.txt in the CD

CF memory card (default is 128 Mbytes):

LinCon8000 System files

Demo programs

References are given in the Software User’s Manual bundled CD

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 7

2. Hardware Information

The LinCon-8000 Embedded Controller is competitive with Industrial PCs in

performance, and is lower in price. The system provides VGA and PS/2

keyboard/mouse for local visualization and management. User control programs

and data can be saved in persistent storage via Compact Flash and USB

interfaces. Furthermore, it has communication capabilities via the built-in Ethernet

and RS 232/485 interfaces

2.1 Front View of the LinCon8000

The following figure demonstrates the hardware system in the LinCon-8000. It

includes the main controller with HMI, serial communication and I/O expansion

interface.

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 8

2.2 Specifications

Main Control Unit

Intel Strong ARM CPU, 206MHz

SRAM: 64M bytes

Flash Memory: 32M bytes

EEPROM: 16K bytes

64-bit hardware unique serial

number

Built-in Watchdog Timer

Real Time Clock

10 Base T: NE2000 compatible

1 VGA port:

320x240x16 to 1024x768x16

Default is 640x480x16

2 PS/2 port: Keyboard and Mouse

1 Compact Flash slot: CF memory

card

1 USB 1.1 Host: USB drive or USB

mouse

Reset button

Power LEDs

Cabinet

COM0: Internal use

COM1: Serial Control for 87K Series

COM2: RS-232

COM3: RS-485

FRnet(Option)

I/O Expansion Slot:

0-slot for L-8031

3-slot for L-8331

7-slot for L-8731

Power Supply: 25W, Unregulated +10Vdc to +30Vdc

Environment:

Operating Temp.: -25°C to +75°C

Storage Temp.: -30°C to +85°C

Humidity: 5~95%

Dimensions:

115x110x75.5mm(0 slot)

213x110x75.5mm(3 slot)

418x110x75.5mm(7 slot)

I/O module (optional)

I-8000 serial modules, which include DI, DO, AO, AI...

I-87K serial modules, which include DI, DO, AO, AI...

I-7000 serial modules, which include DI, DO, AO, AI...

IF you want to get more information, welcome to refer to the relative catalog

or visit the web site http://www.icpdas.com.

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 9

3. Applications

The following figure diagrams the general application area and structure of the

LinCon-8000. Com2 is the standard RS232 interface, which can be connected via

the modem or to the Com1 in the I-8000 Controller. Com3 is the RS-485 interface,

which can be applied to control the ICPDAS DCON serial modules such as the I-

7000, I-8000 and I-87K. The FRnet system is an optional control interface.

LinCon8000 Series Hardware user’s Manual, July/2003, v1.0 ----- 10
