Quick Start Guide for WISE-7xxx Series Module Version 1.3

WISE-7xxx Quick Start Guide

Quick Start Guide for

WISE-7xxx Series Module

December 2016, Version 1.3

Thank you for purchasing WISE-7xxx –one of the most cost-effective automation

solutions for remote monitoring and control applications. This Quick Start Guide will

provide you with minimum information to get started with WISE-7xxx. It is intended for

use only as a quick reference. For more detailed information and procedures, please

refer to the full user manual on the CD included in this package.

In addition to this guide, the package includes the following items:

WISE-71xx / WISE-790x

Series Module

WISE-72xx

Series Module

WISE-75xxM

Series Module

Software Utility

WISE-71xx / WISE-72xx User Manual

CD : \WISE-71xx\document\User Manual\

ftp://ftp.icpdas.com/pub/cd/wise_cd/wise-71xx/document/user manual/

WISE-75xxM User Manual

CD : \WISE-75xxM\document\User Manual\

ftp://ftp.icpdas.com/pub/cd/wise_cd/wise-75xxM/document/user manual/

WISE-790x User Manual

CD : \WISE-790x\document\User Manual\

ftp://ftp.icpdas.com/pub/cd/wise_cd/wise-790x/document/user manual/

WISE Website

http://wise.icpdas.com/

ICP DAS Website

http://www.icpdas.com/

Quick Start Guide for WISE-7xxx Series Module Version 1.3

WISE-7xxx Quick Start Guide

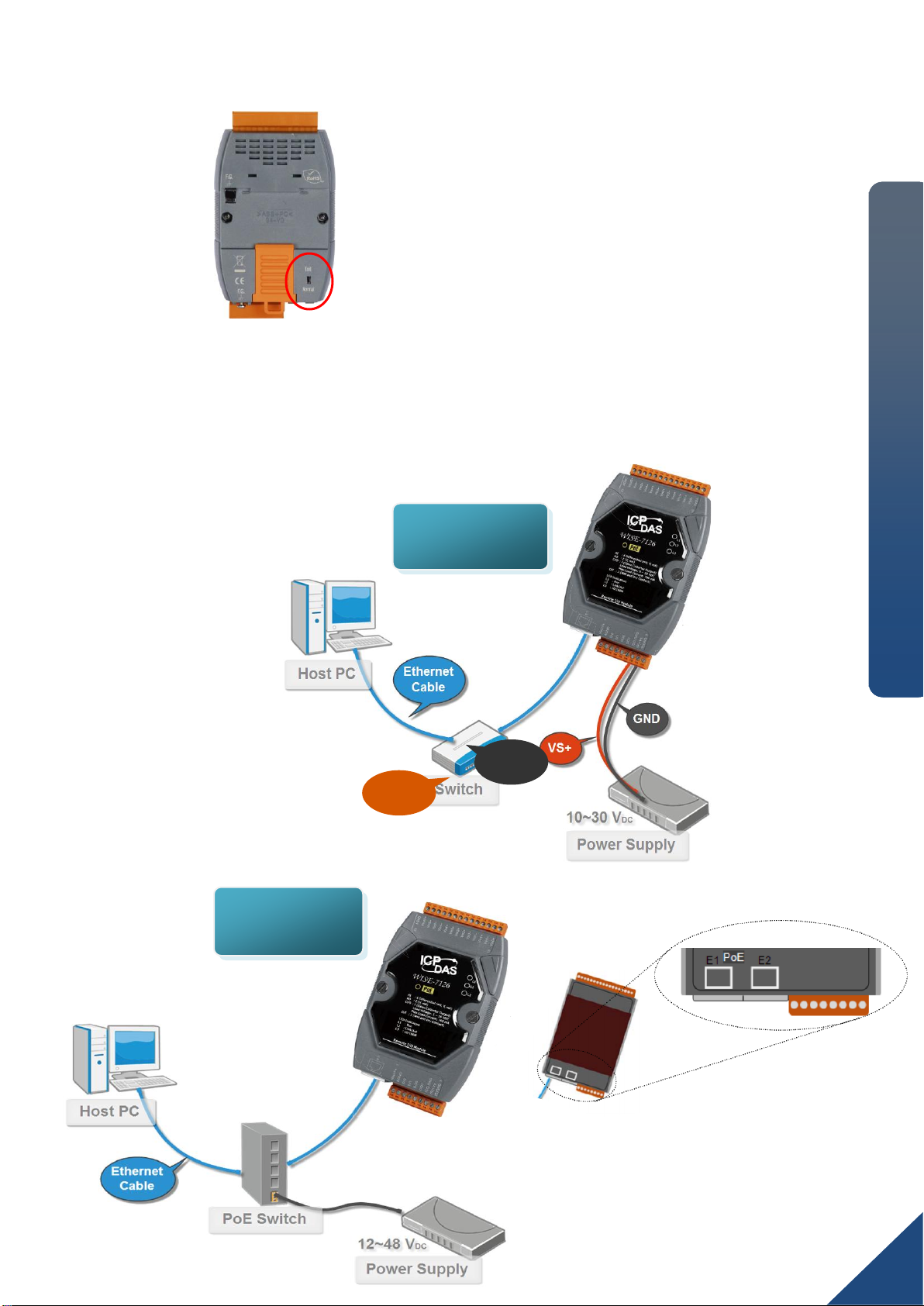

Make sure the switch is in the

“Normal” position. (except WISE-75xxM)

----------------------------------------------------------------------------------

Connect to Network, PC and Power

Connect to Ethernet hub/switch and PC via the RJ-45 Ethernet port.

--------------------------------------------

Configure Boot Mode

Non-PoE

GND

+Vs

PoE

WISE-72xx / WISE-75xxM

support POE only on E1

port.

Quick Start Guide for WISE-7xxx Series Module Version 1.3

WISE-7xxx Quick Start Guide

---------------------------------------------------------------------------------

Install MiniOS7 Utility

Step 1: Get the MiniOS7 Utility tool

The MiniSO7 Utility can be obtained from companion CD or our FTP site:

CD: \Tools\MiniOS7_Utility\

ftp://ftp.icpdas.com/pub/cd/wise_cd/tools/minios7 utility/

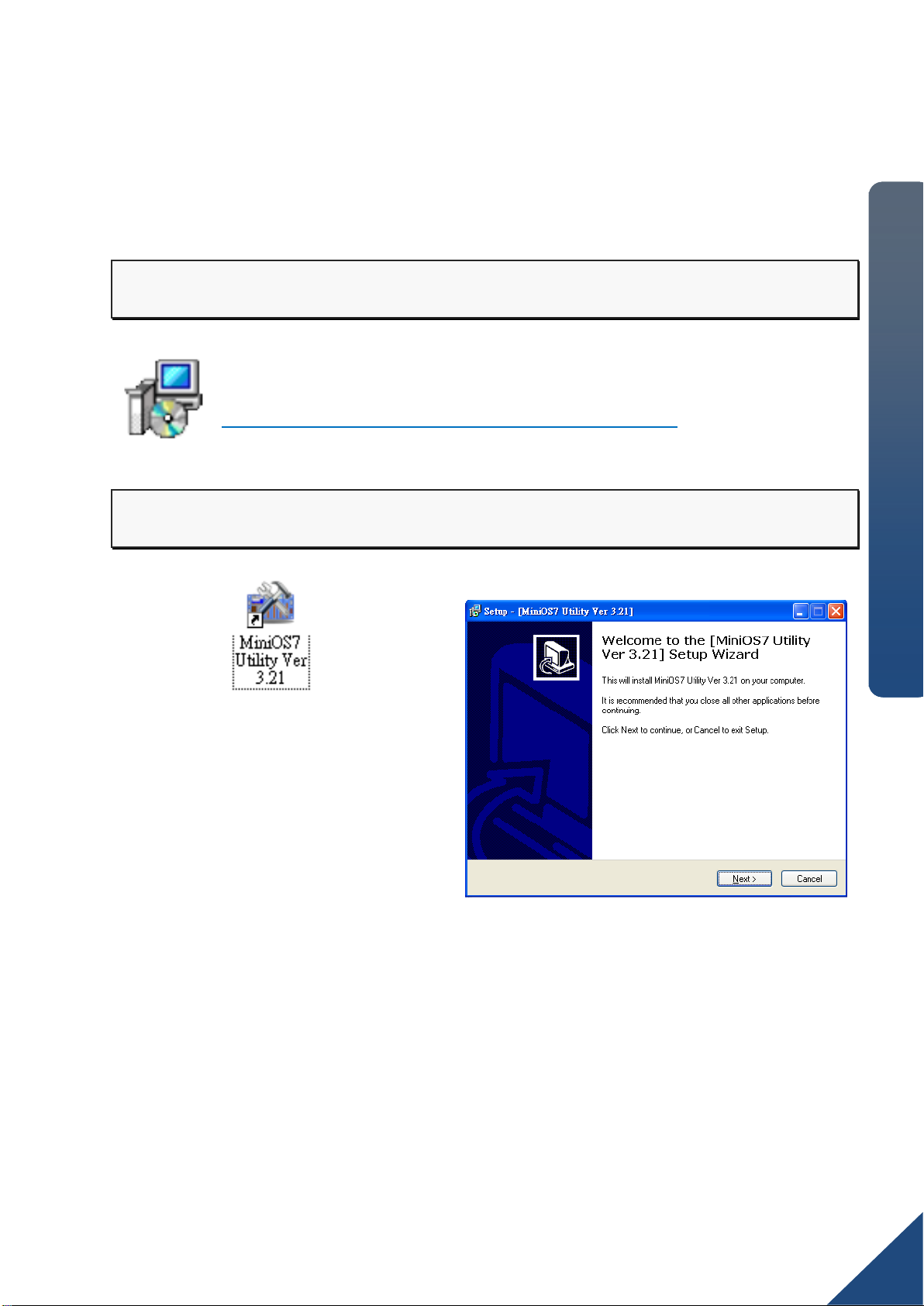

Step 2: Follow the prompts to complete the installation

After the installation has been completed,

a new short-cut for MiniOS7 Utility will

appear on the desktop.

Quick Start Guide for WISE-7xxx Series Module Version 1.3

WISE-7xxx Quick Start Guide

----------------------------------------------------------------------------------

Assign a New IP by MiniOS7 Utility

WISE-7xxx comes with a default IP address; please assign a new IP address to the

WISE module. The factory default IP settings are as follows:

Item

Default

IPAddress

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

Step 1: Run MiniOS7 Utility

Double-click the MiniOS7 Utility

shortcut on your desktop.

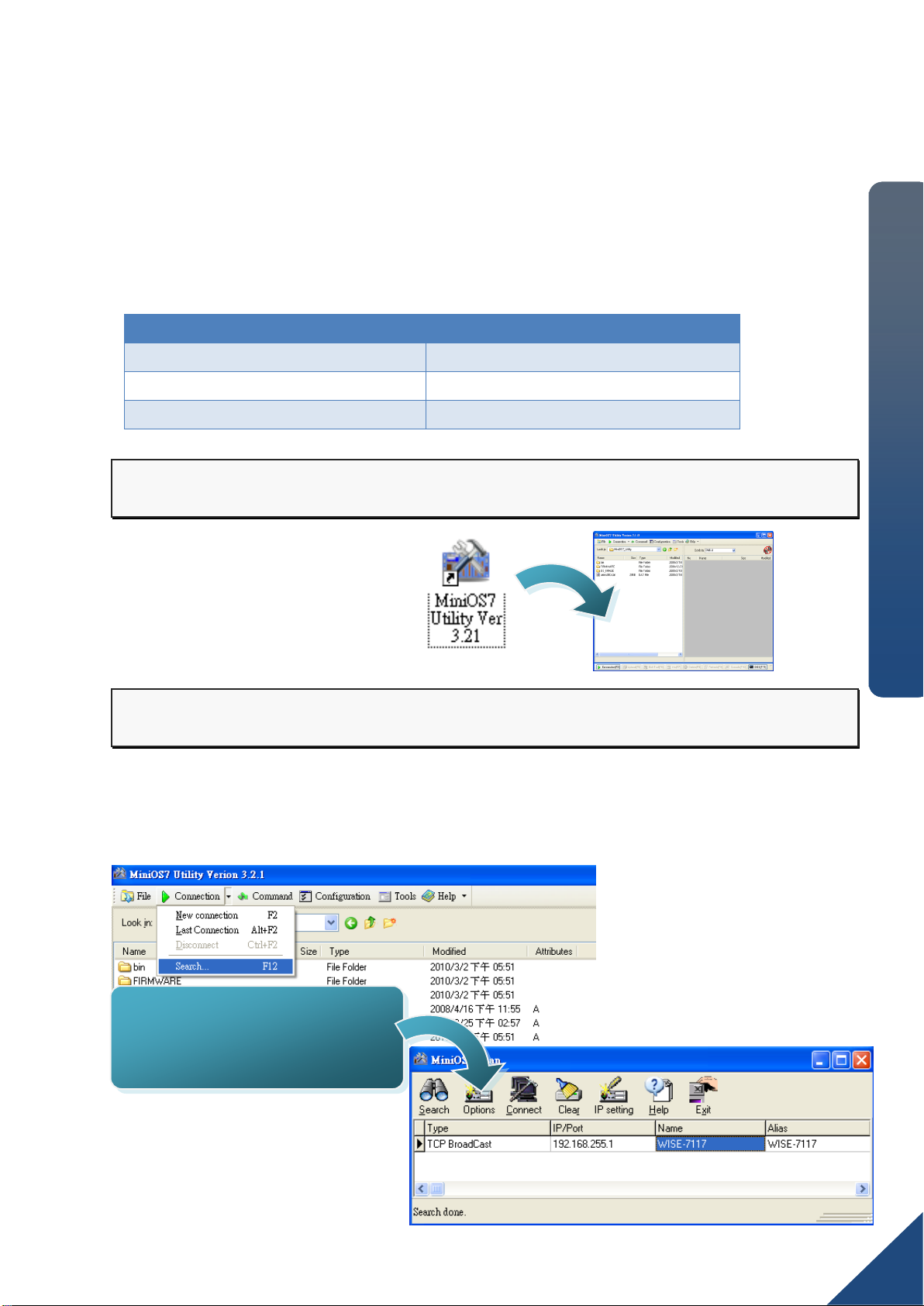

Step 2: Press “F12” or click “Search” from the “Connection” menu

Press “F12”or click “Search”from the Connection menu, a MiniOS7 Scan dialog will

appear and will display all the MiniOS7 modules that are currently connected to your

network.

The “Search done”message will

appear on status bar when

searching process is finished.

Quick Start Guide for WISE-7xxx Series Module Version 1.3

WISE-7xxx Quick Start Guide

Step 3: Select the module name and then click “IP setting” from the toolbar

Select the module name from the list of the fields, and then click “IP setting”from the

toolbar.

Step 4: Assign a new IP address and then click “Set” button

Step 5: Click “Yes” button

After completing the settings, click the “Yes”

button to save and exit the procedure.

Quick Start Guide for WISE-7xxx Series Module Version 1.3

WISE-7xxx Quick Start Guide

----------------------------------------------------------------------------------

Go to WISE-7xxx Web Site to edit control logic.

Please follow the steps below to implement IF-THEN-ELSE control logic on controllers:

Step 1: Open a browser

Open a browser (recommended internet browsers: Mozilla Firefox or Internet Explorer).

Step 2: Type in the URL address of the WISE-7xxx

Make sure the IP address assigned is accurate (please refer to section 4: “Assign a

New IP by MiniOS7 Utility). Type in the URL address of the WISE-7xxx module in the

address bar.

Step 3: Get on the WISE-7xxx web site

Get on the WISE-7xxx web site.

Implement the control logic

configuration in the order as

indicated in the diagram.

Quick Start Guide for WISE-7xxx Series Module Version 1.3

WISE-7xxx Quick Start Guide

Step 4: Edit Basic Settings

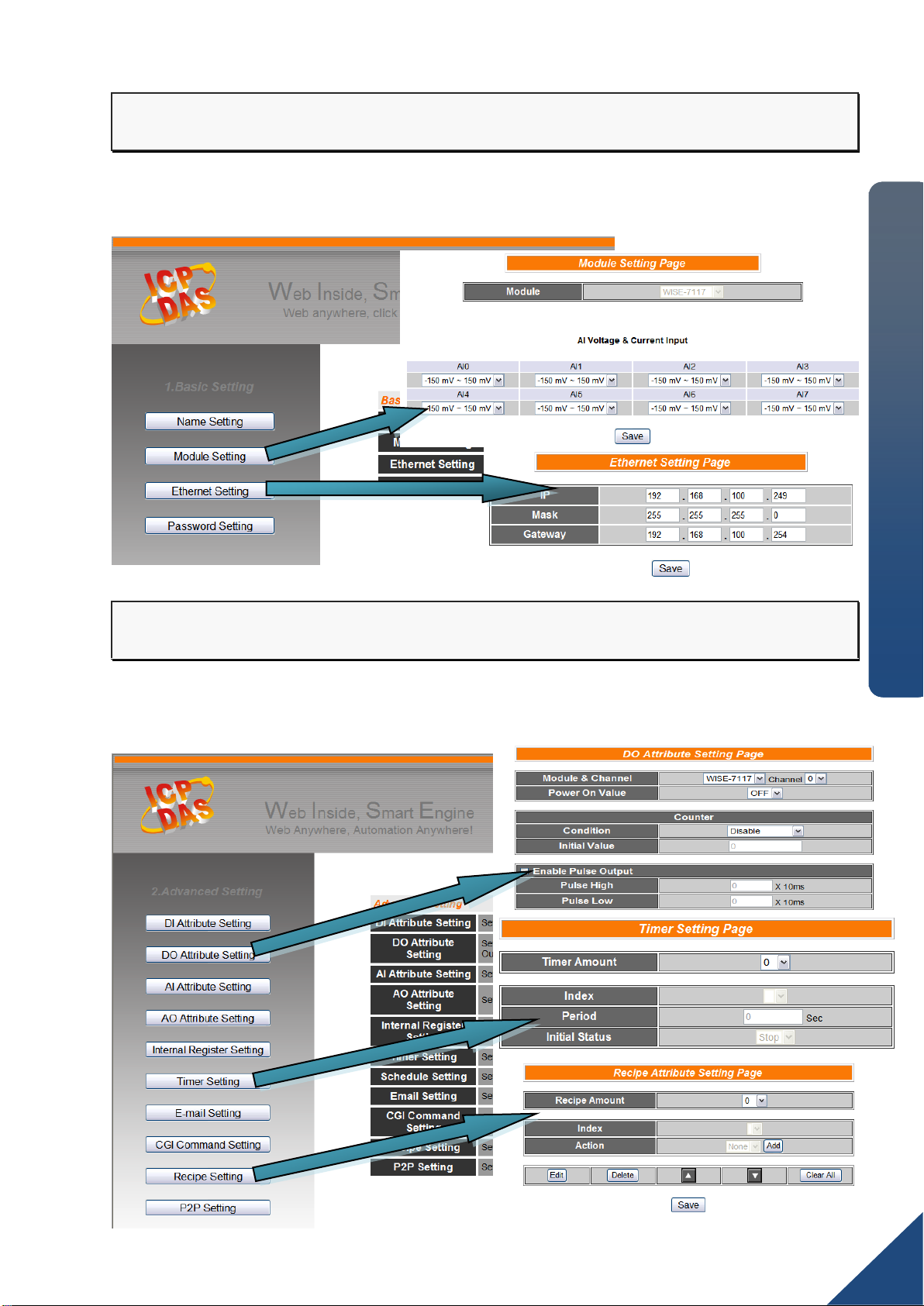

Modify the Alias of the WISE module, Ethernet setting of the WISE module, the analog

input/output range, or the downloading password in the Basic Setting page as needed.

Step 5: Edit Advanced Settings

Edit channel attribute, internal register, Timer, Email, CGI commands, Recipe, and P2P

configuration settings in the Advanced Setting page as needed.

Quick Start Guide for WISE-7xxx Series Module Version 1.3

WISE-7xxx Quick Start Guide

Step 6: Edit Rule Settings

Edit your IF-THEN-ELSE rules in the Rules Setting page.

Step 7: Download to Module

After finishing rules setting, download the rules to the WISE module. The WISE module

will reboot and execute the rules automatically.

Step 8: For more detail information, please refer to WISE User Manual
