EIP-2019 Quick Start

EIP-2019

Screw Driver

CN-1824

EIP-2019 Quick Start

The package includes the following items:

Install EIP-2000 Utility:

The software is located at:

Fieldbus_CD:\EtherNetIP\remote-io\EIP-2019\Utility

For EIP-2000 Series

English/ January 2014/ Version 1.2

What’s in the shipping package?

Installing Software on your PC

Quick Start

(This document)

EIP-2019 Quick Start

1. Make sure your PC has workable network settings.

2. Disable or well configure your Windows firewall and anti-virus firewall first, else the

“Network Scan”on step 4 may not work. (Please contact with your system Administrator)

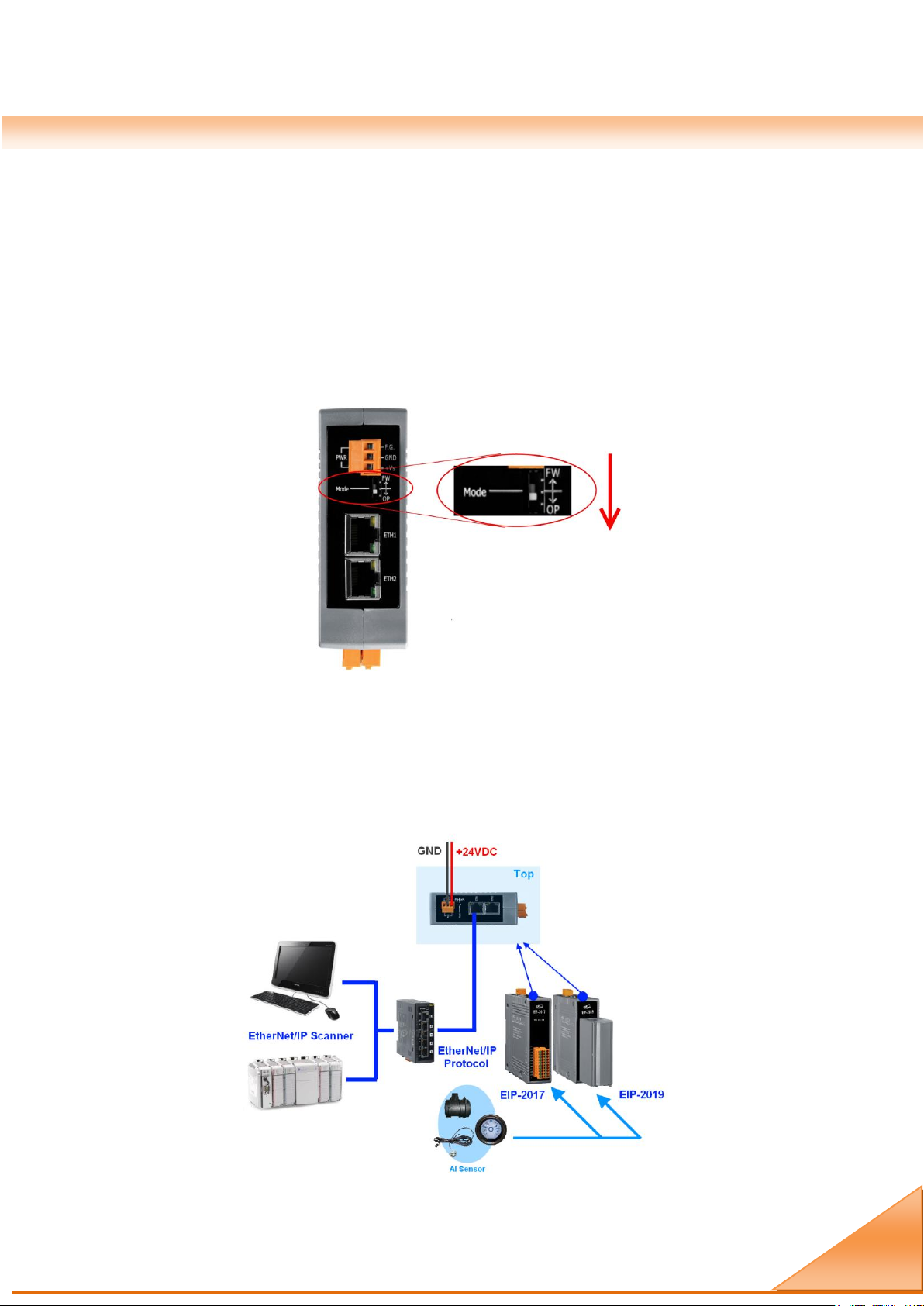

3. Check FW/OP DIP switch if it is on OP position(Figure 3-1).

Figure 3-1 Mode Switch

4. Connect both the EIP-2000 and your computer to the same sub network or the same

Ethernet switch, and power the EIP-2000 on. Please refer to figure 3-2.

Figure 3-2 EIP-2000 module installation

Connecting the Power and PC

EIP-2019 Quick Start

5. I/O connector –EIP-2019

I. D-Sub

II. CN-1824

No.

AGND

CH 0+

CH 1+

CH 2+

CH 3+

CH 4+

CH 5+

CH 6+

CH 7+

N.C.

SHIELD

F.G.

Terminal

+5V

CJC

CH 0-

CH 1-

CH 2-

CH 3-

CH 4-

CH 5-

CH6-

CH7-

N.C.

Description

CH0+

CH0-

CH1+

CH1-

CH2+

CH2-

CH3+

CH3-

CH4+

CH4-

CH5+

CH5-

CH6+

CH6-

CH7+

CH7-

AGND

EIP-2019 Quick Start

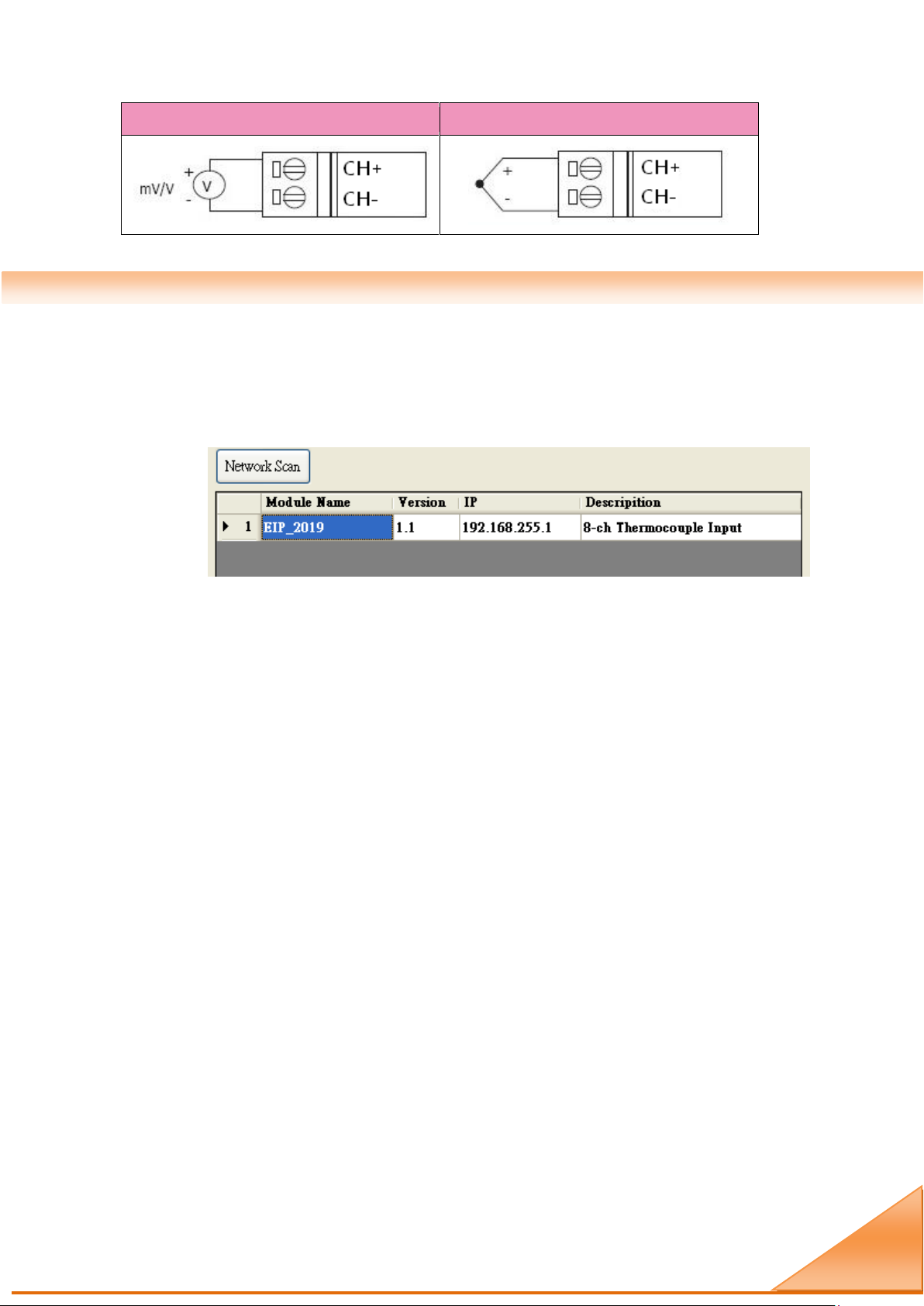

III. I/O Wire Connection

Voltage Input

Thermocouple Input

1. Double click the “EIP-2000 Utility”shortcut on the desktop.

2. Click the “Network Scan” button to search your EIP-2000 modules(Figure 4-1).

Figure 4-1 EIP-2000 Utility network scan

3. Click the EIP-2019 or other EIP-2000 modules on the device list below to open the

configuration dialog of EIP-2000. Each EIP-2000 module has its own configuration

interface. Please refer to Figure 4-2.

(1) In the “Analog Input Status”, users can select AI type of every channel.

(2) In the “AI Parameters”, users can select the AI filters and AI representations here.

There are two different AI filters 50Hz and 60Hz. The selection of filters must

correspond with the frequency of AI sensors. Users have to check what are the

requirements of AI sensors. We provide two AI representations engineer and hex. If

users change the AI representation, all AI status will become to it.

(3) In “CJC Settings Users” can set the CJC enable or not by the CJC Switch, and adjust

CJC value with CJC Offset.

(4) If the network settings have been changed, please click the “Update Network

Settings” button to update the configuration and reboot the module.

Using the EIP-2000 Utility

EIP-2019 Quick Start

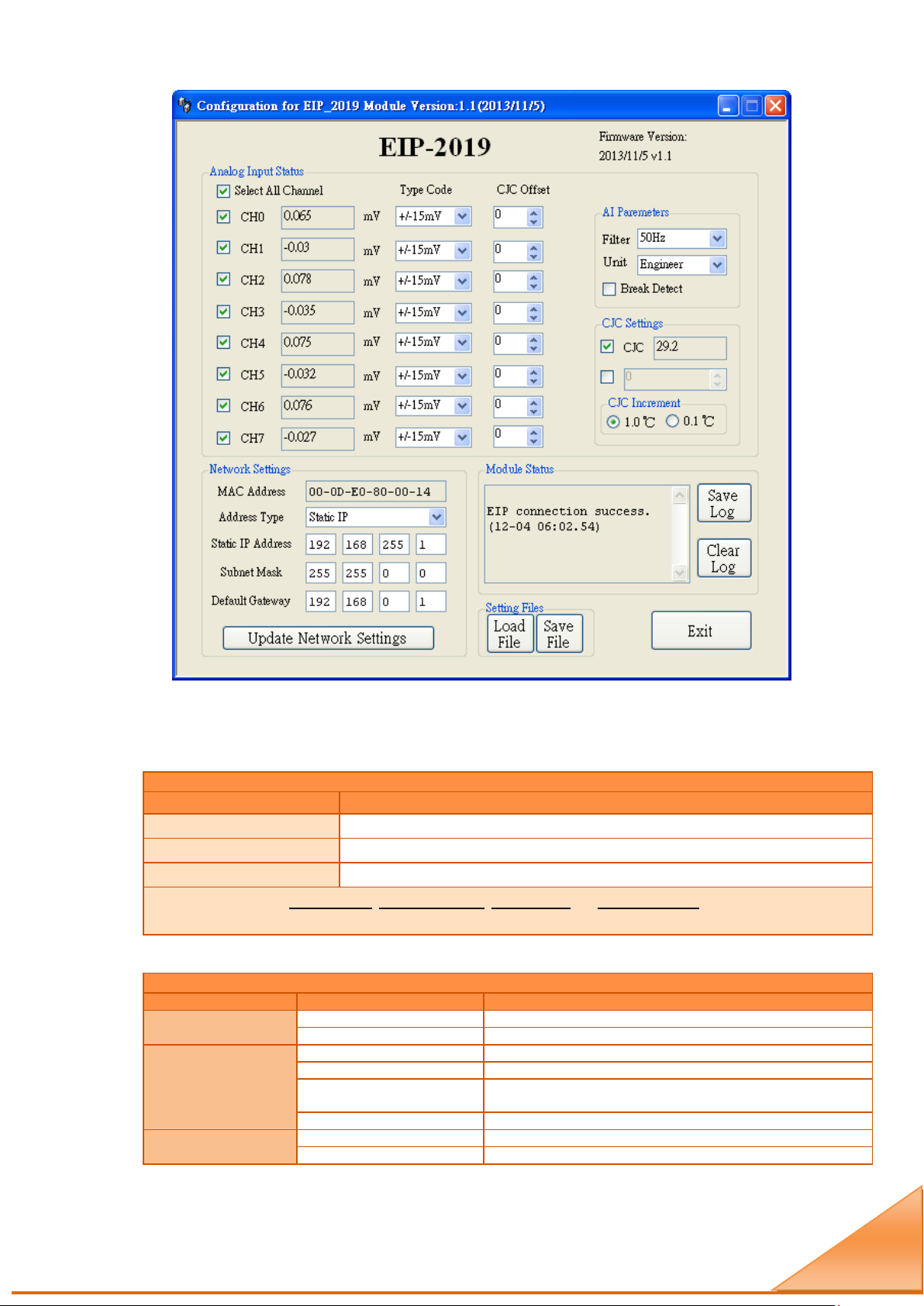

Figure 4-2 EIP-2000 Utility configurations

4. Configuration settings of EIP-2000

Table 4-1 Network Settings

Network Settings

Item

Settings (default)

192.168.255.1

Gateway

192.168.0.1

Mask

255.255.0.0

For configuration of the Address Type, Static IP Address, Subnet Mask and Default Gateway of the EIP-2000. Please refer

to section “4.2.1 Network Settings”

Table 4-2 LED Indicator

LED Indicator

LED

LED Status

Description

Power LED

Always On

Module is in Run mode.

Flashing

Module is in Init mode.

Status LED

Always On

EtherNet/IP connection is failed.

Blink per second

EtherNet/IP connection is successful.

Blink per 300 ms

EtherNet/IP disconnected during communication but still in Safe-

Delay time.

Blink per 100 ms

Module is about to reboot.

Error LED

On/Flashing

AI status is close to full or out of range.

Off

AI status is within the range of input type.

(2)

(3)

(1)

(4)

EIP-2019 Quick Start

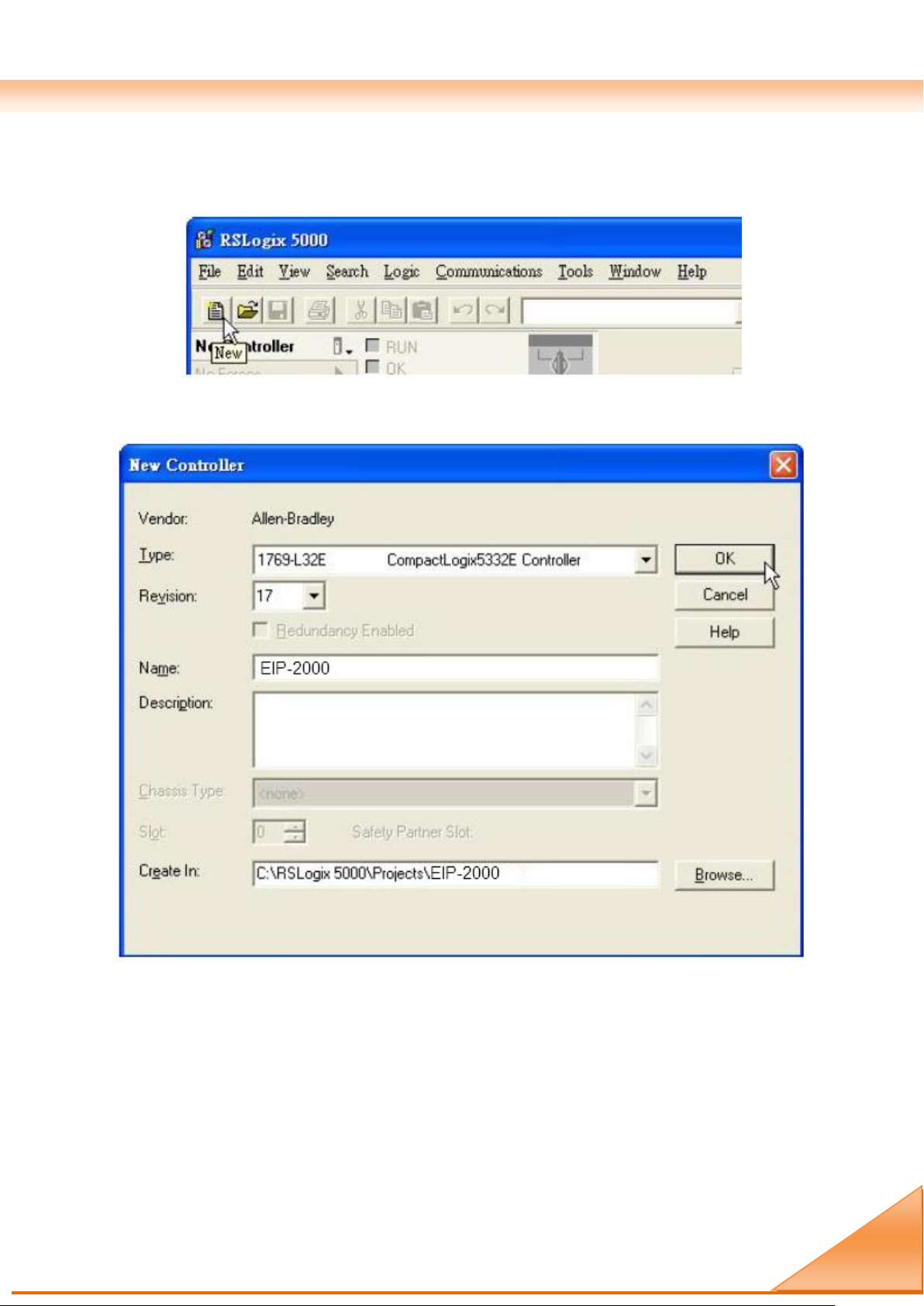

1. Open RSLogix 5000 and create a new project.

Figure5-1. Create a new project.

2. Select the PLC type and give the project a name.

Figure5-2. Set the PLC type and project name.

How to connect with Allen-Bradley PLC？

EIP-2019 Quick Start

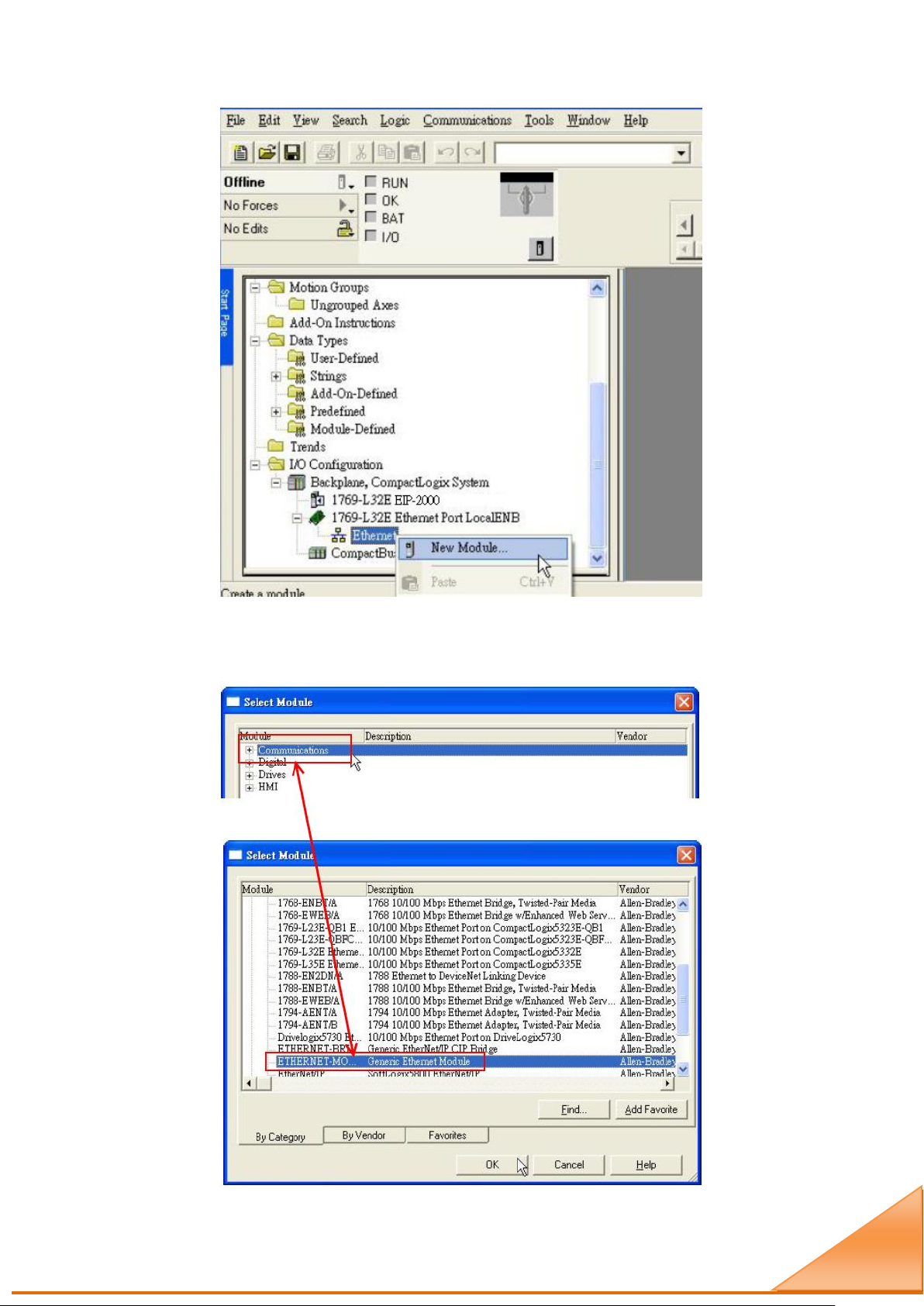

3. Create a new module in the “Ethernet”item.

Figure 5-3. Create a new module.

4. Select the “ETHERNET-MODULE”below “Communications”in the Select Module

window.

Figure5-4. Select “ETHERNET-MODULE”.

EIP-2019 Quick Start

5. Configure the new module parameters. The I/O length of new module must be the same with

the length of EIP-2019 I/O data(Table 5-1). The input data size is 41 bytes and output data

size is 23 bytes. The instance ID please refer to Table 5-2.

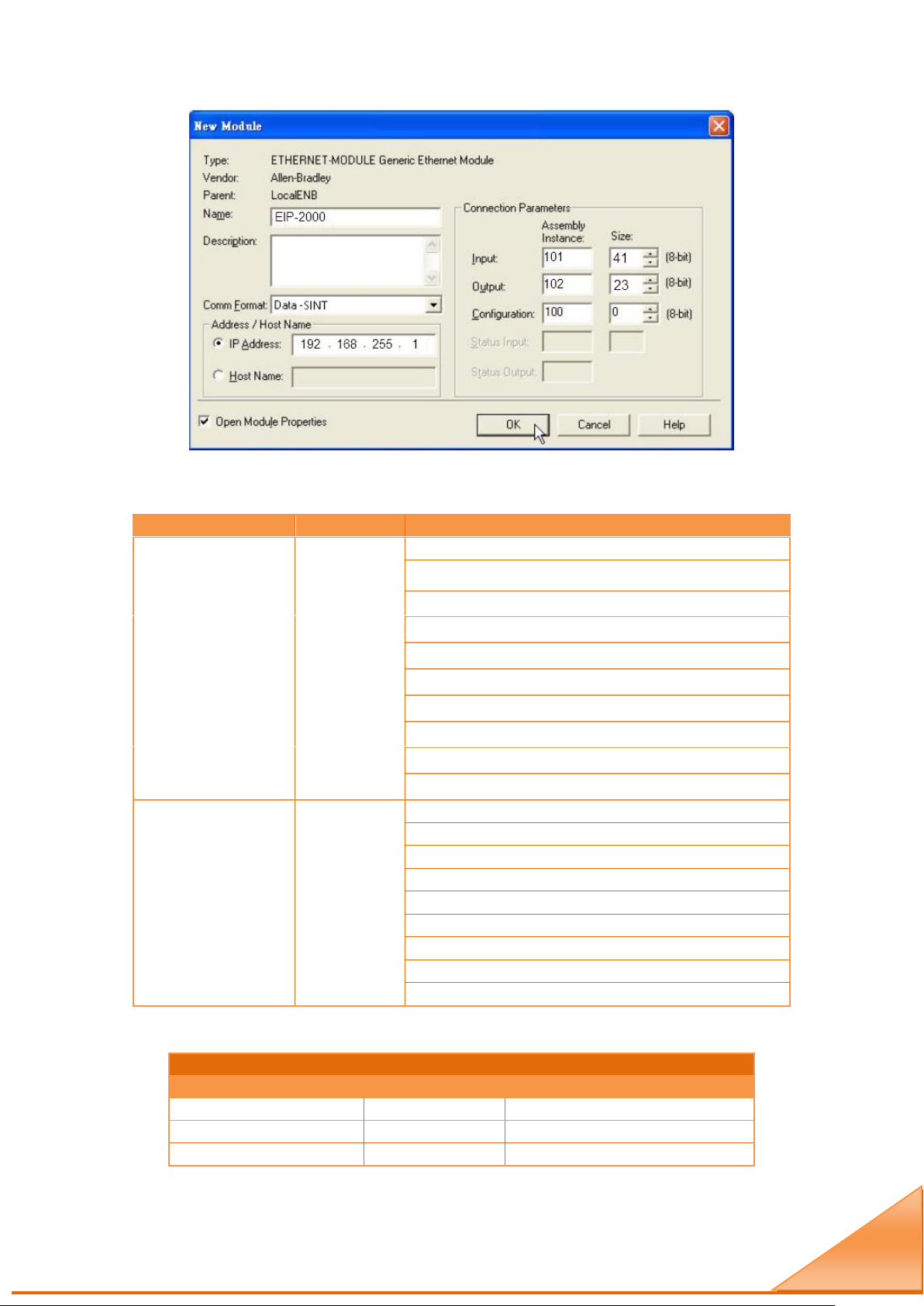

Figure5-5. The settings of EIP-2019 module

Table 5-1. Data Assembly of EIP-2019

Data Assembly

Byte count

Description

Input Assembly

1st ~ 16th Byte: AI status (AI0~AI7).

17th ~ 18th Byte: The broken wire status.

19th ~ 20th Byte: CJC status.

21st ~ 28th Byte: AI type code (AI0~AI7).

29th Byte: AI filter status.

30th Byte: AI representation.

31st Byte: Wire break detector.

32nd Byte: CJC switch.

33rd Byte: CJC increment.

34th ~ 41st Byte: CJC offset (AI0~AI7).

Output Assembly

1st Byte: Set value to the module.

2nd ~ 9th Byte: Set type code to Ch0~Ch7.

10th Byte: Filter selection of AI

11st Byte: Wire break detector

12nd Byte: AI representation

13rd Byte: Select AI channel to be short

14th Byte: CJC switch

15th Byte: CJC increment

16th ~ 23rd Byte: CJC Offset

Table 5-2. Instance ID table of EIP-2000

Implicit Message Information of EIP-2000

Instance

Instance ID

Data length

Input(T->O)

65hex(101)

Depends on modules. e.g.41

Out(O->T)

66hex(102)

Depends on modules. e.g.23

Configuration

64hex(100)
