IMPORTANT SAFEGUARDS AND WARNINGS

Electrical Safety

All installation and operation here should conform to your local electrical safety codes. The

power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the

Limited power source is rated DC12V/5A ± 25% (See product datasheet for the most accurate

power requirement speciﬁcation). We assume no liability or responsibility for all the ﬁres or

electrical shock caused by improper handling or installation. We are not liable for any problems

caused by unauthorized modiﬁcation or attempted repair.

Transportation Security

Care must be given to avoid heavy stress, violent vibration or water damage during

transportation, storage and installation.

Installation

Do not apply power to the camera before completing installation. Please install the proper

power cut-off device during the installation connection. Always follow the instruction guide the

manufacturer recommended.

Qualiﬁed engineers needed

All the examination and repair work should be done by the qualiﬁed service engineers. We are

not liable for any problems caused by unauthorized modiﬁcations or attempted repair.

Environment

This series network camera should be installed in a cool, dry place away from direct sunlight,

inﬂammable, explosive substances and etc. Please keep it away from the electromagnetic

radiation object and environment. Please make sure the CCD (CMOS) component is out of the

radiation of the laser beam device. Otherwise it may result in CCD (CMOS) optical component

damage. Please keep the sound ventilation. Do not allow the water and other liquid falling into

the camera. Lightning-proof device is recommended to be adopted to better prevent lightning

damage. The grounding studs of the product are recommended to be grounded to further

enhance the reliability of the camera.

Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily

maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower to

clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If there is

too much dust, please use the water to dilute the mild detergent ﬁrst and then use it to clean

the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect

the CCD (CMOS) component when you do not use the camera.

Accessories

Be sure to use all the accessories recommended by manufacturer. Before installation, please

open the package and check all the components are included. Contact your local retailer ASAP

if something is broken in your package.

1A. OVERVIEW

This series PTZ camera utilizes High Deﬁnition Advanced Video

System (HD-AVS) technology, an HD-over-coaxial cable video

standard that allows long-distance, HD transmission of video,

audio, and control functions. The camera supports TVI, AHD and

CVBS (SD) using the dip switch.

The camera supports DC24V/2.5A ± 25%, and draws from: 9.6W

to 22W. It also is IP66 and IK10 rated with TVS 6000V lightning

protection; surge protection, making it a suitable choice for

outdoor environments.

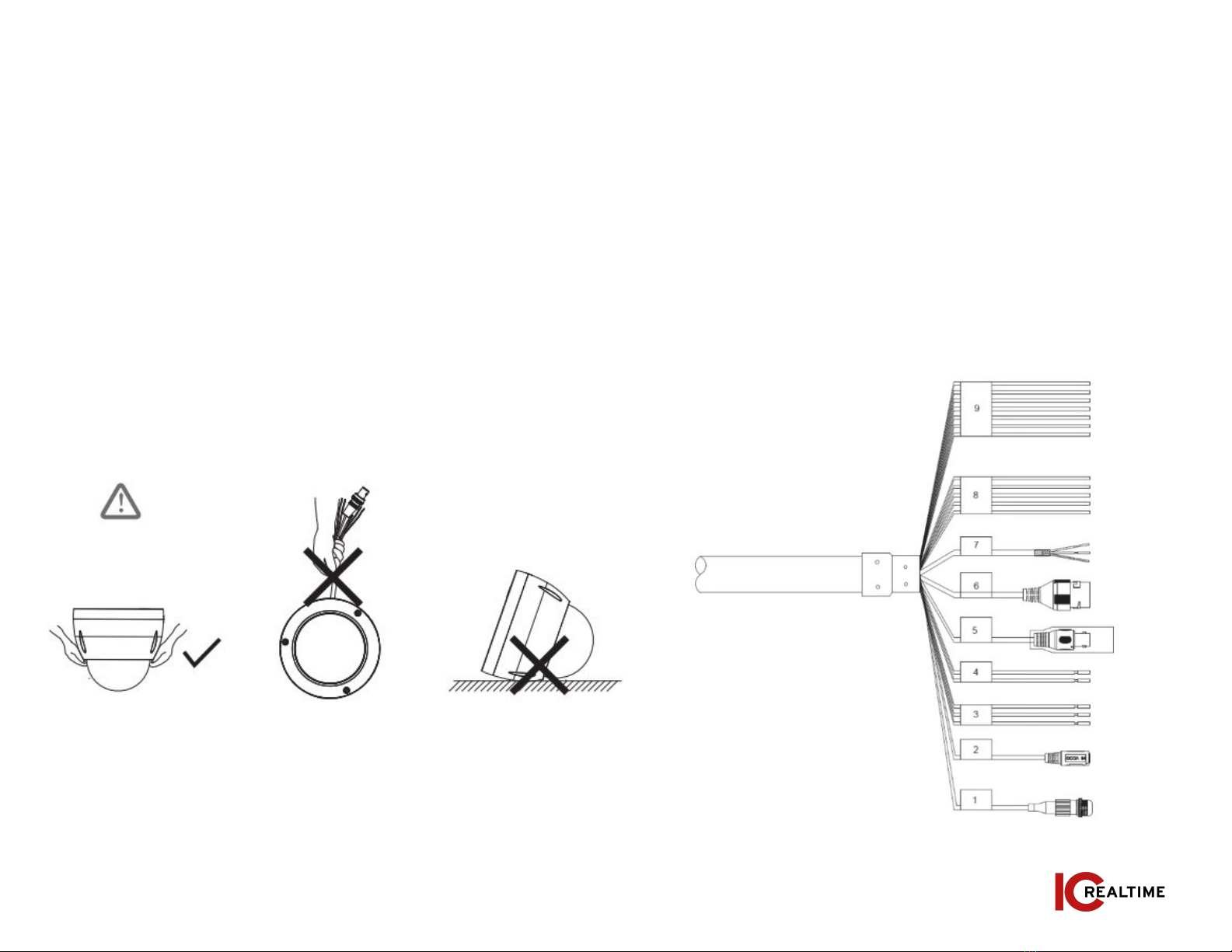

Note: Take careful steps when handling the camera. See ﬁgure

1-1.

1B. Cable Interface

See Figure 1-2.

1. FC Connector

2. DC Power input

3. 24VAC input: Red(+), Black(-), Yellow/Green (ground)

4. RS485: Yellow (A+), Orange (B-)

5. Video output

6. Ethernet port (on some models)

7. Audio IO: White- Input, Red-Output, Black-Ground

8. Alarm IO: Blue: Alarm output 1, Black: Alarm output 2, Green: Contact

switch 1, Pink: Contact switch, Yellow-green: Grounding cable, Red: Alarm

input 1, Brown: Alarm input 2, Grey: Alarm input 3, Light green: Alarm

input 4, Purple: Alarm input 5, White: Alarm input 6, Yellow-black: Alarm

input 7

Figure 1-2

MARGIN

GUIDES

To see the guides to go:

View / Guides / Show

Guides

2 | www.icrealtime.com

Figure 1-1

2A. INSTALLATION STEPS

MARGIN

GUIDES

Stay within the yellow

box. Do not let text go

beyond, instead move

to the next column or

start a new page.

3 | www.icrealtime.com

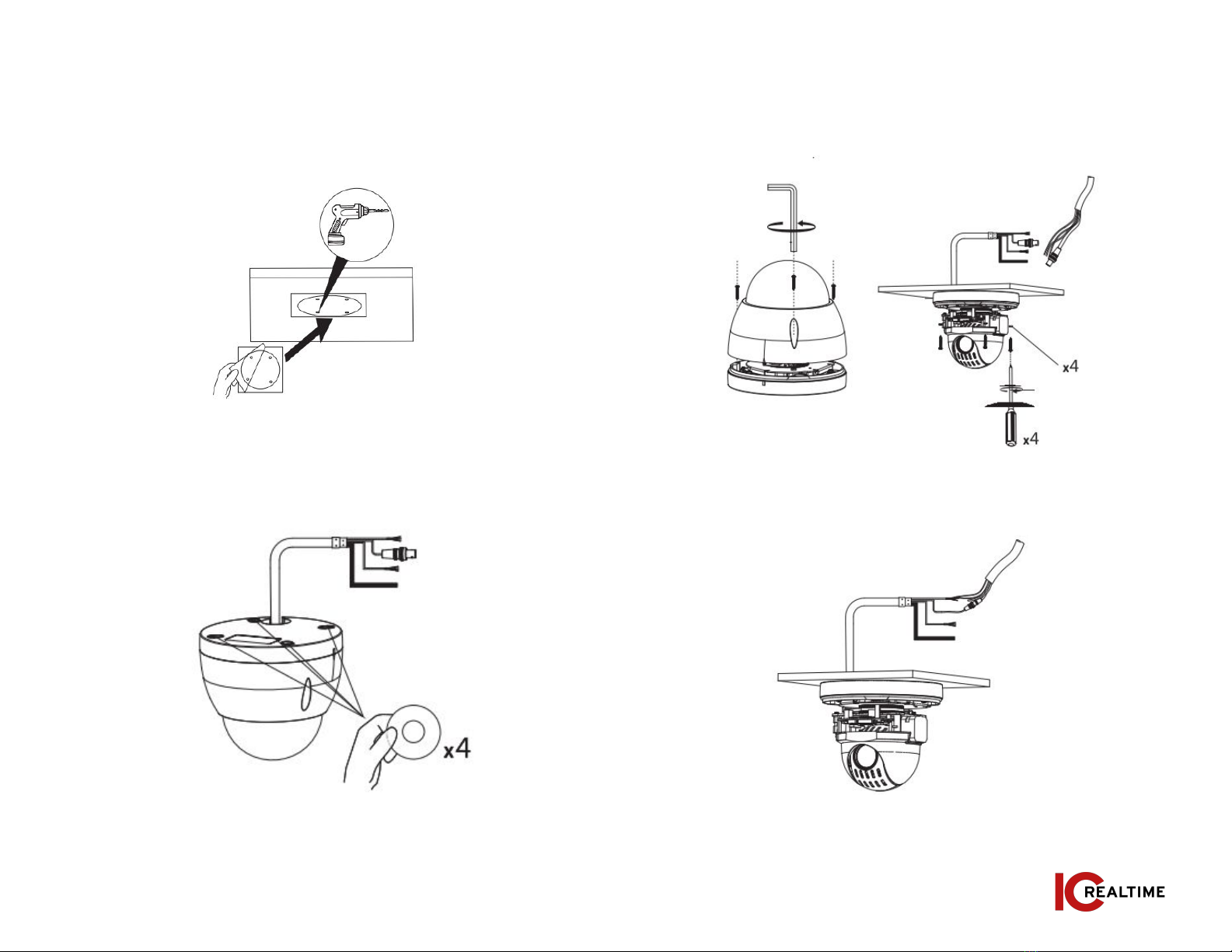

Step 1 Remove the installation map from the packaging and place in

the installation surface. Drill out the appropriate mounting holes and

cable exit, if necessary after setting the position map. See Figure 2-1.

Step 2 For outdoor installation, four rubber grommets are provided for

the mounting screws to waterproof the base. See Figure 2-2.

Step 3 Remove the dome cover using the wrench provided. Thread the

cabling through the cable exit on the installation surface and install the

mounting screws as shown in Figure 2-3.

Step 4 Connect the necessary cabling to the camera. See Figure 2-4.

Figure 2-2

Figure 2-1

Figure 2-4

Figure 2-3

MARGIN

GUIDES

Stay within the yellow

box. Do not let text go

beyond, instead move

to the next column or

start a new page.

4 | www.icrealtime.com

Step 5 Replace and secure the dome cover as shown in Figure 2-5.

Step 6 It is recommended to waterproof any outdoor cabling. See

Figure 2-6.

Figure 2-5

Figure 2-6

2B. Dip switch settings

See Figure 2-7 for Cover location and dip switch settings.

MARGIN

GUIDES

Stay within the yellow

box. Do not let text go

beyond, instead move

to the next column or

start a new page.

5 | www.icrealtime.com

Figure 2-7

Figure 3-1

3A. OSD Operation

To open the On Screen Display (OSD) make sure you set the protocol

under Main Menu-> Camera-> PTZ. Make sure the Channel the PTZ

is occupying is set to AVS mode.

Step 1 Using a mouse and a local display, right click on the live view

and select PTZ control. The PTZ menu will populate. See Figure 3-1.

Step 2 Click to open PTZ Control Panel then click to open

OSD. The Use the up and down buttons to select menu item and the

left and right to change parameter values. Click Enter to conﬁrm. See

Figure 3-2.

Figure 3-2

MARGIN

GUIDES

Stay within the yellow

box. Do not let text go

beyond, instead move

to the next column or

start a new page.

6 | www.icrealtime.com

3B. OSD Menu Functions

See the table below for Menu Index.

System Setting System Information; Addr

Information; Count Information;

System Time Setting; Set North;

Language; Switch Type; Video

Output; Audio Mode; Factory

Default; Restart

Display Setting Preset Title; Azimuth Disp; Time

Disp; Position; Zoom Disp; Inside

Temp; Title Disp; Alarm Disp;

Pattern Disp

Camera Setting WB Setting; Exposure Setting;

Day/Night Setting; Focus Setting;

Image Adjust; Defog Setting; Zoom

Speed; Sharpness; Sharpness

Restrain; Digital Zoom; Picture

Flip;Lens Init; Picture Mode; Camera

Maintain; Camera Factory Default;

Camera Restart

Function Setting Preset; Auto Pan; Auto Scan; Tour;

Pattern; Idle Motion; Auto Run;

Privacy Masking; PTZ Speed; Set

Zero; Power Up; Menu Password;

Menu Idle; Channel Title; PTZ Auto

Stop; Warm Machine; PTZ

Correction

Alarm Setting Alarm No; Action; Parameter;

Contact; Relay Out; Reset Delay

IR Light Setting IR Sensitivity; IR Light Ctrl; Near

Light; Far Light; IR Light Comp

3C. Function Settings

Presets- These are positions the PTZ can move to,

●Preset No : You can select different preset numbers to modify.

●Title: You can name the preset (optional).

●Setting: Select this option after moving the PTZ to the

desired position to save the preset in that position.

●Call: This will move the PTZ to this preset (if saved)

Pan- This is the 360° horizontal rotation of the PTZ at a certain

speed.

●Pan Speed: Select the speed of the Pan.

●Run: Enable Pan action

●Stop: Stops Pan action.

MARGIN

GUIDES

Stay within the yellow

box. Do not let text go

beyond, instead move

to the next column or

start a new page.

7 | www.icrealtime.com

Figure 3-4 Figure 4-2

3D. Function Settings (continued)

Scan- This is the horizontal rotation of the PTZ with deﬁned left and

right limits.

●Auto Scan No : You can select different scan numbers to

modify.

●Set Left/ Right limit: You can select the left/ right limits on

this PTZ. Select one option, move the camera to the

appropriate limit then click Enter. “OK” will be displayed if set

successfully.

●Scan Speed: Select the speed of the Scan movement

●Call: This will enable the Scan motion.

●Stop: This will cancel the scan motion.

Tour- A tour is an action the will move to the different preset

positions at speciﬁed time intervals.

●Tour No: You can select between different Tour numbers

●Setting: You will be able to select the presets for the tour,

dwell time and speed. See Figure 3-4.

●Delete: Deletes current tour setting

●Call: Starts the Tour action

●Stop: Cancels Tour action.

Pattern- This a recorded set of movements that the PTZ will follow.

●Pattern No : You can select different scan numbers to

modify.

●Program Start: This records the pattern movement. Click

Enter to start. An “OK” will ﬂash indicating the PTZ

movements will now be recorded. Move the PTZ as desired.

●Program End: Select this option after you have ﬁnished

recording your pattern.

●Call: Starts the recorded pattern movement.

●Stop: This will cancel the pattern movement.

Idle Function- Is a deﬁned operation when the Device does not

receive any valid command within a certain period.

●Idle Function: Turns Idle Function on or off.

●Idle Time: The time delay where the PTZ will activate the Idle

function if no commands are sent

●Idle Action: Select the idle action type between: None, Preset,

Scan, Tour, and Pattern

●Parameter: Number of selected function

Power Up- This is the automatic operation of the Device after it is

powered on.

●Power Up: Sets action of: Auto, Preset, Scan, Tour, Pattern

and None. If set to auto, the camera will resume the previous

action before it powered down.

●Parameter: Number of selected function

MARGIN

GUIDES

Stay within the yellow

box. Do not let text go

beyond, instead move

to the next column or

start a new page.

8 | www.icrealtime.com

No self-test and no

image after the

Device is powered on

●Check whether the power supply is

properly connected.

●Camera may be underpowered.

Check power.

●Check whether the main power and

transformer are working normally.

Self-test can not be

performed, or there is

noise

●Use the required power supply.

●Contact support as there may be

mechanical failure.

Video signal loss

occurs when the

Device is in

high-speed rotation

●Insufﬁcient power, use the required

power supply

Image is not stable ●Poor contact on circuits. Connect the

cable properly.

Blurry image.

●Lens glass is dirty. Clean the lens.

●Focus is in manual mode. Set Focus

settings on PTZ,

4A. FAQ 4B. LIGHTNING PROOFING AND SURGE PROTECTION

This PTZ adopts TVS lighting protection technology. It can

effectively prevent damages from various pulse signals below

6000W, such as sudden lighting and surge. Necessary precaution

measures should be taken in accordance to local guidelines when

installing the speed dome in an outdoor environment.

●The signal transmission cable and high-voltage device (or

high-voltage cable) should be at least 50 meters apart.

●If possible, route cables through a properly grounded and

shielded underground conduit.

●In areas of strong lightning occurrence or near high sensitive

voltage (such as near high-voltage transformer substation), it is

required to install additional a high-power lightning protection

device or lightning rod.

●Electrical bonding is recommended. The ground device should

meet anti-jamming requirements and conform to your local

electrical safety code. The ground device should not short

circuit to N (neutral) line of high voltage power grid or mixed

with other wires. When connecting the system to the ground

alone, the grounding resistance should not be more than 4Ω ,

and the earth cable cross-sectional area should be no less than

25 mm². See Figure 5-1.

●For indoor usage, The yellow and green GND wire or GND

screw of the speed dome should be reliably connected by

several strands of copper wire with no less than 25mm²and

indoor equipotential GND terminal. Please refer to Figure 5-2

for lightning proof installation mode.

MARGIN

GUIDES

Stay within the yellow

box. Do not let text go

beyond, instead move

to the next column or

start a new page.

9 | www.icrealtime.com

Figure 5-1 Figure 5-2

4B. LIGHTNING PROOF AND SURGE PROTECTION (Continued)

Altri manuali per HD-AVS

Indice

Altri manuali ICRealtime Telecamera di sicurezza

ICRealtime

ICRealtime ICIPD2730 Manuale utente

ICRealtime

ICRealtime ICR-220-IR Manuale utente

ICRealtime

ICRealtime ICIP2040IR Manuale utente

ICRealtime

ICRealtime EL9036 Manuale utente

ICRealtime

ICRealtime ICIP-D1300 Manuale utente

ICRealtime

ICRealtime ICIP-D2000-VIR Manuale utente

ICRealtime

ICRealtime ICIPD4002IR28 Manuale utente

ICRealtime

ICRealtime EL-470 Manuale utente

ICRealtime

ICRealtime EL8000IR Manuale utente

ICRealtime

ICRealtime Full HD(HD-SDI) CCTV Box Camera Manuale utente

ICRealtime

ICRealtime ICR300H3B Manuale utente

ICRealtime

ICRealtime IPMX-E20F-IRB1 Manuale utente

ICRealtime

ICRealtime IPFX-S20F-W1 Manuale utente

ICRealtime

ICRealtime ICIP-D2000-IR-B Manuale utente

ICRealtime

ICRealtime AVS-A4112S Manuale utente

ICRealtime

ICRealtime PTZN23X4D Manuale utente

ICRealtime

ICRealtime AVS-4MB4012-IR Manuale utente

ICRealtime

ICRealtime PTZ-N23X4-S Manuale utente

ICRealtime

ICRealtime ICIPS1300WDR Manuale utente

ICRealtime

ICRealtime ICIP-D2000VIR-B Manuale utente

ICRealtime

ICRealtime AVS-Z4212T Manuale utente

ICRealtime

ICRealtime Elite IPEL-E80F-IRB2 Manuale utente

ICRealtime

ICRealtime ICIP-D3077P Manuale utente

ICRealtime

ICRealtime F Series Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
