ICRealtime ICR540CCD Manuale utente

ICR540CCD: Day & Night

olor Camera

Operation Manual

ICR540CCD: Day & Night Color Camera

Digital Day&Night Color Camera

INFORMATION -This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

WARNING -Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION :To prevent electric shock and risk of fire hazards:

◆Do NOT use power sources other than those specified.

◆Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and

should conform to all local codes.

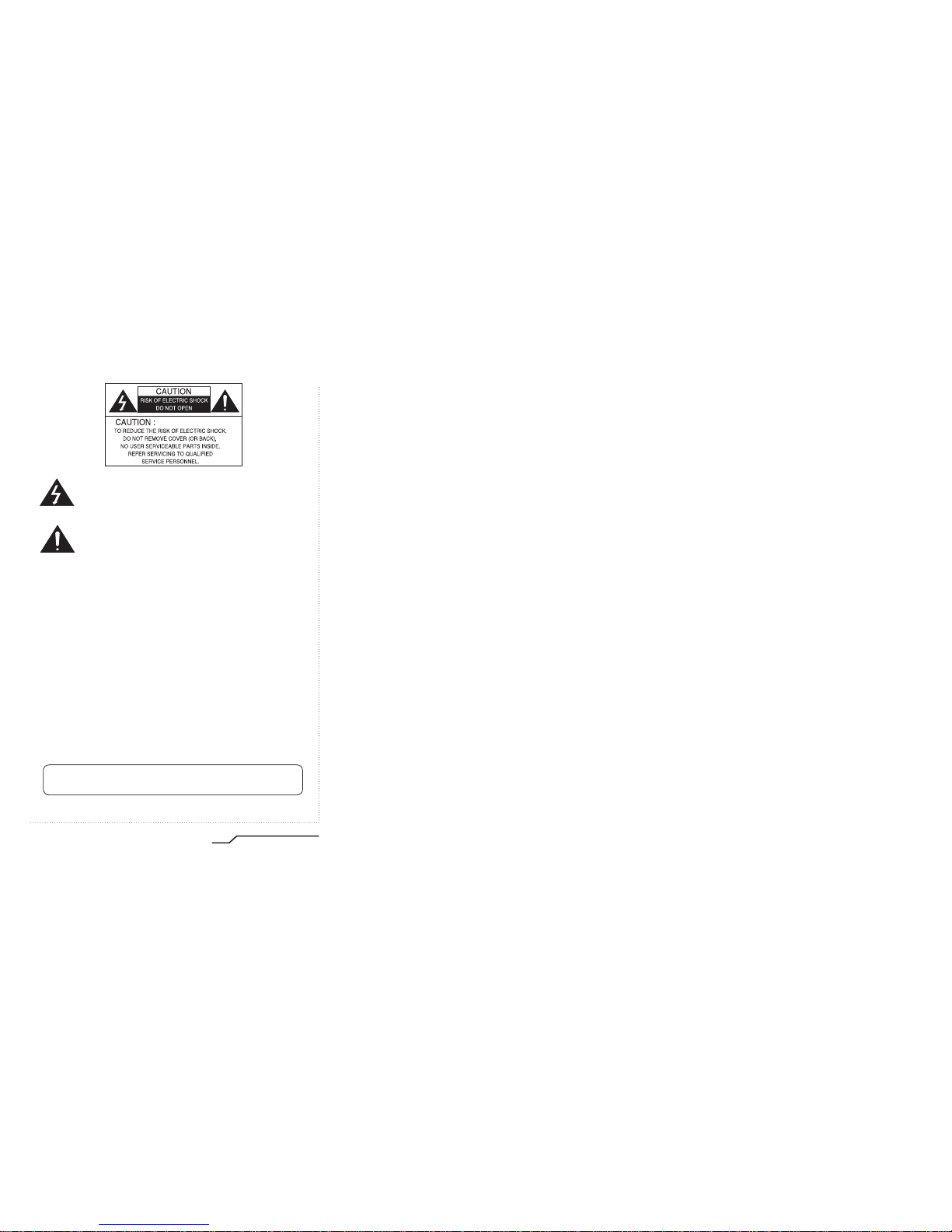

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

ICR540CCD: BOX Color Camera

󱇲Features

Horizontal Resolution 540 TV

Lines

Clear image quality has been achieved by

employing a SONY CCD with 410,000

(effective) pixels, which provides a

horizontal resolution of 540 TV lines.

DAY & NIGHT

This camera has a function that auto-

matically selects the mode that is

appropriate for daytime or night-time

conditions. The COLOR mode operates in

daytime conditions to provide optimum

colors, and BW mode operates in night-

time conditions to enhance the definition

of the image.

Electronic IRIS

The electronic IRIS function enables

continuous automatic control of the

shutter between 1/60~1/120,000 seconds.

PRIVACY Function

The PRIVACY function conceals the

areas you do not wish to appear on

the screen.

VIDEO/DC Drive Lens

The video drive lens and the DC drive lens

can be selected by the touch of a switch.

High Sensitivity

The built-in high sensitivity SONY COLOR

CCD enables a clear image even in

0.3Lux(0.1Lux B/W) or as low as 0.002Lux

with SENS-UP.

DNR (Digital Noise Reduction)

The amount of low illuminance noise

has been significantly reduced, and the

signal-to-noise ratio (S/N ratio) as well as

horizontal resolution have been improved,

resulting in a clear and sharp image

display even in the dark.

Controlled by OSD Menu

The camera can be controlled by

selecting text displayed on the monitor

screen.

Additional Functions

SENS-UP, MOTION DETECTION,

MIRROR, SHARPNESS and SYNC

(INT/LL) functions are also available.

Digital Day&Night Color Camera

Warning

󱇲

The camera requires periodic inspection.

Contact an authorised technician to carry out the inspection.

Stop using your camera when you find it malfunctioning.

If the camera emits smoke or is unusually hot for a long period,

a fire may be caused.

Do not Install the camera on a surface that can not support it.

If the camera is installed on an inappropriate surface, it may fall

and cause injury.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not dis-assemble the camera.

It may result in an electric shock or other hazards.

Do not use the camera close to a gas or oil leak.

It may result in a fire or other hazards.

ICR540CCD: BOX Color Camera

󱇲Contents

Features

Warnings and Precautions

Names and Functions of Parts

Installation

󱇲Front

󱇲Bottom

󱇲Back

󱇲Lens

·Using auto iris

·Using C/CS mount lens

󱇲Connecting to a monitor

󱇲Connecting to power

Components 8

Digital Day&Night Color Camera

Camera Operation

Troubleshooting

󱇲Menu

󱇲Settings

• LENS (selection)

• SHUTTER (condition and speed control)

• WHITE BALANCE control

• BLC (Back Light Compensation)

• AGC (Auto Gain Control)

• DNR (Digital Noise Reduction)

• SENS-UP

• SPECIAL

• EXIT

Specification 34

ICR540CCD: BOX Color Camera

󱇲Precautions

Only use the camera under conditions

where temperatures are between

-10°C and +50°C. Be especially

careful to provide ventilation when

operating under high temperatures.

It can cause the image quality to be

poor.

Severe lighting change or flicker can

cause the camera to work improperly.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

Do not install the camera in

extreme temperature conditions.

Do not install or use the camera in an

environment where the humidity is high.

Do not install the camera under

unstable lighting conditions.

Do not touch the front lens of the

camera.

Digital Day&Night Color Camera

It can cause malfunctions to occur.

If it gets wet, wipe dry immediately.

Liquids can contain minerals that

corrode the electronic components.

If exposed to radioactivity the CCD

will fail.

It can damage the CCD.

Do not expose the camera to rain

or spill liquids on it.

Do not expose the camera to

radioactivity.

Never keep the camera pointed

directly at strong light.

Do not drop the camera or subject

it to physical shocks.

Note

• If the camera is exposed to spotlight or object reflecting strong light,

smear or blooming may occur.

•Please check that the power satisfies the normal specification before

connecting the camera.

ICR540CCD: BOX Color Camera

󱇲Components

1. COLOR BOX CAMERA

AUTO IRIS LENS CONNECTION PLUG

3. L-WRENCH

4. C-MOUNT ADAPTOR

5. INSTRUCTION GUIDE

Digital Day&Night Color Camera

Names and Functions of Parts 󱇲

Front

󱃦Lens protection cap

Cover the lens when not using it.

󱃧CS-Mount lens adaptor

Attach the CS-Mount lens here.

󱃨Back Focus clamp screw

Loosen the clamp screw with a screwdriver before adjusting the Back

Focal length.

ICR540CCD: BOX Color Camera

󱇲Installation

Lenses are sold separately. Lenses such as auto iris lens,

CS-Mount lens and C-Mount lens can be used.

1. Peel off about 8mm of the outer skin of the auto iris lens cable.

2. Peel off about 2mm of the outer skin of the insulated conductor inside the

lens cable.

󱇲

Lens

Note

• Use of the DC auto iris lens is recommended to achieve the best

results for operating this product effectively.

• Please keep the lens clean.

• Any foreign objects and fingermarks on the lens can cause inferior

image quality in low light level conditions.

When using an auto iris lens

Digital Day&Night Color Camera

3. Remove the cover of the auto iris lens connection plug and solder the

lens cable to the connector pin in the plug.

4. Replace the auto iris lens connection plug cover and take off the lens

protection cap, and then attach the auto iris lens to the camera by

screwing it in clockwise.

5. Insert the connection plug that is connected to the auto iris lens cable into

the auto lens connector, which is located on the back of the camera.

6. Set the lens selection switch, located on

the back of the camera, to DC or VIDEO

depending on the type of auto iris lens which is

being used.

Pin No. LENS

DC VIDEO

No.1 Pin Damping- Red(power)

No.2 Pin Damping+ NC

No.3 Pin Drive+ White(video signal)

No.4 Pin Dreve- Black(GND)

Installation 󱇲

ICR540CCD: BOX Color Camera

Take off the lens protection cap and attach

the CS-Mount lens to the camera by screwing it in

clockwise.

Note

ㆍUse the specified lens connection parts as shown in the picture below.

The use of the wrong sized parts may cause damage

to the inside of the camera or result in poor fitting.

ㆍUse of a lens which is too heavy affects the balance

of the camera and may cause a malfunction. Please

use a lens that weighs less than 450g.

ㆍSelect Av mode if possible when adjusting

the automatic light control (ALC) of an auto lens.

Use of PK mode may cause hunting.

When using a CS-Mount lens

1. Take off the lens protection cap and

attach the C-mount adaptor.

2. Attach the C-Mount lens to the

camera by screwing it in clockwise.

When using a C-Mount lens

Digital Day&Night Color Camera

Connect the video output terminal located on the back of the camera

to the monitor.

ㆍThe connection method varies depending on the type of monitor and

accessories. Please refer to the user's manual for each instrument.

ㆍTurn off the power when connecting.

■

Connecting to a monitor

Check the standard power requirement before connecting to power.

■

Connecting to power

Dual Power Type

(AC 24V/DC 12V, AC 24V Class2)

DC Power Type (DC 12V, 500mA)

Installation ■

ICR540CCD: BOX Color Camera

󱇲Camera Operation

󱇲

SETUP menu

LENS (selection)

SHUTTER

(condition and speed control)

WHITE BALANCE control

BLC

(Back Light Compensation)

AGC (Auto Gain control)

DNR

(Digital Noise Reduction)

SENS-UP (Low illuminance)

SPECIAL

EXIT

•MANUAL •DC/VIDEO

•ESC •MANUAL •FLK

•ATW •AWC •MANUAL

•OFF •LOW •MIDDLE

•HIGH

•OFF •LOW •MIDDLE

•HIGH

•OFF •LOW •MIDDLE

•HIGH

•OFF •AUTO

•CAMERA ID •COLOR

•SYNC •MOTION DETECTION

•PRIVACY •MIRROR

•SHARPNESS •RESET

•RETURN

Digital Day&Night Color Camera

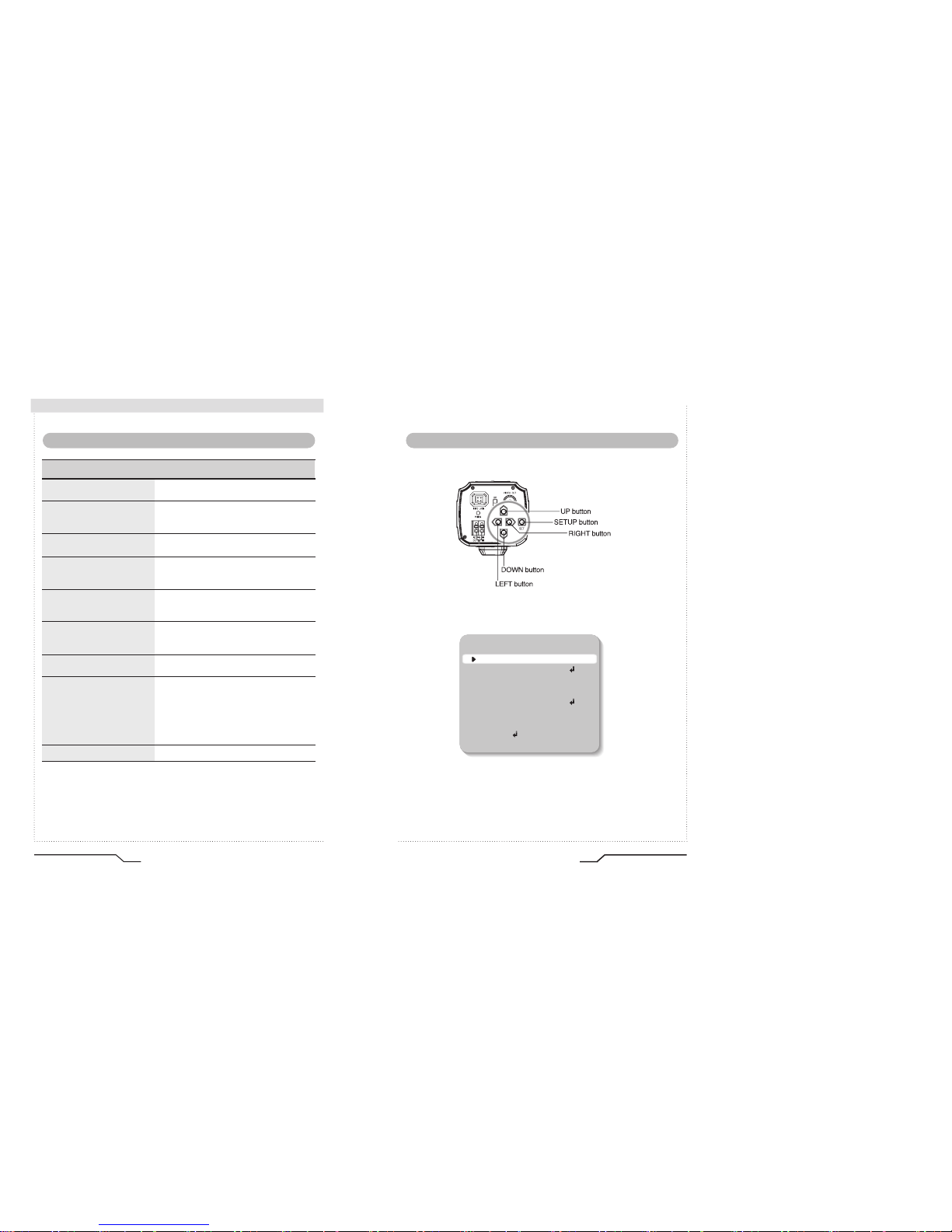

Settings can be made using the 5 buttons located on the back of the camera

1. Press the SET button

•Settings can now be made. The SETUP menu is displayed on the monitor.

2. Select a menu item from the list available by using the UP and DOWN

buttons.

•The cursor can be moved up or down by using the UP and DOWN

buttons. Position the cursor to point to the function requiring adjsutment.

󱇲

Settings

SETUP

LENSMANUAL

SHUTTERESC

WHITE BAL. ATW

BACKLIGHT OFF

AGC LOW

DNR LOW

SENS-UP OFF

SPECIAL

EXIT

Indice

Altri manuali ICRealtime Telecamera di sicurezza

ICRealtime

ICRealtime ICIP D2010IR Manuale utente

ICRealtime

ICRealtime ICIP B3000AF Manuale utente

ICRealtime

ICRealtime IPEL-B2012X-IRW1 Manuale utente

ICRealtime

ICRealtime ICR2200 Manuale utente

ICRealtime

ICRealtime ICIP-P2300Y-IR Manuale utente

ICRealtime

ICRealtime IPEL-MB80F-IRW1 Manuale utente

ICRealtime

ICRealtime ICR650VD Manuale utente

ICRealtime

ICRealtime AVS-4MB4012-IR Manuale utente

ICRealtime

ICRealtime HDAVS Series Manuale utente

ICRealtime

ICRealtime Elite Manuale utente

ICRealtime

ICRealtime EL-3000N Manuale utente

ICRealtime

ICRealtime F Series Manuale utente

ICRealtime

ICRealtime ICR540VD Manuale utente

ICRealtime

ICRealtime ELIP-3000N Manuale utente

ICRealtime

ICRealtime ICIP 3000DV-I Manuale utente

ICRealtime

ICRealtime AVS-4MD5110-VIR Manuale utente

ICRealtime

ICRealtime ICR-220-IR Manuale utente

ICRealtime

ICRealtime IPEL-M60F-IRW1 Manuale utente

ICRealtime

ICRealtime ClearView WiFi-2MP-BL100 Manuale utente

ICRealtime

ICRealtime AVS-4MD4025-IR Manuale utente

ICRealtime

ICRealtime HD-AVS Manuale utente

ICRealtime

ICRealtime ICR-100X Manuale utente

ICRealtime

ICRealtime HD-AVS Manuale utente

ICRealtime

ICRealtime Full HD(HD-SDI) CCTV Box Camera Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
