ICRealtime ICIPD3000 Manuale utente

HD IR Vandal Proof Network Dome Camera

User’s Manual

Version 1.1.1

Welcome

Thank you for purchasing our Network camera!

This user’s manual is designed to be a reference tool for your system.

Please read the following safeguard and warnings carefully before you use this series product!

Please keep this user’s manual well for future reference!

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.

The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited

power source is rated 12V DC or 24V AC in the IEC60950-1. (Refer to general introduction)

Please note: Do not connect two power supplying sources to the device at the same time; it may

result in device damage! The product must be grounded to reduce the risk of electronic shock.

We assume no liability or responsibility for all the fires or electrical shock caused by improper handling

or installation.

We are not liable for any problems caused by unauthorized modification or attempted repair.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

3．Installation

Do not apply power to the camera before completing installation.

Please install the proper power cut-off device during the installation connection.

Always follow the instruction guide the manufacturer recommended.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.

We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

This series network camera should be installed in a cool, dry place away from direct sunlight,

inflammable, explosive substances and etc.

Please keep it away from the electromagnetic radiation object and environment.

Please make sure the CCD (CMOS) component is out of the radiation of the laser beam device.

Otherwise it may result in CCD (CMOS) optical component damage.

Please keep the sound ventilation.

Do not allow the water and other liquid falling into the camera.

Thunder-proof device is recommended to be adopted to better prevent thunder.

The grounding studs of the product are recommended to be grounded to further enhance the reliability

of the camera.

6. Daily Maintenance

Please shut down the device and then unplug the power cable before you begin daily maintenance

work.

iii

Do not touch the CCD (CMOS) optic component. You can use the blower to clean the dust on the lens

surface.

Always use the dry soft cloth to clean the device. If there is too much dust, please use the water to

dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the

device.

Please put the dustproof cap to protect the CCD (CMOS) component when you do not use the camera.

Dome enclosure is the optical component, do not touch the enclosure when you are installing the

device or clean the enclosure when you are doing maintenance work. Please use professional optical

clean method to clean the enclosure. Improper enclosure clean method (such as use cloth) may result

in poor IR effect of camera with IR function.

7. Accessories

Be sure to use all the accessories recommended by manufacturer.

Before installation, please open the package and check all the components are included.

Contact your local retailer ASAP if something is broken in your package.

Accessory Name

Amount

Network Camera Unit

Quick Start Guide

Installation Accessories Bag

Table of Contents

1General Introduction ..................................................................................................................1

1.1 Overview........................................................................................................................1

1.2 Features.........................................................................................................................1

1.3 Specifications................................................................................................................2

2Structure ......................................................................................................................................4

2.1 Components..................................................................................................................4

2.2 Framework and Dimension.........................................................................................4

3Device Installation ......................................................................................................................7

3.1 Installation Steps ..........................................................................................................7

4Quick Configuration Tool.........................................................................................................10

4.1 Overview......................................................................................................................10

4.2 Operation.....................................................................................................................10

5Web Operation..........................................................................................................................12

5.1 Network Connection...................................................................................................12

5.2 Login and Main Interface...........................................................................................12

6FAQ ............................................................................................................................................14

Appendix Toxic or Hazardous Materials or Elements ...............................................................15

1General Introduction

1.1 Overview

This series network camera integrates the traditional camera and network video technology. It adopts

video data collection, transmission together. It can connect to the network directly without any auxiliary

device.

This series network camera uses standard H.264 video compression technology, which maximally

guarantees the video quality.

It supports the IR night vision function. In the night environments, the device can use the IR light to

highlight the object which is suitable for the surveillance function in the low illumination environments.

The waterproof design conforms to the IP 66 level. It has the sound waterproof function suitable for

use in the outdoor environments.

It can be used alone or used in a network area. When it is used lonely, you can connect it to the

network and then use a network client-end. Due to its multiple functions and various uses, this series

network camera is widely used in many environments such office, bank, road monitor and etc.

1.2 Features

User

Management

Different user rights for each group, one user belongs to one group.

The user right shall not exceed the group right.

Storage

Function

Support central server backup function in accordance with your configuration

and setup in alarm or schedule setting

Support record via Web and the recorded file are storage in the client-end

PC.

Support network storage function such as FTP.

Alarm

Function

Real-time respond to external on-off alarm input, and video detect as user

pre-defined activation setup and generate corresponding message in screen

and audio prompt(allow user to pre-record audio file)

Real-time video detect: motion detect, camera masking.

Alarm occurs when network is abnormal.

Network

Monitor

Network camera supports one-channel video data transmit to network

terminal and then decode. Delaying time is within 270ms (network bandwidth

support needed)

Max supports 20 connections.

Adopt the following video transmission protocol: HTTP, TCP, UDP,

MULTICAST, RTP/RTCP, RTSP and etc.

Support web access.

Network

Management

Realize network camera configuration and management via Ethernet.

Support device management via web or client-end.

Support abundant network protocol.

Power

External power adapter DC 12V.

Support PoE.

Warning！

Do not connect these two power supplying sources to the device at the

same time; it may result in device damage!

Assistant

Function

Log function

Support system resource information and running status real-time display.

Day/Night mode auto switch.

Support picture parameter setup such as electronic shutter and gain setup.

Support motion detect.

Backlight compensation: screen auto split to realize backlight compensation

to adjust the bright.

Support video watermark function to avoid vicious video modification.

Built-in IR light. Support IR night vision.

1.3 Specifications

Please refer to the following sheet for network camera performance specification.

Model

Parameter

ICIP D3000IR

System

Main Processor

High performance DSP

Embedded LINUX

System

Resources

Support real-time network, local record, and remote operation at the

same time.

User Interface

Remote operation interface such as WEB, DSS, PSS

System Status

Bit stream statistics, log, and software version.

Video Parameter

Image Sensor

1/3-inch CMOS

Pixel

2048(H)*1536(V)

Day/night

Support day/night mode switch

Gain Control

Fixed/Auto

White Balance

Manual/Auto

BLC

Off/BLC/WDR (1-100)/HLC(anti-flicker is outdoor and is valid only when

exposure mode is auto with range 1-100)

Exposure Mode

Manual/Low noise/Low motion blur/Auto

It ranges from 1/3 to 1/100000

Video

Compression

Standard

H.264/H.264H/MJPEG

Video Frame

Rate

PAL:

Main stream (2048*1536@20fps),

extra stream 1 ( 704*576@20fps)

extra stream 2 (1280*720@1fps)

Main stream (1920*1080@25fps),

extra stream 1 ( 704*576@25fps)

extra stream 2 (1280*720@11fps)

NTSC:

Main stream (2048*1536@20fps),

extra stream 1 ( 704*480@20fps)

extra stream 2 (1280*720@1fps)

Main stream (1920*1080@30fps),

extra stream 1 ( 704*480@30fps)

extra stream 2 (1280*720@1fps)

Note:

Extra stream 2’s actual frame depends on device max capacity set

which can be adjusted within its range.

Video Bit Rate

H.264H: 40Kbps-8192Kbps adjustable

MJPEG: 40Kbps-16384Kbps adjustable and bit rate is adjustable.

Support customized setup.

Video Flip

Support mirror.

Support flip function.

Snapshot

Max 1f/s snapshot. File extension name is JPEG.

Privacy Mask

Supports max 4 privacy mask zones

Video Setup

Support parameter setup such as bright, contrast.

Video

Information

Channel title, time title, motion detect, tampering, overlay

Lens

3.6mm. Fixed focus.

Lens Interface

M12. Lens is the default accessories

Video

Motion Detect

396 (18*22) detection zones; sensitivity level ranges from 0 to 100;

area threshold ranges from 0 to 100.

Activation event: video storage, image snapshot, log, email function

and etc.

Video Loss

Activation event: video storage, image snapshot, log, email function

and etc.

Record

Record Priority

Manual >Video detect>Schedule

Storage

Management

NAS storage

Network

Wire Network

1-ch 10/100 Base-T Ethernet

Network Protocol

Standard HTTP, TCP/IP, ARP,IGMP, ICMP, RTSP, RTP,UDP, RTCP,

SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, Bonjour,

SNMP, QoS, 802.1x

Platform

Standard

PSIA, ONVIF

Remote

Operation

Monitor, system setup, file download, log information, maintenance ,

upgrade and etc

AUX

Interface

Reset

Built-in RESET button

General Parameter

Power

DC12V power and PoE.

Warning！

Do not connect these two power supplying sources to the device

at the same time; it may result in device damage!

Power

Consumption

DC 12V 4W MAX

IR Light

IR distance 20m.

Working

Temperature

-30℃~+60℃

Working

Humidify

≤95%

Dimensions(mm)

¢110×81

Weight

385g (excluding box)

Installation

Ceiling and wall mount

2Structure

2.1 Components

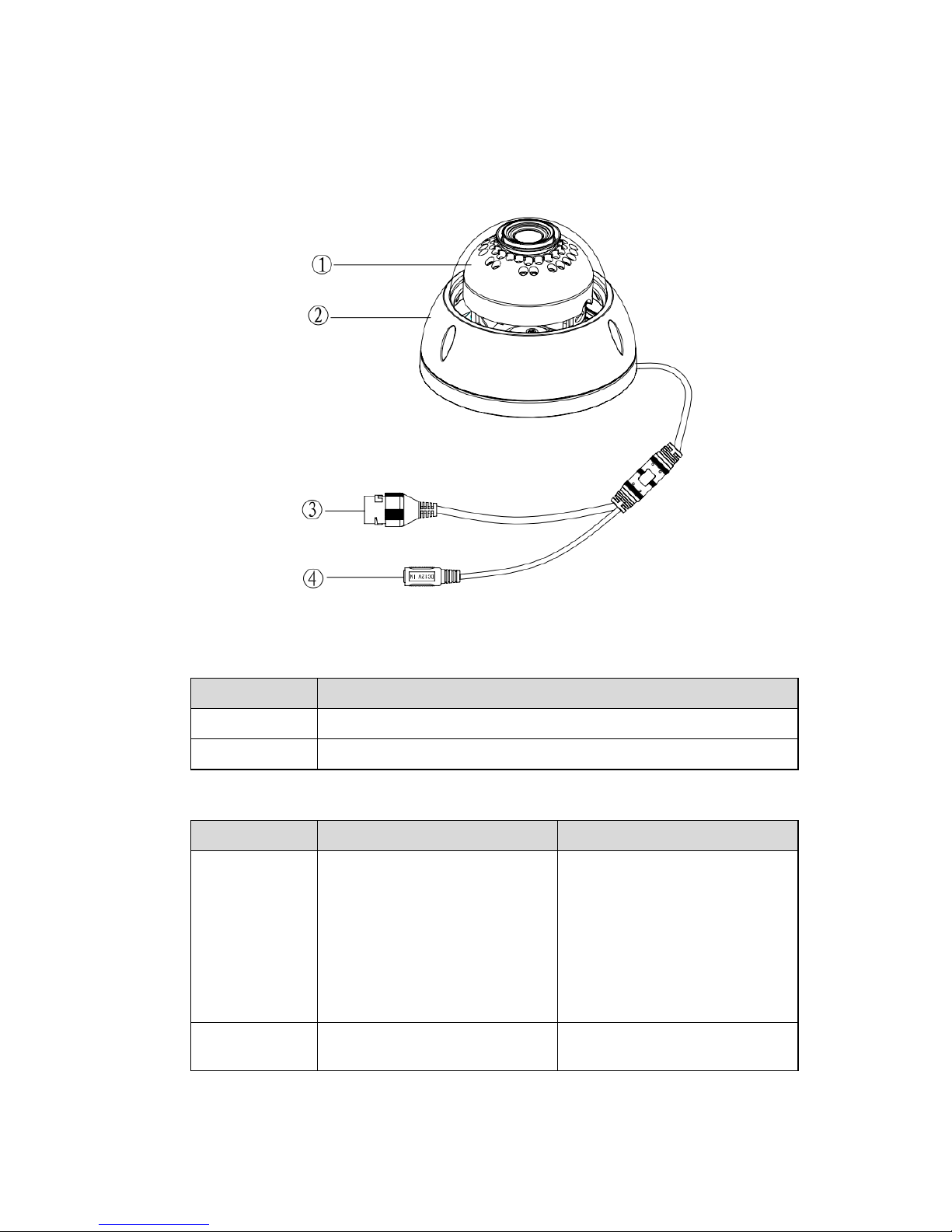

You can refer to the following figure for component structure. See Figure 2-1.

Figure 2-1 Component structure

Please refer to the following sheet for detailed information.

2.2 Framework and Dimension

Component

Component Name

Component 1

Dome body

Component 2

Dome enclosure

Port

Port Name

Note

Port 3

Dome enclosure

Network data in/out and PoE.

Note:

Some devices do not

support PoE.

Before making crystal head,

pull the anti-dust, waterproof

cover through network

cable.

Port 4

Power input port

Connect to DC 12V power, input

power.

Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2

through Figure 2-4.

Figure 2-2 Dimension illustration 1

Figure 2-3 Dimension illustration 2

Indice

Altri manuali ICRealtime Telecamera di sicurezza

ICRealtime

ICRealtime ICR540IN Manuale utente

ICRealtime

ICRealtime ICIP-P2300Y-IR Manuale utente

ICRealtime

ICRealtime HD-AVS Manuale utente

ICRealtime

ICRealtime AVS-D8712SL-DP Manuale utente

ICRealtime

ICRealtime ICIP 3000DV-I Manuale utente

ICRealtime

ICRealtime HD-PTZ-12X-W Manuale utente

ICRealtime

ICRealtime F Series Manuale utente

ICRealtime

ICRealtime EL-470 Manuale utente

ICRealtime

ICRealtime ICIP-B2000 Manuale utente

ICRealtime

ICRealtime ClearView WiFi-2MP-BL100 Manuale utente

ICRealtime

ICRealtime HD-AVS Manuale utente

ICRealtime

ICRealtime ICIP-D2000-IR-B Manuale utente

ICRealtime

ICRealtime AVSD2208VF Manuale utente

ICRealtime

ICRealtime ICR650VD Manuale utente

ICRealtime

ICRealtime IC720 Manuale utente

ICRealtime

ICRealtime PTZ-3660SIR Manuale utente

ICRealtime

ICRealtime EL9036 Manuale utente

ICRealtime

ICRealtime EL-2000 I-sniper Manuale utente

ICRealtime

ICRealtime Pixim I-Sniper EL-720 Manuale utente

ICRealtime

ICRealtime I-Sniper EL-750W Manuale utente

ICRealtime

ICRealtime Full HD(HD-SDI) CCTV Box Camera Manuale utente

ICRealtime

ICRealtime AVS-4MD5110-VIR Manuale utente

ICRealtime

ICRealtime ICIP D2010IR Manuale utente

ICRealtime

ICRealtime EL-790 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
