ICRealtime ICR540VD Manuale utente

ICR540VD Day&Night Vandal Resistant Dome Camera

Digital Day&Night

Vandal Resistant

Dome Camera

Operation Manual

ICR540VD - Vandal Resistant Dome Camera

INFORMATION -This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

WARNING -Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION :To prevent electric shock and risk of fire hazards:

◆Do NOT use power sources other than those specified.

◆Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and

should conform to all local codes.

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

ICR540VD - Vandal Resistant Dome Camera

󱇲

Features

Horizontal Resolution of 540 TV

Lines

Clear image quality has been achieved by

employing a SONY CCD with 410,000

(effective) pixels, which provides a

horizontal resolution of 540 TV lines.

DAY & NIGHT

This camera has a function that auto-

matically selects the mode that is

appropriate for daytime or night-time

conditions. The COLOR mode operates in

daytime conditions to provide optimum

colors, and BW mode operates in night-

time conditions to enhance the definition

of the image.

Electronic IRIS

The electronic IRIS function enables

continuous automatic control of the

shutter between 1/60~1/120,000 seconds.

PRIVACY Function

The PRIVACY function conceals the

areas not required to appear on

the image.

3Axis built-in Vandal Resistant Dome

Housing

High Sensitivity

The built-in high sensitivity SONY COLOR

CCD enables a clear image even in

0.3Lux(0.1Lux B/W) or as low as 0.002Lux

with SENS-UP.

DNR (Digital Noise Reduction)

The amount of low illuminance noise

has been significantly reduced, and the

signal-to-noise ratio (S/N ratio) as well as

horizontal resolution have been improved,

resulting in clear and sharp images

displayed even in low light.

Controlled by OSD Menu

The camera functions are controlled by

selecting text displayed on the monitor

screen.

Additional Functions

SENS-UP, MOTION DETECTION,

MIRROR, SHARPNESS and SYNC

(INT/LL) functions are also available.

Weather Proof (IP66)

Digital Day&Night Vandal Resistant Dome Camera

Warning

󱇲

The camera requires periodic inspection.

Contact an authorised technician to carry out the inspection.

Stop using your camera when you find it malfunctioning.

If the camera emits smoke or is unusually hot for a long period,

a fire may be caused.

Do not Install the camera on a surface that can not support it.

If the camera is installed on an inappropriate surface, it may fall

and cause injury.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not dis-assemble the camera.

It may result in an electric shock or other hazards.

Do not use the camera close to a gas or oil leak.

It may result in a fire or other hazards.

ICR540VD - Vandal Resistant Dome Camera

󱇲Contents

Features

Warnings and Precautions

Names and Functions of Parts

Dimensions

Installation

Cable Connections

󱇲Lens

󱇲OSD

󱇲VBS-EXTRA

󱇲3 Axis Bracket

󱇲SMPS

Components 8

Digital Day&Night Vandal Resistant Dome Camera

Camera Operation

Troubleshooting

󱇲Menu

󱇲Settings

• LENS (selection)

• SHUTTER (condition and speed control)

• WHITE BALANCE control

• BLC (Back Light Compensation)

• AGC (Auto Gain Control)

• DNR (Digital Noise Reduction)

• SENS-UP

• SPECIAL

• EXIT

Specification 32

ICR540VD - Vandal Resistant Dome Camera

󱇲Precautions

Do not install the camera in

extreme temperature conditions.

Do not install the camera under

unstable lighting conditions.

Do not touch the front lens of the

camera.

Only use the camera under conditions

where temperatures are between

-10°C and +50°C. Be especially

careful to provide ventilation when

operating under high temperatures.

It can cause the image quality to be

poor.

Severe lighting change or flicker can

cause the camera to work improperly.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

Do not install or use the camera in an

environment where the humidity is high.

Digital Day&Night Vandal Resistant Dome Camera

It can cause malfunctions to occur.

If it gets wet, wipe it dry immediately.

Liquids can contain minerals that

corrode the electronic components.

If exposed to radioactivity the CCD

will fail.

It can damage the CCD.

Do not drop the camera or protect

it from physical shocks.

Do not expose the camera to rain

or spill beverage on it.

Do not expose the camera to

radioactivity.

Never keep the camera pointed

directly at strong light.

ICR540VD - Vandal Resistant Dome Camera

■Components

1. COLOR DOME CAMERA

2. SCREWS

4. WIRE FOR VBS-EXTRA

5. INSTRUCTION GUIDE

3. WRENCH

Digital Day&Night Vandal Resistant Dome Camera

Names and Functions of Parts ■

■Names and Functions of Parts

ICR540VD - Vandal Resistant Dome Camera

②OSD PCB

LEFT

UP RIGHT

DOWN

SET

CN1

VBS-Extra

SW5

●

●SET button : Used for the menu display. This button can be used to

confirm settings after changing the value of the selected function or

current conditions.

●

●UP & DOWN buttons : Used for selecting items by moving the cursor

up or down on the menu screen.

●

●LEFT & RIGHT buttons : Used when changing item values, by moving

the cursor to the left or right on the menu screen.

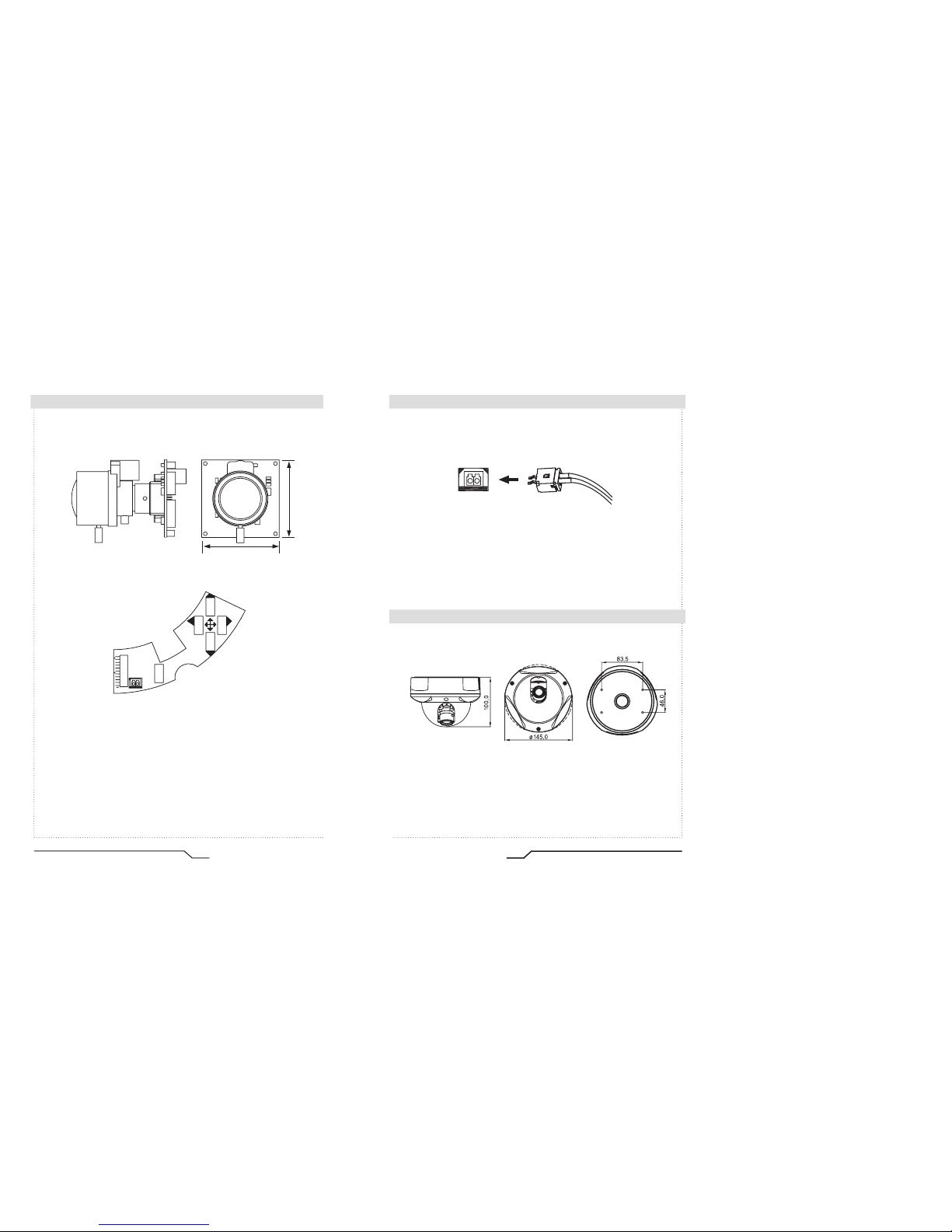

①LENS : Vari-Focal DC Auto Iris Lens

(unit : mm)

Digital Day&Night Vandal Resistant Dome Camera

Names and Functions of Parts ■

Dimensions ■

③VBS-EXTRA FOR CONNECTING TO LCD

Please use the supplied wire when connecting to LCD

④3 AXIS BRACKET

Please loosen screws and fix tilted and panned position.

⑤SMPS PCB FOR DUAL POWER

VBS-EXTRA

(unit : mm)

ICR540VD - Vandal Resistant Dome Camera

■Installation

Digital Day&Night Vandal Resistant Dome Camera

Cable Connections ■

1. Dome Base Mounting

- Open the dome cover by loosening 3 screws using special wrench

provided.

- Mount the base of camera to a sturdy surface using 4 screws (1.5

inch) and 4 premade holes on the base of the dome.

2. Power Connect & Monitor Impedance

- DC12V/300mA regulated power supply (DC12V only)

AC24V Class 2 power supply (AC24V/DC12V)

- To avoid fire or shock hazard, must use a UL listed power supply.

- Set the monitor impedance switch to 75½. Check the impedance

switch when the screen turns blurred.

3. Camera Module Adjustment

- Loosen screws for 3-axis camera bracket and adjust the direction

and angle of camera.

- Make sure to retighten the screws for camera bracket.

- Set any function you wish to activate by using the OSD buttons.

4. Dome Cover Mounting

- Replace the dome cover to the base and tighten 3 screws.

AC24V/DC12V

AC IN

DC IN

AC IN

DC IN

DOME COVER

BOLT

MOUNT

No. 8-32

UNC

DECORATION

RING

M4*10

RUBBER

BOTOTOM

BASE

HOUSING

ICR540VD - Vandal Resistant Dome Camera

󱇲Camera Operation

󱇲

SETUP menu

LENS (selection)

SHUTTER

(condition and speed control)

WHITE BALANCE control

BACKLIGHT

(Backlight Compensation)

AGC (Auto Gain Control)

DNR

(Digital Noise Reduction)

SENS-UP (Low illuminance)

SPECIAL

EXIT

•MANUAL •DC

•ESC •MANUAL •FLK

•ATW •AWC •MANUAL

•OFF •LOW •MIDDLE

•HIGH

•OFF •LOW •MIDDLE

•HIGH

•OFF •LOW •MIDDLE

•HIGH

•OFF •AUTO

•CAMERA ID •COLOR

•SYNC •

MOTION DETECTION

•PRIVACY •MIRROR

•SHARPNESS •RESET

•RETURN

Digital Day&Night Vandal Resistant Dome Camera

Settings can be made using the 5 buttons located in the camera.

1. Press the SET button

•Settings can now be made. The SETUP menu is displayed on the monitor.

2. Select a menu item from the list available by using the UP and DOWN buttons.

•The cursor can be moved up or down by using the UP and DOWN buttons.

Position the cursor to point to the function requiring adjsutment.

󱇲

Settings

LEFT

UP RIGHT

DOWN

SET

CN1

VBS-Extra

SW5

SETUP

LENSMANUAL

SHUTTERESC

WHITE BAL. ATW

BACKLIGHT OFF

AGC LOW

DNR LOW

SENS-UP OFF

SPECIAL

EXIT

ICR540VD - Vandal Resistant Dome Camera

󱇲Camera Operation

SETUP

LENS MANUAL

SHUTTERESC

WHITE BAL. ATW

BACKLIGHT OFF

AGC LOW

DNR LOW

SENS-UP OFF

SPECIAL

EXIT

Modes can be changed

using the LEFT and

RIGHT buttons.

Select any function you

wish to operate by

using the UP and

DOWN buttons.

3. When the LEFT or RIGHT button is pressed, available values and modes are

displayed in order. Keep pressing the button until you get to the mode you wish to

select.

Select 'EXIT' and then press the SET button to exit the set up Menu.

This function is used to adjust the brightness of the screen.

1. When the SETUP menu is displayed on the screen, position the cursor to point

to 'LENS' by using the UP and DOWN buttons.

2. Select the type of the lens setting to use by pressing the LEFT or RIGHT button.

Note

• If appears at the mode you wish to operate, it means that there is a

sub-menu which can be selected by pressing the SET button.

• If appears at the mode item, it means that there is no mode

available to be selected.

LENS (selection)

SETUP

LENSDC

SHUTTER ---

WHITE BAL. ATW

BACKLIGHT OFF

Digital Day&Night Vandal Resistant Dome Camera

󱈢MANUAL : Manual Lens selection

󱈢DC : Auto Iris Lens selection

3. Press the SET button if you wish to return to the previous menu

Note

• The brightness of the screen can be adjusted in DC mode. The brightness

can be adjusted within the range of 1 ~ 70. The optimum level of brightness

for the user can be achieved by adjustment.

•If you select the MANUAL mode, it can be adjusted in ESC mode.

Indice

Altri manuali ICRealtime Telecamera di sicurezza

ICRealtime

ICRealtime HD-AVS Manuale utente

ICRealtime

ICRealtime ICIP360L6 Manuale utente

ICRealtime

ICRealtime AVS-4MD5110-VIR Manuale utente

ICRealtime

ICRealtime HDAVS Series Manuale utente

ICRealtime

ICRealtime AVS-D2110 Manuale utente

ICRealtime

ICRealtime AVSZ4112T Manuale utente

ICRealtime

ICRealtime ICIPP3020HDIR Manuale utente

ICRealtime

ICRealtime EL-470 Manuale utente

ICRealtime

ICRealtime ICR300H3B Manuale utente

ICRealtime

ICRealtime PTZN23X4D Manuale utente

ICRealtime

ICRealtime EL-3000N Manuale utente

ICRealtime

ICRealtime IPMX Series Manuale utente

ICRealtime

ICRealtime Max Series Manuale utente

ICRealtime

ICRealtime AVS-4MD4025-IR Manuale utente

ICRealtime

ICRealtime Pixim I-Sniper EL-720 Manuale utente

ICRealtime

ICRealtime ICIP 3000DV-I Manuale utente

ICRealtime

ICRealtime ICIP-D2360 Manuale utente

ICRealtime

ICRealtime ICIP D2010IR Manuale utente

ICRealtime

ICRealtime HD Pinhole Manuale utente

ICRealtime

ICRealtime ICIP-D2000-VIR Manuale utente

ICRealtime

ICRealtime ICIP B3000AF Manuale utente

ICRealtime

ICRealtime ICR650VD Manuale utente

ICRealtime

ICRealtime F Series Manuale utente

ICRealtime

ICRealtime ICHD850VDIR Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
