1. Product Overview
The CW-5HD is a wireless transmission device which transmits HD SDI video and
SDI audio with 5GHz band radio frequencies. CW-5HD TX is the transmitter, and
connects to a video source such as a video camera. CW-5HD RX is the receiver,
and connects to a monitor, for example. Video and audio from the video source
can be seen / listened to from a distance without cable connections. Where a
direct line-of-view is offered between CW-5HD TX and RX, the signals can be
transmitted up to 50m (with the transmit output power in HIGH mode).
Other features
zSupports HD-SDI/SD-SDI input and output.
zTransmitting HD video (1080i, 1080p, 720p) and SD video (525i/625i)
zSupporting SDI embedded audio. (Audio CH1 and CH2 only)
zTransmission delay is 1m/sec maximum.
zSignal protection by 256bit AES encryption (in UNICAST mode)
zThe adoption of ‘MIMO’, which multiplexes wireless signals via multiple
antennas in one channel, enables HD-SDI or SD-SDI transmission.
zBoth automatic and manual selection of transmitted frequencies (4ch).

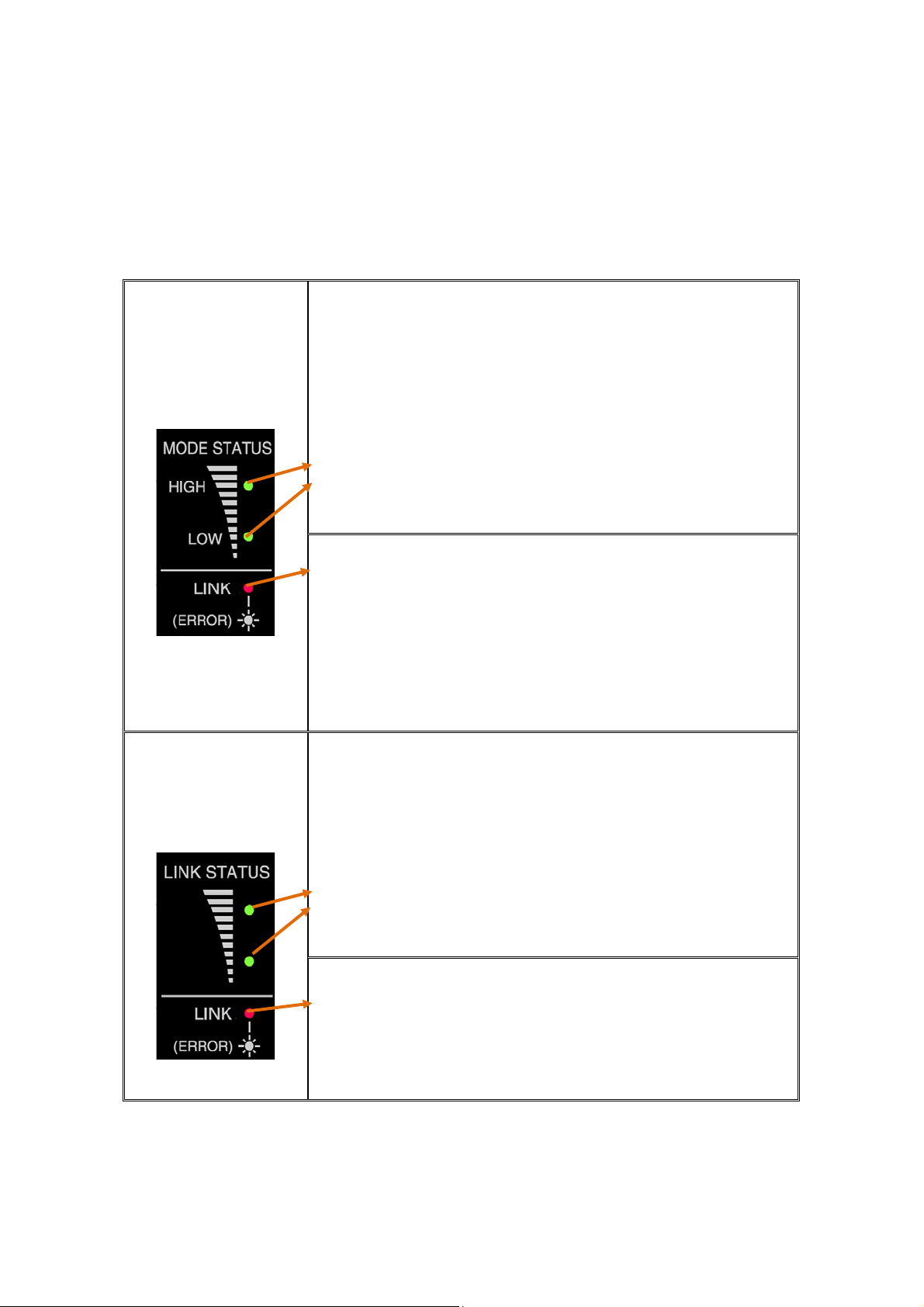

zTwo-level select (HIGH/LOW) of transmit output power.
zPower can be supplied by V-Mount type Lithium Ion battery or by DC input,
via XLR 4P connector.
zBack up power failure function enables immediate and automatic switching
to a connected battery if the external DC connected power is disconnected.
＊ The transmission distance may vary depending on surroundings, radio wave conditions,
buildings, etc., the transmission distance of approximately 50m is not guaranteed.
＊ When CW-5HD is placed near a device such a TV, the TV image may be disrupted. Please
increase the distance between TV and CW-5HD when this happens
＊ In locations with many other devices operating in the 5GHz wireless bandwidth, CW-5HD
operation can be affected, and images may be interrupted.
＊ Signal reception may be affected by the position, height and angle of placement. If
reception is not stable, please physically adjust placement for the optimised signal.
