IEI Technology KINO-TGL-U Manuale utente

Mini-ITX SBC Supports 11th Gen Intel® Core™ i7/i5/i3 or Celeron®

Processor (Tiger Lake-UP3 Mobile), 9V~36V DC Input, Quadruple

Independent Display, HDMI, DP, IEI eDP Module, SATA 6Gb/s,

Dual Intel® 2.5GbE, USB 3.2 Gen 2, M.2 and RoHS

KINO-TGL-U

Quick Installation Guide

Version 1.0

February 21, 2022

Package List

KINO-TGL-U package includes the following items:

1 x KINO-TGL-U single board computer with CPU cooler

1 x SATA cable

1 x I/O shielding

1 x QIG

Specifications

CPU:

11th Gen. Intel® mobile Tiger Lake-UP3 on-board processor:

Intel® Core™ i7-1185G7E (up to 4.4GHz, quad-core, 12M cache,

TDP=28/15/12W)

Intel® Core™ i5-1145G7E (up to 4.1GHz, quad-core, 8M cache,

TDP=28/15/12W)

Intel® Core™ i3-1115G4E (up to 3.9GHz, dual-core, 6M cache,

TDP=28/15/12W)

Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M cache,

TDP=15W)

Memory:

Two 260-pin 3200 MHz DDR4 SDRAM SO-DIMM slots supporting

up to 64 GB memory

BIOS:

AMI UEFI BIOS

Graphics Engine:

Intel® HD Graphics Gen 12 Gfx; up to 96EU; 2VDbox; AI (INT8),

HDMI 2.0 integrated, 4 display pipes, 8k60210b; AV1 codec, 12b

support, E2E compression, IPU6 FF

Display Outputs:

Three 4K independent display

1 x HDMI 2.0b (up to 4096 x 2160 @ 30 Hz)

1 x DP 1.4a (up to 4096 x 2160 @ 60 Hz)

1 x IEI IDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

Ethernet:

LAN1: Intel® I225V 2.5GbE controller

LAN2: Intel® I225V 2.5GbE controller

External I/O Interface:

4 x USB 3.2 Gen 2 (10Gb/s) (Type-A)

Internal I/O Interface:

2 x USB 2.0 (2x4 pin, p=2.0)

4 x RS-232 (2x5 pin, p=2.0)

1 x RS-232/422/485 (2x5 pin, p=2.0) (support Auto Flow Control

over RS-485)

1 x RS-422/485 (1x4 pin, p=2.0) (support Auto Flow Control over

RS-485)

2 x SATA 6Gb/s

Audio:

1 x IAUDIO connector supporting IEI AC-KIT-888S audio module

(2x5 pin, p=2.0)

Front Panel:

1 x Front panel (2x7 pin, p=2.54; power LED, HDD LED, speaker,

power button, reset button)

LAN LED:

2 x LAN LED (1x2 pin, p=2.0)

Expansions:

1 x PCIe x8 slot (x4 signal, open-ended slot)

1 x M.2 2242/2280 M-key (PCIe x2)

1 x M.2 2230 A-key (PCIe x1 & USB 2.0)

Digital I/O:

1 x 12-bit digital I/O (2x7 pin, p=2.0)

TPM

Intel® PTT (TPM 2.0)

SMBus:

1 x SMBus (1x4 pin, p=1.25)

I2C:

1 x I2C (1x4 pin, p=1.25)

Fan Connector:

1 x CPU fan connector (1x4 pin)

1 x System fan connector (1x4 pin)

Power Supply:

9V –36V DC power input

1 x Internal power connector (2x2 pin)

1 x External DC jack (Ø 5.5 mm)

Support AT/ATX mode

ErP/EuP compliant

Power Consumption:

[email protected], [email protected], [email protected], 36[email protected]9A

(Intel® Core™ i7-1185G7E CPU with one 8 GB 2933 MHz DDR4

SO-DIMM)

Watchdog Timer:

Software programmable support 1–255 sec. system reset

Operation Temperature: 0°C –60°C

Storage Temperature: -30°C –70°C

Operation Humidity: 5% –95%, non-condensing

Dimensions: 170 mm x 170 mm

Weight: GW:900 g / NW:400 g

Safety: CE/FCC compliant

All the drivers and utility for the KINO-

TGL-U are available on IEI Resource

Download Center. Type KINO-TGL-U

and press Enter to find all the relevant

software, utilities, and documentation.

To install software from the

downloaded ISO file, mount the file as

a virtual drive to view its content.

IEI Resource Download Center

https://download.ieiworld.com

Ordering Information

KINO-TGL-U-i7-R10:

Mini-ITX SBC supports 11th Gen Intel® Core™ i7-1185G7E

processor, DDR4 SO-DIMM, 9V~36V DC input, quad display, SATA,

dual Intel® 2.5GbE, USB 3.2, M.2, and RoHS

KINO-TGL-U-i5-R10:

Mini-ITX SBC supports 11th Gen Intel® Core™ i5-1145G7E

processor, DDR4 SO-DIMM, 9V~36V DC input, quad display, SATA,

dual Intel® 2.5GbE, USB 3.2, M.2, and RoHS

KINO-TGL-U-i3-R10:

Mini-ITX SBC supports 11th Gen Intel® Core™ i3-1115G4E

processor, DDR4 SO-DIMM, 9V~36V DC input, quad display, SATA,

dual Intel® 2.5GbE, USB 3.2, M.2, and RoHS

KINO-TGL-U-C-R10:

Mini-ITX SBC supports Intel® Celeron® 6305 processor, DDR4

SO-DIMM, 9V~36V DC input, quad display, SATA, dual Intel®

2.5GbE, USB 3.2, M.2, and RoHS

AC-KIT-888S-R10:

Realtek ALC888S 7.1 Channel HD Audio peripheral board, RoHS

32001-008600-200-RS:

Dual-port USB cable, 210mm, p=2.0

32102-000100-200-RS:

SATA power cable, MOLEX 8981-4M to SATA15P, 150mm

32205-002700-200-RS:

RS-232/422/485 cable, 200mm, p=2.0

Jumpers Setting and Connectors

LABEL

FUNCTION

J_ATX_AT1

AT/ATX power mode setting

J_CMOS1

Clear CMOS jumper

ME_FLASH1

Flash descriptor security override jumper

BAT1

RTC battery connector

IAUDIO

Internal audio connector for IEI audio module

IDPM

IEI IDPM slot (for IEI eDP/LVDS/VGA module)

DIMM1, DIMM2

DDR4 SO-DIMM slots

CN1

Internal power input connector

DIO1

Digital I/O connector

DEBUG_SPI1

EC debug connector

CPU/FAN1, SYS/FAN1

Fan connectors

F_PANEL1

Front panel connector

JI2C1

I2C connector

JP1

LAN1 link LED connector

JP2

LAN2 link LED connector

COM1, COM2,

COM3, COM4

RS-232 serial port connectors

COM5

RS-232/422/485 serial port connector

COM6

RS-422/485 serial port connector

SATA1, SATA2

SATA 6Gb/s connectors

SATA_PWR1,

SATA_PWR2

SATA power connectors

JSMB1

SMBus connector

JBIOS1

Flash SPI ROM connector

JEC2

Flash EC ROM connector

USB2_CN1

Internal USB 2.0 connector

M2_AE1

M.2 A-key slot

M2_M1

M.2 M-key slot

PCIE1

PCIe x8 slot (x4 signal)

PWR_SW1

Onboard power button

PWR1

External power jack

LAN1, LAN2

External 2.5GbE RJ-45 connectors

USB_CON1, USB_CON2

External dual USB 3.2 Gen 2 connectors

HDMI1

External HDMI connector

DP1

External DisplayPort connector

J_ATX_AT1: AT/ATX Power Mode Setting

PIN NO.

DESCRIPTION

Short 1 - 2

ATX Power Mode (default)

Short 2 - 3

AT Power Mode

J_CMOS1: Clear CMOS Jumper

Status

DESCRIPTION

N/C

Keep CMOS Setup

(Normal Operation)

Press button

Clear CMOS Setup

ME_FLASH1: Flash Descriptor Security Override Jumper

PIN NO.

DESCRIPTION

Open

Disabled (default)

Short

Enabled

IAUDIO: Internal Audio Connector for IEI Audio Module

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

HDA_SYNC

HDA_BIT_CLK

HDA_SDOUT

HDA_SPKR

HDA_SDIN

HDA_RST#

HDA_VCC

HDA_GND

HDA_+12V

HDA_GND

CN1: Internal Power Input Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

VIN

GND

VIN

DIO1 : Digital Input/Output Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

+5V

Output 5

Output 4

Output 3

Output 2

Output 1

Output 0

Input 5

Input 4

Input 3

Input 2

Input 1

Input 0

DEBUG_SPI1: EC Debug Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

EDICS

EDIDO

EDICLK

EDIDI

GND

CPU/FAN1: CPU Fan Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

+12V

Rotation Signal

PWM Control Signal

SYS/FAN1:System Fan Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

+12V

Rotation Signal

PWM Control Signal

JI2C1: I2C Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

I2C_CLK

I2C_DATA

+5V

JSMB1: SMBus Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

SMB_CLK

SMB_DATA

+5V

F_PANEL1: Front Panel Connector

DESCRIPTION

PWR

LED

PWR_LED+

BEEP_PWR

SPKR

PWR_LED-

PWR

BTN

PWR_BTN+

PC_BEEP

PWR_BTN-

HDD

LED

HDD_LED+

Reset+

RESET

HDD_LED-

Reset-

JP1: LAN1 Link LED Connector

DESCRIPTION

+3.3V

LAN1_LED_LNK#_ACT

JP2: LAN2 Link LED Connector

DESCRIPTION

+3.3V

LAN2_LED_LNK#_ACT

COM1, COM2, COM3, COM4: RS-232 Serial Port Connectors

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

DCD

DSR

RXD

RTS

TXD

CTS

DTR

GND

COM5: RS-232/422/485 Serial Port Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

DCD

DSR

RXD

RTS

TXD

CTS

DTR

GND

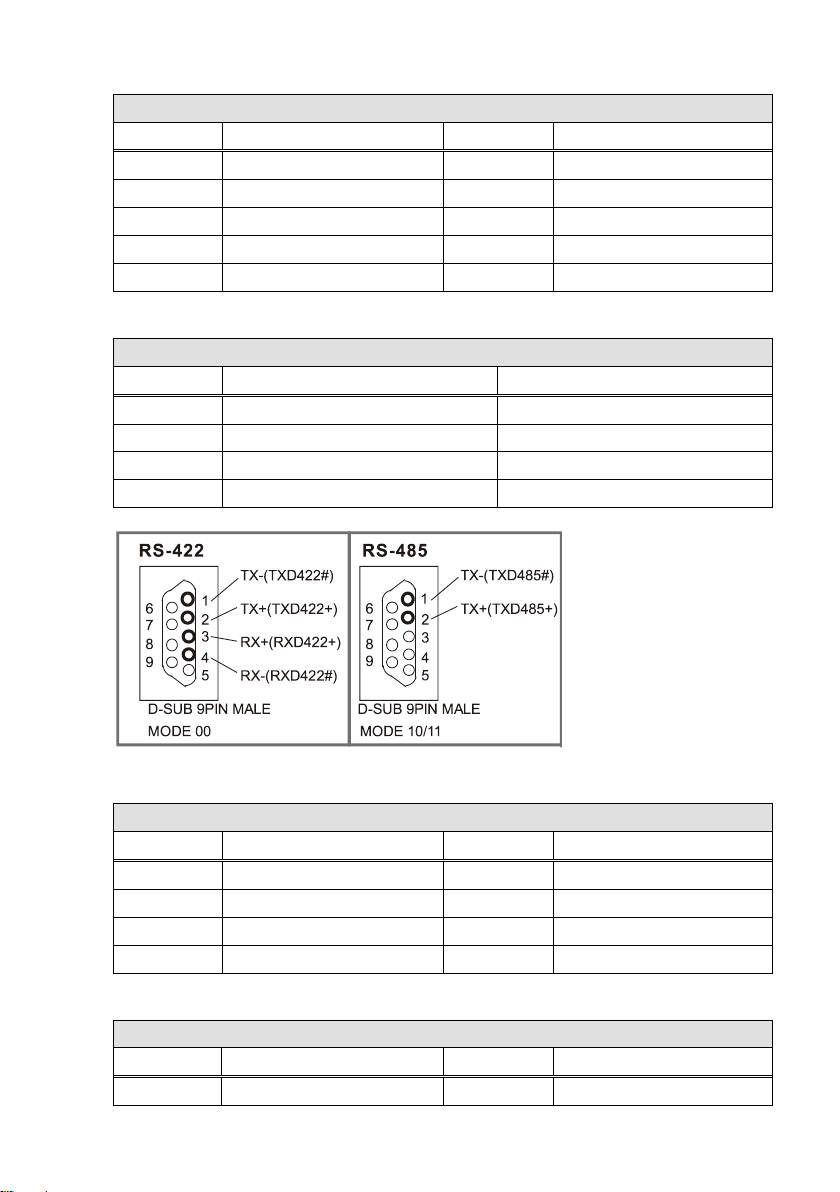

COM6: RS-422/485 Serial Port Connector

PIN NO.

RS-422

RS-485

RXD-

RXD+

TXD+

DATA+

TXD-

DATA-

SATA1, SATA2: SATA 6Gb/s Connectors

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

GND

SATA_RX‐

SATA_TX+

SATA RX+

SATA_TX‐

GND

N/C

SATA_PWR1, SATA_PWR2: SATA Power Connectors

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+5V

GND
