IFM O5D15 Series Manuale utente

Operating instructions

Optical distance sensor

O5D15x UK

80284257 / 00 04 / 2019

Contents

1 Preliminary note��3

1�1 Symbols used ��3

2 Safety instructions ��3

3 Functions and features ��4

3�1 Applications ��4

4 Installation��5

4�1 Installation conditions ��5

5 Operating and display elements ��5

6 Electrical connection��6

7 Settings��7

7�1 The sensor is to switch when the object is detected��7

8 IO-Link ��7

8�1 General information ��7

8�2 Device-specific information��7

8�3 Parameter setting tools��7

9 Operation��8

9�1 Electronic lock��8

9�2 Fault indications��8

10 Maintenance, repair and disposal��9

1 Preliminary note

1.1 Symbols used

►Instructions

> Reaction, result

[…] Designation of keys, buttons or indications

→Cross-reference

Important note

Non-compliance may result in malfunction or interference�

2 Safety instructions

• The device described is a subcomponent for integration into a system�

- The manufacturer of the system is responsible for the safety of the system�

- The system manufacturer undertakes to perform a risk assessment and to

create a documentation in accordance with legal and normative requirements

to be provided to the operator and user of the system� This documentation

must contain all necessary information and safety instructions for the operator,

the user and, if applicable, for any service personnel authorised by the

manufacturer of the system�

• Read this document before setting up the product and keep it during the entire

service life�

• The product must be suitable for the corresponding applications and

environmental conditions without any restrictions�

• Only use the product for its intended purpose (→ Functions and features).

• If the operating instructions or the technical data are not adhered to, personal

injury and/or damage to property may occur�

• The manufacturer assumes no liability or warranty for any consequences

caused by tampering with the product or incorrect use by the operator�

• Installation, electrical connection, set-up, operation and maintenance of the unit

must be carried out by qualified personnel authorised by the machine operator�

• Protect units and cables against damage�

According to cULus

Caution - Use of controls or adjustments or procedures other than those specified

herein may result in hazardous radiation exposure�

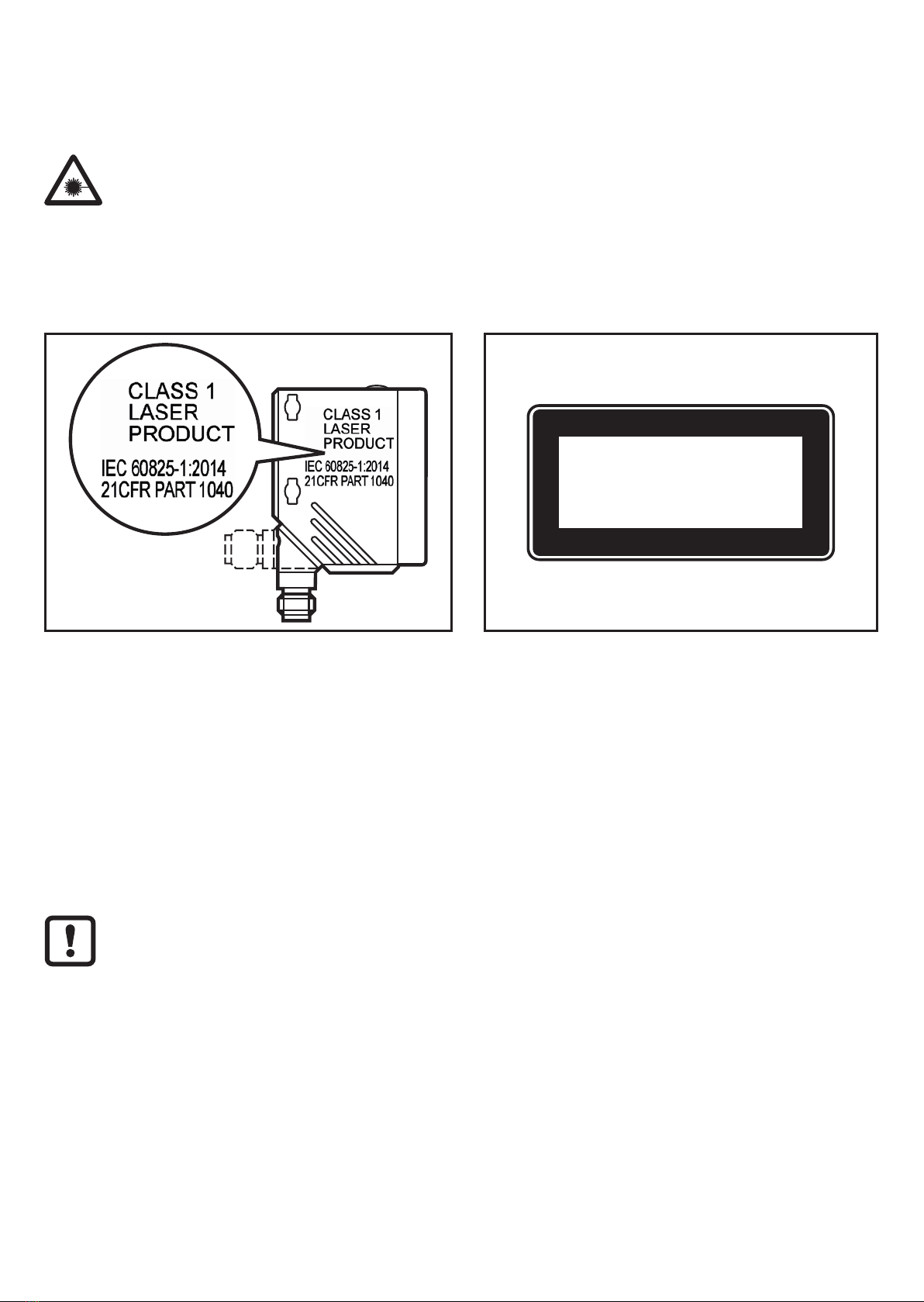

Visible laser light; CLASS 1 LASER PRODUCT�

EN/IEC 60825-1 : 2007 and EN/IEC 60825-1 : 2014 complies with 21 CFR

1040 except for deviations pursuant to Laser Notice No� 50, dated June

2007

Position of the product label Warning sign

LASER KLASSE 1

CLASS 1 LASER PRODUCT

APPAREIL A LASER CLASSE 1

3 Functions and features

The unit is used as an optical distance sensor�

3.1 Applications

• The optical distance sensor measures distances between 0�03 and 2 m�

• It has a background suppression of up to 20 m�

• The switching outputs are complementary�

The distance between the sensor and the background must be limited

to max� 20 m by the customer� Otherwise measured values can be

ambiguous → 4.1 Installation conditions.

4 Installation

4.1 Installation conditions

►Install the unit so that the object to be detected is within a measuring range of

0�03��2 m�

Any object between the set switch point and a distance of 20 m from the sensor is

suppressed�

Reflecting surfaces in the direct beam path of the sensor – also in

the range > 20 m – are to be avoided by the customer� Otherwise the

measured values can be ambiguous�

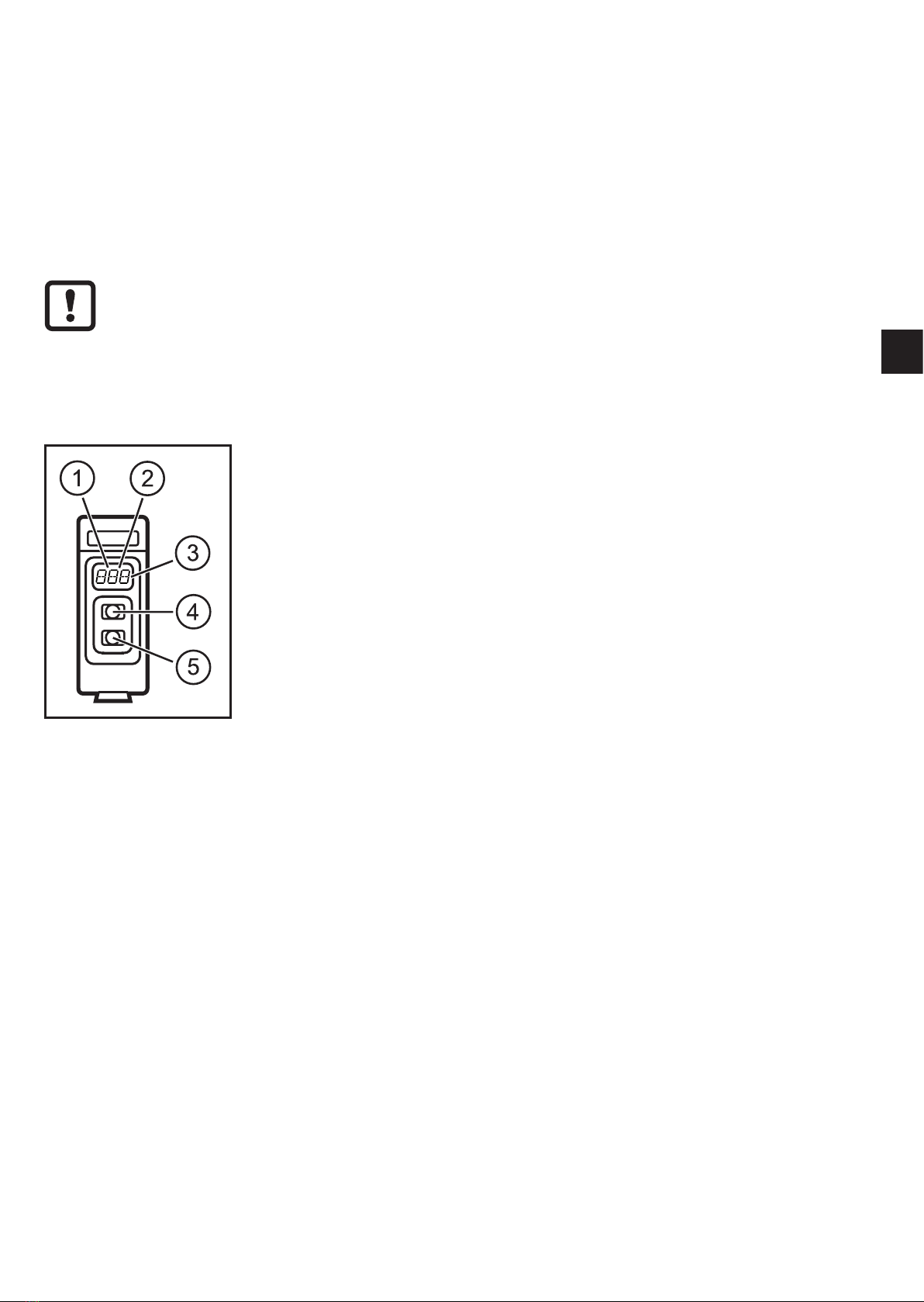

5 Operating and display elements

1: LED green: operation

2: LED yellow: switching status

3: 3-digit alphanumeric display

4: Range +

5: Range -

6 Electrical connection

The unit must be connected by a qualified electrician�

►The national and international regulations for the installation of

electrical equipment must be adhered to�

►Ensure voltage supply to EN 50178�

►Disconnect power�

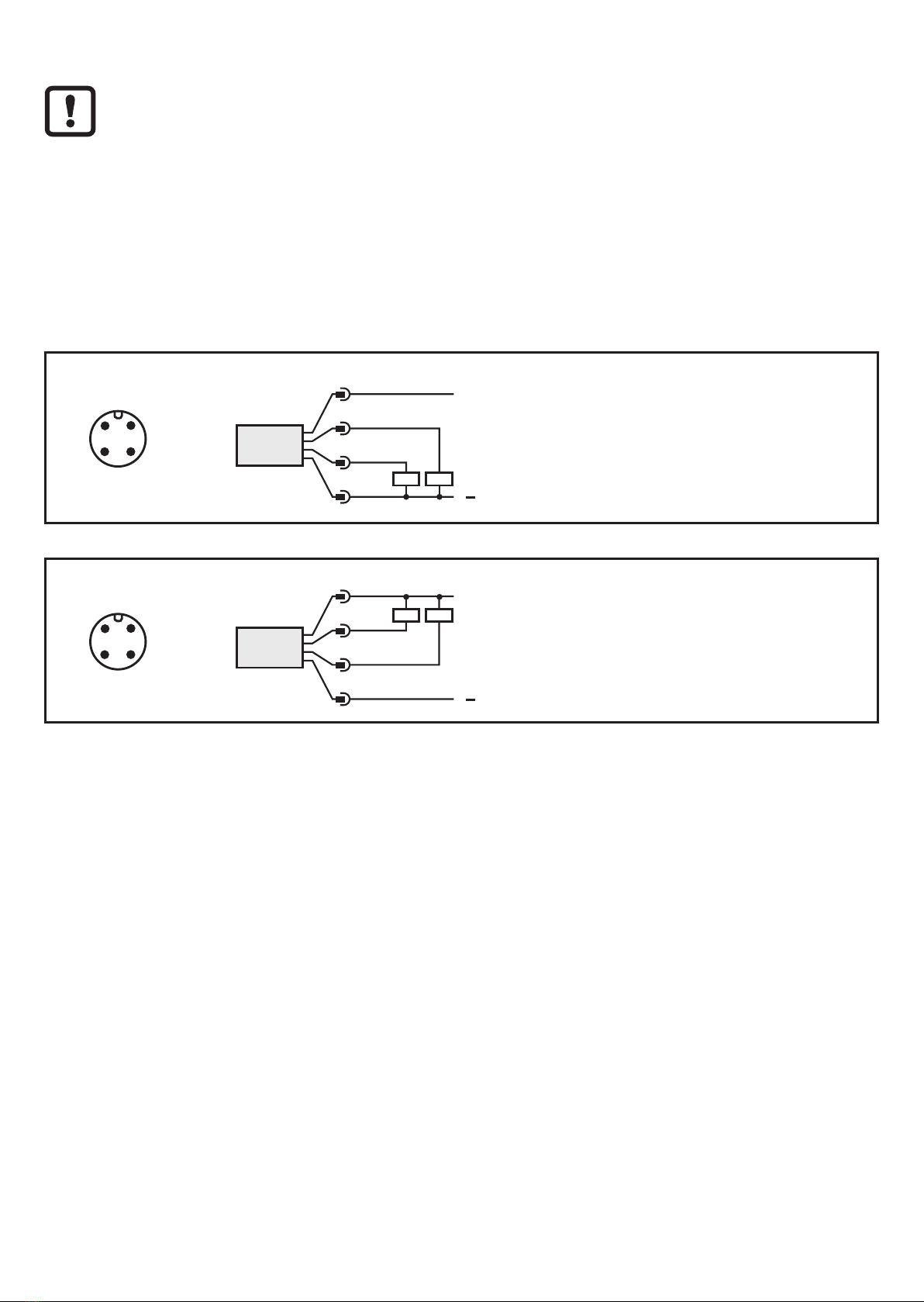

►Connect the unit as follows:

DC PNP

























4: OUT1 = normally open / IO-Link

2: OUT2 = normally closed

DC NPN

























4: OUT1 = normally open / IO-Link

2: OUT2 = normally closed

Core colours of ifm sockets:

1 = BN (brown), 2 = WH (white), 3 = BU (blue), 4 = BK (black)

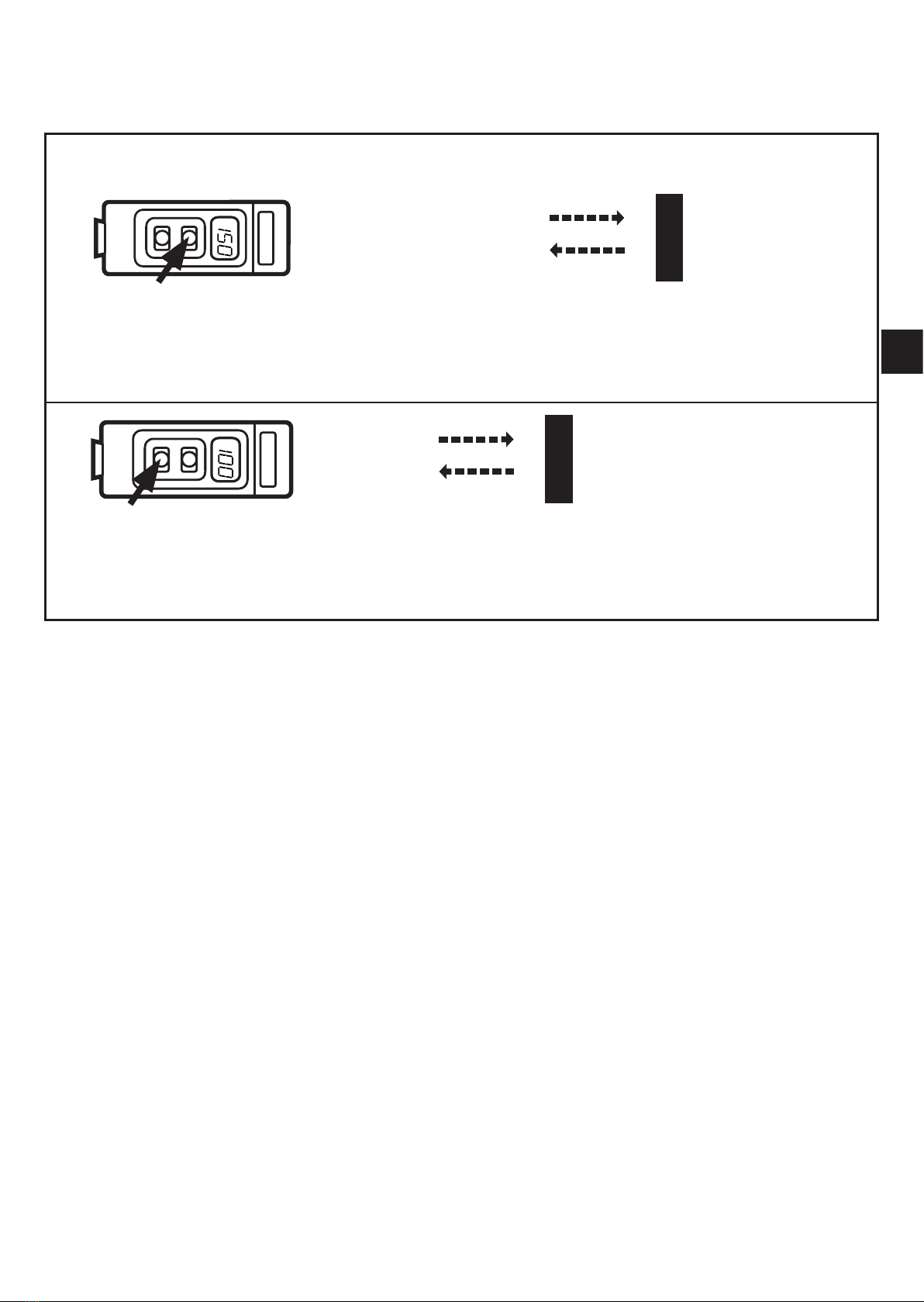

7 Settings

7.1 The sensor is to switch when the object is detected

►Position the object�

►Press [+] to increase the range�

> The set distance value is shown flashing in the display�

> The yellow LED lights when the object is detected�

►Press [-] to decrease the distance value�

> The set distance value is shown flashing in the display�

> During operation, the currently detected distance value is shown in the display�

8 IO-Link

8.1 General information

This unit has an IO-Link communication interface which requires an IO-Link-

capable module (IO-Link master) for operation.

The IO-Link interface enables direct access to the sensor values and parameters

and provides the possibility to set the parameters of the unit during operation�

In addition communication is possible via a point-to-point connection with a USB

adapter cable�

You will find more detailed information about IO-Link at www�ifm�com�

8.2 Device-specific information

You will find the IODDs necessary for the configuration of the IO-Link device and

detailed information about sensor values, diagnostic information and parameters

in the overview table at www�ifm�com�

8.3 Parameter setting tools

You will find all necessary information about the required IO-Link hardware and

software at www�ifm�com�

9 Operation

►Check whether the unit operates correctly�

> The LED lights when the switching output is switched�

> The detected distance value is shown in the display�

9.1 Electronic lock

The unit can be locked electronically to prevent unauthorised setting� On delivery

the unit is not locked�

Locking

►Make sure that the unit is in the normal operating mode�

►Keep [+] + [-] pressed until [Loc] is displayed�

> The unit is locked�

Unlocking

►Keep [+] + [-] pressed until [uLo] is displayed�

> The unit is unlocked�

9.2 Fault indications

Display Possible cause Switching output

[Hno] [Hnc]

[++] Too much light,

e�g� reflective surfaces ON OFF

[--] Not enough light, no object OFF ON

[nEA] Object to be measured outside the

measuring range < 30 mm ON OFF

[FAr] Object to be measured outside the

measuring range > 2500 mm OFF ON

[ERP] Plausibility (e.g. object too fast) unchanged unchanged

[SC] Short circuit at the switching output

10 Maintenance, repair and disposal

► Keep the front pane of the sensor free from soiling.

►For cleaning do not use any solvents or cleaning agents which could damage

the plastic material�

►Do not open the module housing� There are no user-serviceable components

inside�

Technical data and further information at www�ifm�com
