THE DDXI - DVI/VGA KVM EXTENDER FAMILY

Welcome to the DDXI DVI/VGA KVM Extender

Family!

Thank you for purchasing a DDXI DVI/VGA KVM Extender model! We appreciate

your business, and we think you’ll appreciate the many ways that your enhanced

keyboard/video/mouse system will save you money, time, and effort.

That’s because our DDXI DVI/VGA KVM Extender family is all about breaking away

from the traditional, expensive model of computer management. You know the one-

size-fits-all-even-if-it-doesn’t model that says, “One computer gets one user station,

no more, no less.” Why not a pair of user stations, each of which can control multiple

computers? Why not multiple user stations for the same computer?

With our DDXI DVI/VGA KVM Extender products, there’s no reason why not. We

carry a broad line of robust solutions for all these applications. The DDXI DVI/VGA

KVM Extender family—the one-stop answer for all your KVM-extending needs!

This manual will tell you all about your new DDXi DVI/VGA KVM Extender, including

how to install, operate, and troubleshoot it. For an introduction to the Extender, see

Chapter 2. The Extender product codes covered in this manual are:

K439-0W: DDXi DVI/VGA KVM Extender over Cat5 – DVI/VGA only

K439-1W: DDXi DVI/VGA KVM Extender over Cat5 – PS/2

K437-0W: DDXi DVI/VGA KVM Extender over Multimode Fibre – DVI/VGA only

K437-1W: DDXi DVI/VGA KVM Extender over Multimode Fibre – PS/2

K438-0W: DDXi DVI/VGA KVM Extender over Singlemode Fibre – DVI/VGA only

K438-1W: DDXi DVI/VGA KVM Extender over Singlemode Fibre – PS/2

K442-2U: DDXi DVI/VGA KVM Extender over Multimode Fibre – USB

K443-2U: DDXi DVI/VGA KVM Extender over Singlemode Fibre – USB

DDXI DVI/VGA KVM EXTENDER FAMILY

Copyrights and Trademarks

without the prior written consent of the manufacturer.

Information in this document is subject to change without notice and the

manufacturer shall not be liable for any direct, indirect, special, incidental or

consequential damages in connection with the use of this material.

All trademark and trade names mentioned in this document are acknowledged to be

the property of their respective owners.

Disclaimer

While every precaution has been taken in the preparation of this manual, the

manufacturer assumes no responsibility for errors or omissions. Neither does the

manufacturer assume any liability for damages resulting from the use of the

information contained herein. The manufacturer reserves the right to change the

specifications, functions, or circuitry of the product without notice.

The manufacturer cannot accept liability for damage due to misuse of the product or

due to any other circumstances outside the manufacturer’s control (whether

environmental or installation related). The manufacturer shall not be responsible for

any loss, damage, or injury arising directly, indirectly, or consequently from the use of

this product.

Cautions and Notes

The following symbols are used in this guide:

CAUTION. This indicates an important operating instruction

that should be followed to avoid any potential damage to

hardware or property, loss of data, or personal in ury.

NOTE. This indicates important information to help you make the best

use of this product.

EMPTY PAGE

DDXI DVI/VGA KVM EXTENDER FAMILY

EUROPEAN UNION DECLARATION OF CONFORMITY

This is to certify that, when installed and used according to the instructions in

this manual, together with the specified cables and the maximum cable length

<3m, the Units:

K439-0W, K439-1W

K437-0W, K437-1W

K438-0W, K438-1W

K442-2U, K443-2U

are shielded against the generation of radio interferences in accordance with

the application of Council Directive 89/336/EEC as well as these standards:

EN 55022: 1999 Class A

EN 55024: 1999

IEC 61000-4-2: 2001

IEC 61000-4-3: 2001

IEC 61000-4-4: 2001

EN 61000-3-2 2001

EN 61000-3-3 2002

The device was tested in a typical configuration with PC.

Oberteuringen, Wednesday, October 21

, 2006

The management

This equipment has been found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

CONTENTS

Safety Precautions and Installation Guidelines

To ensure reliable and safe long-term operation, please note the following installation

guidelines:

•Do not use CATx-devices to link between buildings – please use fiber devices.

•Only use in dry, indoor environments.

•If the building has 3-phase AC power, try to ensure that equipment connected to

the Local and Remote units is on the same phase.

•Try not to route a CATx link cable alongside power cables.

•Ensure that the system connected to the Local unit is connected to power

ground.

•Ensure that the monitor connected to the Remote unit is connected to power

ground and does not use an isolated power supply.

•The Remote unit, Local unit and any power supplies can get warm. Do not

locate them in an enclosed space without any airflow.

•Do not place a power supply directly on top of a unit.

•Do not obstruct a unit’s ventilation holes.

To safeguard against personal in ury and avoid possible

damage to equipment or property, please observe the

following:

•Only use power supplies originally supplied with the

product or manufacturer-approved replacements. Do not

attempt to dismantle or repair any power supply. Do not

use a power supply if it appears to be defective or has a

damaged case.

•Connect all power supplies to grounded outlets. In each

case, ensure that the ground connection is maintained

from the outlet socket through to the power supply’s AC

power input.

•Do not attempt to modify or repair this product, or make

a connection from the CATx link interface (RJ45) or the

Fiber link interface (SC-Duplex) to any other products,

especially telecommunications or network equipment.

•To comply with CE regulations, it is NOT allowed, to use

CATx devices with unshielded CATx cables

DDXI DVI/VGA KVM EXTENDER FAMILY

Contents

1. Quick Setup 8

1.1

Video Input/Output 9

1.2

Command Summary 10

2. Overview 11

2.1

Introduction 11

2.2

Glossary 11

2.3

Features 13

2.4

Product Range 14

2.5

Compatibility 15

2.6

How to Use This Guide 16

3. Installation 17

3.1

Package Contents 17

3.2

Interconnection Cable Requirements 18

3.3

System Setup 19

3.4

Diagnostic LEDs 23

3.5

Access Switching 24

3.6

Private Mode 24

4. Device Control 25

4.1

Opening the OSD 26

4.2

Using the OSD 28

5. Monitor Setup 36

6. Extender Setup 37

6.1

Overview 37

6.2

Setup Instructions for VGA Input 38

7. Troubleshooting 40

7.1

Video 40

7.2

Keyboard & Mouse 41

Appendix A: Example Applications 42

CONTENTS

Appendix B: Rack Mount Options 46

Appendix C: System Upgrade & Dual Access 48

Appendix D: Video Modes and Frame Rates 49

Appendix E: USB – High Power/Low Power 51

Appendix F: Audio/Serial Upgrade 52

Appendix G: Calling Technical Support 54

Appendix H: Specifications 55

Appendix I: Connectors and Cables 58

DDXI DVI/VGA KVM EXTENDER FAMILY

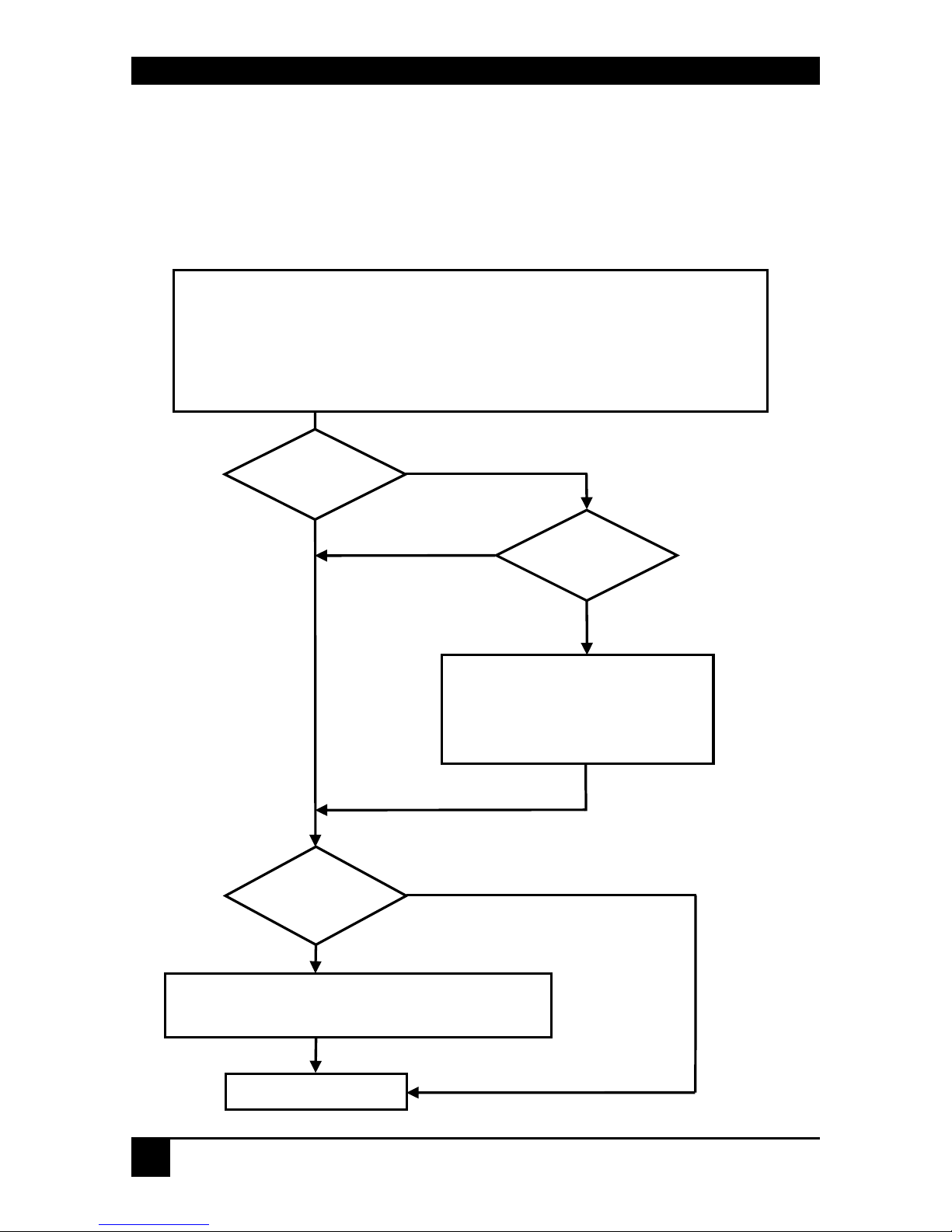

1. Quick Setup

This section briefly describes how to install your DDXI DVI/VGA KVM-Extender and

optimize the video signals. Unless you are an experienced user, we recommend that

you follow the full procedures described in the rest of this manual. Refer to the

command summary on page 10 when following this procedure.

Install system

1. Connect Remote unit to KVM.

2. Connect Local unit to CPU or switch.

3. Connect Local and Remote units with matching interconnection cable

(CATx, Multimode or Singlemode fiber).

4. Power up the system.

Carry out the Monitor Setup

procedure (please refer to its

manual and see page 36 in

this manual).

Carry out VGA Input Setup procedure

(please follow the instructions on page 38).

Done

Yes

Do you have a

DVI monitor?

Do you have a

DVI source?

Do you

have a flat screen

(TFT)?

Yes

QUICK SETUP

1.1 Video Input/Output

If possible, always use DVI output from your computer’s video card and DVI input to

a monitor. This provides the optimum video signal. If you use a VGA output from your

graphic source, the DVI-KVM Local unit must digitize the signal prior to transmission.

Similarly, if your remote TFT screen uses a VGA input, it must digitize the signal from

the Remote unit. In both cases, the built-in video processors must determine the

resolution and pixel phase for an optimized digitization. Your DVI Extender allows

you to optimize the video signal manually or automatically using its on-screen utility

(see Chapter 4). If you are using a VGA input to a TFT monitor, please follow the

manufacturer’s instructions.

You may have several possible options for video source output/monitor input. If this

is the case, for the optimum video quality, please select the highest ranked available

combination from the following table:

Video Quality Local Unit input Remote Unit output

1 DVI DVI

2 DVI VGA

3 VGA DVI

4 VGA VGA

DDXI DVI/VGA KVM EXTENDER FAMILY

1.2 Command Summary

The following table summarizes the ‘hot’ key command sequences used in system

configuration and video tuning on a Remote unit console.

Command

Keyboard

at Remote unit

Terminal or

Windows Utility program*

Enter OSD <Left Control>

+ <Left Shift> + <I>

+ <Enter>

Exit OSD <ESC> <X>

Select next

position <Right Arrow> <R>

Select previous

position <Left Arrow> <L>

Select Submenu <Enter> <S>

Select parameter

modification <Enter> <S>

Increase

parameter <Right Arrow> <R>

Decrease

parameter <Left Arrow> <L>

Accept and store

modified

parameter

Back to the Menu

selection

* Commands are not case-sensitive.
