IKA 50198.01 Manuale utente
IKA Service-Manual
IKA®
IKA – Werke GmbH & Co. KG
Janke & Kunkel-Str. 10
D - 79219 Staufen
Phone: +49 (0)7633 831-139 / 202
Fax: +49 (0) 7633 831-909
E-Mail: service@ika.de
Internet: http://www.ika.com/
Magenetic Stirrer / Magnetrührer
RH digital
IKA ID: 50198.01
Version: USA (115V)
Type:
Item No.:
5019801
Date:
SZ: 5019800SZ
Pos
Item No
Bezeichnung
Description
Technical data
Bemerkung
Remark
1 0005011300 Aufstellplatte heating surface
2 0004500501 Heizfolie heating foil
115V
3 0004136300 Thermoelement Thermo-couple sensor
4 0005016800 Andruckblech pressure sheet
5 0005011400 Isolierung isolation
6 0004378400 Kunststoffring Plastic Ring
7 0004488101 Spaltpolmotor shaded pole motor
115V
8 0004109800 Magnetträger magnet carrier
9 0004109700 Halterung bracket
10 0004444600 Plastik Luefter Plastic Fan
11 0004281700 Platte plate
12 0003409300 Magnetträger Magnet
13 0004113700 Gehäuse Oberteil upper housing
14 0004108800 BLP Abstandshalter PCB Spacer
16 0004281800 Isolierfolie Isolation film
17 0004281900 Isolierfolie Isolation Film
18 0003409200 FILTERFOLIE FILTER FOIL
19 0004109000 Frontfolie RH digital front foil RH digital
20 0003483400 CLIP TRIACBEFESTIGUNG CLIP TRIAC FASTENING
21 0003341400 WINKELSTECKER 4-fach RIGTH-ANGLE PLUG quadruple
22 0002839900 EINBAUGERÄTESTECKER ASSEMBLY APPARATUS PLUG
23 0004344900 Kontakt Therm. Buchse cont. therm. connector
24 0001584003 Kontaktstecker Contact plug
25 0003341300 KUNSTSTOFFSCHEIBE PLASTICS WASHER
26 0000310300 Kabelbinder Cable clamp
27 0004113800 Gehäuse Unterteil lower housing
28 0003408900 Geraetefuß foot
30 0004299100 Schutzhaube Protection Cover H 103
31 0004139700 Folie Safe Temp foil Safe Temp
32 0001787100 Schraubstopfen Screw cap
33 0002986600 DRUCKFEDER COMPRESSION SPRING
34 0003548600 DRUCKFEDER PRESSURE SPRING
35 0004553200 Zylinder Schraube Crossed recessed cheese head screw
M3x16
36 0003019000 ZAHNSCHEIBE TOOTHED LOCK WASHER
A 4,3 A2
37 0002410800 Sechskantmutter Hexagon nut
M 4,0 A2
38 0004663700 Litze stranded wire
39 0003189500 LINSENSCHRAUBE OVAL HEAD SCREW M 3,0x25,0 A2
40 0003460800 GEWINDESTIFT HEXAGON SOCK.SET SCREW M 4,0x 6 A2
27. Feb. 2014
RH digital
Voltage: 115V 50/60Hz IKA
®
Service-Manual
1 / 2
Type:
Item No.:
5019801
Date:
SZ: 5019800SZ
Pos
Item No
Bezeichnung
Description
Technical data
Bemerkung
Remark
27. Feb. 2014
RH digital
Voltage: 115V 50/60Hz IKA
®
Service-Manual
41 0004345300 TORX-TAPT.ZYL.SCHRAUBE TORX-TAPT.CH.H.SCREW M 4,0x 8,0
42 0003416300 ZAHNSCHEIBE LOCK WASHER V 4,3
43 0025000963 Senkschraube, Innensechskant screw-countersunk, hexalobular socket M4x16
44 0004345400 TORX-TAPT.ZYL.SCHRAUBE TORX-TAPT.ZYL.SCHRAUBE M 4,0x 25,0
46 0000831900 Taptite LinsenschraubeTORX Taptite screw Torx M 4,0x12,0
47 0004410300 Verbindungskabel Connecting cable
48 0004344800 Verbindungskabel connection cable
49 0004345100 Flachbandleiter flat cable
54 0004570500 Schutzgriff Protection Handle 3 x 1,40 sw 1,50m
1810 3564500 Netzkabel H11 USA Power Cord H11 USA 3 x 1,40 sw 1,50m
1960 0004049500 Schraubendreher screw driver
2001 0004166700 Heizplatte komplett Heating plate complete
3001 0004647400 BLP Main RH digital PCB Main RH digital BLP komplett "4095011" bestehend PCB complete "4095011" includes
3002 0004647601 Display-BLP RH Digital Display-PCB RH-Digital aus Pos. 3001, 3002, 3003, 3004 Pos 3001, 3002, 3003, 3004
3003 0004647700 BLP Schalter RH basic PCB switch
3004 0004647800 BLP Lichtschranke RH basic PCB photo sensor
3005 0003859600 Potiachse poti axis
2 / 2

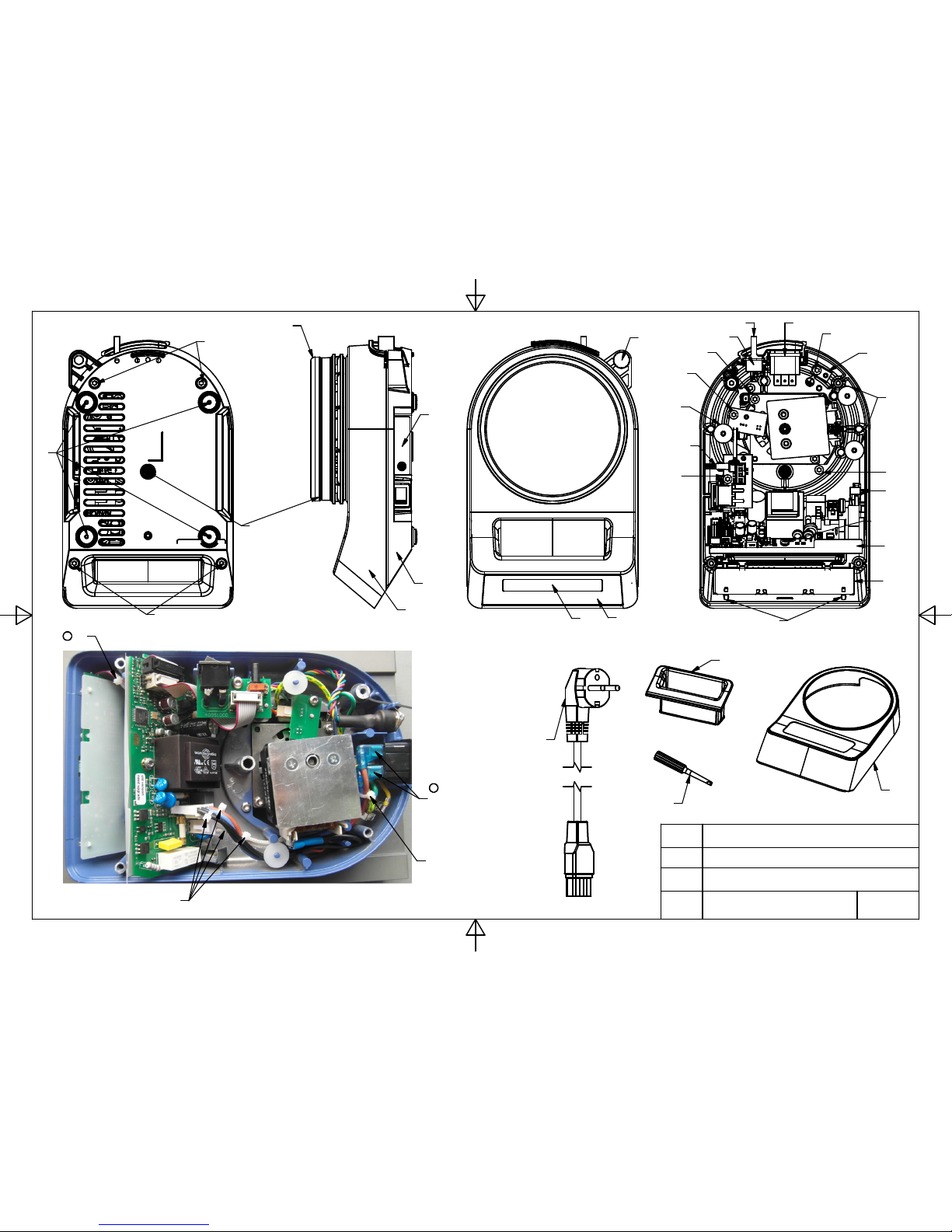

Servicezeichnung / service drawing
RH digital
50 198 00_SZ_c
11.11.13
IKA
}
ib
30
54
1960
1 / 2
23
16
24
44
44
45
45
45+36
45+36
25
25
22
21
20
17
14
46
46
28
Protective earth conductor test
according to DIN EN 61010
/ Schutzleiterprüfung
nach DIN EN 61010
31
32
18 19
3005
26
Cable tie should be
close to power terminal
/ Kabelbinder sollte
nahe Netzbuchse sein
26
1810
2001
heating plate
complete
27
13
Protective cover/
Schutzhaube
26
Two plugs should be
assemblied on one
direction to high voltage area.
c
c
Servicezeichnung / service drawing
RH digital
50 198 00_SZ_c
11.11.13
IKA
}
ib
48
45+36
BK
BU
BW
GNYE
GNYE
GNYE
47
49
thermocouple-sensor heating foil
shaded-pole-motor
heating plate complete
23 22
3003
PCB-switch
3002
PCB-display-digital
Wiring diagram
1
2
3
4
5
6
7
33
35
34
39
clamping torque
/ Drehmoment 0.8 Nm
55
43
42
41
36
36
44
40
36
37
clamping torque
/ Drehmoment 1.2Nm
34
39
clamping torque
/ Drehmoment 0.8 Nm
12
11
10
41
36
9
36
44
8
3001
PCB-main-digital
3004
PCB-photo-sensor
GNYE
2 / 2
housing upper
housing lower
19
2001
heating plate
complete
7
38
