HS-PT700-UGK
Quick Start Guide
HomeStream Teleprompter Upgrade Kit w/ 7” Monitor, Elite Remote, and PrompterPro 4
www.ikancorp.com
What’s Included
1 x 7” Monitor
1 x Mini-HDMI to HDMI Cable
1 x Micro-USB Cable with Power Adapter
1 x Elite Remote
1 x PrompterPro4
www.ikancorp.com

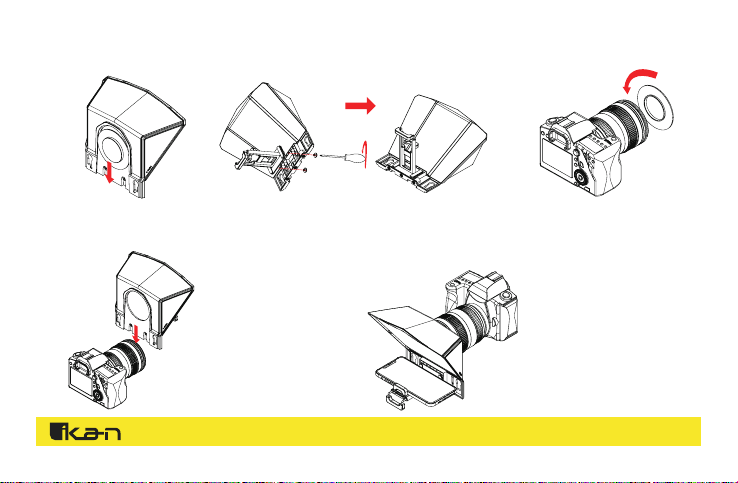

Installation Steps (DSLR or Mirrorless Camera)
1. Remove the rear cover of
the teleprompter
4. Install the teleprompter by
sliding it over the ring adapter
2. If using a phone, attach clamp
small side up. If using monitor, use
larger adjustment side.
5. Place either monitor or smartphone
on the clamp
3. Install the lens adapter by screwing
it to your lens. Make sure the adapter
is screwed on completely.
2
www.ikancorp.com

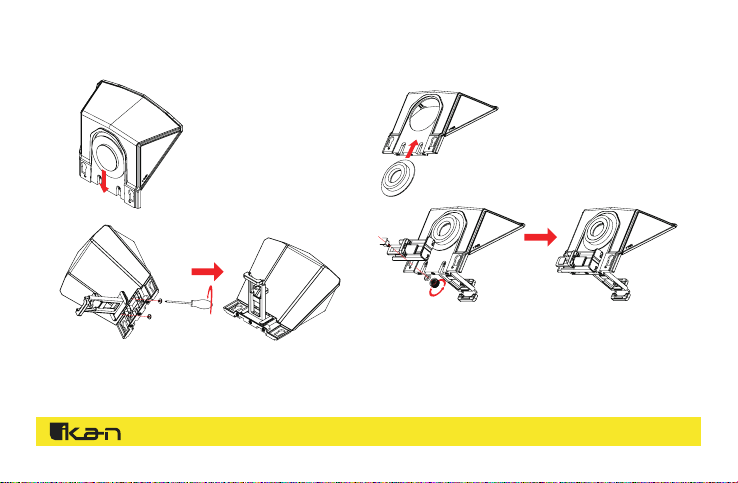

Installation Steps (Smartphone as Camera)
1. Remove the front
and rear cover of the
teleprompter
2. Install the adapter ring with
foam on the adapter
3. If using a phone, attach clamp small side up.
If using monitor, use larger adjustment side.
4. Unscrew the knob from the smartphone holder.
Smartphone holder can be installed on either side
depending on your preference. To record horizontal
footages install smartphone holder vertically. To record
vertical footages install smartphone holder horizontally.
www.ikancorp.com

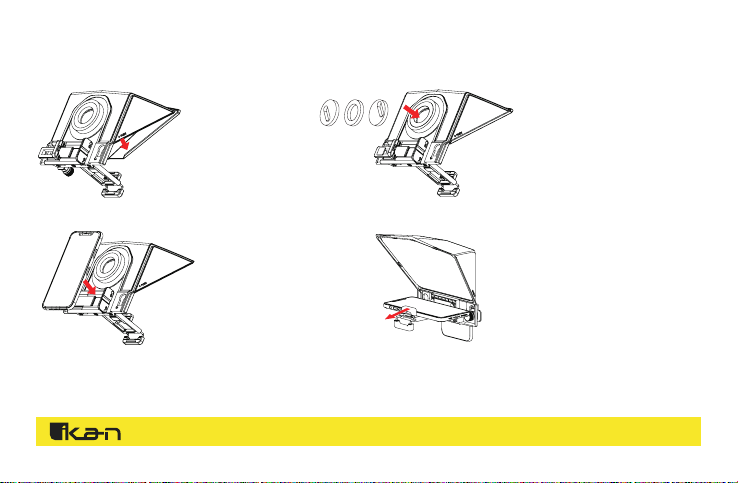

Installation Steps (Smartphone as Camera)
5.Remove the protective
cover of the teleprompter
6. Based off the camera of your
smartphone place one of the two
foam rings into the adapter ring
7. Attach the phone to the
smartphone holder. Foam
ring may need to be rotated
and adjusted for various
smartphone camera locations
8. Place either monitor or
smartphone on the clamp
www.ikancorp.com
Bluetooth Remote Controller
(For HomeStream Teleprompter App Only)
Play / Pause
Menu (Android only)
Return (Android)
Home (iOS)
Page Up
Slow Down
Speed Up
Page Down
Pressing the downward position
can trigger the Play/Pause feature
www.ikancorp.com
Bluetooth Remote Controller
(For HomeStream Teleprompter App Only)
Instructions
DISCLAIMER
HomeStream remote only works with iOS or Android; Does not work with Windows or MacOS.
• Power On: Hold down power button for 2 seconds LED light will come on.
• Power Off: Hold down power button for 5 seconds LED light will turn off.
• Pairing Remote: Once the remote is turned on it will be placed in auto pair mode. In your phone’s Bluetooth
settings locate the HOMESTREAM remote to pair. If you want to pair to a different/new device turn off the
remote. Hold down the power button for 8 seconds and the LED light should blink indicating the remote is in
pairing mode.
• Power Saving Feature: If the remote is not paired to a device, it will turn off after being in idle for 5 minutes. If
the remote is connected to a device, it will turn off after being in idle for 30 minutes.
www.ikancorp.com
ELITE-REMOTE
For PrompterPro4
compatible with Windows or MacOS Play / Stop
Slow Down
Prompt
Speed Up
Prompt
LED Indicator
Laser Pointer
Page Up Page Down
Cue Up* Cue Down*
*For Cue Up & Down
feature, add an asterisk
to your script
N/A N/A
Pairing Instructions
• Turn on remote by inserting 2 AAA batteries in
the battery compartment.
• Press and hold the “Slow Down Prompt & Speed
Up Prompt” buttons for 3 seconds. The LED
indicator should rapidly blink blue.
• Select Elite RC on your computer to pair.
www.ikancorp.com
Telepromper App
The Homestream teleprompter app can be found by searching in either the iOS App Store or the Android Play
Store for “HomeStream Teleprompter”
Learn More
More dynamic information at official website: www.ikancorp.com
Support
www.ikancorp.com
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:
(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2021 Ikan International. All rights reserved.
