Ikegami IK-H750V Manuale utente
TFT-LCD Color Monitor
IK-H750V /IK-H950V
Printed on the recyclable paper
Printed in Thailand
Part No. 942667020001 - 01
User s Manual
Parts 3
Connection to Signal Source 4
The range of control Angle 5
Name and Function of Front 6
Power Management Feature 8
Adjusting OSD 9
Standard Signal Table 22
Specification 24
Troubleshooting 26
Warning 28
Table of Contents
INFORMATION TO USER :
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and,if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation
CAUTION
Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the user's
authority to operate the equipment
ENERGY STAR
As an ENERGY STAR partner, Hansol Electronics Inc.
has determined that this product meets ENERGY STAR guidelines
for energy efficiency.
English - 32 - English

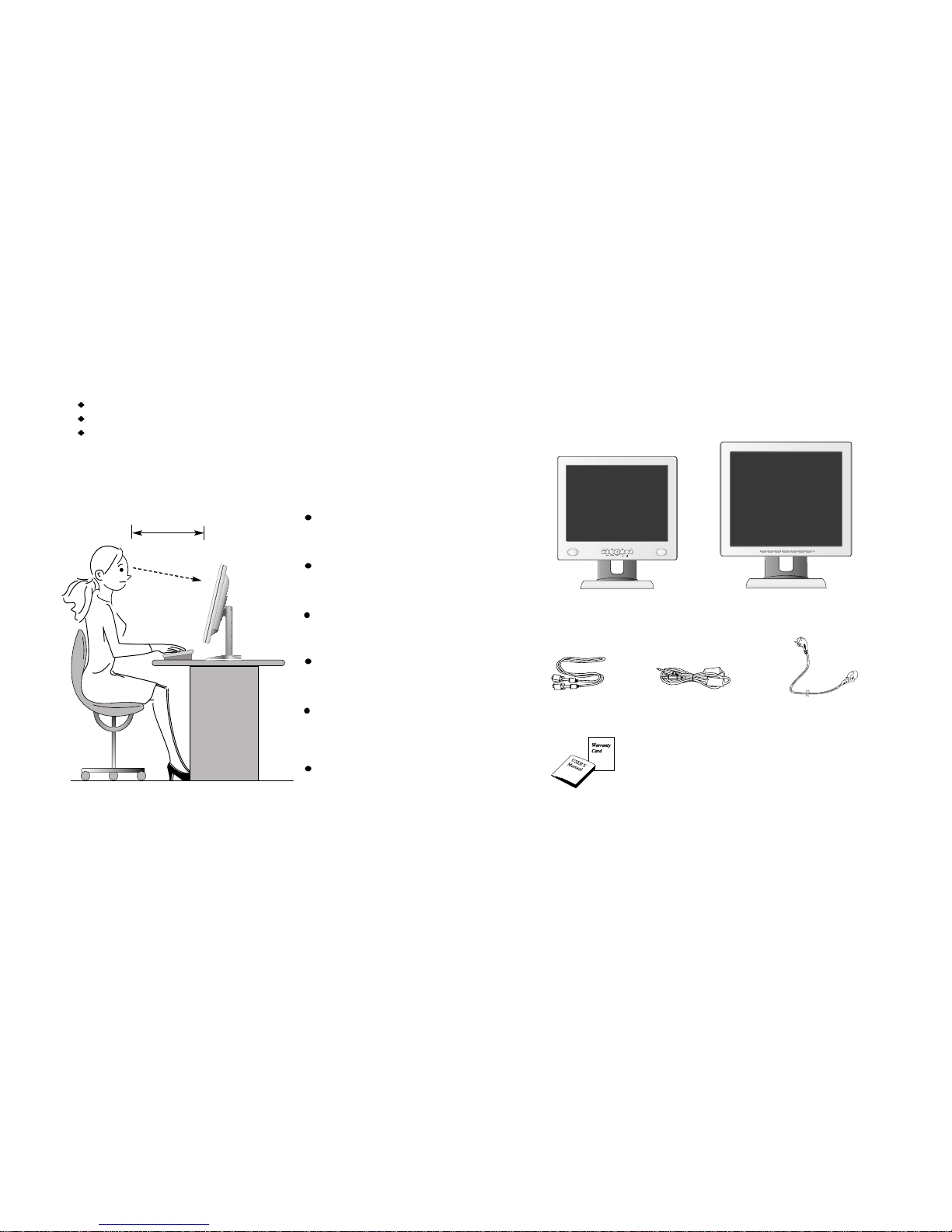

Parts
17 " LCD Monitor
Place the monitor to face the user and then adjust the monitor angle.
Take a break (for about 10 minutes) at every hour during the work with monitor.
Refer to the following figure to take the correct posture.
about 50cm
Look down the monitor
below the horizon.
Relax shoulders and arms,
and sit back on the chair.
Adjust the monitor to
prevent reflection.
Adjust the monitor stand
to acquire required angle.
Keep feet flat on the ground.
Maintain the arms horizontally
and place hands softly on
the keyboard.
Good Posture Guide
User's Manual /
Warranty Card
Signal Cable AC Power Cable
Stereo Cable(Option)
19 " LCD Monitor
English - 54 - English

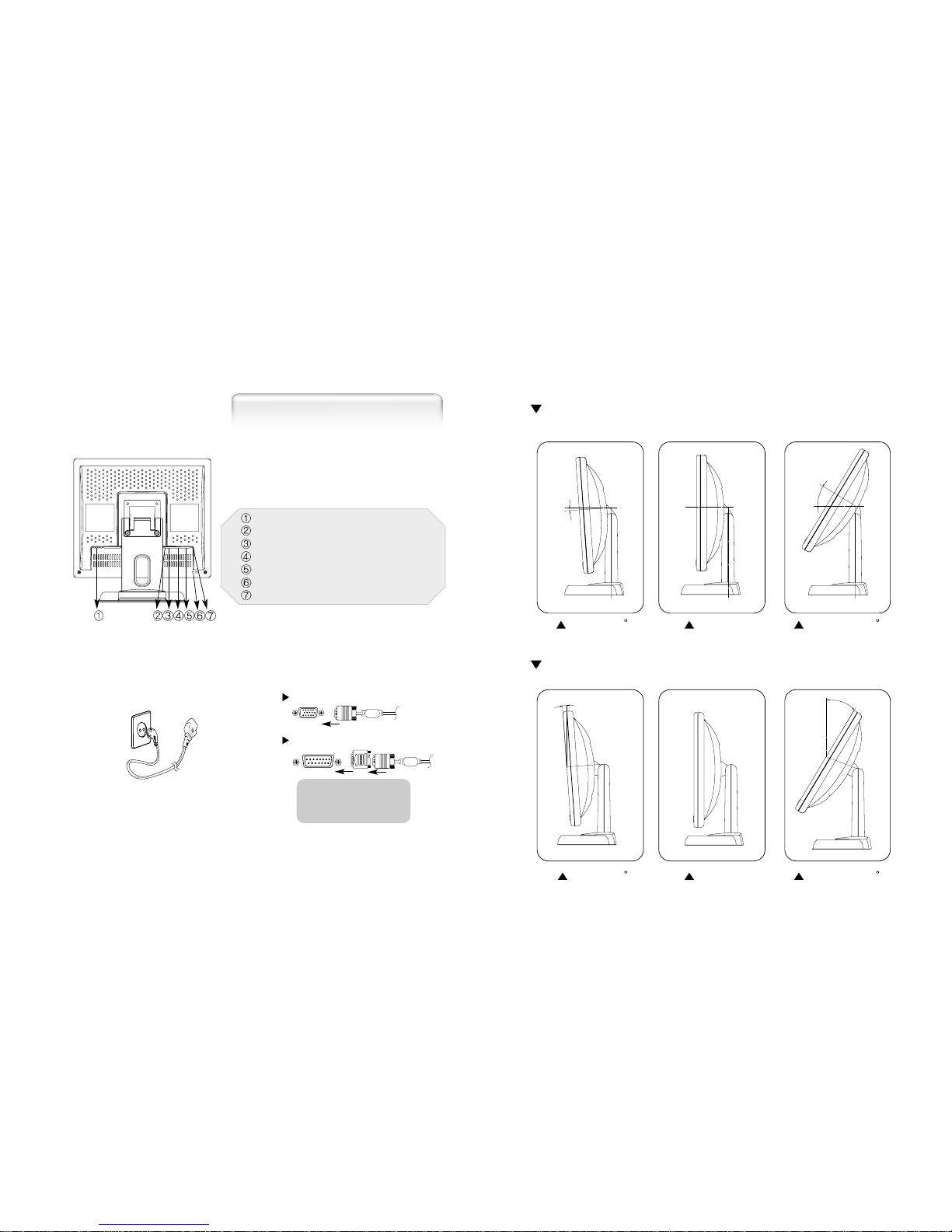

Connection to Signal Source
1. Use 220 V or 110 V. (Free Voltage)
2. Connect monitor and Signal Source via Signal cable
3. Power on the monitor and computer.
4. Connection is finished.
General
For Macintosh
Adapter for Macintosh (Optional)
Refer to the table on the rear side of
the optional Macintosh adapter and
adjust DIP switch by the resolution.
T he range of control Angle
< Power source connection > < Signal cable connection>
Basic Connection
Port for AC power cable.
Port for BNC output
Port for BNC input
Port for S-VHS input
Port for Audio input
Kensington Lock
Port for signal cable from signal source.
How to Adjust the Stand - 17"
How to Adjust the Stand - 19"
Forward 3 Default Backward 30
Forward 5 Default Backward 33
+/ -/
English - 76 - English
Power button
Power button is located in the lower center of the Front Bezel.
You can push the button to turn on/off the power.
Power Indicating LED
Dark : Power off
Green : Normal mode
Green blinking : DPMS mode or Check Signal Cable mode.
On-Screen Display (OSD) Function Button
OSD buttons on the front of bezel perform the following functions.
SOURCE
: Monitor displays source of the signal in order ( PC CVBS S-VHS )
MENU/EXIT : Press this button to display menus. If you press this button when
OSD is displayed, you can switch display to the previous menu and
exit menu.
SELECT/ AUTO : Press this button, when OSD is not displayed, to perform
automatic setting. (only PC Mode.)
When OSD is displayed, You can select icons.
POWER : Power button.
: By pressing these buttons when OSD is displayed, you can move
cursor into the menus which you want.
After pressing the SELECT button, you can change gauge level or
select submenus.
When OSD is not displayed, you can adjust brightness or contrast.
VOLUME / MUTE : Press this button for volume control. When control is displayed,
you can control mute by pressing this button.

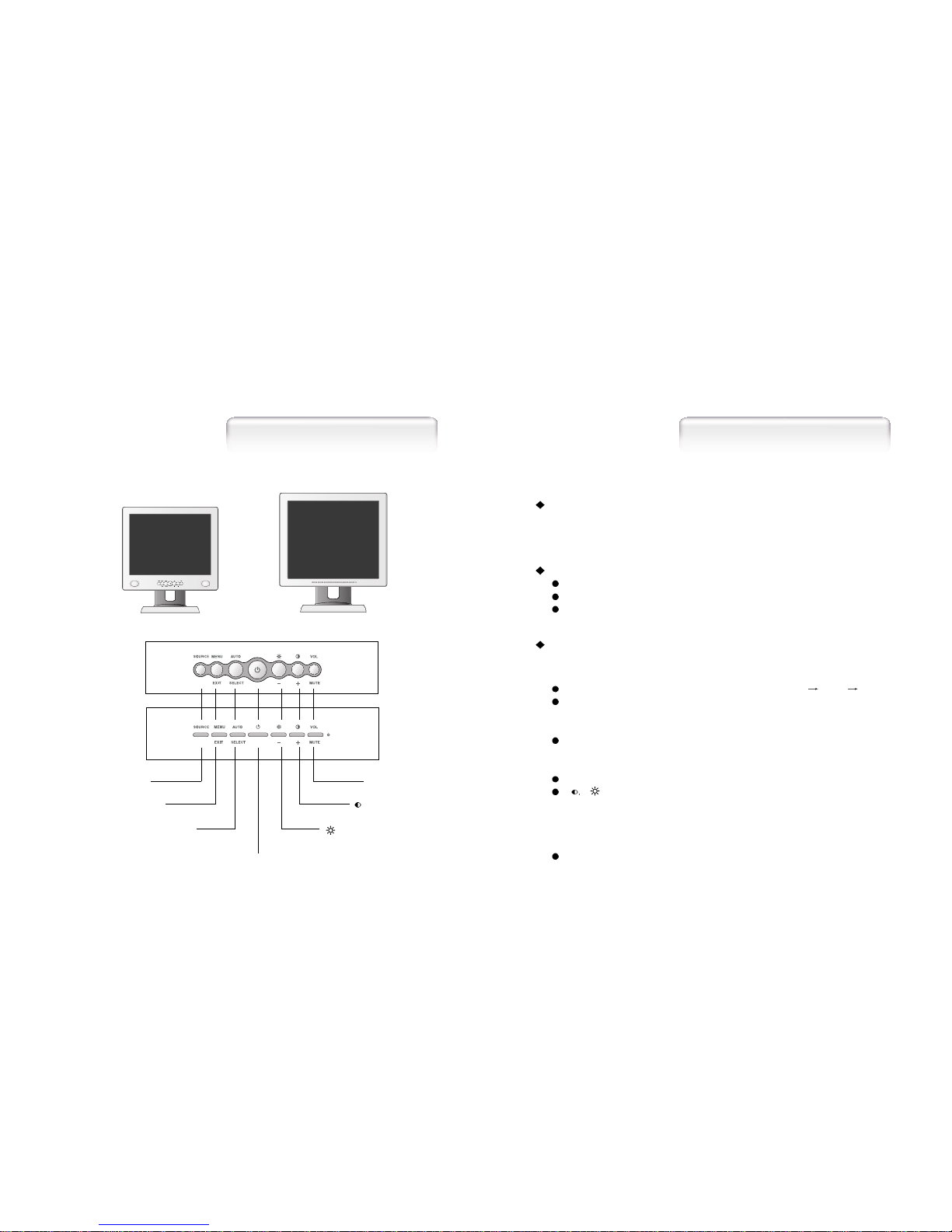

Name and Function of Front
Front panel Functions
SELECT/
AUTO BUTTON
MENU/EXIT BUTTON
SOURCE BUTTON
VOL / MUTE
BUTTON
/ +
BUTTON
POWER BUTTON
(Power indicating LED)
/ -
BUTTON
17 " LCD Monitor 19 " LCD Monitor
English - 98 - English
No image is displayed with
Green
blinking.
Monitor is in power saving mode.
Use mouse or keyboard to release power saving mode.
No image is displayed without
LED
on.
Power cable plug must be pulled out.
Check the power plug on monitor and on the wall.
"Out of range" displayed on the screen.
This message is displayed when the signal from video card exceeds the
maximum frequency of the monitor. Readjust resolution and frequency in
accordance with the monitor capacity. (Refer to Standard Signal Table)

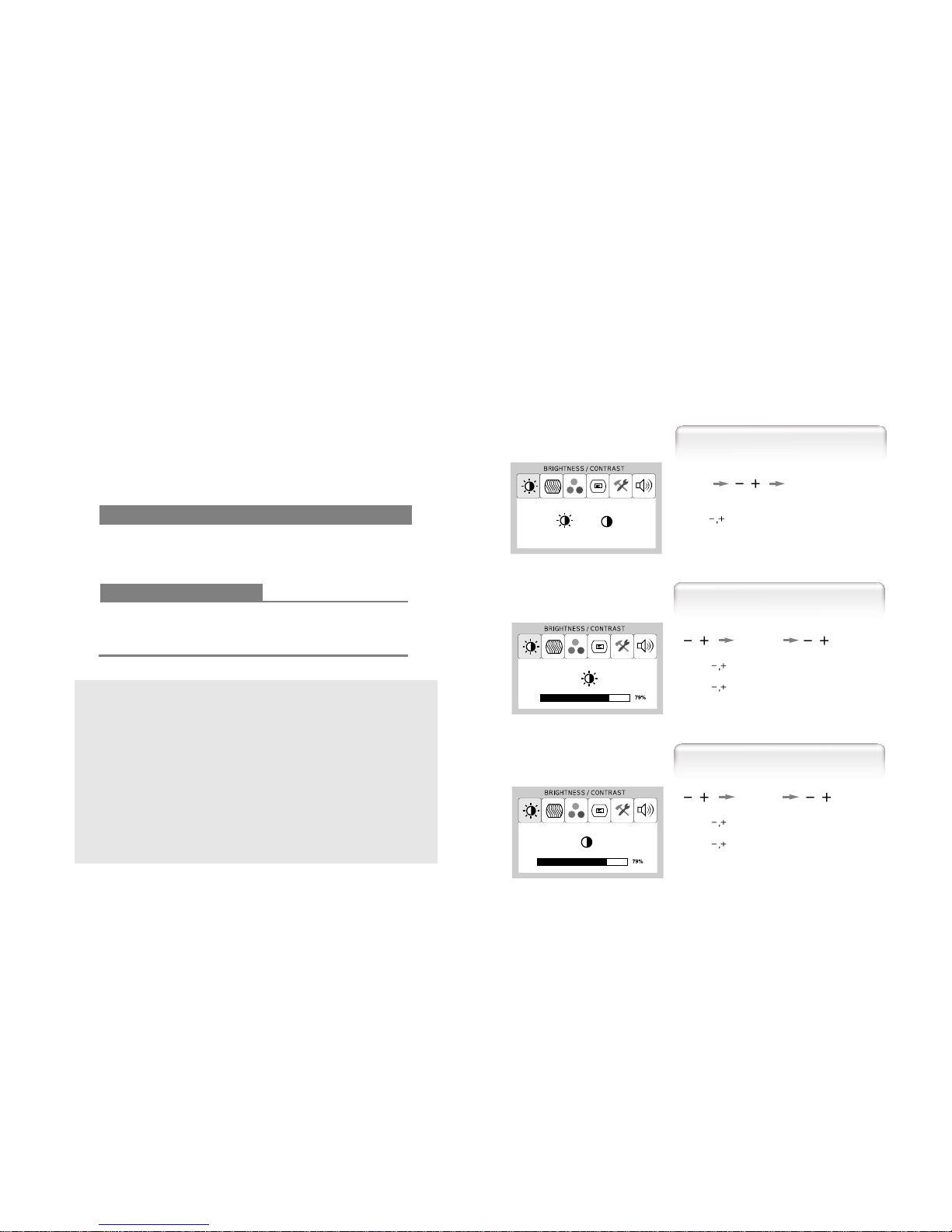

Power Management Feature
The monitor is equipped with a power saving circuit that
confirms to the world-standard Display Power Manager Signalling
(DPMS) mode of Video Electronics Standard Association (VESA).
The power management feature requires that the video card of the
computer should support DPMS function.
Adjusting OSD
-PC MODE
Brightness
Contrast
1. Use to move Brightness ICON.
2. Press SELECT button to select it.
3. Use to adjust the brightness of the screen.
SELECT
Brightness / Contrast
MENU
1. Press the MENU button to access main menu.
2. Use to move Brightness / Contrast ICON.
3. Press SELECT button into the submenu.
SELECT
SELECT
1. Use to move Contrast ICON.
2. Press SELECT button to select it.
3. Use to adjust the contrast of the screen.
Status LED Sign Power Consumption
Normal mode Green ON Normal Power
DPMS mode Green Blinking 3W or Below
DPMS with Audio
Mute ON 3W or Below
Mute OFF 5W or Below
English - 1110 - English

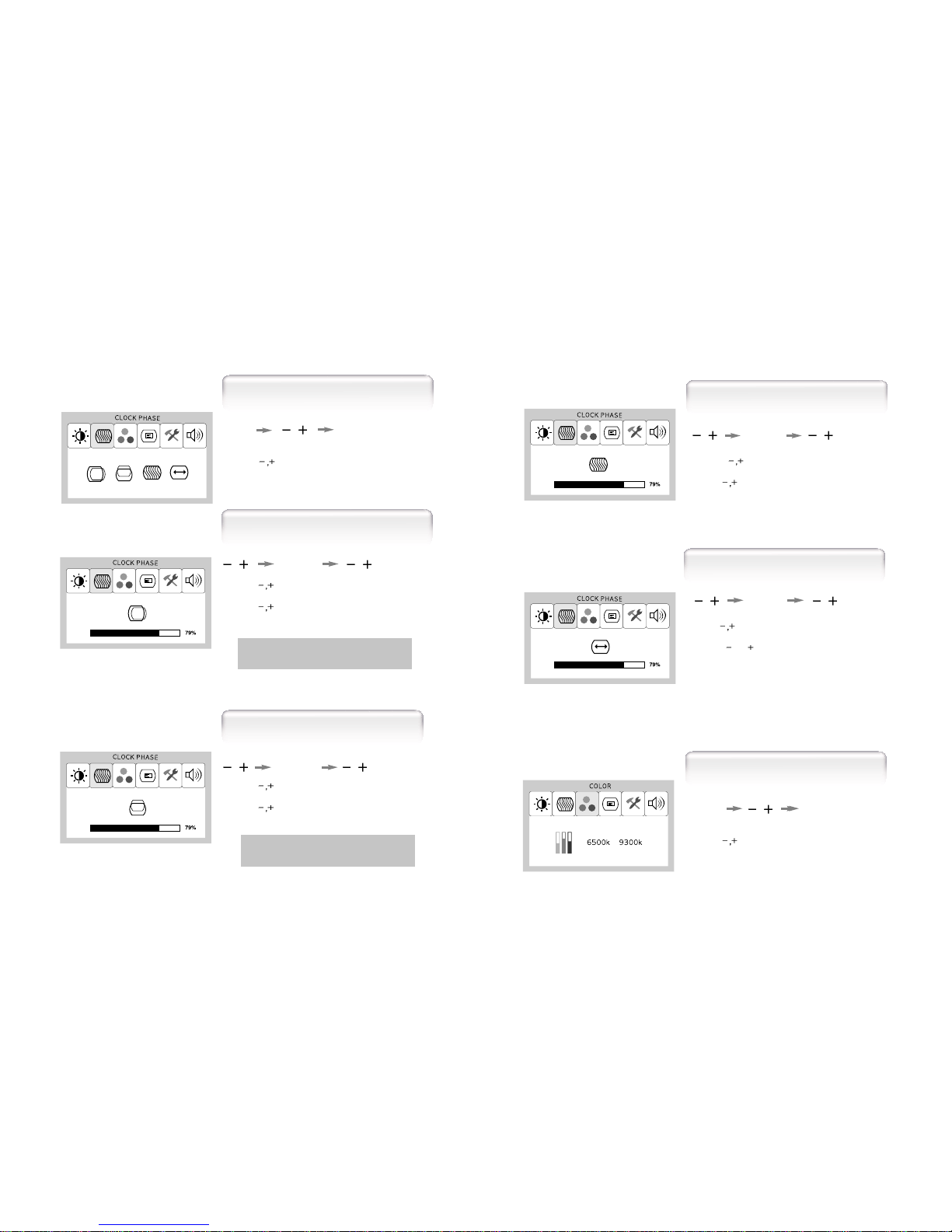

Horizontal Position
SELECT
1. Use to move H-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust display left or right.
Clock Phase
MENU SELECT
1. Press the MENU button to access main menu.
2. Use to move CLOCK PHASE ICON.
3. Press SELECT button into the submenu.
According to the characteristic of video card,
control range can be changed.
1. Use to move V-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust display upward or downward.
1. Press to move Phase ICON.
2. Use SELECT button to select it.
3. Use to correct fine trembling or Video noise.
1. Use to move Clock ICON.
2. Press SELECT button to select it.
3. Press or
to remove vertical noise.
( Adjusting clock phase is required after the
adjustment of clock.)
SELECT
SELECT
SELECT
Vertical Position
Clock
Phase
According to the characteristic of video card,
control range can be changed.
1. Press MENU button to access main menu.
2. Use to move Color ICON.
3. Press SELECT button into the submenu.
MENU SELECT
Color
English - 1312 - English

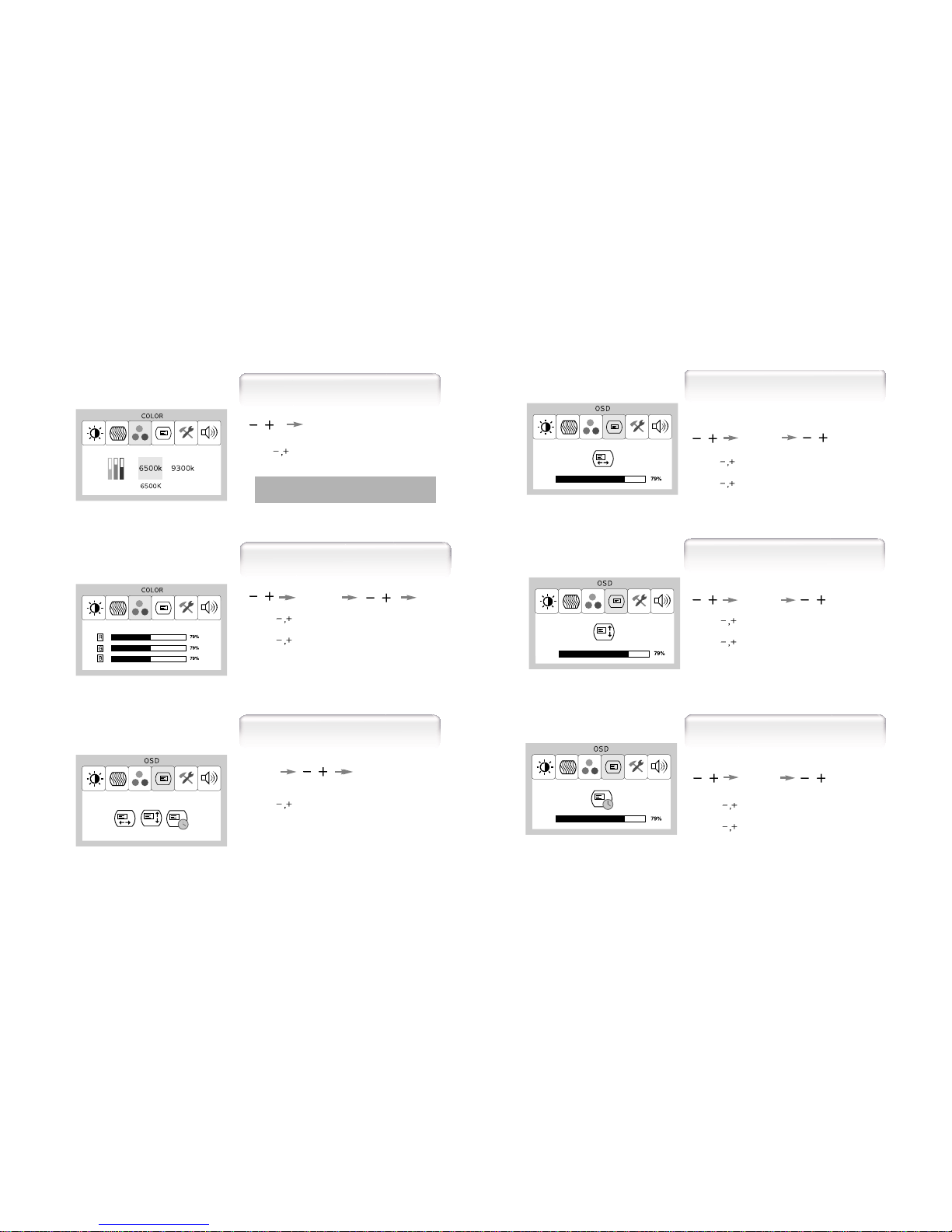

User Color
1. Use to move User color ICON.
2. Press SELECT button to select it.
3. Use to increase or decrease each color.
1. Use to select the Mode 1, and Mode 2.
2. Press the Menu button to return previous state.
9300K : Slightly Bluish white.
6500K : Slightly Reddish white.
MENU
MENU
SELECT
Preset Color
1. Use to move OSD V-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD upward or downward.
1. Use to move OSD Time ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD display time.
4. Press Menu button to return main menu.
SELECT
OSD Time
OSD V-Position
1. Use to move OSD H-Position ICON.
2. Press SELECT button to select it.
3. Use to adjust OSD left or right.
SELECT
OSD H-Position
SELECT
1. Press MENU button to access main menu.
2. Use to move OSD ICON.
3. Press SELECT button into the submenu.
MENU SELECT
OSD
English - 15

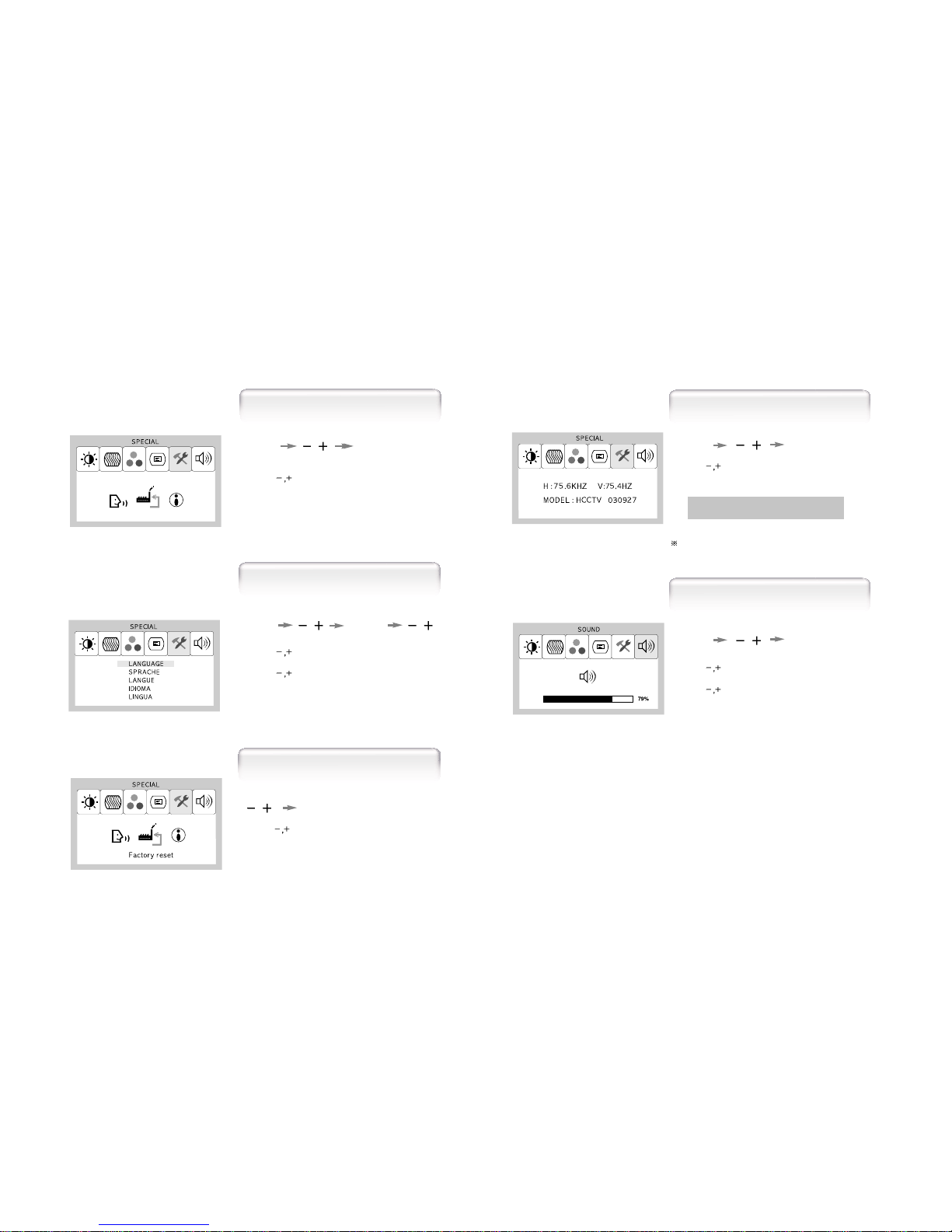

1. Use to move Language ICON.
2. Press SELECT button to select it.
3. Use to select language.
MENU SELECT
Language
14 - English
1. Use to move the Information ICON.
2. Press SELECT button to select it.
MENU
Auto-ConfigInformation
1. Use to move the Factory Reset ICON.
2. Press SELECT button to return to default setting.
Auto-ConfigFactory Reset
SELECT
1. Use to decrease or increase volume level.
2. Press SELECT button to select it.
3. Use to control volume.
MENU
Auto-ConfigSound
SELECT
SELECT
You can know display information
1. Press the MENU button to access main menu.
2. Use to move Special ICON.
3. Press SELECT button into the submenu.
MENU SELECT
Special
According to the characteristic of video card,
display information can be incorrect
English - 1716 - English
Adjusting OSD
-CVBS, S-VIDEO MODE
Brightness
Contrast
1. Use to move Brightness ICON.
2. Press SELECT button to select it.
3. Use to adjust the brightness of the screen.
SELECT
Brightness / Contrast
MENU
1. Press the MENU button to access main menu.
2. Use to move Brightness / Contrast ICON.
3. Press SELECT button into the submenu.
SELECT
SELECT
1. Use to move Contrast ICON.
2. Press SELECT button to select it.
3. Use to adjust the contrast of the screen.
Sharpness
(CVBS,S-VIDEO Mode)
1. Press the MENU button to access main menu.
2. Use to move Sharpness ICON.
3. Press SELECT button to select it.
4. Use to adjust the sharpness.
(Adjust the clearness of the screen)
HUE
(CVBS,S-VIDEO Mode)
1. Use to select the HUE ICON.
2. Press SELECT button to select it.
3. Use to adjust the HUE.
SELECT
1. Press MENU button to access main menu.
2. Use to move Color ICON.
3. Press SELECT button into the submenu.
MENU SELECT
Color
SELECT
