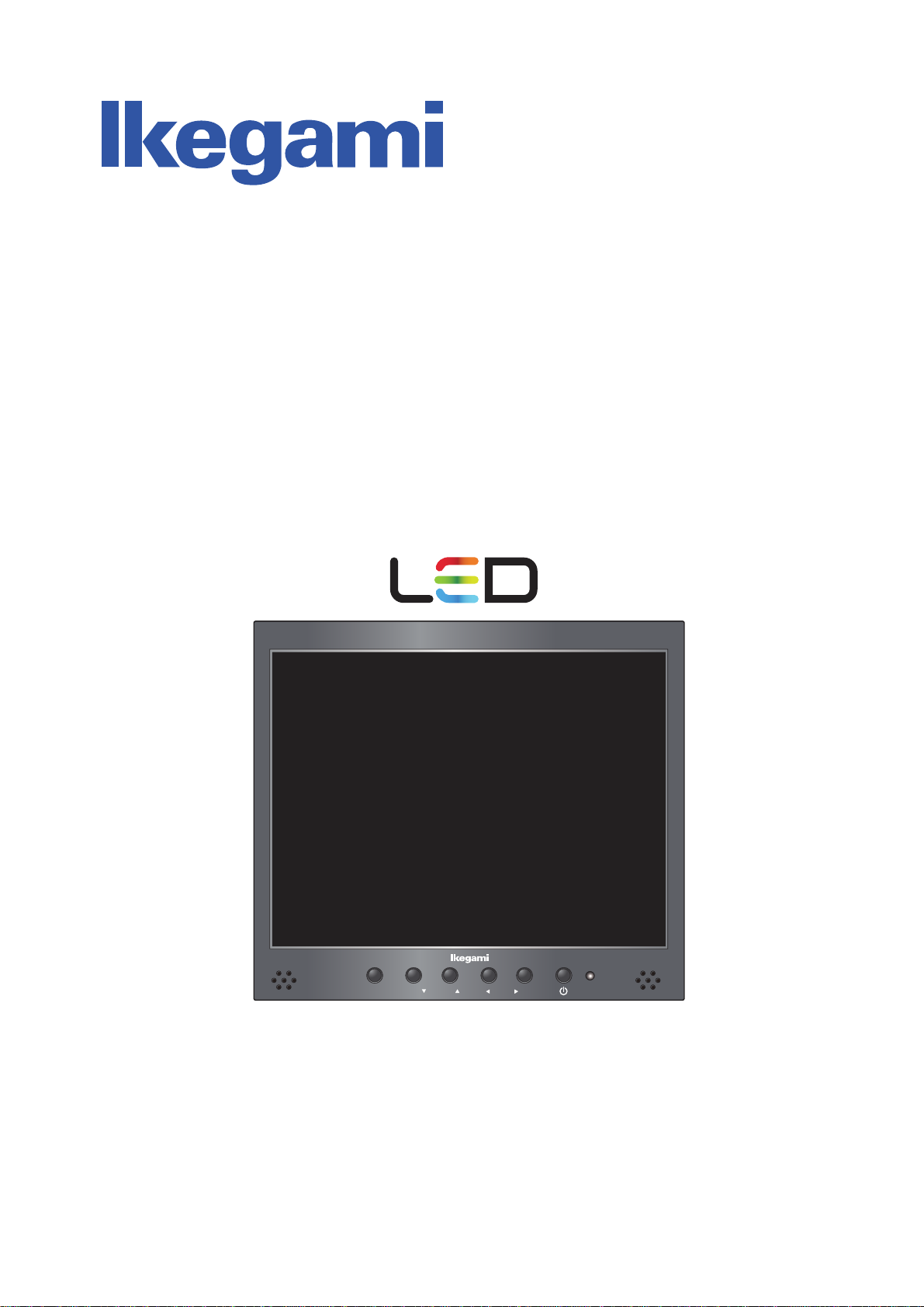

INSTRUCTION MANUAL

LCM-971

9.7” LED VIDEO MONITOR

Please read this manual thoroughly before use and keep for future reference.

Model

Rev. R04

MENU/EXIT SOURCE/AUTO/ VOL SELECT

SAFETYINSTRUCTION

Follow this safety instruction to use the monitor properly and prevent the damages.

Keep this user’s guide book for later use.

This safety instruction has “Warning” & “Caution” as below

Warning - If the user does not follow this instruction,

it may cause the serious damage to the user.

Caution - If the user does not follow this instruction, it may cause the slight

damage to the user or cause some damages to the monitor.

Warning

Keep away the monitor from the

direct sunlight and a heating appliance.

Never push objects of any kind into

this product as they may result in

a risk of fire or electric shock.

Connect the power code to the wall

outlet tightly. If the power code or plug

are defective and the wall outlet is not

tight, please do not use them.

Never remove the back over and

touch the inside of the monitor.

If you need a service, please

contact the service center.

Warning

Do not install this monitor on the outside

and near water. If may cause damage to

the product, electric shock and fire.

For cleaning do not use liquid cleaners.

Never touch the power plug with wet-hands.

When lightning and thundering, unplug the

monitor from the wall outlet and never touch

it.

When smoking and noising from the monitor,

unplug the product from the wall outlet and

contact a service center.

Unplug this product from the wall outlet, when

It does not operate for a long time.

How to fix

Do not open this product as it contains high voltage inside.

It may create an electric shock.

It the user disassembles and remove the back cover, it does not make sure

to make up for the damages and do a service and exchange the monitor.

Cautions

Install this monitor some distance

From the wall and do not install unless

Proper ventilation is provided.

Place this product on a stable place.

If not, it may fall, causing serious

Damages to the monitor and people.

The openings must not be blocked by

curtain, rug or other similar surface.

Before carrying the monitor, tum it off and

Unplug the signal cables and the power code

From the wall outlet.

When carrying this monitor, be careful

not to damage the panel and drop it

It may cause some trouble.

Take the power plug out from the wall

outlet.

Do not pull the cable. It may snap the inner-

wires and cause overheating and fire.

Cautions

Install this monitor about 50cm far from

the eyes and an angle of 0~15 degrees

below eyes. Too close installation may

cause having weak sight.

Do not press the LCD panel with hands or

the sharpened material hardly.

Do not use the chemical liquid for cleaning.

It may cause fading and breakage.

For cleaning, unplug the monitor from the

Wall outlet. Do net use the liquid cloth.

Use the soft cloth.

INTERFERENCE STATEMENT

FCC RF INTERFERENCE STATEMENT

NOTE

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio, TV technician for help.

Only shielded interface cable should be used.

DOC COMPLIANCE NOTICE

Finally, any changes or modifications to the equipment by the user not expressly approved by

the grantee or manufacturer could void the users authority to operate such equipment.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursu-

ant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television recep-

tion which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus

set out in the radio interference regulation of Canadian Department of communications.

TABLE OF CONTENTS

2SAFETY INSTRUCTION.1 2-31-1 Warning 4-51-2 Caution

6FCC STATEMENT.2

84-1 Unpacking 84-2 Part List 94-3 Main Button 104-4 Input Interface

7TABLE OF CONTENTS.3

17APPENDIX.7

18TROUBLESHOOTING.8

19LIMITED WARRANTY.9

8INSTALLATION.4

11-155-1 OSD Menu 11OSD MENU SETTING.5

16SPECIFICATIONS.6

Remove the package cover and place the product on a flat and secure surface or in the installation location. This

equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the

shipper immediately. Check whether all the following device and accessories are included with the main system. If any

items are missing, notify your Sales or Customer Service Representative.

INSTALLATION

TFT LED Monitor

4.1 UNPACKING

4.2 PART LIST

MENU/EXIT SOURCE/AUTO/ VOL SELECT

4.3 MAINBUTTON

18 2 3 4 5 6 87

SHORT KEY FUNCTION

MENU / EXIT

OSD KeyFunction

SOURCE / ▼

AUTO / ▲

SPEAKERS

◄VOL

Activates and exits the OSD.

Select input source, and move the OSD menu.

Move the OSD menu and auto adjustment of RGB source.

Increase the level of volume and select the OSD menu.

Two speakers side by side.

LED LAMP Power ONIndicator.

Turns the power ONorOFF. There will be a fewseconds delay

before the display appears. The power LED(next to the power

switch)lights with green when the power is turned ON.

The power is turned off by pressing the power switch again and

the power LED goes Red.

Decrease the level of volume and move the previous menu.

►SELECT

Adjust the button lock and Release.

*Release Lock : Press ▲and ◄button on the key pad for 5 seconds.

▲+ ◄

1. HDMI Input

2. AV1Input

Composite signal input for AV 1

Video Looping output for AV 1

Composite signal input for AV2

3. AV1Output

4. AV2Input

Video Looping output for AV 2

5. AV2Output

6,7. AUDIO1IN

Stereo audio signal input.

This input for AV1 and S-VIDEO

Y/Cseparated signal input

8. S-Video Input

9. PCAUDIO Input

10. RGB Input

11. DC 12V Input

4.4 INPUT INTERFACE

75mm

M4 Thread Depth 5mm (x4)

75mm
