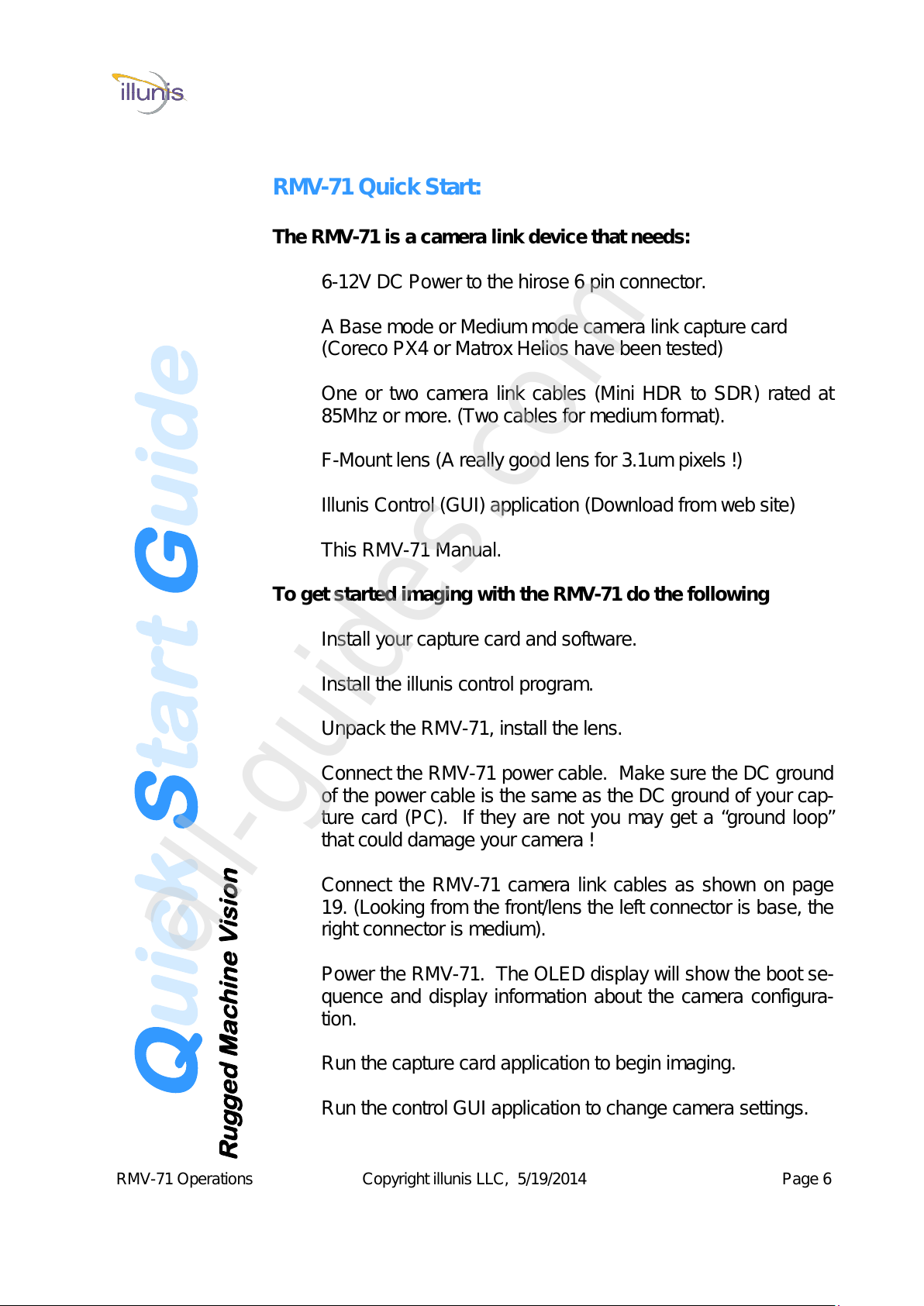

Quick Start Guide
Rugged Machine Vision
RMV-71 Quick Start:
The RMV-71 is a camera link device that needs:
6-12V DC Power to the hirose 6 pin connector.
A Base mode or Medium mode camera link capture card
(Coreco PX4 or Matrox Helios have been tested)
One or two camera link cables (Mini HDR to SDR) rated at
85Mhz or more. (Two cables for medium format).
F-Mount lens (A really good lens for 3.1um pixels !)
Illunis Control (GUI) application (Download from web site)
This RMV-71 Manual.
To get started imaging with the RMV-71 do the following
Install your capture card and software.
Install the illunis control program.
Unpack the RMV-71, install the lens.
Connect the RMV-71 power cable. Make sure the DC ground
of the power cable is the same as the DC ground of your cap-
ture card (PC). If they are not you may get a “ground loop”
that could damage your camera !
Connect the RMV-71 camera link cables as shown on page
19. (Looking from the front/lens the left connector is base, the
right connector is medium).
Power the RMV-71. The OLED display will show the boot se-
quence and display information about the camera configura-
tion.
Run the capture card application to begin imaging.
Run the control GUI application to change camera settings.
