1.2.51.32.18873-000

Smart Outdoor

Wi-Fi Security Kit

Quick Start Guide

Recorder ×1

(1TB built-in HDD)

Packing List

KIT QSG × 1

Camera × 4

Power Adapter

Network Cable

Mouse

SATA Power Cable

SATA Cable

Rubber Feet Package

Screw Package

NVR QSG

1TB HDD (built-in)

Power Adapter

Waterproof Connector

Screw Package

Positioning Map

IPC QSG

Recorder

HDD Status Indicator

Network Status Indicator

Power Status Indicator

USB Port

LED Indicator Status

Network status indicator o

Network status indicator on

Power status indicator on

HDD malfunction

Network connection is normal

Network connection failed

Power connection is normal

HDD status indicator o

HDD status indicator on

Recorder Status

HDD is working properly

Power Input Port

Ethernet Port HDMI Port

Audio Outpot Port

VGA Port USB PortAudio Input Port

Camera

Lens

LED Indicator

Spotlight

Wi-Fi Antenna

Built-in Mic

Reset Button

Press and hold the

reset

button for 10 s to reset the camera.

The pattern of the LED indicator is included in the following table.

Built-in Speaker

Micro SD Card Slot

LED Indicator Status Device Status

Red light ashing

Green light ashing

Green light on

Green and red lights

ashing alternately

Powered o/LED turned o

Rebooting after reset

Booting

Device malfunction

Network connection failed

Waiting for network

Operating properly

O

Red light on

Firmware updating

Connection

The dotted line in the gure means that you can connect the

recorder to a monitor through a VGA cable or HDMI cable.

Choose one as needed.

The recorder supports wireless connection.

Step 1 Put cameras next to the recorder and turn them on, and then

turn on the Recorder.

The cameras will pair to the recorder automatically in 120 s.

Step 2 Initialize the recorder. For details, see "Local Basic Operation".

Step 3 Unplug the power cables of the cameras.

Step 4 Install cameras somewhere as needed.

Wireless IPC

Recorder

Network Cable HDMI or VGA

Cable

Router

Monitor

Make sure that the mounting surface is strong enough to hold at

least three times of thedevice weight.

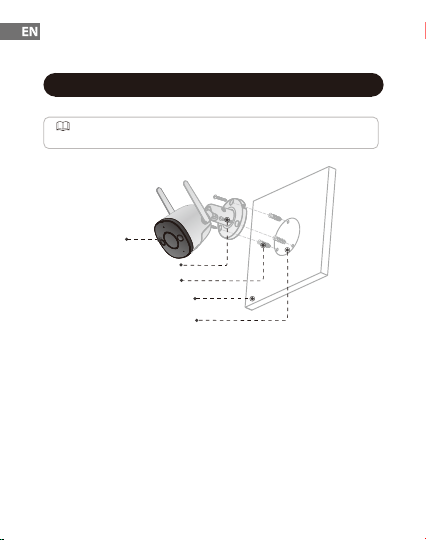

Camera Installation

Step 1Drill screw holes on the mounting surface as the positioning map

shows, and then put in the expansion bolts.

Step 2Attach the camera pedestal to the mounting surface with the

self-tapping screws.

Step 3Power up the camera, and then adjust the lens to the ideal angle.

Camera

Self-tapping Screw

Positioning Map

Expansion Bolt

Mounting Surface
