Impex MARCY ME-709 Manuale utente

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Pack

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

ME-709

Retain This

Manual for

Reference

06-15-09

OWNER'S

MANUAL

MARCY®

Magnetic-Resistance

Recumbent Bike

ME-709

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................…. 1

IMPORTANT SAFETY NOTICES..................................................................…. 2

HARDWARE PACK……….....…....................................................................…. 4

ASSEMBLY INSTRUCTIONS........................................................................…. 5

EXPLODED DIAGRAM………………………………………………………………. 10

PARTS LIST...................................................................................................… 11

COMPUTER................................................................................................…… 12

WARRANTY.................................................................................................…. 16

ORDERING PARTS.....................................................................................….. 16

BEFORE YOU BEGIN

Thank you for selecting the MARCY®Magnetic Recumbent Bike ME-709 by

IMPEX®INC. For your safety and benefit, read this manual carefully before

using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are

missing or damaged parts, we guarantee you complete satisfaction through

direct assistance from our factory. To avoid unnecessary delays, please call

our TOLL-FREE customer service number. Our Customer Service Agents

will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain

precautions apply whenever you operate a piece of exercise equipment. Be

sure to read the entire manual before you assemble or operate your machine.

In particular, note the following safety precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other

abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN

IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. The Maximum Weight Capacity is 300 lbs.

13. Read all warnings posted on the exercise bike.

14. Inspect the exercise bike for worn or loose component prior to use.

Tighten/replace any loose or wore components prior to use.

15. Care should be taken in mounting or dismounting the exercise bike.

16. This exercise bike is for consumer and home use only.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT

YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS

OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH

PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS

EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR

PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR

THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS. 2

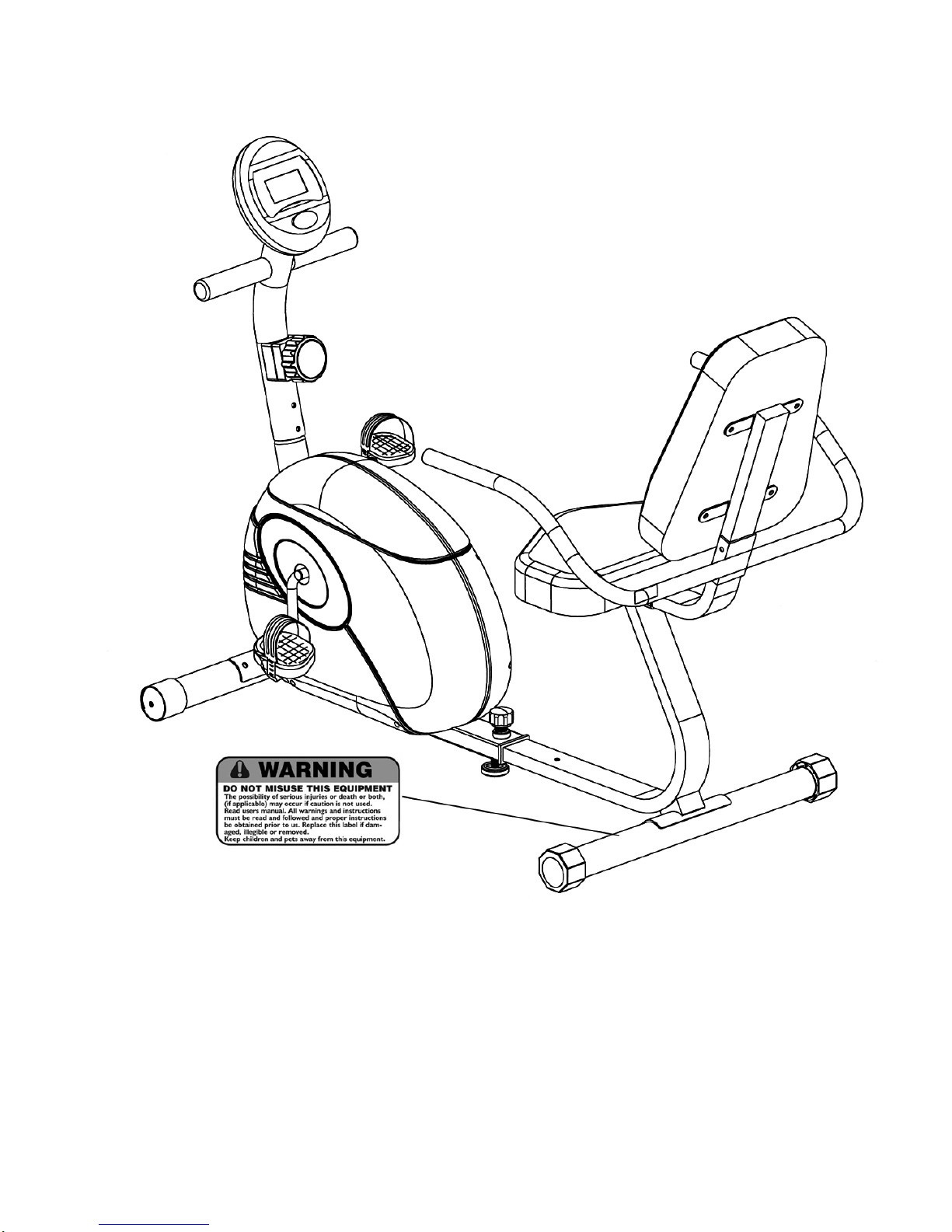

WARNING LABEL REPLACEMENT

The Warning Label shown here has been placed on the Rear Stabilizer. If the label is missing or

illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in

location shown.

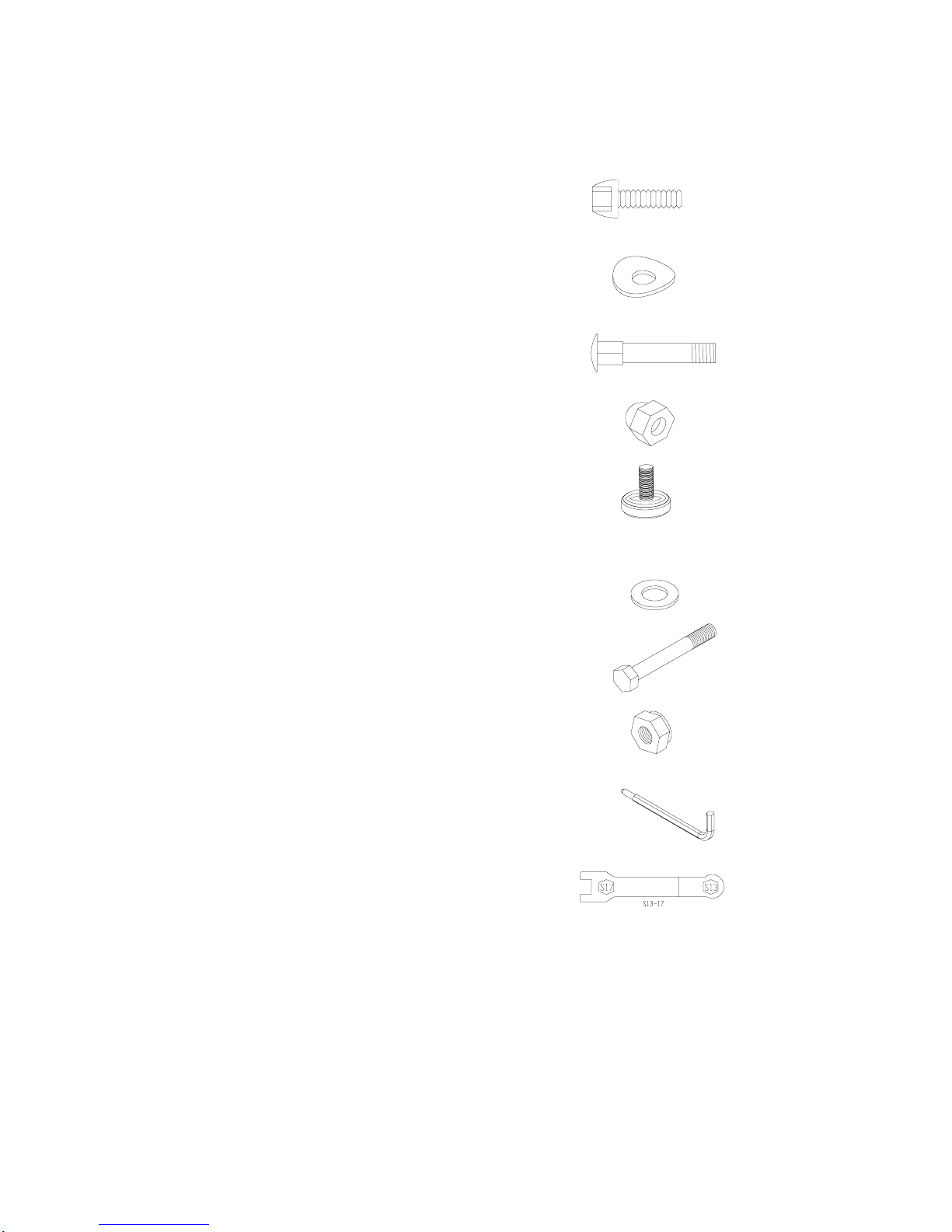

HARDWARE PACK

Part# Description Identifier

#8 M8 x 5/8” Allen Bolt (Qty 12)

#9 Ø 7/8” Curved Washer (Qty 8)

#13 M8 x 2 ½” Carriage Bolt (Qty 4)

#19 Acorn Nut (Qty 4)

#20 M8 Leverage Knob (Qty 1)

#27 Ø 5/8” Washer (Qty 12)

#31 M8 x 3” Hex Bolt (Qty 4)

#33 M8 Aircraft Nut (Qty 4)

Tools:

Allen Wrench (Qty 1)

Crossing Wrench (Qty 1)

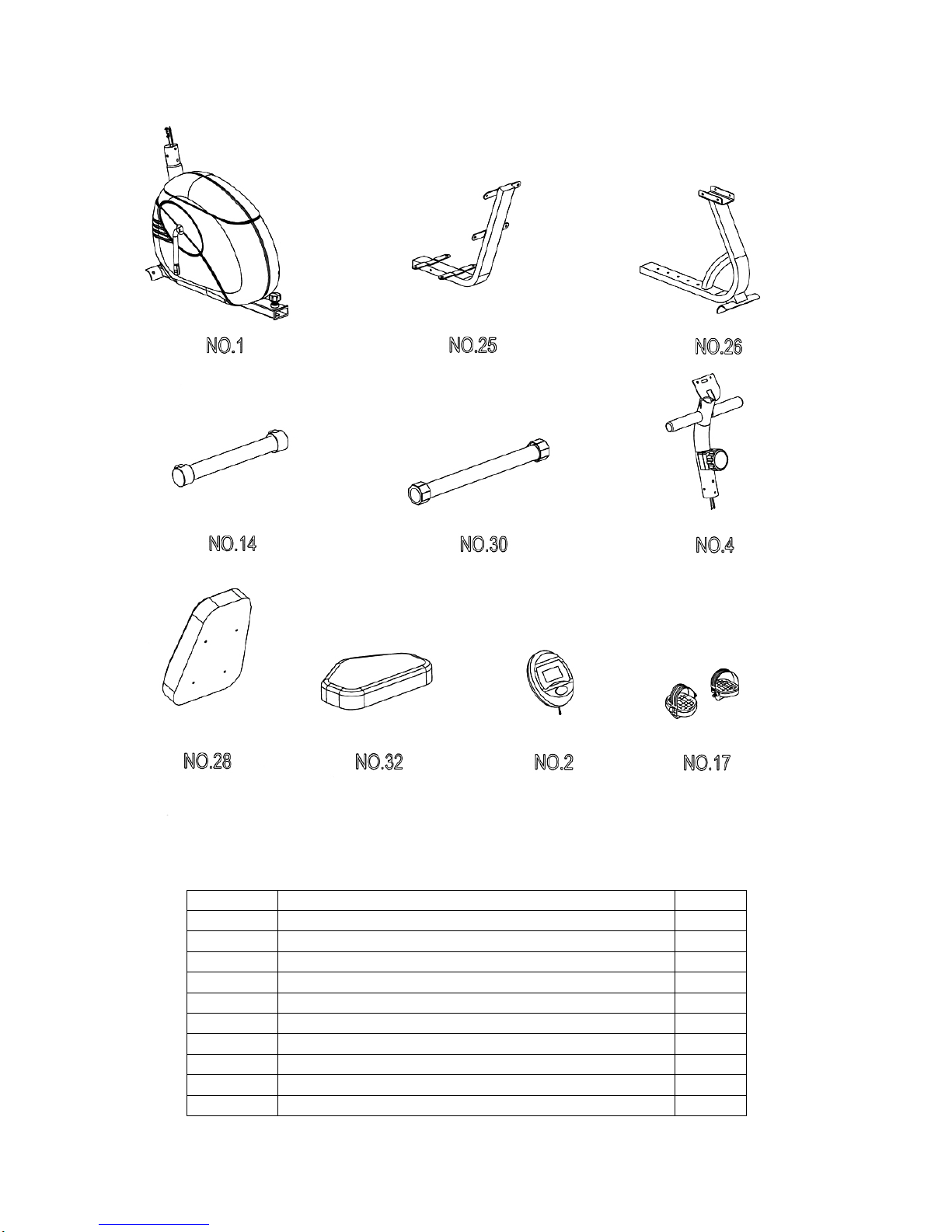

PRE-ASSEMBLY CHECK LIST

PART NO. DESCRIPTION Q’TY

1 Main frame 1

25 Seat support tube 1

26 Sliding frame 1

14 Front Stabilizer w/Transportation Wheel 1

30 Rear Stabilizer w/Leveling End Cap 1

4 Front post 1

35 Back Cushion 1

28 Seat Cushion 1

32 Seat support tube 1

2 Computer 1

17 Pedal 2

ASSEMBLY INSTRUCTION

NOTE: It is strongly recommended that two or more people assemble this machine to

avoid possible injury.

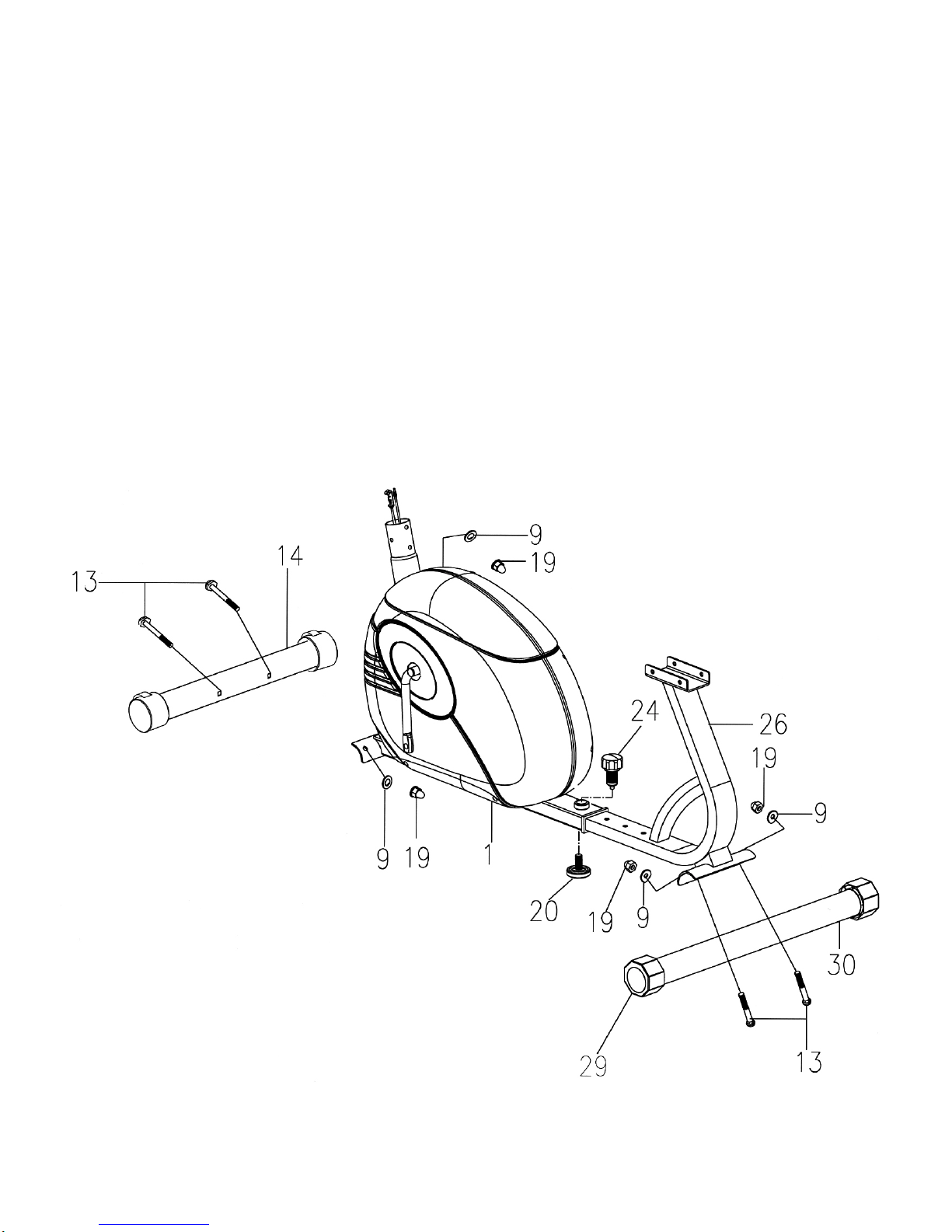

STEP 1 (See Diagram1)

A.) Do not tighten Nuts and Bolts until instructed to do so.

B.) Insert the Sliding Frame (#26) into the Main Frame (#1). Thread the Quick Release Knob

(#24) through selected hole on Main Frame into Sliding Frame to lock the Frame in position.

Thread a M8 Leverage Knob (#20) into the Sliding Frame from bottom.

C.) Attach the Front Stabilizer (#14) to the Main Frame (#1). Secure it with two M8 x 2 ½”

Carriage Bolts (#13), two ∅7/8” Curved Washers (#9), and two M8 Acorn Nuts (#19).

D.) Attach the Sliding Frame to the Rear Stabilizer (#30). Secure it with two M8 x 2 ½” Carriage

Bolts (#13), two Ø 7/8” Curved Washers (#9), and two M8 Acorn Nuts (#19).

E.) Securely tighten all Nuts and Bolts.

F.) Rotate the two Rear Stabilizer End Caps (#29), and attach the M8 Leverage Knob on floor

completely to stabilize the Bike before exercising. DIAGRAM 1

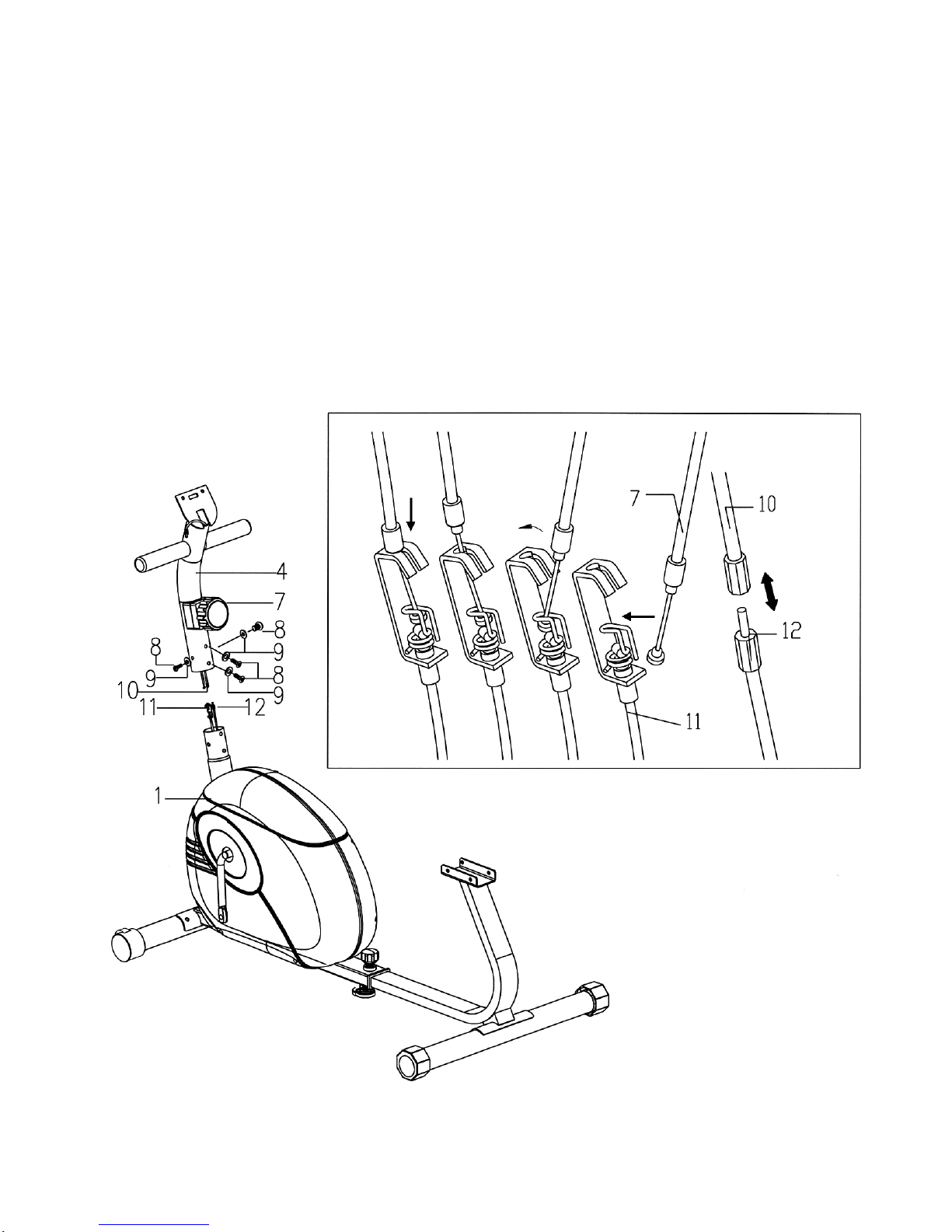

STEP 2 (See Diagram 2)

A.) Note: In order to hold the Front Post (#4) while connecting the cables and wires,

extra help may be needed.

B.) Attach the Front Post (#4) to the Main Frame (#1). Connect the Upper Computer Wire

(#10) from the bottom of Front Post to the Lower Computer Wire (#12) from the main

Fame.

C.) Pull the tension connector from the Upper Tension Cable (#7) and slide in between the

opening on the connector holder on the Lower Tension Cable (#11). Pull the Upper

Tension Cable upward and slide the wire through the slot on the bracket.

D.) Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket.

E.) Secure the Front Post to the Main Frame with four M8 x 5/8” Allen Bolts (#8) and four

Ø 7/8” Curved Washers (#9).

DIAGRAM 2

STEP 3 (See Diagram 3)

A.) Attach the Seat Support (#25) to bracket on the Sliding Frame (#26). Secure it with

two M8 x 2 ¾” Hex Bolts (#31), two Ø 5/8” Washers (#27), and two M8 Aircraft Nuts

(#33).

B.) Attach the Backrest Board (#28) to the Seat Support. Secure it with four M8 x 5/8”

Allen Bolts (#8) and four Ø 5/8” Washers (#27).

C.) Attach the Seat Pad (#32) to the Seat Support. Secure it with four M8 x 5/8” Allen

Bolts (#8) and four Ø 5/8” Washers (#27).

D.) Pull up the Quick Release Knob (#24), slide the Sliding Frame to desired position,

and release the Knob to lock the Seat in position. DIAGRAM 3

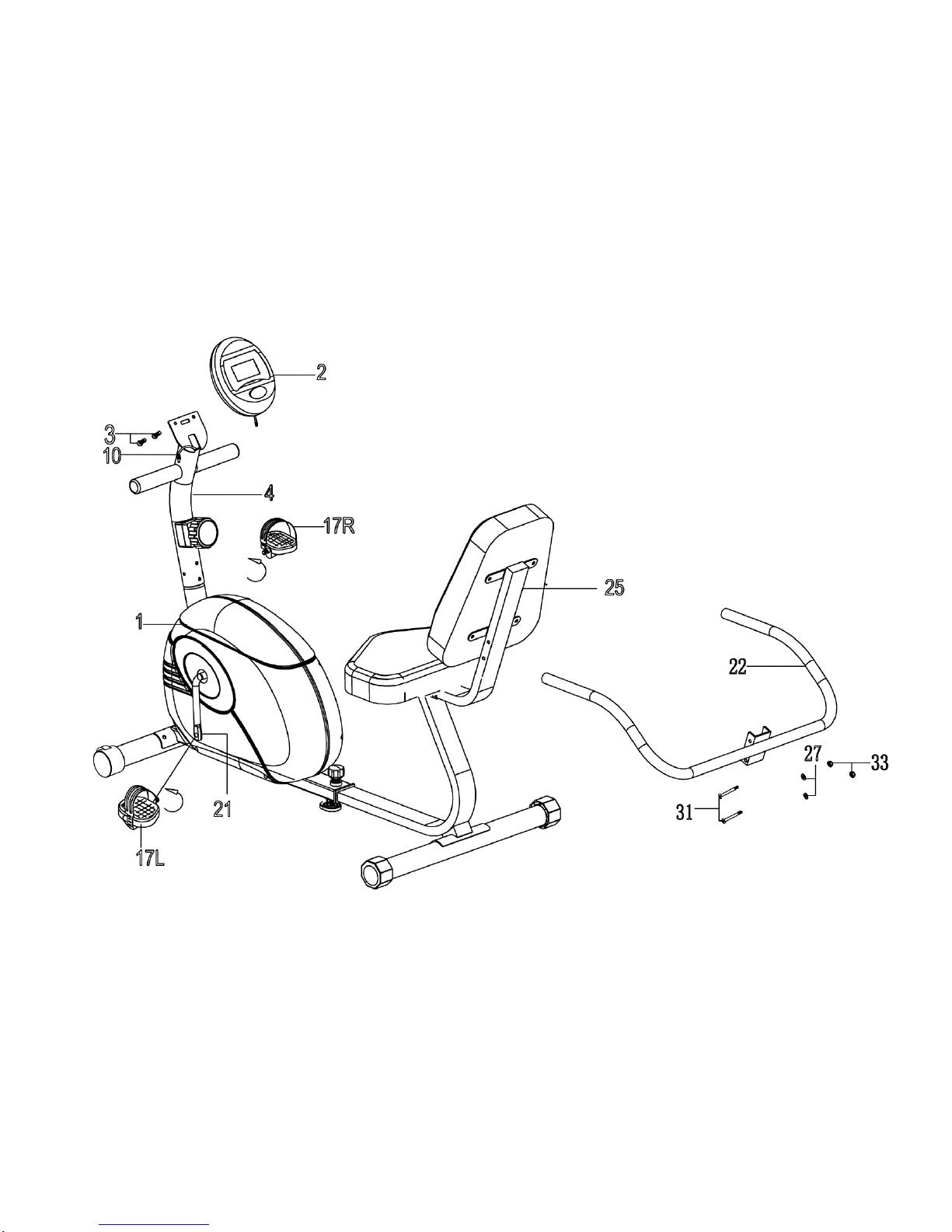

STEP 4 (See Diagram 4)

A.) Attach the Handle (#22) to the Seat Support (#25). Secure it with two M8 x

2 ¾” Hex Bolts (#31), two Ø 5/8 Washers (#27), and two M8 Aircraft Nuts

(#33).

B.) Connect Upper Computer Wire (#10) to the wire on the Computer.

Remove the two M5 x 3/8” Philips Screws (#3) from Computer. Slide the

Computer onto the bracket on Front Post. Secure it with the two Screws.

C.)Thread the left Pedal (#17L) Counterclockwise into the left Crank #21).

Thread the right Pedal (#17R) Clockwise into the Crank on the other side.

DIAGRAM 4
