Impex PWR 8 Manuale utente
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
PWR 8
Retain This
Manual for
Reference
07-31-03
OWNER'S
MANUAL
POWERHOUSE CLUB
POWER 8
IMPEX FITNESS PRODUCTS
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICES..................................................................... 2
SQUAT/LAT PULL HARDWARE PACK….......…............................................. 3
SQUAT/LAT PULL ASSEMBLY INSTRUCTIONS............................................. 5
EXPLODED DIAGRAM……………………………………………………………. 14
SQUAT/LAT PULL PARTS LIST………..………………………………………….. 15
MULTI-PURPOSE BENCH HARDWARE PACK………………………………… 16
MULTI-PURPOSE BENCH ASSEMBLY INSTRUCTIONS............................... 17
EXPLODED DIAGRAM……………………………………………………………... 22
MULTI-PURPOSE BENCH PARTS LIST…………………………………………. 23
WARRANTY.................................................................................................…. 24
ORDERING PARTS.......................................................................................… 24
BEFORE YOU BEGIN
Thank you for selecting the Powerhouse Power 8 by IMPEX FITNESS
PRODUCTS. For your safety and benefit, read this manual carefully
before using the machine. As a manufacturer, we are committed to
provide you complete customer satisfaction. If you have any questions,
or find there are missing or damaged parts, we guarantee you complete
satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service
number. Our Customer Service Agents will provide immediate assistance
to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire
manual before you assemble or operate your machine. In particular, note the following
safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE
AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2
SQUAT/LAT PULL HARDEWARE PACK
3

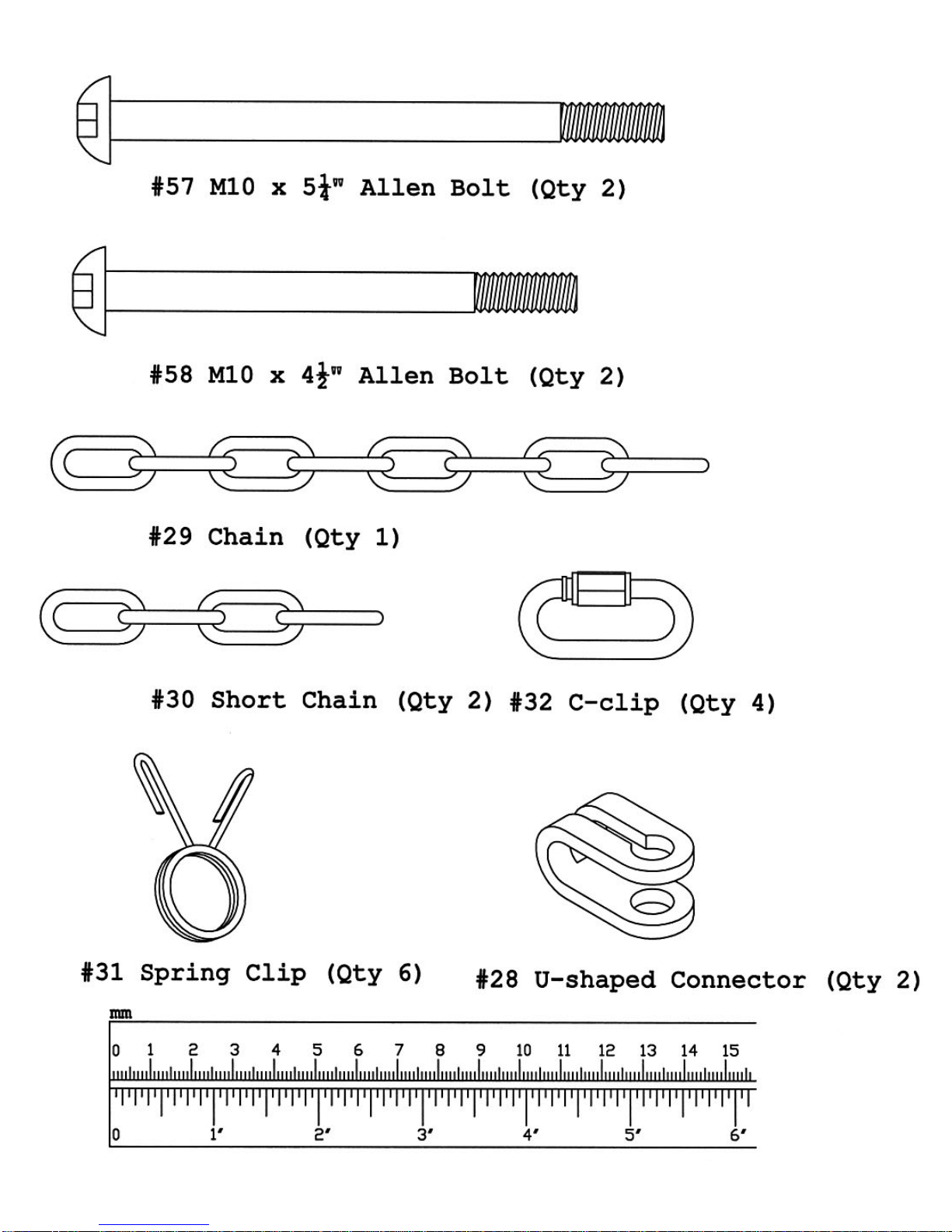

SQUAT/LAT PULL HARDEWARE PACK
4
SQUAT/LAT PULL MACHINE ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended two or more people assembling this
machine to avoid possible injury.

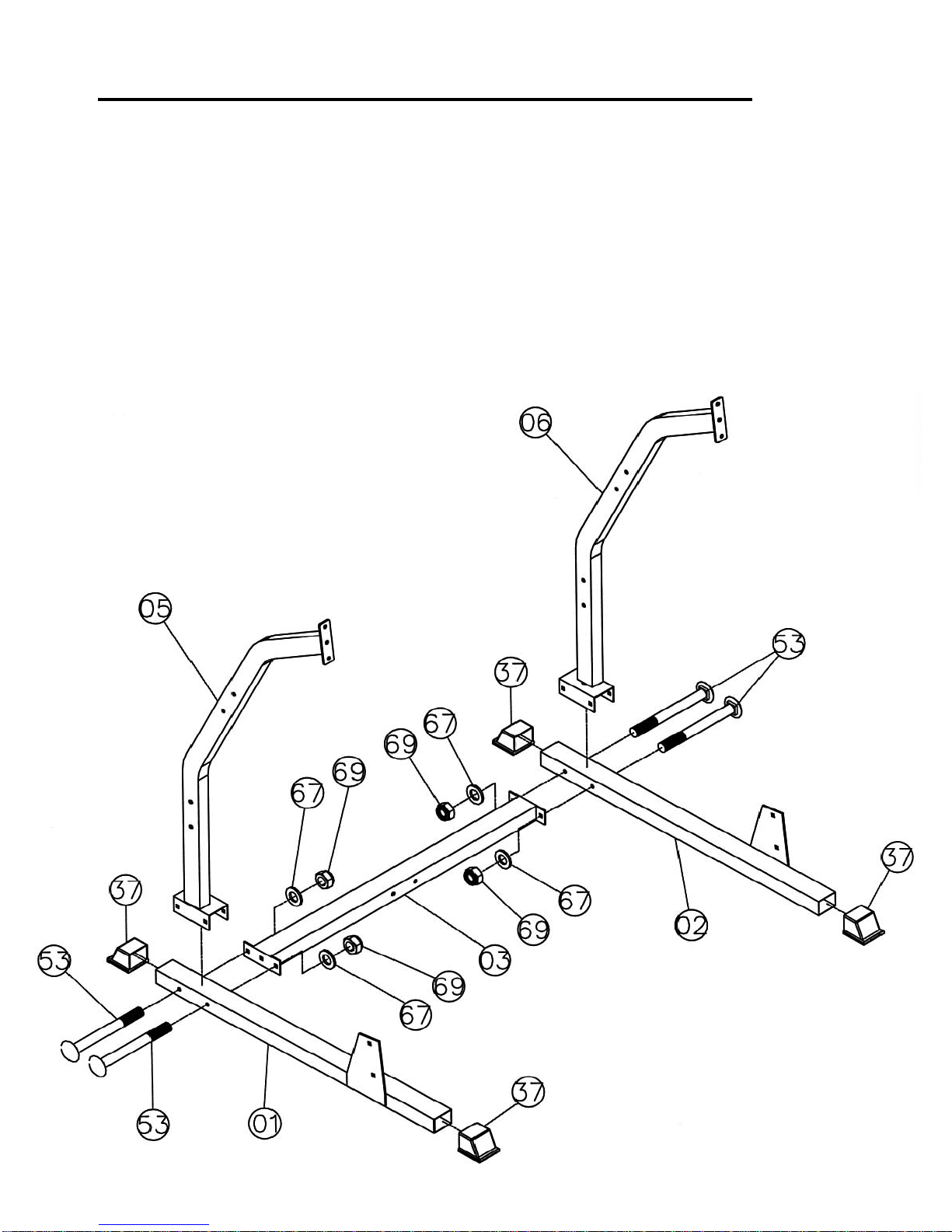

STEP 1 (See Diagram 1)
A.) Attach the Right Support (#5) to the Right Stabilizer (#1). Attach the Cross Brace
(#3) to the Right Support. Align the holes and secure them with two M10 x 3 ¾”
Carriage Bolts (#53), two Ø ¾” Washers (#67), and two M10 Aircraft Nuts (#69).
Repeat the same step to install the Left Support (#6) on the other side.
NOTE: DO NOT tighten the Nuts and Bolts yet.
B.) Cover the end of the Stabilizers with four 2” x 2 ¾” Stabilizer End Caps (#37).
DIAGRAM 1
5

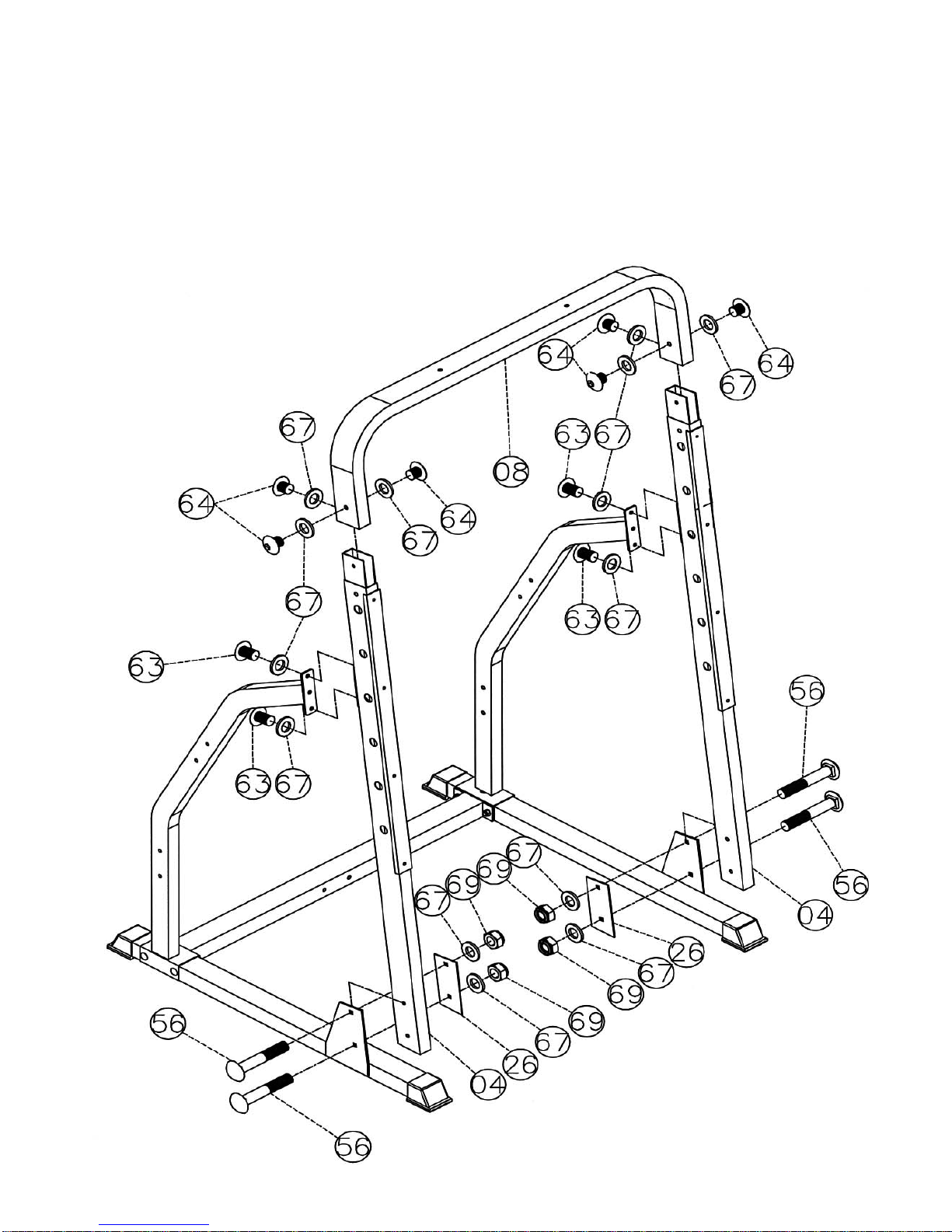

STEP 2 (See Diagram 2)
A.) Attach an Upright Beam (#4) to the Right Stabilizer (#1) and the Right Support (#5). Secure
the Upright Beam to the Right Stabilizer with two M10 x 2 3/8” Carriage Bolts (#56), one 7”
x 3 1/8” Bracket (#26), two Ø ¾” Washers (#67), and two M10 Aircraft Nuts (#69).
B.) Secure the Upright Beam to the Right Support with two M10 x ¾” Allen Bolts (#63) and two
Ø ¾” Washers (#67).
C.)Repeat Steps A and B above to install the other side.
D.)Place the Upper Frame (#8) onto the two Upright Beams. Secure each end of the Upper
Frame with three M10 x 5/8” Allen Bolts (#64) and Ø ¾” Washers (#67).
E.) Securely tighten all the Nuts and Bolts previously installed.
6
STEP 3 (See Diagram 3)
A.) Attach the Rear Stabilizer (#21) and the Chromed Foot Support (#25) to the Cross
Brace (#3). Secure them with two M10 x 3 ½” Carriage Bolts (#54), Ø ¾” Washers
(#67) and M10 Aircraft Nuts (#69).
B.) Attach the Support Bracket (#14) to the Rear Stabilizer. Secure it with two M10 x 2 ¾”
Carriage Bolts (#55), Ø ¾” Washers (#67) and M10 Aircraft Nuts (#69).
C.)Slide the Sliding Weight Post (#13) onto the Rear Vertical Frame (#7). Attach the
Vertical Frame to the Support Bracket (#14). Secure it with two M10 x 5/8” Allen Bolts
(#64) and Ø ¾” Washers (#67). Attach two Spring Clips (#31) to the posts.
D.)Attach four Olympic Weight Posts (#15) to the Right & Left Supports (#5 & 6). Secure
each Post with two M10 x 2 3/8” Carriage Bolts (#56), one 4 ¾” x 2 3/8” Bracket (#27),
two Ø ¾” Washers (#67), and two M10 Aircraft Nuts (#69). Attach a Spring Clip to each
Post. DIAGRAM 3
7

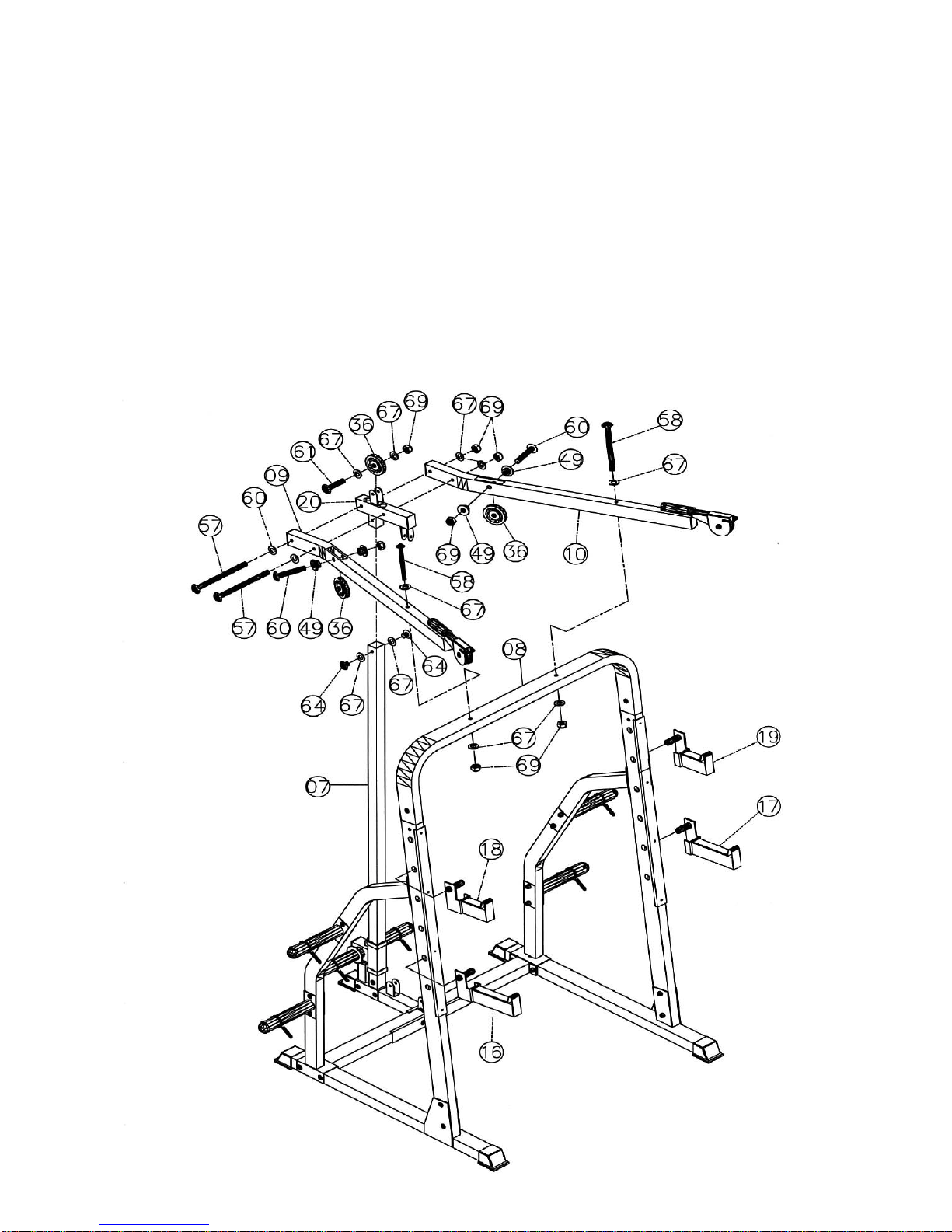

STEP 4 (See Diagram 4)
A.) Attach the Lat Bar Frame Bracket (#20) to the top of the Rear Vertical Frame (#7). Secure it
with two M10 x 5/8” Allen Bolts (#64) and Ø ¾” Washers (#67).
B.) Attach the Left & Right Lat Bar Frames (#10 & 9) to the Lat Bar Frame Bracket (#20). Secure
them with two M10 x 5 ¼” Allen Bolts (#57), four Ø ¾” Washers (#67), and two M10 Aircraft
Nuts (#69).
C.) Secure each Lat Bar Frame to the Upper Frame (#8) with one M10 x 4 ½” Allen Bolt (#58), two
Ø ¾” Washers (#67) and one M10 Aircraft Nut (#69).
D.) Securely tighten all Bolts and Nuts previously installed.
E.) Attach a Pulley (#36) to the open slot on the Left Lat Bar Frame (#10). Secure it with one M10 x
2 1/8” Allen Bolt (#60), two ∅5/8” Pulley Bushings (#49), and one M10 Aircraft Nut (#69).
Repeat the same procedure to install the other side.
F.) Attach a Pulley to the Lat Bar Frame Bracket (#20). Secure it with one M10 x 1 ¾” Allen Bolt
(#61), two Ø ¾” Washers (#67), and one M10 Aircraft Nut (#69).
G.) Insert the Right & Left Bar Catches (#18 & 19), Right & Left Safety Catches (#16 & 17) into the
selected holes on the Upright Beams to obtain the desired position.
8

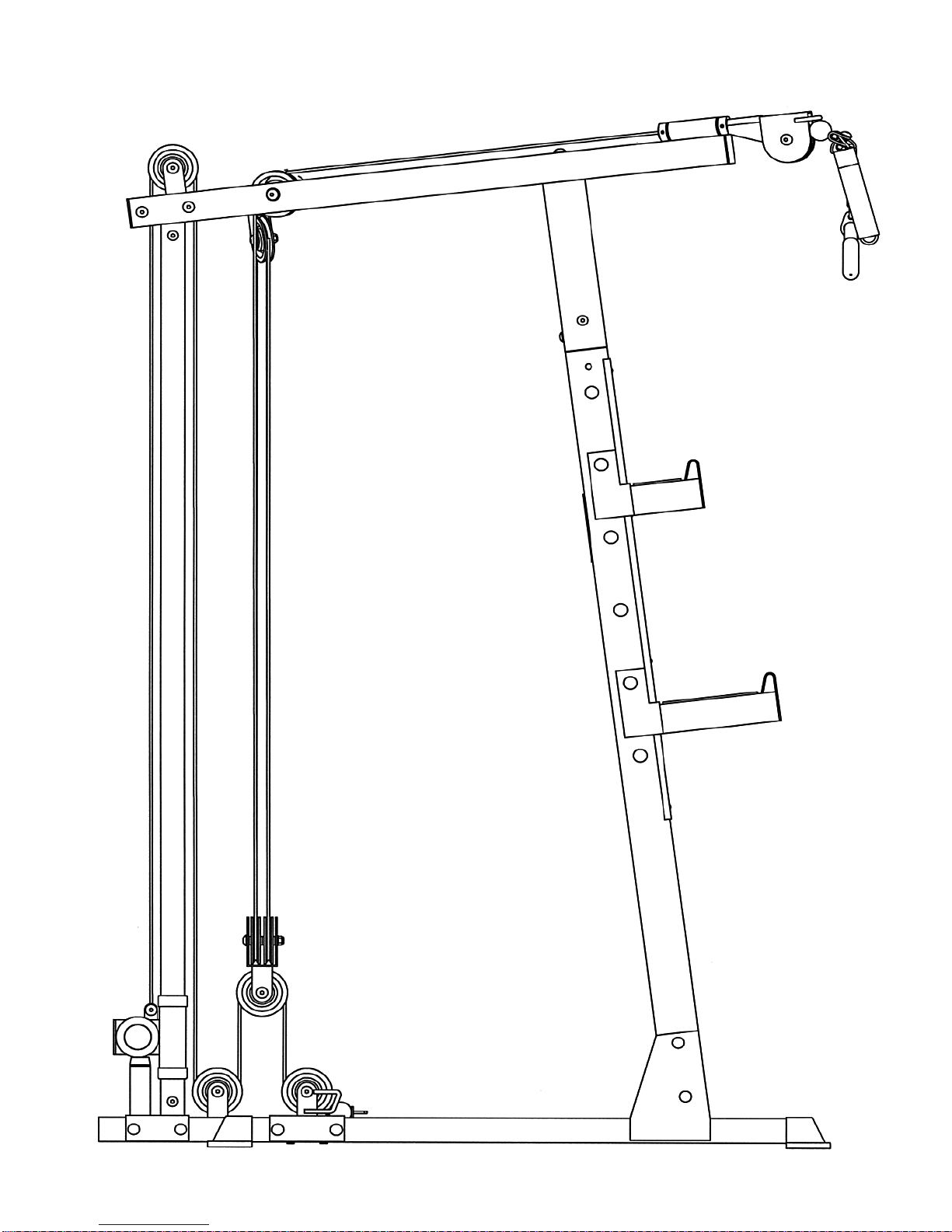

CABLE LOOP DIAGRAM
9
