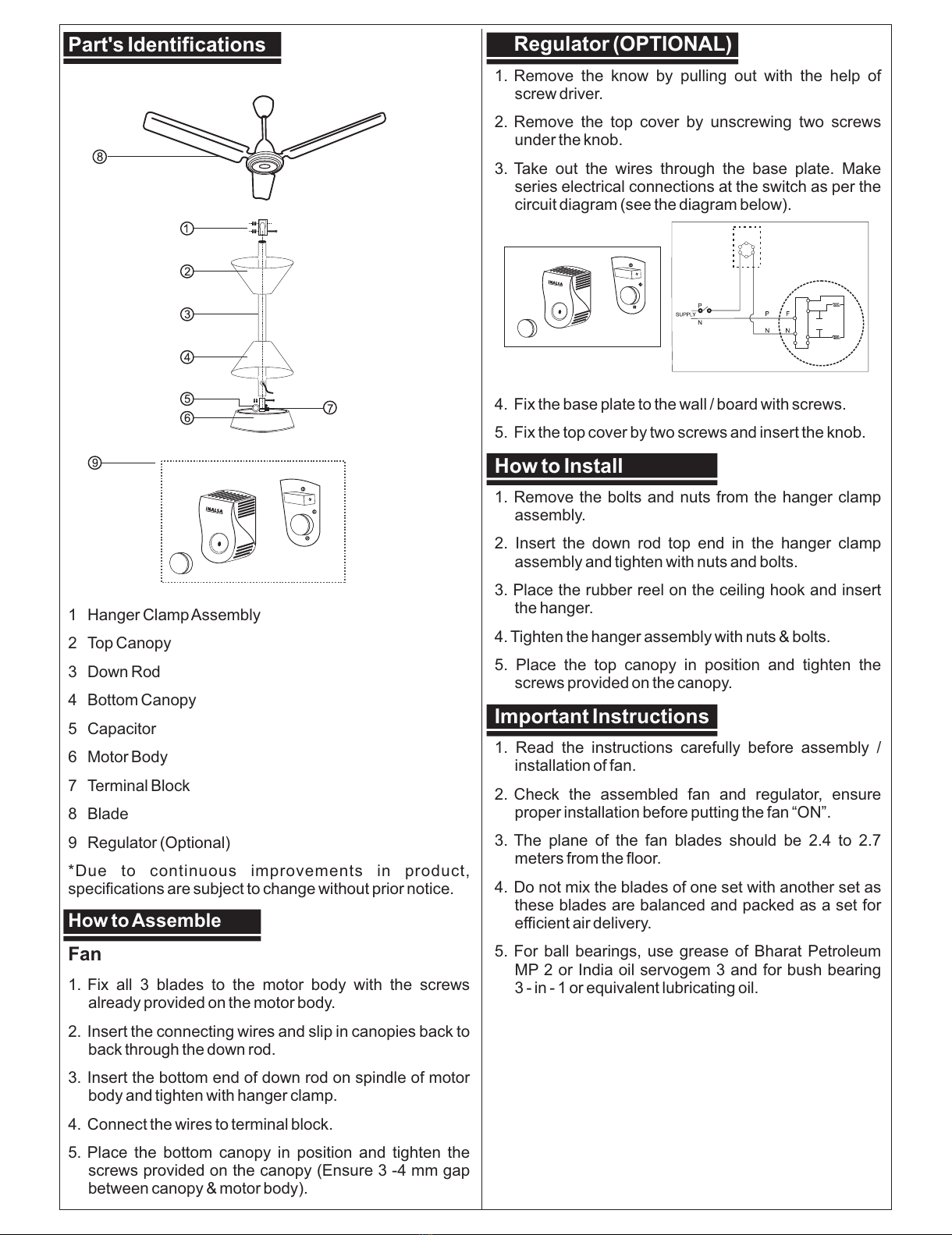

Part's Identifications
1 Hanger Clamp Assembly
2 Top Canopy
3 Down Rod
4 Bottom Canopy
5 Capacitor
6 Motor Body
7 Terminal Block
8 Blade
9 Regulator (Optional)
*Due to continuous improvements in product,
specifications are subject to change without prior notice.
How to Assemble
Fan
1. Fix all 3 blades to the motor body with the screws
already provided on the motor body.
2. Insert the connecting wires and slip in canopies back to
back through the down rod.
3. Insert the bottom end of down rod on spindle of motor
body and tighten with hanger clamp.
4. Connect the wires to terminal block.
5. Place the bottom canopy in position and tighten the
screws provided on the canopy (Ensure 3 -4 mm gap
between canopy & motor body).
Regulator (OPTIONAL)
1. Remove the know by pulling out with the help of
screw driver.
2. Remove the top cover by unscrewing two screws
under the knob.
3. Take out the wires through the base plate. Make
series electrical connections at the switch as per the
circuit diagram (see the diagram below).
4. Fix the base plate to the wall / board with screws.
5. Fix the top cover by two screws and insert the knob.
How to Install
1. Remove the bolts and nuts from the hanger clamp
assembly.
2. Insert the down rod top end in the hanger clamp
assembly and tighten with nuts and bolts.
3. Place the rubber reel on the ceiling hook and insert
the hanger.
4. Tighten the hanger assembly with nuts & bolts.
5. Place the top canopy in position and tighten the
screws provided on the canopy.
Important Instructions
1. Read the instructions carefully before assembly /
installation of fan.
2. Check the assembled fan and regulator, ensure
proper installation before putting the fan “ON”.
3. The plane of the fan blades should be 2.4 to 2.7
meters from the floor.
4. Do not mix the blades of one set with another set as
these blades are balanced and packed as a set for
efficient air delivery.
5. For ball bearings, use grease of Bharat Petroleum
MP 2 or India oil servogem 3 and for bush bearing
3 - in - 1 or equivalent lubricating oil.
