Infinix X6823C Manuale utente
Infinix X6823C
User Manual (G)
1

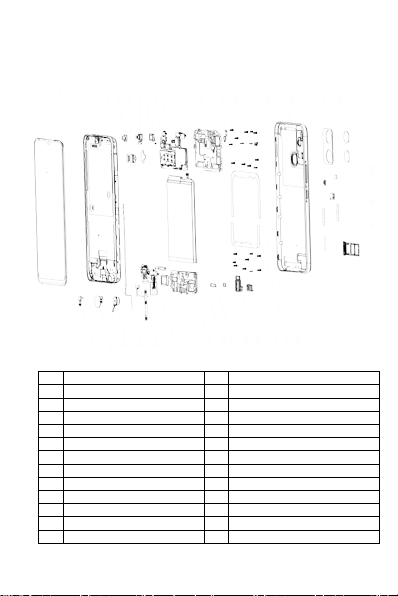

Explosion diagram specification
1
SCREEN
2
FRONT SHELL
3
FRONT SILICA GEL
4
REAR CAMERA
5
FRONT SHOT
6
CAMERA SPONGE
7
RECEIVER
8
LIGHT RUBBER
9
MAINBOARD
10
UP BRACKET
11
PRESSING STEEL
12
3.5 SCREW
13
2.5 SCREW
14
BATTERY COVER
15
CAMERA TRIM
16
REAR MAIN LENS
17
REAR SIDE LENS
18
FINGER FOAM
19
REAR SILICONE SLEEVE
20
REAR CAMERA SUPPORT
21
FRONT GROUND FOIL
22
HORN COPPER FOIL
23
SI M C ATO
24
HORN CLOTH
25
UP MYRA
26
DOWN MYRA
2
27
USB SILICONE SLEEVE
28
EARPHONE SILICONE
29
BATTER SILICON FILM
30
SCREEN SILICON FILM
31
BATTERY
32
DOWN SUPPORT
33
HORN
34
PLATELETS
35
SIDE KEY FPC
36
COAXIAL LINE
37
MOTOR
38
FINGERPRINT
39
REAR SIDE CAMERA
3
Know your phone
1. Front camera
2. Volume + key
3. Volume - key
4. Power key
2
SIM/SD card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD card
installation.
3

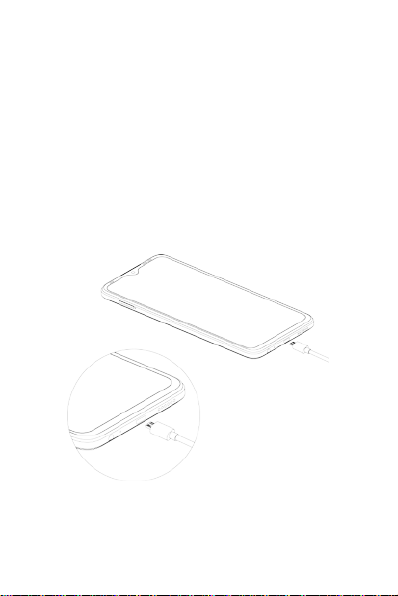

Charging the phone
You can charge your device using a charger or by connecting
it to the computer using a USB cable (comes with the
phone).
1. Please remind the front and back of the plug.
2. Use only Infinix charger and cables. Other chargers or
cables may damage the device. This will invalidate your
phone warranty.
4
FCC Statement
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
5
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
SAR Information Statement
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission
limits for exposure to radiofrequency (RF) energy set by the
Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons,
regardless of age and health. The exposure standard for
wireless mobile phones employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR
limit set by the FCC is 1.6 W/kg. * Tests for SAR are
conducted with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is
because the phone is designed to operate at multiple
power levels so as to use only the power required to reach
the network. In general, the closer you are to a wireless
base station antenna, the lower the power output. Before a
phone model is available for sale to the public, it must be
6
tested and certified to the FCC that it does not exceed the
limit established by the government adopted requirement
for safe exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as
required by the FCC for each model. The highest SAR value
for this model phone when tested for use at the ear is
1.173W/Kg and when worn on the body, as described in
this user guide, is 0.641W/Kg (Body-worn measurements
differ among phone models, depending upon available
accessories and FCC requirements). The maximum scaled
SAR in hotspot mode is 1.087W/Kg. While there may be
differences between the SAR levels of various phones and
at various positions, they all meet the government
requirement for safe exposure. The FCC has granted an
Equipment Authorization for this model phone with all
reported SAR levels evaluated as in compliance with the
FCC RFexposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/ oet/fccid after
searching on
FCC ID: 2AIZN-X6823C Additional information on Specific
Absorption Rates (SAR) can be found on the Cellular
Telecommunications Industry Asso-ciation (CTIA) web-site
at http://www.wow-com.com. * In the United States and
Canada, the SAR limit for mobile phones used by the public
is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
The standard incorporates a sub-stantial margin of safety to
give additional protection for the public and to account for
any variations in measurements.
