V5411-A2 SERIES

INDOOR COLOR DOME CAMERA

User Manual

CONTENTS

Chapter I Description.......................................................................... 1

Chapter II Main Features................................................................... 3

Chapter III Installation....................................................................... 4

3.1 Mounting Process....................................................................... 4

3.2 Handling Precautions ................................................................. 7

3.3 Installation Precautions .............................................................. 7

Chapter IV Camera Function Setting................................................ 9

4.1 Camera Module – Back.............................................................. 9

4.1.1 Operation Instruction......................................................... 9

4.1.2 Lens Driving Signal Selection ........................................ 11

4.2 Power Board ............................................................................. 11

Appendix I Specification................................................................... 13

Appendix II Cable Diameter Calculation and Lightning &

Surge Protection................................................................................. 14

1

CHAPTER I DESCRIPTION

Thank you very much for purchasing our product.

This manual addresses the operation and programming procedures of

V5411-A2 color dome camera.

V5411-A2 series indoor color fixed minidome cameras feature a high-resolution

1/3" CCD sensor and excellent low light operation. They are available in

resolutions of 480 TV lines at 0.3 lux. They are built-in a fixed lens or an

auto-iris vari- focal lens. The cameras are designed for surface mount with

2-axis adjustment and require 12VDC/24VAC for power. The cameras provide

excellent image quality along with ease of installation.

This manual is for the following models:

V5411-A2004ST Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, NTSC, 12VDC/24VAC, Surface

mount, 2.8mm fixed lens

V5411-A2004SU Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, NTSC, 12VDC/24VAC, Surface

mount, 3.6mm fixed lens

V5411-A2004SW Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, NTSC, 12VDC/24VAC, Surface

mount, 6mm fixed lens

V5411-A2004SX Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, NTSC, 12VDC/24VAC, Surface

mount, 8mm fixed lens

V5411-A2004SB Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, NTSC, 12VDC/24VAC, Surface

mount, 2.5-6mm vari-focal lens

V5411-A2014ST Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, PAL, 12VDC/24VAC,

2

Surface mount, 2.8mm fixed lens

V5411-A2014SU Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, PAL, 12VDC/24VAC,

Surface mount, 3.6mm fixed lens

V5411-A2014SW Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, PAL, 12VDC/24VAC,

Surface mount, 6mm fixed lens

V5411-A2014SX Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, PAL, 12VDC/24VAC,

Surface mount, 8mm fixed lens

V5411-A2014SB Analog minidome camera, 2-axis, Indoor, 1/3 inch CCD,

Color only, 480TVL, PAL, 12VDC/24VAC,

Surface mount, 2.5-6mm vari-focal lens

3

CHAPTER II MAIN FEATURES

y1/3" SONY HAD CCD sensor

yHigh Resolution at 480 TVL

yLow Light operation at 0.3 Lux

yDigital Signal Processor (DSP) for high quality image

yHigh sensitivity, low smear, high anti-blooming, and high S/N ratio

yAuto Electronic Shutter (AES), Auto Gain Control (AGC), Auto Tracking

White Balance (ATW), Flickerless (FL), and Backlight Compensation

(BLC)

yInternal (INT) Sync. System

yFixed lens, or Aspherical auto-iris vari-focal lens with IR correction

yPower cable and video cable included

y12VDC / 24VAC power input, low power consumption

4

CHAPTER III INSTALLATION

3.1 Mounting Process

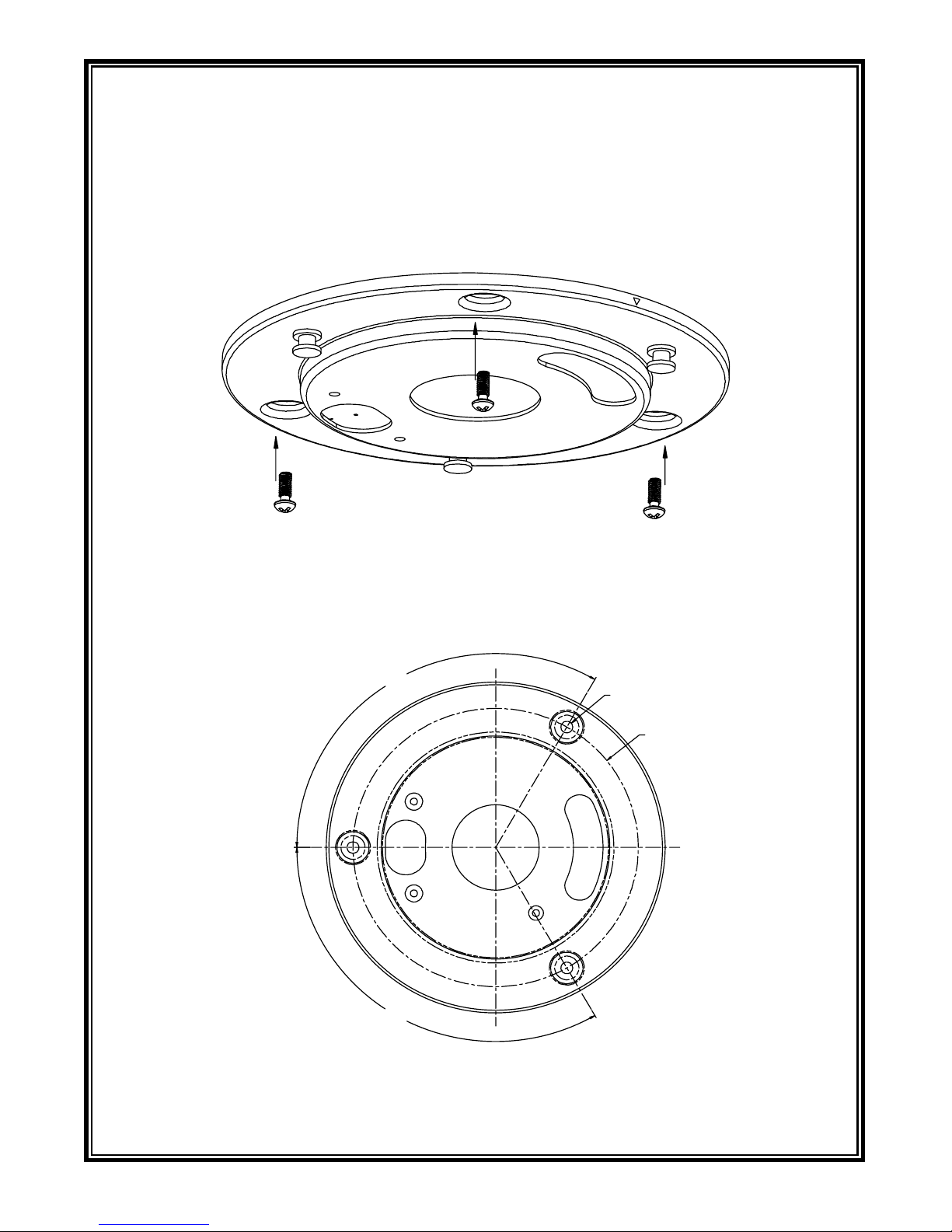

STEP 1: Secure Dome’s Adapter in the desired ceiling position with the 3

fixing screws, as shown in Figure 1.

Figure 1

See the figure below for the adapter mounting holes: (Unit: mm)

3- Ø4.40

Ø106.00

120°

120°

Figure 2

5

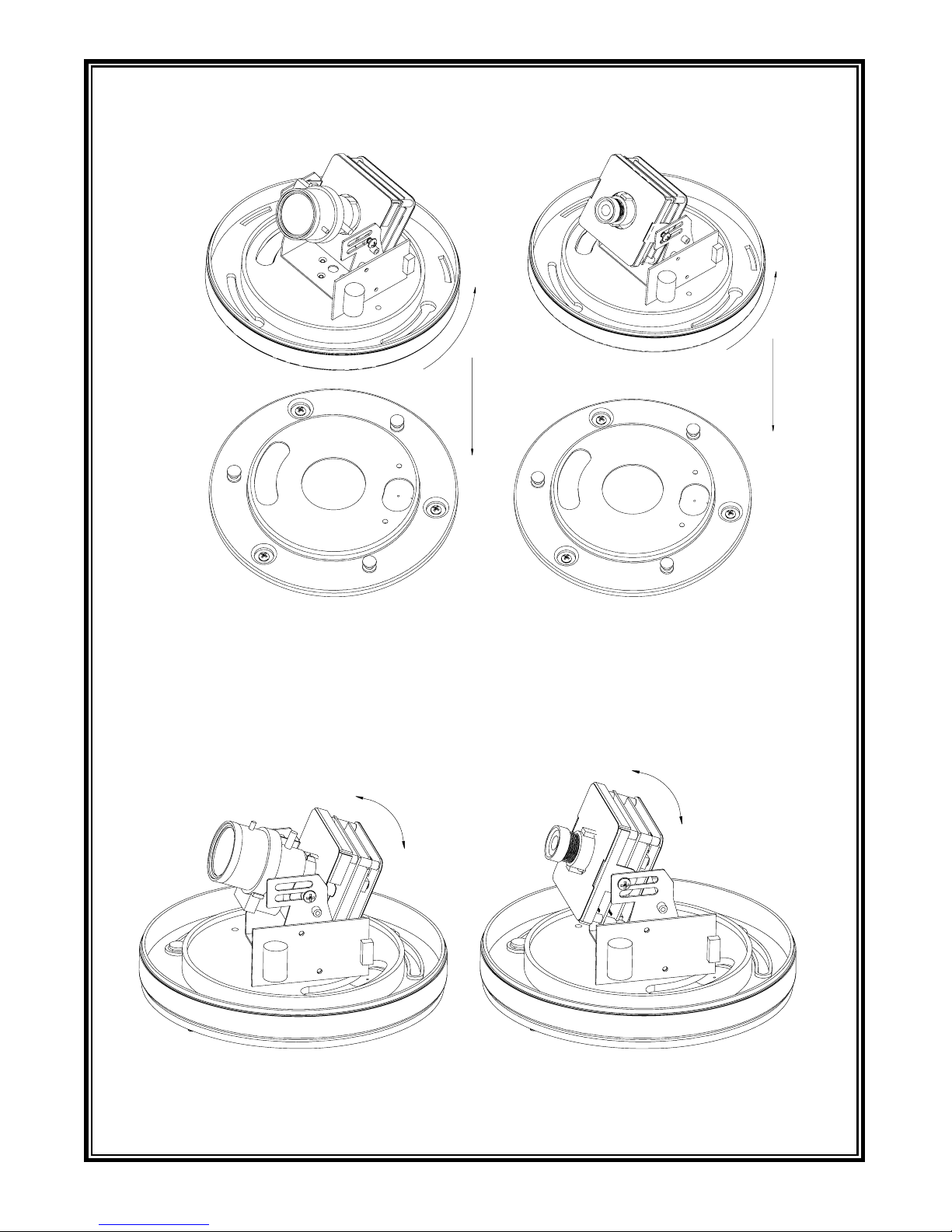

STEP 2: Remove the Dome Cover. Align the 3 grooves of the camera unit

with the 3 bolts in the adapter and turn counterclockwise to make it fixed.

Vari-focallens Fixed-focallens

Figure 3

STEP 3: The vertical angle can be adjusted by loosening the screws as

shown in Figure 4 and by turning the Camera Case vertically.

Vari-focallens Fixed-focallens

Figure 4

6

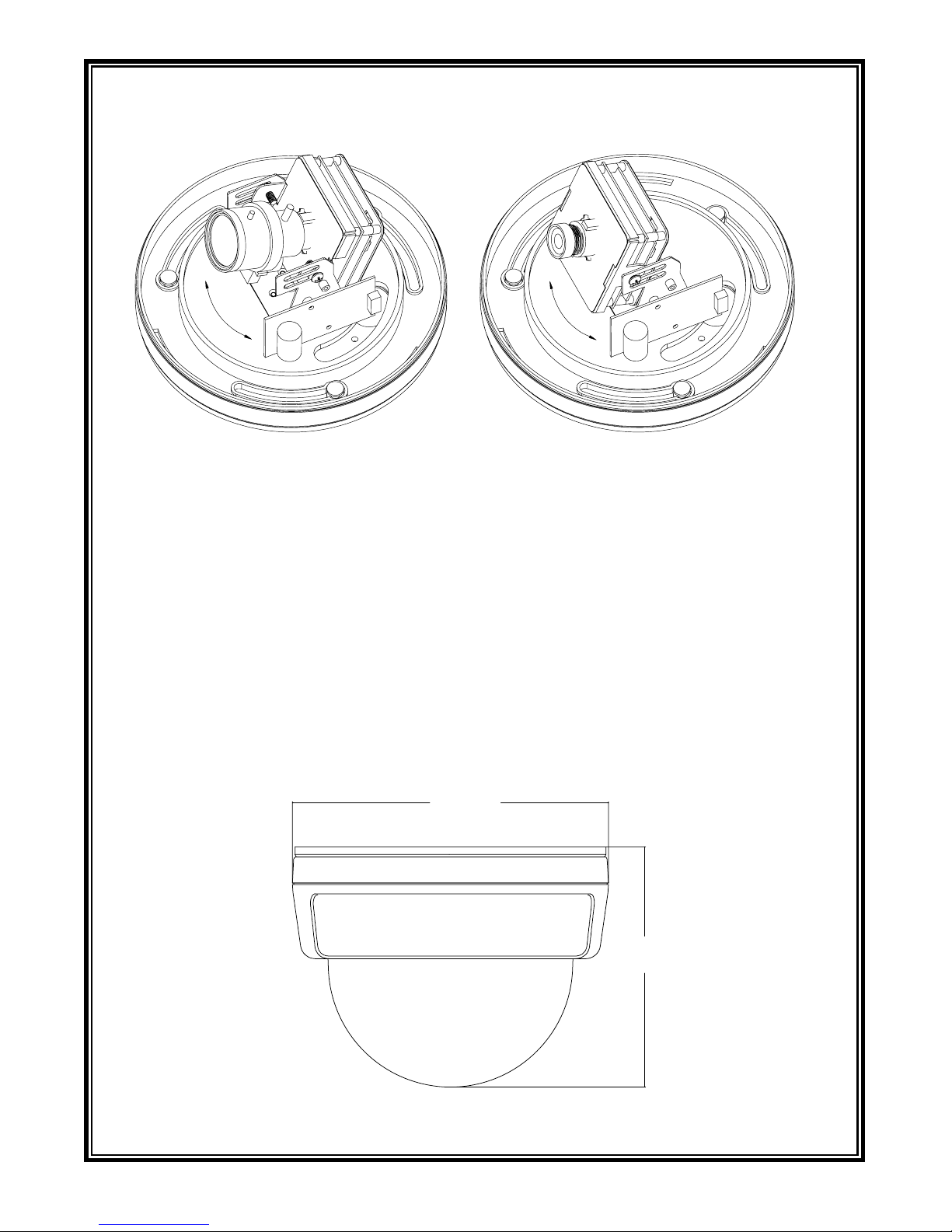

STEP 4: The horizontal angle can be adjusted by turning the Camera Case

and bracket in Figure 5 and by turning the Camera Platform horizontally.

Vari-focallens Fixed-focallens

Figure 5

STEP 5: After finishing angle adjustment, set the camera function by using

the buttons in the back panel (see Chapter IV).

STEP 6: Place the Dome bubble over the Camera and tighten it by turning it

to the right. In this process, the shielding cover may block the camera. User

can adjust the position of shielding cover by turning the bubble. With the

shielding cover at the proper position, the installation is finished.

Dimensions: (Unit: mm)

97.5

Ø128.0

Figure 6

7

3.2 Handling Precautions

1. Never let liquid of any kind flow into this unit.

2. Do not directly touch the CCD element. If it is necessary to clean the dome

bubble, use a soft cloth moistened with alcohol to wipe off any dust.

3. If any abnormality occurs, make sure to unplug the unit and contact your

local dealer.

4. This camera possesses AGC circuit. Therefore, when the camera is used

under lower luminance, the sensibility will strengthen automatically and

make the image very rough in vision. It is normal.

5. When the camera is used in ATW mode, due to the working principle of

auto trace white balance, the recorded color is slightly different from the

real color. It is normal.

6. If the subject is with high luminance (like lamp), vertical stripes will

occur on the monitor (tailing shadow) or the surrounding image becomes

vague (flowering). It is special phenomenon of CCD, not error.

7. The power supply for this camera is 12VDC or 24VAC. 24VAC must be

isolated power.

3.3 Installation Precautions

1. Do not drop the camera or subject it to strong knock.

2. Do not point the camera lens toward the sun or other strong light.

3. Do not install the camera in environment with temperature beyond the

acceptable range (from -10°C to 50°C), or with high humidity, direct

rainfall, frequent vibrations and shocks.

4. Under the default setting, the lens has been adjusted till the object in a

1.5m-distance becomes clear. The lens can be readjusted as per the actual

surveillance scenes.

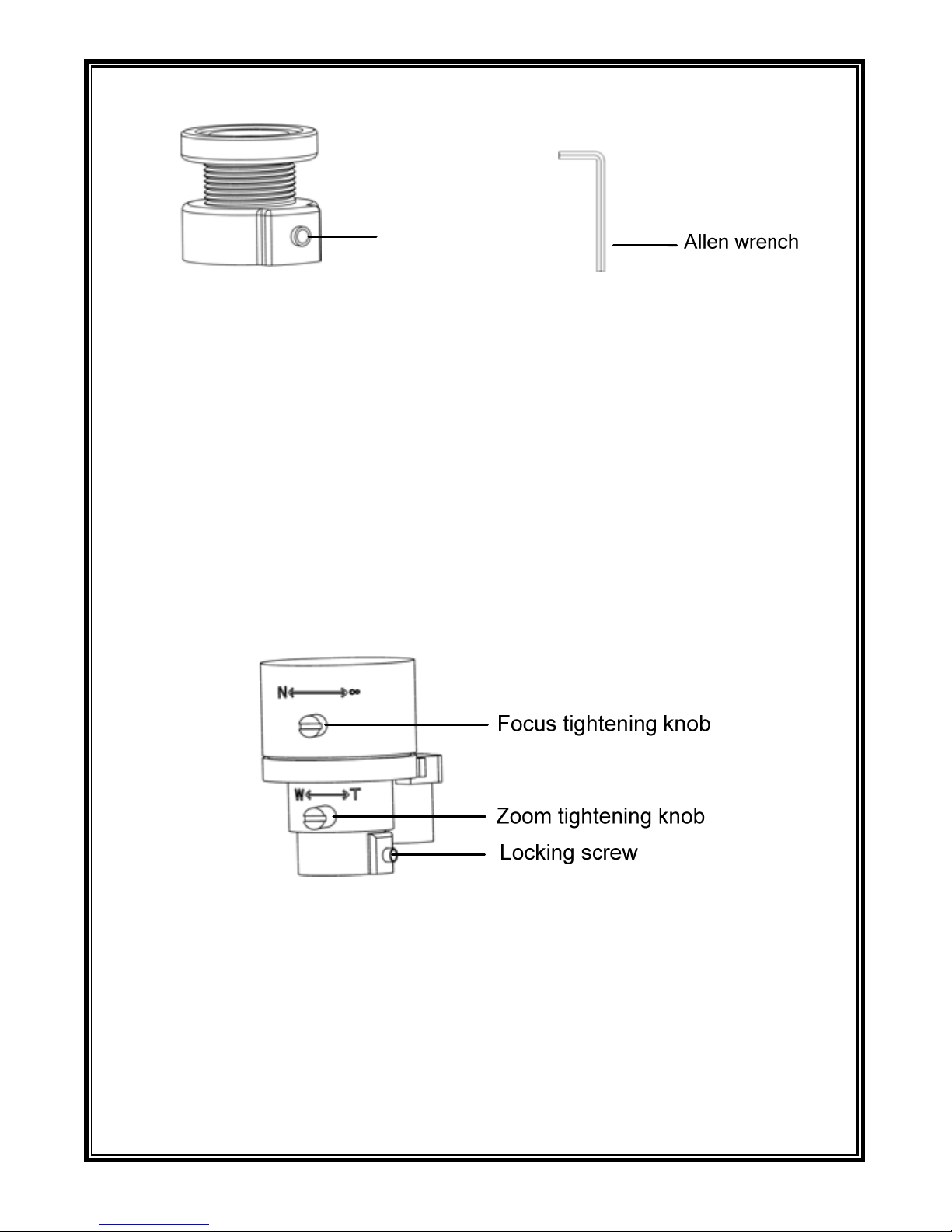

5. Lens Adjusting:

(1). Fixed focal lens

a. Loosen the locking screw (as shown in Figure 7) with an Allen wrench.

b. Slowly rotate the lens until the sharpest image is seen on the monitor.

8

c. Tighten the locking screw.

Locking screw

Figure 7

(2). Vari-focal lens

a. Loosen the zoom tightening knob and the focus tightening knob.

b. Slowly rotate the zoom ring to adjust the focal length.

c. After a zoom operation, slowly rotate the focus ring to obtain the

sharpest image on the monitor.

d. If there are still blurred images, loosen the locking screw with an Allen

wrench (as shown in Figure 8) to adjust the back focal length and

repeat the above procedures.

e. Tighten the zoom tightening knob, the focus tightening knob and the

locking screw.

Figure 8
