Infinova V5822IR-A3 SERIES Manuale utente
V5822IR-A3 SERIES
VANDAL RESISTANT IR FIXED
MINIDOME CAMERA
User Manual
CONTENTS
CHAPTER I DESCRIPTION ..........................................................................1
CHAPTER II MAIN FEATURES ...................................................................2
CHAPTER III INSTALLATION.....................................................................3
3.1 SURFACE MOUNTING ......................................................................... 3
3.2 WA L L MOUNTING (WITH 86 BOX).................................................... 6
3.3 HANDLING PRECAUTIONS................................................................ 8
3.4 INSTALLATION PRECAUTIONS......................................................... 8
CHAPTER IV CAMERA FUNCTION SETTING........................................9
APPENDIX I SPECIFICATIONS.................................................................12
APPENDIX II CABLE DIAMETER CALCULATION AND
LIGHTNING & SURGE PROTECTION.....................................................14
1
CHAPTER I DESCRIPTION
Thank you very much for purchasing our product.
Infinova’s V5822IR-A3 series high resolution IR minidome cameras feature a
high sensitivity 1/3" SONY Super HAD II CCD sensor. Advanced Digital
Signal Processing (DSP) provides 520 TV lines of resolution and authentic
images. The built-in IR illuminators with 25 meters of radiant distance provide
super imaging performance at nighttime. These cameras are the perfection
solution for a 24x7 around-the-clock surveillance.
V5822IR-A3 series IR minidome cameras employ vandal resistant minidome
housing, making them the ideal choice for the hazardous surveillance
environments. The cameras provide easy installation, designed for surface
mount with 3-axis adjustment.
This manual is for the following models:
V5822IR-A3014SE IR minidome camera, 1/3 inch CCD,
Vandal-resistant, 3-axis, Day/night,
520TVL, PAL, 12VDC/24VAC,
Surface mount, 3.3-12mm vari-focal lens
V5822IR-A3004SE IR minidome camera, 1/3 inch CCD,
Vandal-resistant, 3-axis, Day/night,
520TVL, NTSC, 12VDC/24VAC,
Surface mount, 3.3-12mm vari-focal lens
2
CHAPTER II MAIN FEATURES
y1/3" SONY high resolution Super HAD II CCD sensor
yResolution: 520 TVL
yIR-Cut Removable (ICR) Filter for Day/Night switching
yBuilt-in IR illuminators, 850nm wavelength, 25 meters radiant distance
yAdjustable power consumption of IR illuminators
ySuper imaging performance at nighttime
yAuto Electronic Shutter (AES), Auto Gain Control (AGC), Backlight
Compensation (BLC)
yAspherical, auto-iris, vari-focal lens with IR correction
yLEVEL adjustment
ySurface Mount, 3-axis adjustment
3
CHAPTER III INSTALLATION
3.1 Surface Mounting
Step 1: Prepare mounting holes
If the minidome camera’s pigtail is dragged out from the top of upper housing,
drill mounting holes at the desired position. See the figure below for the size
and location of mounting holes.
Ø92.0
Ø30.0
Ø5.5
135°
135°
30.0
Mounting hole
Cable hole
(Unit: mm)

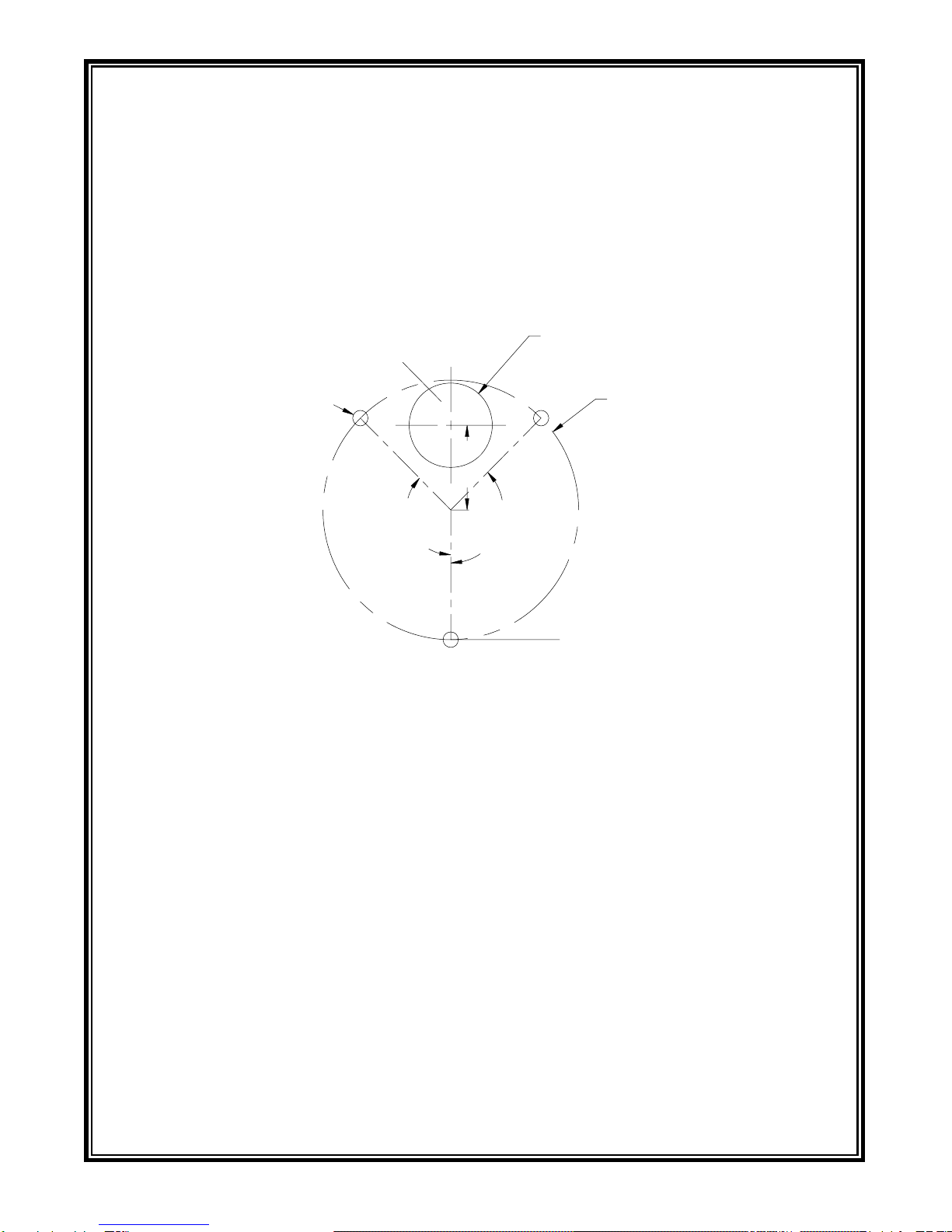

Figure 3-1
Step 2: Install upper housing
Loosen the three mum-head screws in bubble flange and take off the bubble.
For ease of installation, upper housing and dome bubble are connected with a
safety lanyard. Pay attention to prevent dust, scrapings and the like from falling
into the bubble.
There are DIP switch, Blemish correction button and three mounting holes in
the upper housing. Refer to Chapter IV for detailed operation instruction.
Install the upper housing to the desired position with three M4*25 conical
tapping screws and then connect the properly arranged cables with external
power source and relevant devices.
4

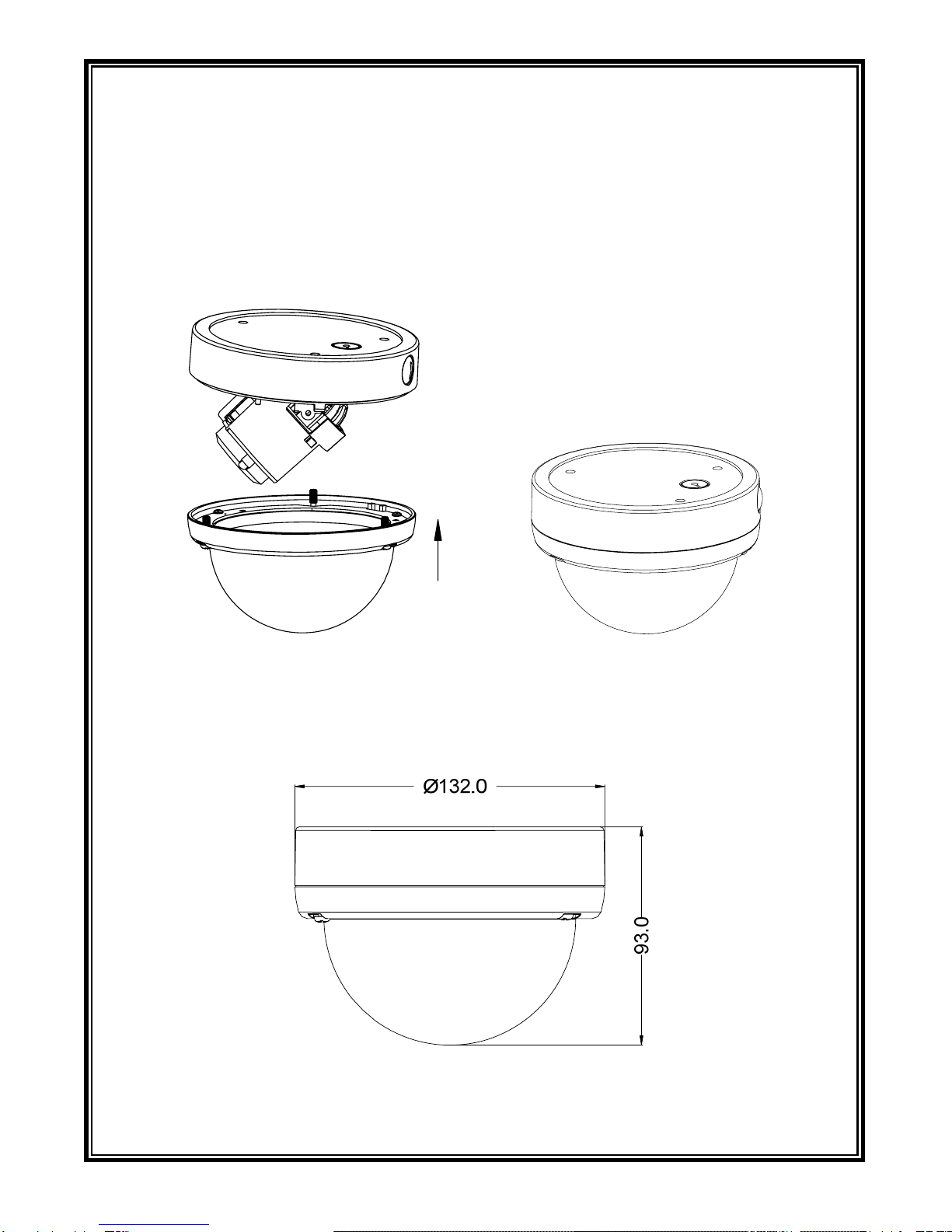

Figure 3-2
Step 3:Adjust viewing angle
Check whether the cables are properly and firmly connected before powering
on. The dome camera will perform a self-test for about 30 seconds after
power-on. Then loosen the locking screw to adjust the camera angle according
to your surveillance need. The camera features X, Y, Z 3-axis adjustment. It
allows 0°~350° panning adjustment, 0°~75° tilting adjustment and -85°~85°
rotating adjustment.

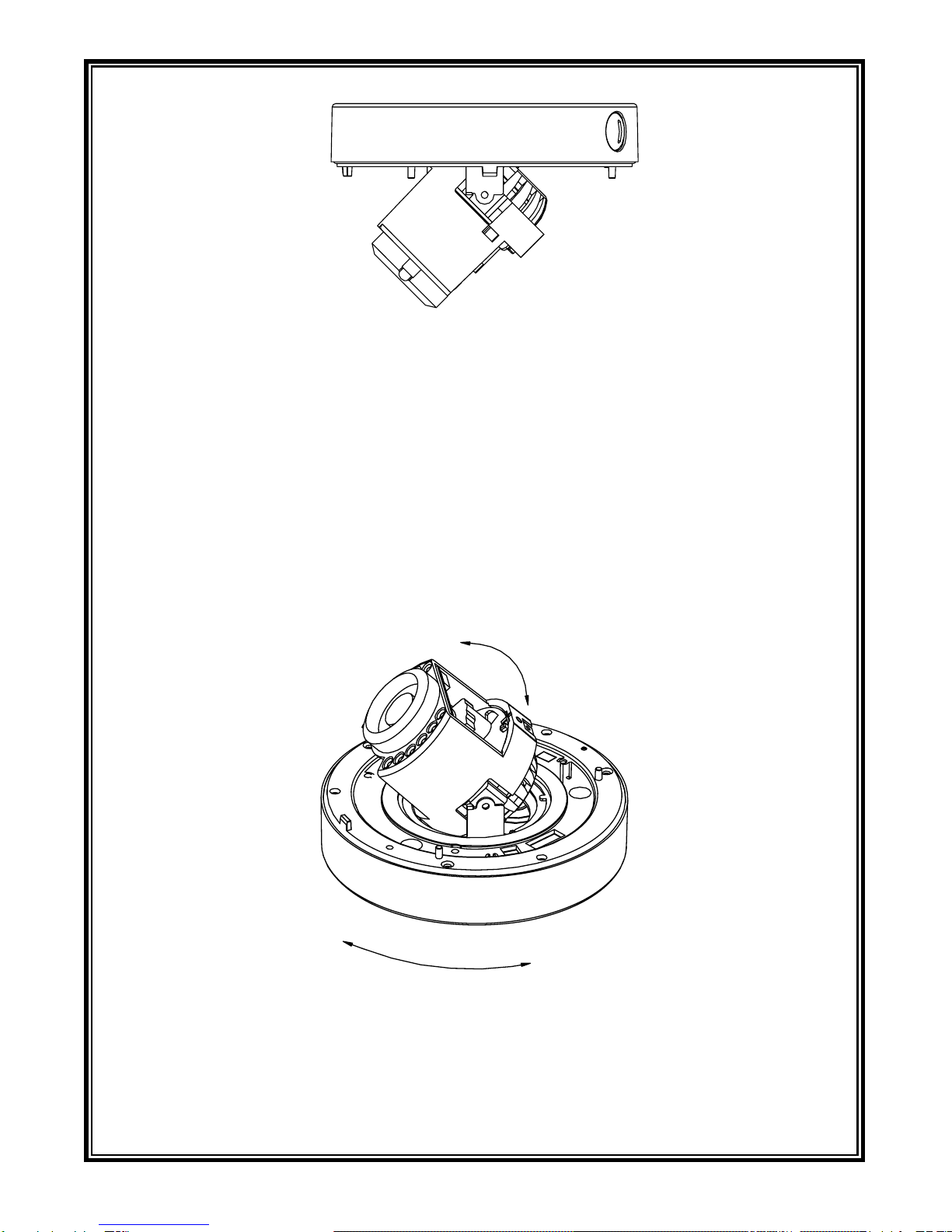

Figure 3-3
Step 4: Set camera function
You can use the DIP switch in the upper housing to set the desired video
quality on site. The detailed instructions are specified in Chapter IV.
5
Step 5: Install dome bubble
Install the bubble flange to upper housing. In this process, the shielding cover
may block the camera. Thus, before securing the bubble, user should adjust the
shielding cover to a proper position. Then, fasten the screws.
With all the procedures finished, user should further confirm whether each part
of the device is properly and firmly connected.

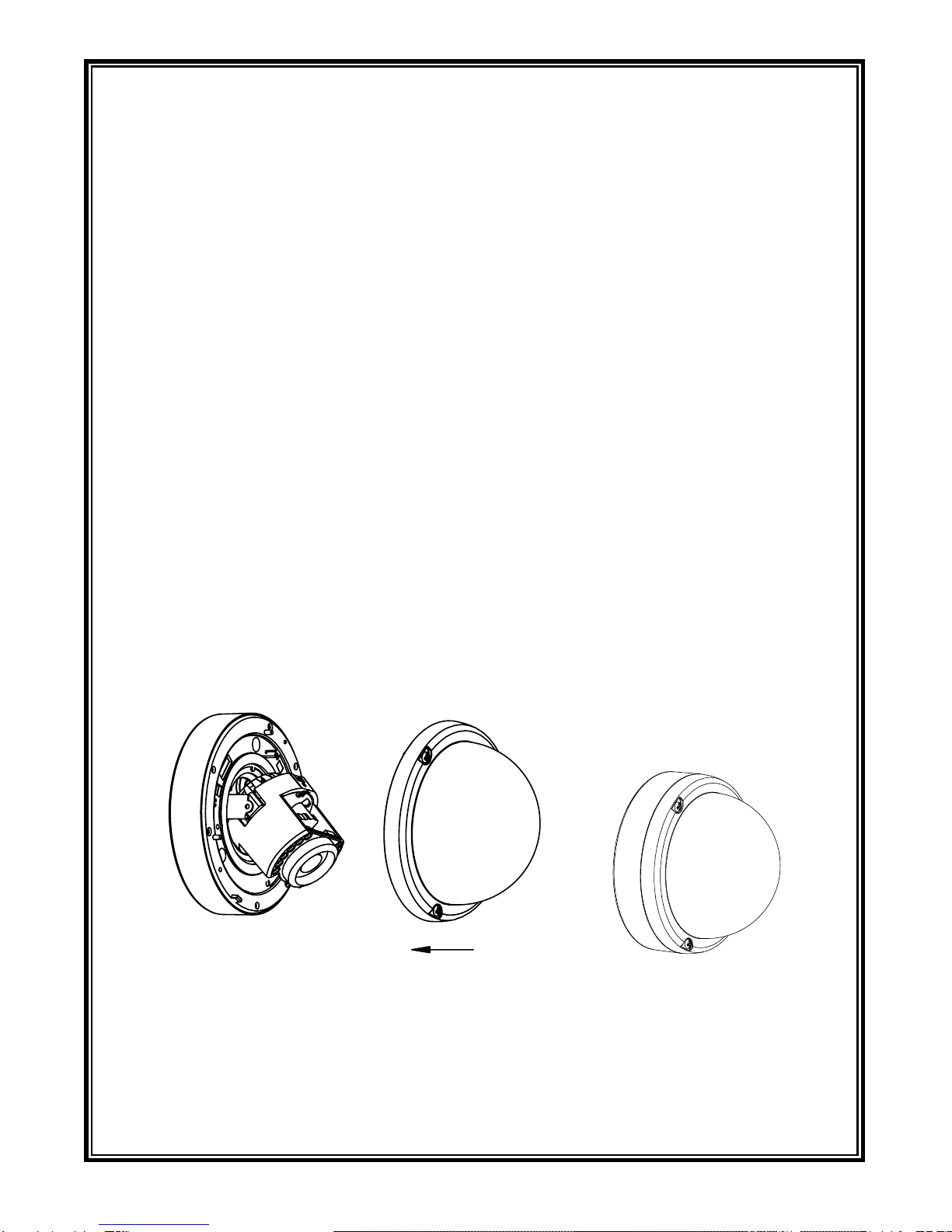

Figure 3-4
Dimensions (Unit: mm)
Figure 3-5
6
3.2 Wall Mounting (with 86 box)
Step 1: Install the adapter

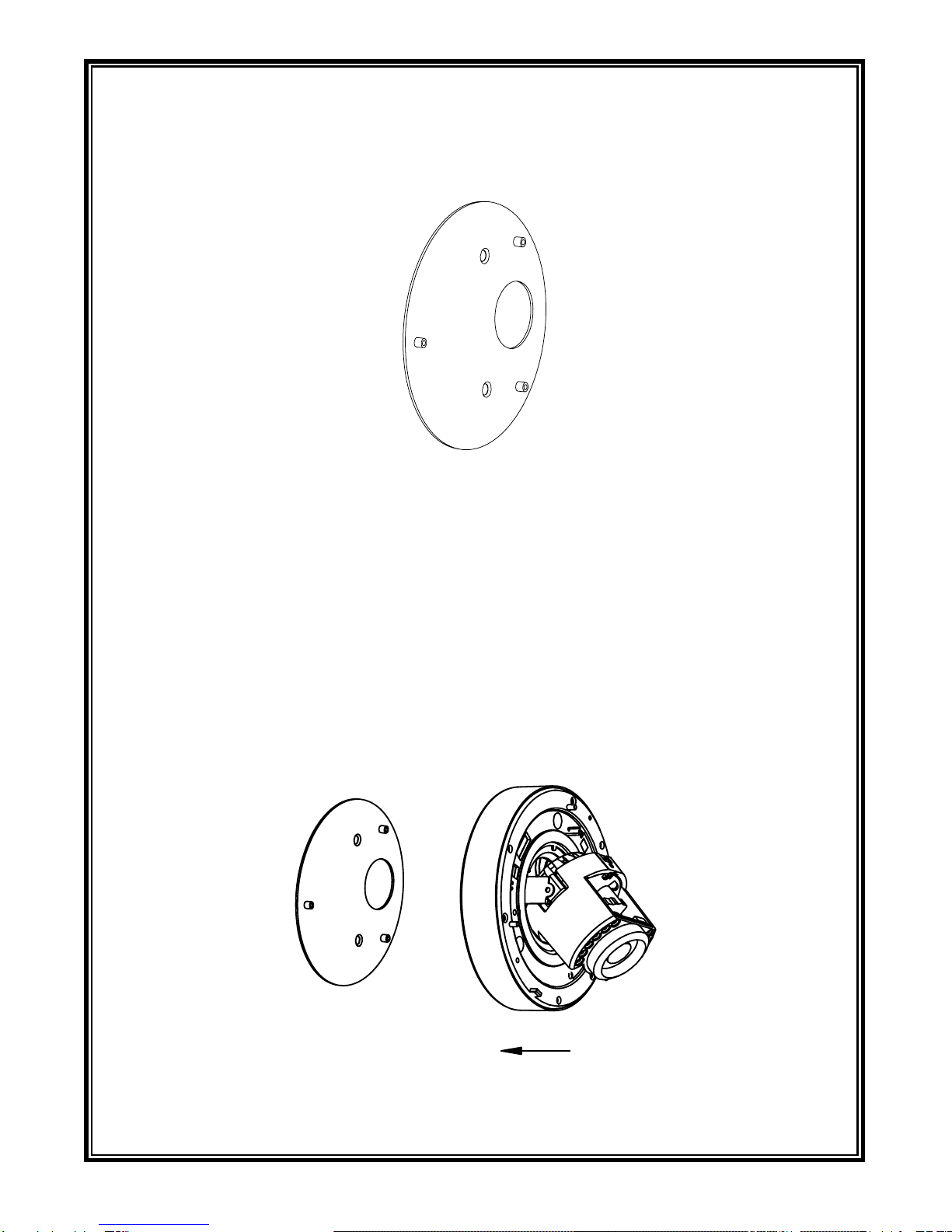

Fix the adapter to an 86 box with two M3.5 countersunk head screws.
Figure 3-6
Step 2: Install upper housing
Arrange the cables properly.
Loosen the three mum-head screws in bubble flange and take off the bubble.
For ease of installation, upper housing and dome bubble are connected with a
safety lanyard.
Secure the camera assembly to the adapter with three M3 conical screws. Pay
attention to prevent dust, scrapings and the like from falling into the bubble.
Figure 3-7
7
Step 3:Adjust viewing angle
Check whether the cables are properly and firmly connected before powering
on. The dome camera will perform a self-test for about 30 seconds after
power-on. Then loosen the locking screw to adjust the camera angle according
to your surveillance need. The camera features X, Y, Z 3-axis adjustment. It
allows 0°~350° panning adjustment, 0°~75° tilting adjustment and -85°~85°
rotating adjustment.
Step 4: Set camera function
You can use the DIP switch in the upper housing to set the desired video
quality on site. The detailed instructions are specified in Chapter IV.
Step 5: Install dome bubble
Install the bubble flange to upper housing. In this process, the shielding cover
may block the camera. Thus, before securing the bubble, user should adjust the
shielding cover to a proper position. Then, fasten the screws.
With all the procedures finished, user should further confirm whether each part
of the device is properly and firmly connected.
Figure 3-8
8
3.3 Handling Precautions
1. Never let any water or liquid flow into this equipment.
2. Please do not directly touch the CCD element. If it is necessary to clean the
dome bubble, use a soft cloth moistened with alcohol to wipe off any dust.
3. If any abnormality occurs, make sure to unplug the unit and contact
Infinova or your local dealer.
4. This camera possesses AGC circuit. Therefore, when the camera is used
under lower luminance, the sensibility will strengthen automatically and
make the image very rough in vision. It is normal.
5. If the subject is with high luminance (like lamp), vertical stripes will occur
on the monitor (tailing shadow) or the surrounding image becomes vague
(flowering). It is special phenomenon of CCD, not error.
6. The power for this camera is 12VDC or 24VAC. The power 24VAC should
be isolated power only.
3.4 Installation Precautions
1. Do not drop the camera or subject it to strong knock.
2. Do not point the camera lens toward the sun or other strong light.
3. Do not install the camera in the places where the temperatures rise above or
fall below the acceptable range (from -10°C to 50°C), or high humidity
and/or direct rainfall, frequent vibrations, or shocks occur.
