InFocus LitePro 720 Manuale utente

009-0290-01 (English)

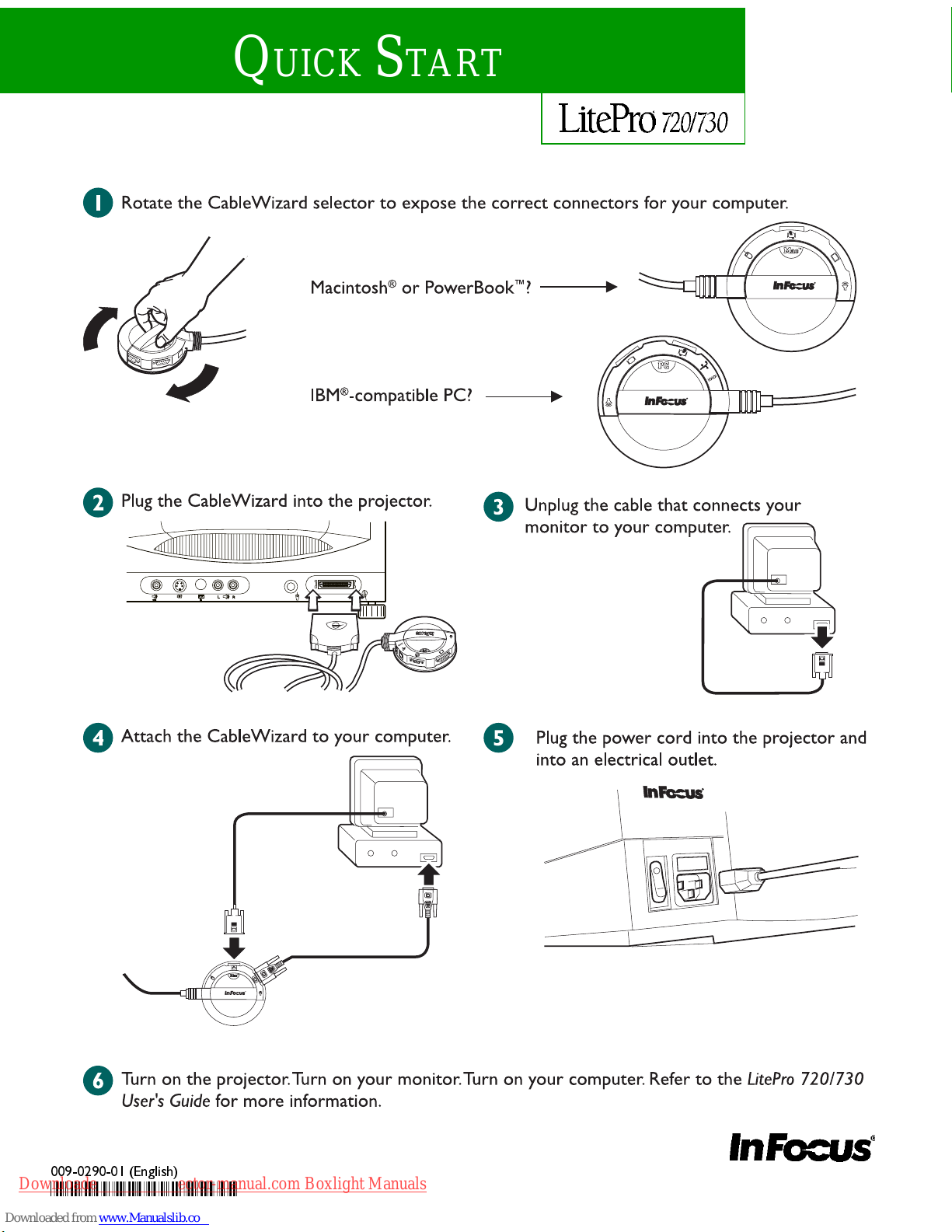

QUICK START



Downloaded From projector-manual.com Boxlight Manuals

QUICK START

Dont Look Into The Lens!

Be extremely careful not to look directly into the lens when the projector is on. The bright

light can harm your eyes. Be especially careful to keep children from looking into the lens.

Dont Disassemble

Do not open the projector’s case! Doing so exposes you to an electric shock hazard.

Except for the projection lamp, there are no user-serviceable parts. All service must be

performed by an In Focus Authorized Service Provider.

Avoid Hot Surfaces

The inside of the projector lamp housing can be very hot. Allow the projector to cool for at

least 2 minutes before opening the lamp door to replace the lamp. Use extreme care. Avoid

touching the hot surfaces inside.

Use Only The 720/730 Power Cord

Always use the power cord that came with the projector. Although other cords might look

the same, they have not been safety-tested with the 720 or 730. Never use the power cord

if it’s damaged or frayed. When you disconnect the projector, always remove the power

cord from the electrical outlet first, then from the projector.

Dont Defeat The Purpose Of The Grounding Plug

The projector is grounded through the grounding conductor on the power cord. To avoid

electric shock, plug the power cord into a properly wired receptacle.

Avoid Liquid Spills

Don’t set drinks on top of the projector. Spilled liquids can flow inside causing damage.

Dont Block Ventilation

Openings in the case provide ventilation to protect the projector from overheating. Keep

loose papers and other objects away from the grills. Don’t place the projector on top of or

close to a computer or other heat-producing equipment.

SAFETY SUMMARY

: Please

read these instructions before

using your LitePro. Failure to

comply could result in fire,

electrical shock, personal injury or

equipment damage.

Definition of Safety Icons

on Product Labels

Refer to the Users

Guide for more

information.

Avoid hot surfaces.

Downloaded From projector-manual.com Boxlight Manuals

TABLE OF CONTENTS

Safety Summary iii

Introduction 1

Image Resolution 1

Compatibility 2

Unpacking the Projector 2

Usage Guidelines 5

If You Need Assistance 5

Warranty 5

Setting up the Projector 7

Connecting the CableWizard™ to the Projector 8

Selecting Connectors on the CableWizard 8

Preparing to Connect Your Equipment to the Projector 10

Connecting an IBM-Compatible Laptop Computer 11

Connecting an IBM-Compatible Desktop Computer 13

Connecting an Apple PowerBook Computer 15

Connecting a Macintosh Desktop Computer 17

Connecting a Video Player 19

Connecting an External Speaker 21

Powering up the Projector and Adjusting the Image 21

Turning Off the Projector 22

Using the Projector 23

Basic Image Adjustment 23

Using the Remote Control 23

Adjusting the Projector 25

Using the Keypad Buttons 27

Using the On-Screen Menus 29

Display Menu Functions 31

Audio Menu Functions 33

Image Menu Functions 35

Controls Menu Functions 37

Downloaded From projector-manual.com Boxlight Manuals

Table of Contents

Maintenance 39

Cleaning the Lens 39

Cleaning the Fan Intake Filter 39

Replacing the Projection Lamp 41

Replacing the Batteries in the Remote Control 43

Using the Kensington Lock 43

Troubleshooting 45

Solutions to Common Problems 46

Appendix 51

Specifications 51

Accessories 53

Portable and Laptop Activation Chart 55

Using Video Mirroring with a PowerBook Computer 59

Projected Image Size 60

Index 63

Downloaded From projector-manual.com Boxlight Manuals

iii

SAFETY SUMMARY

Please read these instructions carefully before using your

LitePro 720 or 730. Failure to comply with them could result in

fire, electrical shock, personal injury or damage to equipment.

These graphics are used throughout this manual to draw your

attention to important information about the projectors.

NOTE: Additional useful details or tips.

CAUTION: Steps to take to avoid damage to your equipment.

WARNING: Steps to take to avoid personal injury.

These graphics are used on LitePro labels.

Attention - Refer to this User’s Guide for important

safety information.

Hot Surfaces - Avoid touching hot surfaces. Do not

touch until the LitePro has cooled.

Do Not Look Into The Lens!

Be extremely careful not to look into the projection lens when the

LitePro is turned on. The bright light may harm your eyes. Be

especially careful to keep children from looking into the lens.

Power Source

Use only a three-wire grounding type power source. The power

source should not exceed 250 volts rms between the supply con-

ductors or between either conductor and the ground.

Power Cord

Use only the power cord that was shipped with the LitePro.

Although other power cords might be similar in appearance, they

have not been safety-tested with the projector. Do not use a

power cord if it has become damaged or frayed. Contact your In

Focus dealer or call In Focus if you need to replace your power

cord.

Downloaded From projector-manual.com Boxlight Manuals

Safety Summary

Grounding

The projector is grounded through the grounding conductor on

the power cord. To avoid electric shock, plug the power cord into

a properly wired receptacle. Do not defeat the purpose of the

grounding-type plug.

Lamp

To avoid overheating and unacceptable image quality, replace the

projection lamp with a lamp of the specified type. Refer to

page 51 for lamp specifications and to page 41 for instructions on

replacing the lamp.

Lamp Compartment

To avoid burns, do not open the lamp module door until the pro-

jector is turned off and the lamp has cooled for at least 2 minutes.

Follow the instructions in this manual for lamp replacement care-

fully.

Hot Surfaces

Allow the projector to cool at least 2 minutes before replacing a

lamp. When you open the lamp housing, be very careful not to

touch the hot surfaces inside.

Ventilation and Overheating

Openings in the projector case provide ventilation to protect it

from overheating. Keep loose papers and other objects well away

from the grills. Do not place the projector on top of or close to a

computer or other heat-producing equipment.

Liquid Spills

Do not set drinks on top of the projector. Spilled liquids can flow

inside and cause damage.

NOTE: If you open the LitePro

case, you will void the warranty.

Do Not Disassemble

All LitePro service must be performed by an authorized In Focus

service center. The only user-serviceable part in the LitePro is the

projection lamp, which you can replace by opening the lamp

cover on the bottom of the projector (see page 41). Do not open

any other part of the LitePro. If your LitePro needs repair, call In

Focus Technical Support as described on page 5. Before you call

Technical Support, you may want to refer to “Troubleshooting”

starting on page 45 to see if you can resolve the problem yourself.

Downloaded From projector-manual.com Boxlight Manuals

INTRODUCTION

The In Focus LitePro®720 and 730 lightweight multimedia pro-

jectors combine powerful and sophisticated features with easy-

to-use, intuitive controls. Built-in multimedia features include

audio, a palette of 16.7 million colors and active matrix liquid

crystal display (LCD) technology. The 700 series projectors are

ideal for high-performance business, training and imaging appli-

cations that demand exceptional color quality. The 720 has SVGA

graphics, the 730 has XGA graphics. The user interfaces of the

two products are identical; information in this User’s Guide

applies to both products.

NOTE: The 720 automatically

expands 640x480 images to

800x600. You can display these

images at 640x480 by turning off

the Auto Resize feature. See “Auto

Resize” on page 35 for more infor-

mation.

Image Resolution

LitePro 720

The SVGA resolution of the 720’s projected image is 800x600.

Screen resolutions between 800x600 and 1024x768 are com-

pressed to 800x600. The 720 cannot compress screen resolutions

above 1024x768. If your computer’s screen resolution is higher

than 1024x768, reset it to a lower resolution before you connect

the 720.

LitePro 730

NOTE: The 730 automatically

expands 640x480 and 800x600

images to 1024x768. You can dis-

play these images at their original

resolutions by turning off the Auto

Resize feature. See “Auto Resize”

on page 35 for more information.

The XGA resolution of the 730’s projected image is 1024x768.

Screen resolutions between 1024x768 and 1280x1024 are com-

pressed to 1024x768. The 730 cannot compress screen resolutions

above 1280x1024. If your computer’s screen resolution is higher

than 1280x1024, reset it to a lower resolution before you connect

the 730.

Downloaded From projector-manual.com Boxlight Manuals

Introduction

Compatibility

The projector is compatible with a wide variety of computers and

video devices, including:

NOTE: Selected workstations are

also supported. Contact your In

Focus dealer for details.

•IBM-compatible computers, including laptops, up to 1024x768

resolution(LitePro 720) or 1280x1024 resolution (LitePro 730) at

75 Hz.

•Apple Macintosh and PowerBook computers up to 1024x768

resolution (LitePro 720) or 1280x1024 resolution (LitePro 730).

•Most standard VCRs, camcorders and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to

make sure all are included. Contact your In Focus dealer immedi-

ately if anything is missing.

If you are experienced in setting up presentation systems, use the

LitePro 720/730 Quick Start card that was included in the shipping

box. For complete details on connecting and operating the projec-

tor, refer to this User’s Guide. User’s Guides are also available for

download from our website at www.infocus.com.

NOTE: The contents of your

shipping box may vary depending

on the LitePro configuration you’ve

ordered.

Downloaded From projector-manual.com Boxlight Manuals

FIGURE 1

Shipping box contents

1. LitePro 720 or 730 projector 6. CableWizard

2. LitePro 720/730 User’s Guide 7. CableWizard computer cable

3. power cord 8. CableWizard mouse cable

4. remote and batteries 9. CableWizard audio cable

5. RCA audio/video (A/V) cable

Not shown: Quick Start card, online user guide CD-ROM, lens cap

Downloaded From projector-manual.com Boxlight Manuals

Introduction

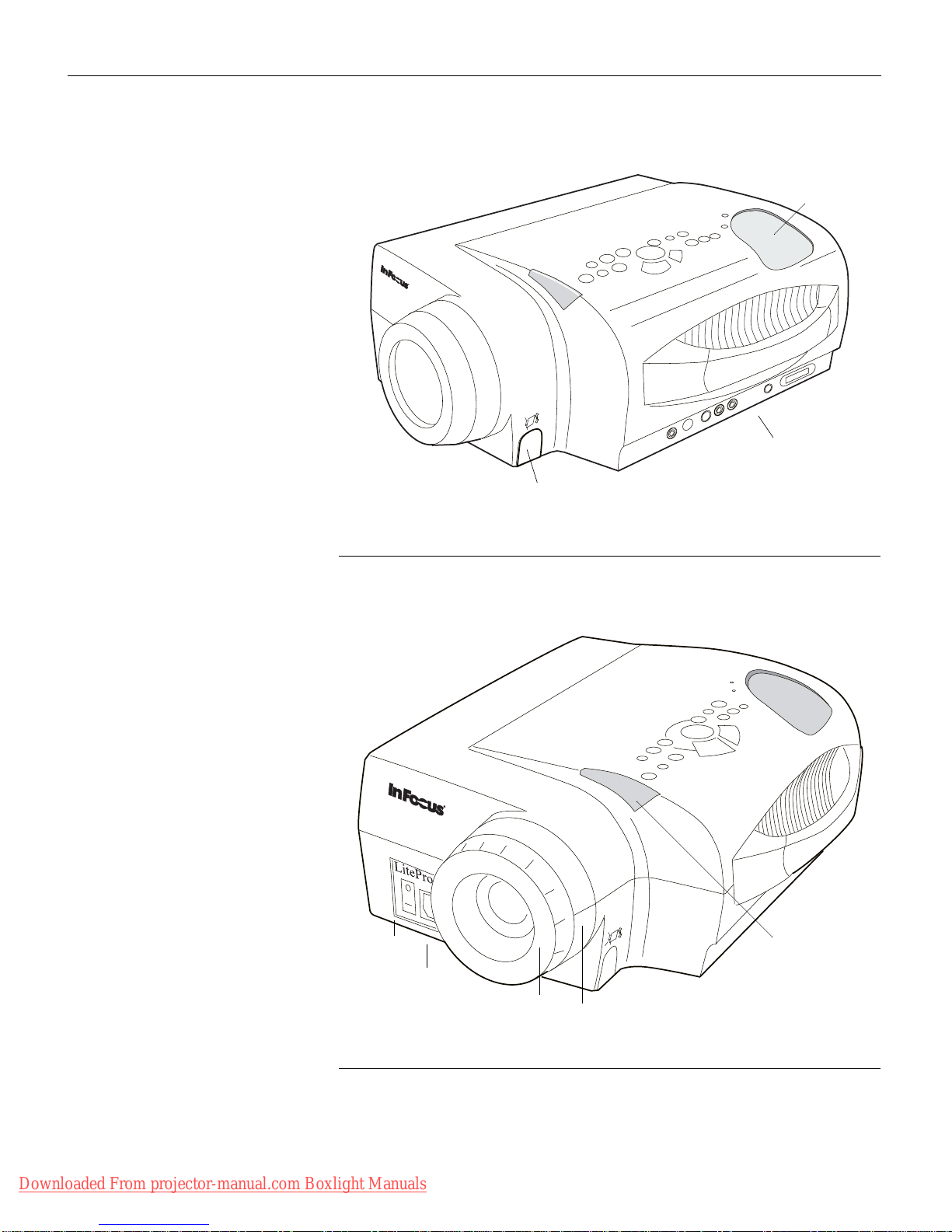

IGURE 2

Side view of LitePro

FIGURE 3

Front view of LitePro

connector panel

elevator button

speaker

power

switch power

cord

connector focus ring zoom ring

remote control

receiver

Downloaded From projector-manual.com Boxlight Manuals

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali InFocus Proiettore

InFocus

InFocus X6 Manuale utente

InFocus

InFocus LP 425 LiteMount Manuale utente

InFocus

InFocus SP7200 Manuale utente

InFocus

InFocus LASER PROJECTOR LP 540 Manuale utente

InFocus

InFocus IN42ff Manuale utente

InFocus

InFocus sp1080 Manuale utente

InFocus

InFocus LP 850 Manuale utente

InFocus

InFocus LP70+ Manuale utente

InFocus

InFocus Play Big IN81 full-HD 1080p Manuale utente

InFocus

InFocus LP 70+ Manuale utente

InFocus

InFocus LP335 DRAGONFLY Manuale utente

InFocus

InFocus LP790 Istruzioni per l'installazione

InFocus

InFocus IN2112 Manuale utente

InFocus

InFocus IN5502 Manuale utente

InFocus

InFocus IN2124a Manuale utente

InFocus

InFocus Learn Big XS1 Manuale utente

InFocus

InFocus LP400 Manuale utente

InFocus

InFocus LP 70+ Manuale utente

InFocus

InFocus LP790 Manuale utente

InFocus

InFocus LP500 Manuale

InFocus

InFocus IN5132 Manuale utente

InFocus

InFocus LightPro IN1004 Manuale utente

InFocus

InFocus LP630 Istruzioni per l'installazione

InFocus

InFocus SCREEN PLAY 7205 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente
