InFocus LP 425 LiteMount Manuale utente
i
TABLE OF CONTENTS
Safety Summary iii
Introduction 1
Image Resolution 1
Compatibility 1
Unpacking the Projector 1
Usage Guidelines 3
If You Need Assistance 4
Warranty 4
Setting up the Projector 5
Connecting an IBM-Compatible Computer 7
Connecting a Macintosh Computer 8
Connecting a Video Player 9
Powering up the Projector and Adjusting the Image 11
Turning Off the Projector 12
Using the Projector 13
Basic Image Adjustment 13
Adjusting the Projector 13
Using the Keypad Buttons 15
Using the On-Screen Menus 16
Display Menu Functions 17
Audio Menu Functions 19
Image Menu Functions 20
Controls Menu Functions 22
Maintenance & Troubleshooting 25
Cleaning the Lens 25
Replacing the Projection Lamp 25
Using the Kensington Lock 28
Troubleshooting 29
ii
Table of Contents
Appendix 33
Specifications 33
Accessories 35
Portable and Laptop Activation Chart 37
Using Video Mirroring with a PowerBook Computer 42
Projected Image Size 43
Index 45
iii
SAFETY INSTRUCTIONS
Please read and follow all safety instructions provided BEFORE
using your new projector. Failure to comply with safety instruc-
tions may result in fire, electrical shock, or personal injury and
may damage or impair protection provided by equipment. Please
save all safety instructions.
Safety Definitions:
•Warning: Statements identify conditions or practices that
could result in permanent personal injury.
•Caution:Statements identify conditions or practices that could
result in damage to your equipment.
Safety Terms:
•Warning: Don’t look directly into the lens when the projector is
turned on.
•Warning: Don’t block ventilation openings.
•Warning: To replace the lamp, turn the power off and
unplug the power cord. To avoid burns, wait 30 minutes
before opening the lamp door. Follow all instructions provided
in this User’s Guide.
•Warning: Please use the power cord provided. Connect
the power cord to a receptacle with a protective safety
(earth) ground terminal.
•Warning: Refer all service to qualified service personnel. Ser-
vicing your own projector will void the warranty. See the fol-
lowing page for the customer service contact information.
•Caution: Don’t set liquids on the projector. Spilled liquids may
damage your projector.
•Caution:Don’t place the projector on a hot surface or in direct
sunlight.
•Caution: Do not drop the projector. Transport the projector in
an In Focus-approved case; see page 36 for a list of cases.
•Caution: For ceiling mount installations, please use the ceiling
mount recommended in this User’s Guide on page 36 and fol-
low all instructions provided with it.
iv
Safety Instructions
Safety Symbols:
Attention:For information about usage of a feature, please
refer to the User’s Guide.
Warning: Hot surface. Do not touch.
An arrow pointing to the lamp door on the projector.
Customer Service
If you need assistance, call In Focus Customer Service directly at
1-800-799-9911. Support is free between 5 a.m. and 5 p.m. PST,
Monday through Friday. Support is available in North America
after hours and weekends for a fee at 1-888-592-6800.
In Europe, call In Focus in The Netherlands at (31) 35-6474010.
In Asia, call (65) 332-0659.
1
INTRODUCTION
The In Focus LP 425™ is specifically designed for the mobile pre-
senter. It packs SVGA graphics with 16.7 million colors into a
small, 6.8 pound package. It generates crisp, clear images using
Digital Light Processing™ (DLP) technology. The LP 425 is easy
to connect, easy to use, and easy to maintain.
NOTE: The 425 automatically
expands 640x480 images to
800x600. You can display these
images at 640x480 by turning off
the Auto Resize feature. See “Auto
Resize” on page 20 for more infor-
mation.
Image Resolution
The SVGA resolution of the 425’s projected image is 800x600.
Screen resolutions between 800x600 and 1024x768 are com-
pressed to 800x600. The 425 cannot compress screen resolutions
above 1024x768. If your computer’s screen resolution is higher
than 1024x768, reset it to a lower resolution before you connect
the 425.
Compatibility
The projector is compatible with a wide variety of computers and
video devices, including:
•IBM-compatible computers, including laptops, up to 1024x768
resolution.
•Apple Macintosh and PowerBook computers up to 1024x768
resolution.
•Most standard VCRs, camcorders and laser disc players.
Unpacking the Projector
NOTE: The 425 ships standard
with computer and audio cables. If
you want mouse control of your
computer, you must order the
optional CableWizard and remote.
The projector comes with the items shown in Figure 1. Check to
make sure all are included. Contact your In Focus dealer imme-
diately if anything is missing.
If you are experienced in setting up presentation systems, use the
LP 425 Quick Start card that was included in the shipping box. For
complete details on connecting and operating the projector, refer
to this User’s Guide. User’s Guides are also available for down-
load from our website at www.infocus.com.
2
Introduction
NOTE: The contents of your
shipping box may vary depending
on the projector configuration
you’ve ordered.

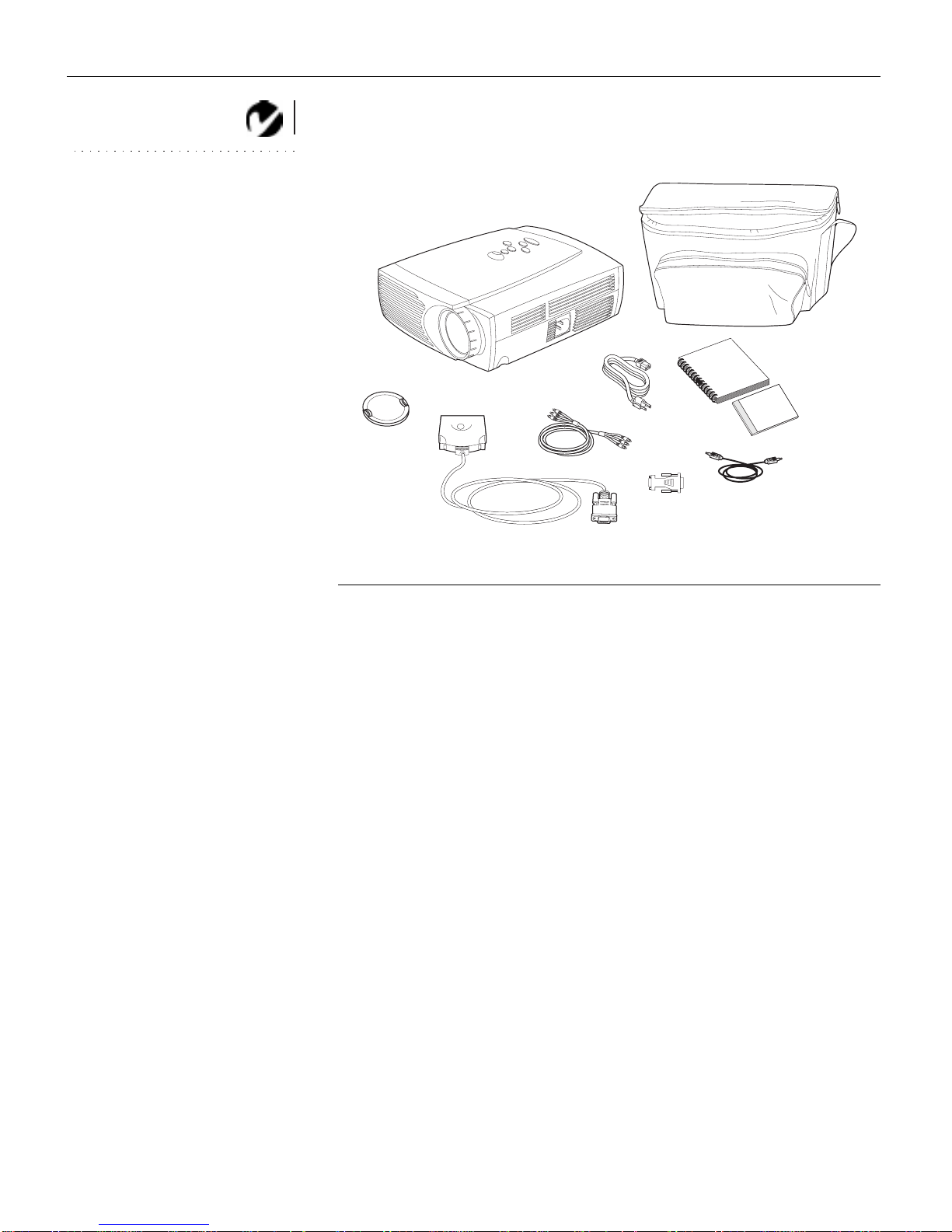

FIGURE 1
Shipping box contents
1. LP 425 projector 5. RCA audio/video (A/V) cable
2. Soft carry case 6. Audio cable
3. LP 425 User’s Guide and
Online User Guide CD 7. Macintosh adaptor
4. power cord 8. CableWizard Lite cable
9. Lens cap
1
2
3
4
5
6
7
8
9
3

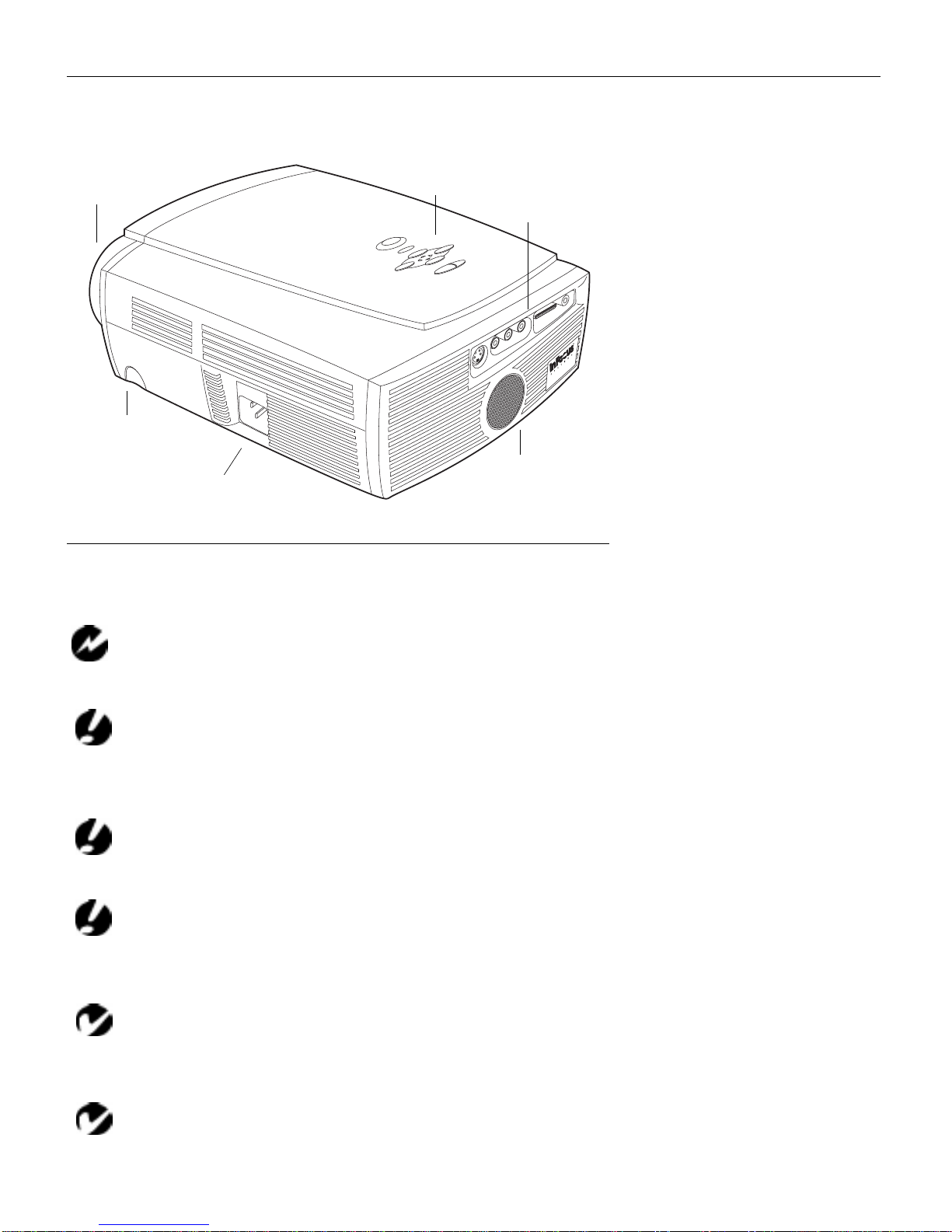

FIGURE 2
Side view of projector
Usage Guidelines
Do not look directly into the projection lens when the projector is
turned on. The bright light may harm your eyes.
Do not block the grills on the projector. Restricting the air flow can
cause it to overheat and turn off. If this happens, you must wait a minute
before attempting to turn it back on.
Handle the projector as you would any product with glass compo-
nents. Be especially careful not to drop it.
Avoid leaving the projector in direct sunlight or extreme cold for
extended periods of time. If this happens, allow it to reach room temper-
ature before use.
This projector is not intended for use in mainframe computer
rooms as defined in the Standard for the Protection of Electronic Com-
puter/Data Processing Equipment, ANSI/NFPA 75.
Transport the projector in a vendor-approved hard or soft case.
Part numbers for these cases are listed on page 35.
connector panel
speaker
focus ring
elevator button
power
cord
connector
keypad
4
Introduction
If You Need Assistance
The first place to look for help is in this manual. Be sure to check
the guidelines in “Troubleshooting” on page 29.
If this manual doesn’t answer your question, call your In Focus
dealer. You can also call In Focus Customer Service directly at
1-800-799-9911. Call between 5 a.m. and 5 p.m. PST, Monday
through Friday. Service is available in North America after hours
and on weekends for a fee at 1-888-592-6800.
In Europe, call In Focus in The Netherlands at
(31) 35-6474010. In Singapore, call (65) 332-0659. Or, send us an
e-mail at techsupport@infocus.com
Our World Wide Web address is http://www.infocus.com.
Warranty
This product is backed by a limited two-year warranty. The
details of the warranty are printed at the back of this manual. A
longer term warranty can be purchased from your In Focus
dealer. Refer to page 36 for the part number.
5
SETTING UP THE PROJECTOR
1Place the projector on a flat surface.
•The projector must be within 10 feet (3 m) of your power
source and within 6 feet (1.8 m) of your computer.
•If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear Projection”
on page 23 to reverse the image.
2Position the projector the desired distance from the screen.
•The distance from the lens of the projector to the screen
determines the size of the projected image. Figure 3 shows
three projected image sizes. For more information about
image size, see “Projected Image Size” on page 43.
3Make sure the projector and your computer are turned off.

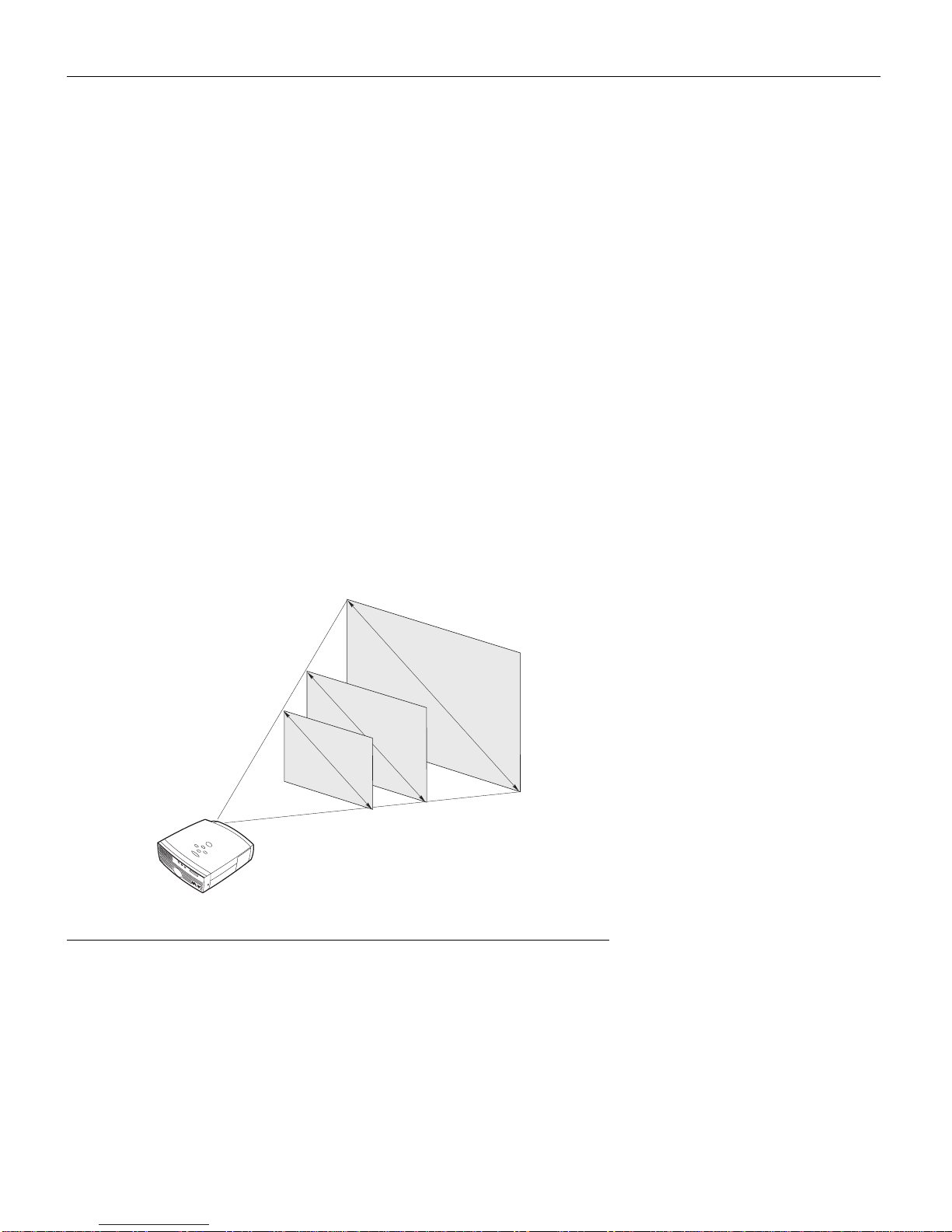

FIGURE 3
Projected image size
4.3ft.
21.3ft.
8.5ft.
5 ft.10 ft. 25 ft.
6
Setting up the Projector
NOTE: Before you continue,
make sure the projector and your
equipment are turned off. If you’re
connecting a computer, make sure
the distance between it and the
projector is 6 feet or less.

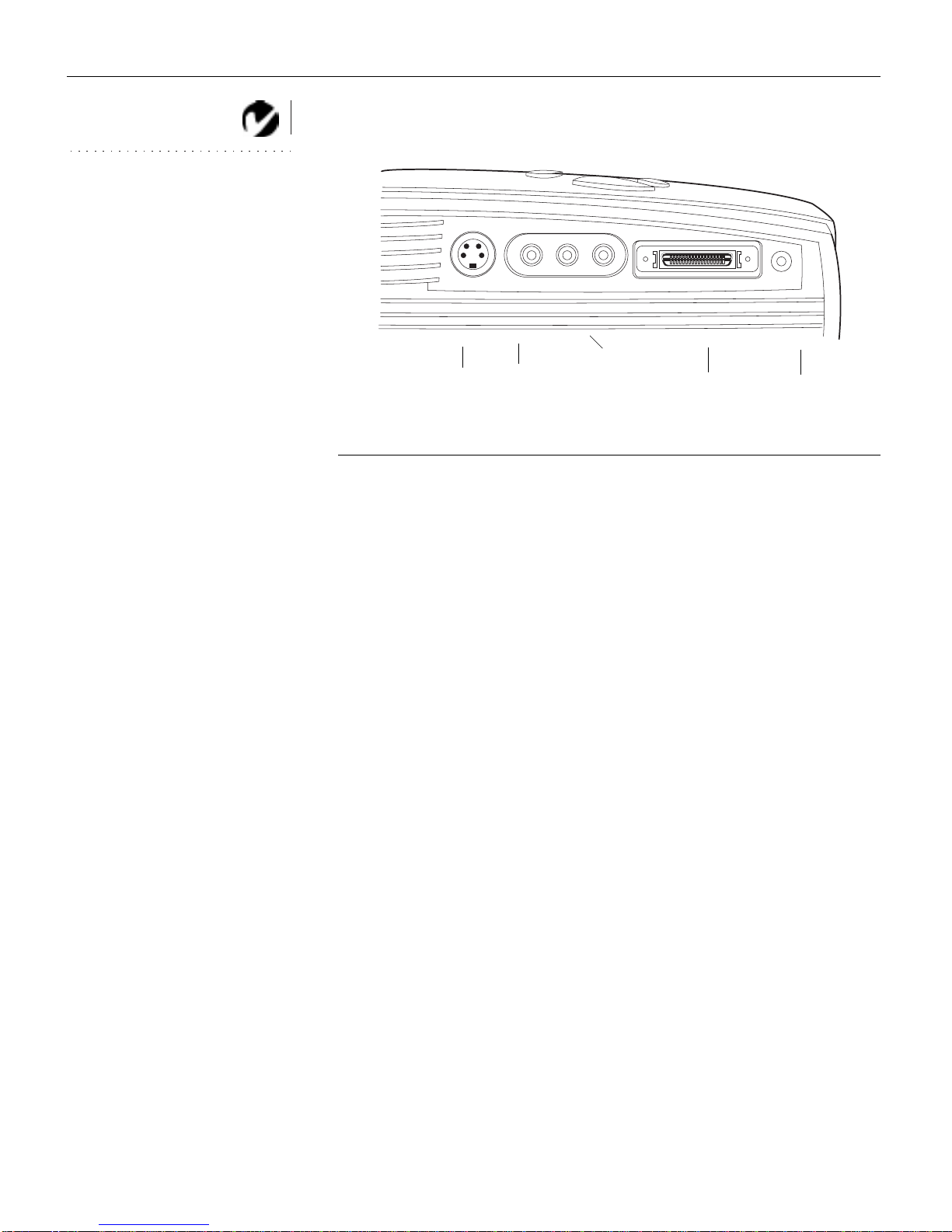

FIGURE 4
Connector panel
CableWizard
s-video composite
video
L/R audio in
audio in
computer
Lite
(for video source)
