MAINTENANCE & TROUBLESHOOTING

This section describes how to:

•clean the lens

•clean the fan intake filter

•replace the projection lamp

•replace the batteries in the remote control

•use the Kensington lock feature

•troubleshoot the projector

Cleaning the Lens

Follow these steps to clean the projection lens:

1Apply a non-abrasive camera lens cleaner to a soft, dry cloth.

•Avoid using an excessive amount of cleaner and applying

the cleaner directly to the lens.

•Abrasive cleaners, solvents or other harsh chemicals might

scratch the lens.

2Lightly wipe the cleaning cloth over the lens.

3If you don’t intend to use the projector immediately, replace

the lens cap.

Cleaning the Fan Intake Filter

The fan intake filter on the bottom of the projector catches dust

and particles in the air. If the filter becomes clogged, the projector

does not cool properly and may malfunction. To prevent this,

clean the filter after every 100 hours of use.

1Turn off the projector and unplug the power cord.

2Remove the lamp door.

•Remove the screw on the outside of the lamp door

(Figure 27).

•Pull the lamp door up and remove it.

Maintenance & Troubleshooting

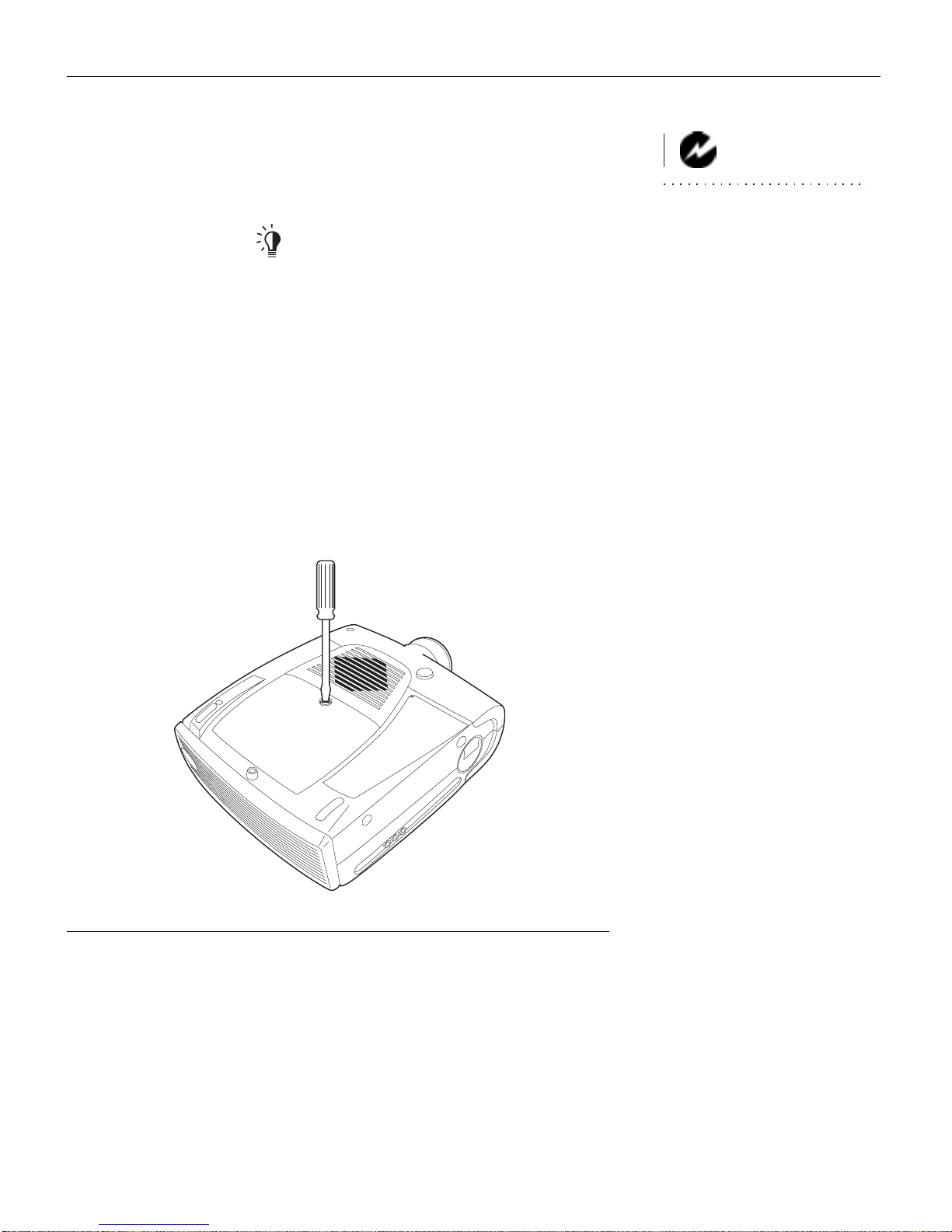

IGURE 27

Removing the lamp and filter doors

3Using a screwdriver or your hand, push the tab on the filter

door forward and lift the door out.

4Clean the filter.

•Use a vacuum cleaner set on low power to remove the dust

and dirt.

FIGURE 28

Cleaning the air filter

5Replace the filter.

•First, insert the side with the tabs, then press the other end

in place.

Replacing the Projection Lamp

WARNING: To avoid burns,

allow the projector to cool for at

least 30 minutes before you open

the lamp module door. Never

extract the lamp module while the

lamp is operating.

The lamp hour counter in the Status menu counts the number of

hours the lamp has been in use. After 3000 hours of use, the lamp

monitor LED, marked on the top of the projector near the

keypad, lights yellow. For optimum results, the lamp should be

replaced at this time. You can order new lamp modules from your

In Focus dealer. See “Accessories” on page 49 for information.

Follow these steps to replace the projection lamp:

1Turn off the projector and unplug the power cord.

2Wait 30 minutes to allow it to cool thoroughly.

3Using a small, flat-blade screwdriver, loosen the screw on the

outside of the lamp door (Figure 29).

4Pull the lamp door up and remove it.

FIGURE 29

Removing the lamp module door

5Loosen the two non-removable screws on the outside of the

module (Figure 30).

6Remove the module by grasping its handle and pulling it out

of the projector (Figure 30).

Maintenance & Troubleshooting

IGURE 30

Removing the lamp module

WARNING: Do not drop the

lamp module or touch the glass

bulb! The glass may shatter and

cause injury.

7Align the new lamp module in the correct direction.

8Gently push the module in as far as it goes.

9Tighten the screws on the outside of the module.

10 Reposition the lamp door.

11 Tighten the lamp door screw.

12 Plug in the power cord and turn the projector back on. The

lamp monitor light and lamp hour counter in the Status menu

are automatically reset.

Replacing the Batteries in the Remote Control

The life of the batteries depends on how often and how long you

use the remote. Symptoms of low battery charge include erratic

responses when using the remote and a reduced range of opera-

tion.

Follow these steps to replace the batteries:

1Turn the remote face down in your hand.

2Slide the battery cover off the end of the remote by pressing

on it with the heel of your hand.

3Remove the old batteries.

4Install two new AA alkaline batteries. Make sure you install

each in the correct direction.

5Slide the battery cover back on the remote.

Using the Kensington Lock

The projector has a Kensington Security Standard connector for

use with a Kensington MicroSaver Security System (Figure 31).

Refer to the information that came with the Kensington System

for instructions on how to use it to secure the projector.

FIGURE 31

Installing the Kensington lock

Maintenance & Troubleshooting

Troubleshooting

If you’re experiencing trouble with the projector, follow these

steps to make sure everything is properly connected before you

call Technical Support for assistance.

1Check cable connections. Verify that all computer, CableWiz-

ard and power cables are properly connected.

2Verify that all power is switched on.

3Verify that the projector is not in standby (the Standby LED on

the keypad is lit when the projector is in standby).

4If the projector still doesn’t display an image, restart the com-

puter.

NOTE: Macintosh computers

require a specific power-up

sequence: the projector must be

turned on before you turn on the

computer.

5If the problem still exists, unplug the cable from the computer

and check the computer monitor’s display. The maximum res-

olution that the projector can display is 1280x1024 pixels, pref-

erably 1024x768. The problem might be with the graphics

controller in your computer rather than with the projector.

When you reconnect the projector, remember to turn the com-

puter and monitor off before you power up the projector.

Power the equipment back up in this order: projector, monitor,

computer.

6If you’re using a laptop computer and it is not displaying your

presentation, make sure you have activated the computer’s

external video output. Most laptop computers do not auto-

matically turn on their external video port when a secondary

display device such as a projector is connected. Refer to

page 51 for more information.

7If the problem still exists, read through the problems and solu-

tions in this chapter.

Solutions to Common Problems

Problem: Nothing on projection screen

•Make sure that the power cord is properly connected to a func-

tional AC electrical outlet. Make sure that the power cord is

also properly connected to the projector and the green Power

LED is lit.

•If the projector is plugged into a power strip, make sure the

power strip is turned on.

•Make sure you have removed the lens cap from the projection

lens at the front of the projector.

•Make sure the projector is turned on.

•Check the projector’s lamp to ensure that it is securely con-

nected in the lamp module. See “Replacing the Projection

Lamp” on page 37.

•Make sure that the CableWizard and the cables do not have any

bent pins. Check the power cord for bent pins also.

Problem: Color or text not being projected

•You might need to adjust the brightness up or down until the

text is visible. Refer to “Brightness + or -” on page 22 for more

information.

•Verify that the appropriate input source is selected. See “Com-

puter” on page 22 or “Video” on page 23.

Problem: The screen resolution is not right

•Make sure the computer’s graphics card is set for a resolution

of no greater than 1280x1024.

Problem: Image isn’t centered on the screen

•Reposition the image. Refer to “Horizontal position” on

page 30 and “Vertical position” on page 30.

•If you’re using an extension cable between the CableWizard

and the projector, make sure it’s In Focus-approved.

Maintenance & Troubleshooting

Problem: Only the start-up screen displays

•Verify that the cables are connected correctly. Check to see that

the CableWizard computer cable is correctly connected to the

monitor connector on the computer (this is the connector

where your monitor cable usually goes.) See page 6 for connec-

tion procedures.

•Verify that the proper input source is connected. See “Com-

puter” on page 22 or “Video” on page 23.

•You might need to turn everything off and power up the equip-

ment again. Make sure you power up in this order: projector,

computer monitor, computer. It is especially important that

you follow this sequence for Macintosh computers.

•Make sure your computer’s graphics board is installed and

configured correctly.

If you’re using Windows 3.x:

1In the Windows Program Manager, double-click the Win-

dows Setup icon in the Main program group.

2Verify that the Display setting is 1280x1024 or less.

If you’re using Windows 95 or Windows 98:

1Open “My Computer” icon, the Control Panel folder and

then the Display icon.

2Click the Settings tab.

3Verify that the Desktop area is set to 1280x1024 or less.

Also check the following:

•Does your computer have a compatible graphics board? The

projector isn’t CGA or EGA compatible.

•Is your computer’s graphics board turned on? This is espe-

cially true for laptop computers. See “Portable and Laptop

Activation Chart” on page 51.

Problem: Image is too wide or narrow for screen

•You might need to manually adjust the tracking to reduce or

enlarge the projected image. Refer to “Manual Tracking” on

page 30.

•Adjust the resolution of your monitor if it’s greater than

1280x1024. Only this resolution at 75 Hz or less will display on

the projector.

Problem: Image is out of focus

•Turn the projection lens to focus the image.

•Make sure the projection screen is at least 4 feet (1.2m) from the

projector.

•Make sure the projector is turned off, then check the projection

lens to see if it needs cleaning.

Problem: Image and menus are reversed left to right

•Rear projection mode is probably turned on. Switch back to for-

ward projection from the Controls menu. The image should

immediately return to forward projection. See “Rear Projec-

tion” on page 32.

Problem: Image and menus are upside down

•Ceiling mode is probably turned on. Turn off the mode from

the Controls menu. The image should immediately return to

forward projection. See “Ceiling Projection” on page 31.

Problem: the projector displays vertical lines, “bleeding” or spots

•Adjust the brightness. See “Brightness + or -” on page 22.

•Make sure the projector is turned off, then check the projection

lens to see if it needs cleaning.

Problem: no sound

•Press the mute button.

•Adjust volume.

•Verify audio/input connections.

•Adjust audio source.

Maintenance & Troubleshooting

Problem: Image is “noisy” or streaked

Try these steps in this order.

1Deactivate the screen saver on your computer.

2Turn Auto Image off and then back on again. See “Auto

Image” on page 29.

3Adjust the synchronization and tracking manually to find an

optimal setting. See “Manual Sync” on page 29 and “Manual

Tracking” on page 30.

•If you’re using an extension cable between the CableWizard

and the projector, make sure it’s In Focus-approved.

•The problem could be with your computer’s graphics board. If

possible, connect a different computer.

Problem: Projected colors don’t match the computer or video

player’s colors

•Adjust the brightness, tint and/or contrast from the Display

menu. Just as there are differences in the displays of different

monitors, there are often differences between the computer

image and the projected image. See “Brightness + or -” on

page 22, “Tint” on page 25, and “Contrast” on page 25.

Problem: Lamp seems to be getting dimmer

•The lamp begins to lose brightness when it has been in use for a

long time. Replace the lamp as described in “Replacing the Pro-

jection Lamp” on page 37.

Problem: Lamp shuts off

•A minor power surge may cause the lamp to shut off. Turn the

projector off, wait at least 30 seconds, then turn it back on.

Problem: Remote not operating correctly

•You might need to replace the batteries. See “Replacing the Bat-

teries in the Remote Control” on page 39.

•Make sure you’re pointing the remote at the top of the projec-

tor, or at the projection screen.

•Make sure the remote is within its operating range of 25 feet.

Altri manuali per LP 750 LiteMount

Altri manuali InFocus Proiettore

InFocus

InFocus X1 Manuale utente

InFocus

InFocus IN5542 Manuale utente

InFocus

InFocus SP5000 Guida rapida

InFocus

InFocus LP610 Manuale utente

InFocus

InFocus Learn Big IN3102 Manuale utente

InFocus

InFocus LP 650 Guida per l'amministratore

InFocus

InFocus LitePro Manuale utente

InFocus

InFocus LP 740 LiteMount Manuale utente

InFocus

InFocus LP630 Manuale utente

InFocus

InFocus A4 Manuale utente

InFocus

InFocus LP 850 Manuale utente

InFocus

InFocus SP7200 Istruzioni per l'installazione e il funzionamento

InFocus

InFocus IN1116 Manuale utente

InFocus

InFocus LP 850 Manuale utente

InFocus

InFocus IN118HDSTa Manuale utente

InFocus

InFocus in114ST Guida all'installazione

InFocus

InFocus LP 740 LiteMount Manuale utente

InFocus

InFocus SP5700 Manuale utente

InFocus

InFocus LP290 Manuale utente

InFocus

InFocus LP70+ Manuale utente

InFocus

InFocus LASER PROJECTOR LP 540 Manuale utente

InFocus

InFocus LP 240 Manuale utente

InFocus

InFocus in32 in34 Manuale utente

InFocus

InFocus LP210 Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente
